    Default (diy)voltage stabilizer



    It seems that theres alot of voltage stabilizer in the market..Lots of voltage stabiliser out there like raizin, power abuser, vs1, ignition earth.. Some are costly some are reasonable.. If youre on a tight budget, dont wanna spend money on ready to mount voltage stabilzer and have some time to spare, im gonna show you how to make your own quality voltage stabilizer at less than 20 bucks..

    The schematic of voltage stabilizer with led indicator and fuse


    There are lots of website with detailed tutorial on making one yourself.. Just google diy voltage stabilzer..

    Stuff you will need:
    Pcb board, cost $1.20
    To solder all your capacitors


    Wires, cost $4.30
    Dont use normal wires as it will get burn.. Use the thick one..


    Lugs, cost $2.10
    to connect the wires to the battery and pcb board


    The capacitor itself, cost $4.90 for 10 piece 25v 1000uf.. Im using low esr capacitor.. Anything that is 25v dc capacitor will work fine.. 10 piece makes up 10000uf which is more than normal vs like those blue raizin.. You can add as much capacitor as you like..


    You will also need a soldering iron set and some screws..

    Solder your connectors to the wire


    Drill the pcb board and mount the wire and screw on.. I solder around the pcb board where the screw will come in contact with..



    I then start to solder all the capacitor



    Its done..


    Next, just find a hobby box to put everything inside about 2 bucks.. And mount it to your bike.. Positive to positive, negative to negative.. Thats all..

    For those intereted to make your own power abuser ignite, power booster, ignition advance booster, spark optimizer for less than 20 bucks i will upload the tutorial soon.. It basically the same as voltage stabilizer..
    my two babes..



    hot babes...

  2. #2
    wInD20
    has no status.
    Class 2B
    Join Date
    Jan 2009
    Location
    batok
    Posts
    236
    Feedback Score
    0
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default

    nice wanna man...




  3. #3
    Lexanez
    loves Saber!
    TeePee Lexanez's Avatar
    Join Date
    Jun 2007
    Location
    Under your bed
    Posts
    3,051
    Feedback Score
    1 (100%)
    Mentioned
    19 Post(s)
    Tagged
    1 Thread(s)

    Default

    Hmm, thought about replacing 5 of those 1000 uf to something smaller instead?

    Kudos to you for your effort!
    I'm a Tutor! Proud to be one!


  4. #4
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Cant really find the smaller ones in sim lim.. Tantalum capacitor you mean??..
    my two babes..



    hot babes...

  5. #5
    Lexanez
    loves Saber!
    TeePee Lexanez's Avatar
    Join Date
    Jun 2007
    Location
    Under your bed
    Posts
    3,051
    Feedback Score
    1 (100%)
    Mentioned
    19 Post(s)
    Tagged
    1 Thread(s)

    Default

    Ceramic ones. Think Sim Lim Tower should have them. Last i check, they do have it in stock. Kai Chin.



    This was the diagram I used.
    I'm a Tutor! Proud to be one!


  6. #6
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    That will do the trick as well.. The aim is to flatten the ripples made by the alternator.. Currently im more eager to make those spark optimizer tutorial.. They are selling good and very pricey at 230 bucks for a small black box that cost less than 10 bucks.. Made a few for my friends.. See when the parts arrive i will put the tutorial up.. Its easy to make.. Once its mAde, will give the sparky away, since i cant install on my bike..
    my two babes..



    hot babes...

  7. #7
    jayz
    ORD LOH
    Class 2 jayz's Avatar
    Join Date
    Jul 2009
    Location
    Jurong East
    Posts
    1,002
    Feedback Score
    0
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)

    Default

    why you no post this thread earlier? i dont mind buying from you. you can make a profit. i brought my pivot voltage stabilizer for $140. wth!
    Yamaha x1
    Honda super 4 spec 1


  8. #8
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    I have a few questions...

    1) Voltage stabiliser for what?
    2) Where to connect the voltage stabiliser to?
    [2005 Yamaha YBR 125]


  9. #9
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    voltage stabilizer are made of nothing much but just capacitors connected in parallel to the motorcycle batteries... capacitors are used to filter or smooth out the ripples.. you can only see these ripples of waveform through oscilloscope.. i used to mess around with it...

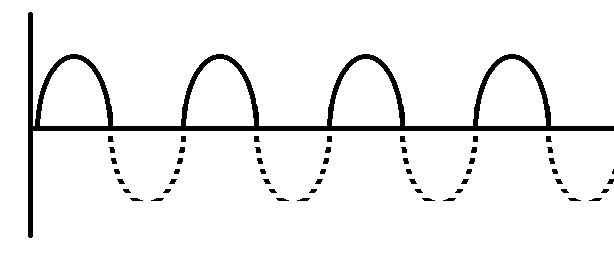

    ac current or alternating current waveform looks like this


    a rectifier is used to turn alternating current to direct current called DC.. the rectifiers made of only allows the current to move forward.. so it cuts off the bottom wave form to provide direct current

    to this


    in motorcycle alternator or so called magnetic coil, it produce multiple phase waveform similar to this

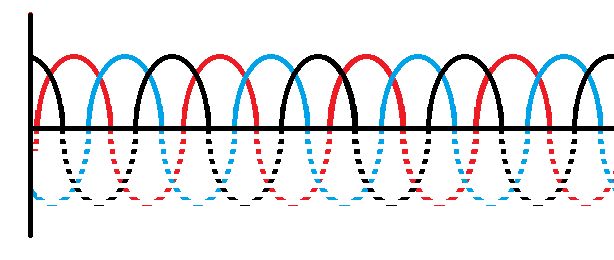

    after the stator coil produce its electricity from a moving magnets, the current goes through the bike rectifier.. most rectifier have common wires. 3 yellow for alternating current, 1 black for ground and 1 red for positive..

    to this

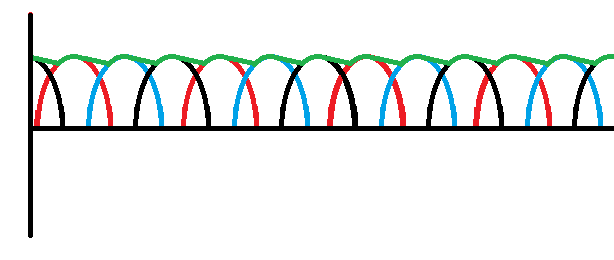

    with the help of capacitors in parallel, i helps to smooth out the ripples created by the alternating current.. the green line..

    to this


    in order to smooth out the current completely.. large capacitors are used to smooth out the fat wave and small capacitors are used to smooth out skinny wave.. thats the reason why some voltage stabilizer use variety of capacitor from small low uf to large high uf to get something like this

    to this


    names like power enhancer, power management unit, current simulator,,, battery tune are given to this device.. most of this that is connected in parallel to the battery are JUST A VOLTAGE STABILIZER... FACE THE FACT... ive seen bikes and cars that has more than 1 voltage stabilzer of different brands that he claims to give different use.. "this is current simulator, it gives all the electrical in your bike an equal amount of current, this is raizin, stabilize the voltage, this is battery donnue what optimizer, make your battery feels like new".. when i hear him say this and saw everything connected to the battery on his gsxr1000, i feel so so so so sorry for him.. might as well save all the money buy aftermarket pipe.. more power gain..
    my two babes..



    hot babes...

  10. #10
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    anyway, if theres any error, feel free to correct me.. electronics are just the things i learn in school that turns out to be only a hobby of mine... sad case..
    my two babes..



    hot babes...

  11. #11
    altya
    is just too poor
    Class 2 altya's Avatar
    Join Date
    Mar 2010
    Location
    Some where in the woods =)
    Posts
    1,062
    Feedback Score
    1 (100%)
    Mentioned
    5 Post(s)
    Tagged
    0 Thread(s)

    Default

    Nice DIY job... Would feel cheated if i buy outside voltage stabilizer for 100++

    U shld DIY more of it and start a CMO...

    Too bad i am not with engineering and soldering background if not I would have DIY myself




  12. #12
    zeke uchiha
    has no status.
    Class 2 zeke uchiha's Avatar
    Join Date
    Dec 2005
    Posts
    1,258
    Feedback Score
    0
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default

    Ups for u brother..
    Progress Is Impossible Without Change
    And Those Who Cannot Change Their Mind
    Cannot Change Anything.....

    ..FREEDOM..

  13. #13
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    The only experience i have with electronics is physics, D&T and building/modifying PCs. And i thought that capacitors their main purpose was to hold charge. Thanks all.
    [2005 Yamaha YBR 125]


  14. #14
    nbk3
    is offline.
    Class 2A nbk3's Avatar
    Join Date
    Jul 2011
    Posts
    573
    Feedback Score
    0
    Mentioned
    10 Post(s)
    Tagged
    1 Thread(s)

    Default

    in a ultra simplified summary:

    normal voltage/current behavior:


    with capacitors:

  15. #15
    jayz
    ORD LOH
    Class 2 jayz's Avatar
    Join Date
    Jul 2009
    Location
    Jurong East
    Posts
    1,002
    Feedback Score
    0
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)

    Default

    looks like alot of us outside is being cheated. sad case but true story. bro u shld start a CMO thread. for fun and to help other people. but how do you install it on bikes? you will need a casing to protect it from rain water going thru your seat eh?
    Yamaha x1
    Honda super 4 spec 1


  16. #16
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Nbk3, nice sample, nice oscilloscope.. Most of the voltage stabilizer i see is using a normal hobby box.. You can add silicone gasket to prevent water from seeping in.. But most of the plastic box i use didnt have any water problem. Cmo??.. See how bah...

    The normal hobby box


    Theres also aluminium that is quite costly.. For cosmetic looks only.. Use it for one of my project.. The plastic one still better..


    Box are available in lots of size.. You can find them at sim lim tower.. Didnt see the aluminium box there..
    my two babes..



    hot babes...

  17. #17
    ludacris10
    Seen my S4??
    Class 2B ludacris10's Avatar
    Join Date
    Oct 2008
    Posts
    397
    Feedback Score
    0
    Mentioned
    3 Post(s)
    Tagged
    0 Thread(s)

    Default

    Actually i still dont know what does stabilizing the voltage do for a bike...
    WTS: CB400-PB1

    Search my threads! Thanks for viewing!

  18. #18
    fx110
    has no status.
    SBF Lacer fx110's Avatar
    Join Date
    Jul 2007
    Location
    Yew Tee
    Posts
    5,648
    Feedback Score
    4 (100%)
    Mentioned
    13 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by yinghai View Post
    voltage stabilizer are made of nothing much but just capacitors connected in parallel to the motorcycle batteries... capacitors are used to filter or smooth out the ripples.. you can only see these ripples of waveform through oscilloscope.. i used to mess around with it...




    ac current or alternating current waveform looks like this


    a rectifier is used to turn alternating current to direct current called DC.. the rectifiers made of only allows the current to move forward.. so it cuts off the bottom wave form to provide direct current

    to this


    in motorcycle alternator or so called magnetic coil, it produce multiple phase waveform similar to this


    after the stator coil produce its electricity from a moving magnets, the current goes through the bike rectifier.. most rectifier have common wires. 3 yellow for alternating current, 1 black for ground and 1 red for positive..

    to this


    with the help of capacitors in parallel, i helps to smooth out the ripples created by the alternating current.. the green line..

    to this


    in order to smooth out the current completely.. large capacitors are used to smooth out the fat wave and small capacitors are used to smooth out skinny wave.. thats the reason why some voltage stabilizer use variety of capacitor from small low uf to large high uf to get something like this

    to this


    names like power enhancer, power management unit, current simulator,,, battery tune are given to this device.. most of this that is connected in parallel to the battery are JUST A VOLTAGE STABILIZER... FACE THE FACT... ive seen bikes and cars that has more than 1 voltage stabilzer of different brands that he claims to give different use.. "this is current simulator, it gives all the electrical in your bike an equal amount of current, this is raizin, stabilize the voltage, this is battery donnue what optimizer, make your battery feels like new".. when i hear him say this and saw everything connected to the battery on his gsxr1000, i feel so so so so sorry for him.. might as well save all the money buy aftermarket pipe.. more power gain..
    good info.
    2007-Honda NSR150SP
    2008-Honda NSR150SP,CB400 PB1,CBR400RR NC23
    2009-Honda NSR150SP,CB400 PB1,CBR400RR NC23
    2010-Honda C70,CB400 PB1,CBR400RRK,Suzuki GSX1300R隼
    2011-Honda C70,Yamaha 125z Super Sport ,XJ900S Diversion
    2012-on Honda C70,Yamaha XJ900S Diversion

  19. #19
    ben1112
    has no status.
    TeePee ben1112's Avatar
    Join Date
    Nov 2005
    Posts
    2,165
    Feedback Score
    0
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default

    How about ignition advancer? I can't think of how you can alter the advance w/o messing with the CDI or Pickup. And what does spark optimizer does? Seems like some fancy name for something pretty mundane.

    Please shed some light. Thanks!
    Scooter Tuning Is Not A Crime.

  20. #20
    fx110
    has no status.
    SBF Lacer fx110's Avatar
    Join Date
    Jul 2007
    Location
    Yew Tee
    Posts
    5,648
    Feedback Score
    4 (100%)
    Mentioned
    13 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by ben1112 View Post
    How about ignition advancer? I can't think of how you can alter the advance w/o messing with the CDI or Pickup. And what does spark optimizer does? Seems like some fancy name for something pretty mundane.

    Please shed some light. Thanks!
    http://peony888.com/VS/sobogus.htm
    alot of "korek" item...
    included ignition advancer.
    2007-Honda NSR150SP
    2008-Honda NSR150SP,CB400 PB1,CBR400RR NC23
    2009-Honda NSR150SP,CB400 PB1,CBR400RR NC23
    2010-Honda C70,CB400 PB1,CBR400RRK,Suzuki GSX1300R隼
    2011-Honda C70,Yamaha 125z Super Sport ,XJ900S Diversion
    2012-on Honda C70,Yamaha XJ900S Diversion

  21. #21
    kmax
    rides bicycle
    SBF Cruisers kmax's Avatar
    Join Date
    Aug 2006
    Location
    valle d'or
    Posts
    11,350
    Feedback Score
    7 (100%)
    Mentioned
    43 Post(s)
    Tagged
    0 Thread(s)

    Default

    good work.. thanks for sharing..




  22. #22
    c4ble
    loves sv650
    Class 2
    Join Date
    Dec 2004
    Location
    SK
    Posts
    1,075
    Feedback Score
    1 (100%)
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default

    547-2832
    RS
    47μF 16V dc 59mA - 1000Hours SGD0.17Each (In a Pack of 5)


    Real time qty checker

    215-5663
    RS
    1000μF 16V dc 810mA 4μA 1000Hours
    Now
    SGD1.07
    SGD4.50Each (In a Pack of 5)


    Real time qty checker


    711-0987
    RS
    1000μF 16V dc 600mA - 2000Hrs
    Now
    SGD0.22
    SGD0.25Each (In a Pack of 25)


    Real time qty checker



    711-0980
    RS
    1000μF 16V dc 580mA - 2000Hrs
    Now
    SGD0.19
    SGD0.22Each (In a Pack of 25)


    Real time qty checker



    706-3437
    RS
    4700μF 16V dc 1530mA - 2000Hrs
    Now
    SGD4.07
    SGD4.62Each (In a Pack of 2)


    Real time qty checker



    711-1025
    RS
    4700μF 16V dc 1450mA - 2000Hrs
    Now
    SGD0.67
    SGD0.76Each (In a Pack of 10)


    Real time qty checker



    711-0952
    RS
    470uF 16V dc 380mA - 2000Hrs SGD0.13Each (In a Pack of 50)


    Real time qty checker


    711-0959
    RS
    470uF 16V dc 400mA - 2000Hrs
    Now
    SGD0.03
    SGD0.17Each (In a Pack of 25)


    Real time qty checker



    711-0996
    RS
    1000μF 16V dc 630mA - 2000Hrs
    Now
    SGD0.25
    SGD0.29Each (In a Pack of 25)


    Real time qty checker



    707-6625
    RS
    470uF 16V dc 385mA - 1000Hrs SGD0.61Each (In a Pack of 10)


    Real time qty checker


    711-0977
    RS
    1000μF 16V dc 570mA - 2000Hrs
    Now
    SGD0.22
    SGD0.25Each (In a Pack of 25)


    Real time qty checker


    Room clearance sale! Brand New Full Leather TPU glove for sale @ $40.

  23. #23
    CSV
    has restored the IMPULSE!!!
    TeePee CSV's Avatar
    Join Date
    Oct 2009
    Location
    Jurong East
    Posts
    1,862
    Feedback Score
    0
    Mentioned
    16 Post(s)
    Tagged
    2 Thread(s)

    Default

    bro, you should diy and then sell in garage sales. can earn i think. i will buy from you if you do it!
    February 2011 - March 2012 = Phantom TA 200
    March 2012 - August 2013 = Suzuki Impulse 400
    Present = BMW (Bus, MRT, Walk)



  24. #24
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    Agreed. Some income to help you along this tough journey...

    So basically, people order, then you make. People order, then you make. If you make make make, then people may not order. So in other words, like CMO like that ah...
    [2005 Yamaha YBR 125]


  25. #25
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Power abuser ignition advancer??.. Its basically the same product as spark optimizer and power booster.. I really wonder how the price shoot up to 200 plus when the first ever built power booster cost 30 bucks.. A concept taken from super old cars with distributer/contact point brought to the modern world.. Im very 100 percent guarranty sure these people selling dont even know how the product came about.. This product had been copied and resale many many many times.. Some even claimed that its thier own product.. Often with patent pending printing.. Explanation of the microchip boosting the power on how it works..

    It only has pnp type transistor, barrier diodes, fancy leds and a couple of twisted soldered wires on the capacitors... Wheres the microchip?? Work the maths..

    How it work? In modern vehicles, coils are charge before hand.. the ecu then interrupts or break the circuit to fire the spark in the cylinder.. They dont work like normal cdi whereby the capacitor in the cdi unit is charge before it discharge to the coil to fire the spark plug.. Most modern coils are built into the spark cap itself... Some call it pencil coil if im not wrong.. These coils requires time to charge.. And to reduce the dwelling time, capacitors are used.. All thanks to its discharging rate.. It doesnt alter any timing.. No advance timing at all.. To advance or retard would require a change of woodruff key, timing key, shifting pick up coils or hall sensor and the best, fully adjustable ignition module, timing map to play around with...
    my two babes..



    hot babes...

  26. #26
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by crazydj View Post
    Agreed. Some income to help you along this tough journey...

    So basically, people order, then you make. People order, then you make. If you make make make, then people may not order. So in other words, like CMO like that ah...
    Will think about it... I only have my left hand..
    my two babes..



    hot babes...

  27. #27
    altya
    is just too poor
    Class 2 altya's Avatar
    Join Date
    Mar 2010
    Location
    Some where in the woods =)
    Posts
    1,062
    Feedback Score
    1 (100%)
    Mentioned
    5 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by yinghai View Post
    Will think about it... I only have my left hand..
    Will support u if there is a cmo, btw u installed ur DIY version on ur bike? hows the response?

  28. #28
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Didnt really feel any lei.. I can only
    See brighter headlights... I tried making lots of raizin replica from blue to purple mega raizin, revtec replica(they using ac capacitor, donnue what effect on dc application), ds1 replica.. All not much effect.. Donnue How others feel the power.. Wonder whats on the dyno..
    my two babes..



    hot babes...

  29. #29
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by yinghai View Post
    Didnt really feel any lei.. I can only
    See brighter headlights... I tried making lots of raizin replica from blue to purple mega raizin, revtec replica(they using ac capacitor, donnue what effect on dc application), ds1 replica.. All not much effect.. Donnue How others feel the power.. Wonder whats on the dyno..
    All the replica was copied from the authentic product that i bought for fun...
    my two babes..



    hot babes...

  30. #30
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    Eh, my meter ah, the bulbs keep blowing like nobody's business. Use the correct bulbs, not the correct bulbs also, the bulbs will blow in a matter of a few months...

    Will a voltage stabiliser from the (wherever i should put it, maybe the rectifier?) prevent this kinda crap from happening?

    Already my fuel light and one meter bulb blow and my electrically controlled tachometer spoil in a span of one month plus. Bloody Chinese electrics.
    [2005 Yamaha YBR 125]


  31. #31
    fx110
    has no status.
    SBF Lacer fx110's Avatar
    Join Date
    Jul 2007
    Location
    Yew Tee
    Posts
    5,648
    Feedback Score
    4 (100%)
    Mentioned
    13 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by crazydj View Post
    Eh, my meter ah, the bulbs keep blowing like nobody's business. Use the correct bulbs, not the correct bulbs also, the bulbs will blow in a matter of a few months...

    Will a voltage stabiliser from the (wherever i should put it, maybe the rectifier?) prevent this kinda crap from happening?

    Already my fuel light and one meter bulb blow and my electrically controlled tachometer spoil in a span of one month plus. Bloody Chinese electrics.
    sound like your regulator gone,
    its integrated in your rectifier.
    2007-Honda NSR150SP
    2008-Honda NSR150SP,CB400 PB1,CBR400RR NC23
    2009-Honda NSR150SP,CB400 PB1,CBR400RR NC23
    2010-Honda C70,CB400 PB1,CBR400RRK,Suzuki GSX1300R隼
    2011-Honda C70,Yamaha 125z Super Sport ,XJ900S Diversion
    2012-on Honda C70,Yamaha XJ900S Diversion




  32. #32
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    I just changed the damn thing like last year only...
    [2005 Yamaha YBR 125]


  33. #33
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    China bulb.. Hard to find good quality t5 t10 bulbs.. I use led, last forever.. But my led is not the normal diy led everybody is selling in the forum which blows or spoil after sometime.. I tested many kinds of led.. From the well known seller to the cheap led.. In the end, i found the most reliable led from a friend of mine.. But it isnt cheap.. Most led here are diy.. Resistor, t5 plastic socket to mount the led and the led itself.. Even the ready made are diy.. The problem is that these led has resistor for 12v to 2-2.5v.. What happens when is that your bike varies from 10.8 to 14.4v.. So when it hits 14.4v(some 15v++), whats the voltage after the resistor?? BYE BYE LED T5 T10.. I know some will shoot me and try to prove me wrong about their led t10,t5.. Brightest led.. Blah blah.. But ive test lots of led.. Maybe i should make a thread on all my diy stuff.. Got lots of stuff you can diy and hands on..
    my two babes..



    hot babes...

  34. #34
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    Then i changed my tachometer in late 2010 and the new one spoil again, the same problem like the old one. Basically the needle will and cannot go over 5k rpm.
    [2005 Yamaha YBR 125]


  35. #35
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    I need to see your bike...
    my two babes..



    hot babes...

  36. #36
    RageMyDream
    has no status.
    TeePee RageMyDream's Avatar
    Join Date
    Oct 2003
    Posts
    2,654
    Feedback Score
    1 (100%)
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default

    Good work
    Thanks for sharing.

    I believe some of us have learned electronic before but never use in reality.

  37. #37
    RageMyDream
    has no status.
    TeePee RageMyDream's Avatar
    Join Date
    Oct 2003
    Posts
    2,654
    Feedback Score
    1 (100%)
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default

    For discussion purpose, you are using 4700u 25v capacitor. Would it be cheaper if to use a lower voltage like 4700u 16v?
    Last edited by RageMyDream; 11-02-2012 at 07:32 PM.

  38. #38
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    16v doesnt last.. I tried the 330uf to 10000uf. It will start to give way after a year on my ybr.. Attached to my rvf or class 2 bikes, i hear fireworks and brown liquid starts to flow out of the hobby box.. Tried on the cars.. Same.. Most voltage stabilizer i opened up used 25v..
    my two babes..



    hot babes...

  39. #39
    RageMyDream
    has no status.
    TeePee RageMyDream's Avatar
    Join Date
    Oct 2003
    Posts
    2,654
    Feedback Score
    1 (100%)
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default

    IC, thanks for the clarification

    Btw, the explanation for the use of such voltage stabilizer is to ensure a constant DC voltage out of the AC Generator. Does that means the rectifier is not doing a proper job? In another word, rectifier == voltage stabilizer?
    Last edited by RageMyDream; 12-02-2012 at 11:17 AM.

  40. #40
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Rectifier job is to convert ac to dc only... Yeap..
    my two babes..



    hot babes...

  41. #41
    crazydj
    is the Master of Magical Fuel Penguins
    TeePee crazydj's Avatar
    Join Date
    Jun 2008
    Posts
    3,506
    Feedback Score
    1 (100%)
    Mentioned
    30 Post(s)
    Tagged
    1 Thread(s)

    Default

    So the best place to put a voltage stabilizer is right after the rectifier?
    [2005 Yamaha YBR 125]





  42. #42
    RageMyDream
    has no status.
    TeePee RageMyDream's Avatar
    Join Date
    Oct 2003
    Posts
    2,654
    Feedback Score
    1 (100%)
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default

    Quote Originally Posted by yinghai View Post
    Rectifier job is to convert ac to dc only... Yeap..
    Yes, a rectifier converts AC to DC and from the Wikipedia, it will not produce a constant DC voltage output, a smoothing circuit or filter is required. I assume the bike manufacturers should have know this and a filter would be in place to get a constant DC.

    Hence, is there any need to install voltage stabilizer? The output could be the same.

  43. #43
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Agreed.. Do take note that the battery also plays a part.. At the end of the day, i dont see these in race vehicle at all..
    my two babes..



    hot babes...

  44. #44
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    DIY spark optimizer, spark booster, power booster, power abuser ignite or whatever they call this device for less than 10 bucks is ready and will upload the tutorial soon..

    my two babes..



    hot babes...

  45. #45
    Rahza
    has no status.
    Class 2B Rahza's Avatar
    Join Date
    Jan 2006
    Location
    Syonanto
    Posts
    305
    Feedback Score
    0
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default

    bro tis is excellent!!! cant wait to try it myself!!!!!! but dunno got time to go sim lim or not.. hahaha


    My ride's a b*tch... thank god i have a bike....

  46. #46
    zachsachok
    has no status.
    L Plate
    Join Date
    Dec 2011
    Posts
    18
    Feedback Score
    0
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Default

    cmo done? i want1

  47. #47
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Made some for the fellow forumers here.. Dont think i have time for any cmo at the moment..
    my two babes..



    hot babes...

  48. #48
    Hydher
    Is selling his GSXR1000
    SBF Phantom Knights Hydher's Avatar
    Join Date
    May 2008
    Posts
    3,547
    Feedback Score
    1 (100%)
    Mentioned
    32 Post(s)
    Tagged
    1 Thread(s)

    Default

    Hi ts, the negative and positive dont meet based on your welding?

    Also, i have a voltmeter. With this installed, this means that the readings will be more constant?

    Possible prolong the battery life and better performance and health of your electrical system and parts?
    Dragstar 400 classic & Zx6r

  49. #49
    yinghai
    has no status.
    TeePee
    Join Date
    Feb 2007
    Posts
    2,026
    Feedback Score
    1 (100%)
    Mentioned
    23 Post(s)
    Tagged
    0 Thread(s)

    Default

    Nope.. Thats what the sales claims.. to me, it doesnt do much..
    my two babes..



    hot babes...

  50. #50
    RageMyDream
    has no status.
    TeePee RageMyDream's Avatar
    Join Date
    Oct 2003
    Posts
    2,654
    Feedback Score
    1 (100%)
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)

    Default

    I tot this thing is a crap, how come u r making them?
