Headlight Socket melted

[ric78]

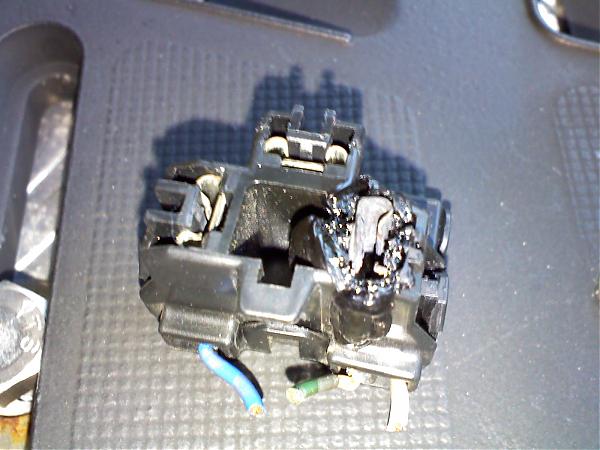

My socket melted probably due to the high heat range of the bulb I use.



Does anyone have this experience before?



I went to authorised spare part shop. They only sell this with the wire harness which will cost alot. Anyone knows where can I buy just the socket alone?

[Aalex82]

My socket melted probably due to the high heat range of the bulb I use.



Does anyone have this experience before?



I went to authorised spare part shop. They only sell this with the wire harness which will cost alot. Anyone knows where can I buy just the socket alone?



if u want normal one, go ah boy..

there got sell..

if u want high temp resistant like ceramic, u hav to find a fellow forumer nick as limbat..

[static369]

Sorry to OT.. I also have the same problem.. riding rxz... any other place to get the high heat socket?

[limbat]

This kind of melting usually the result of poor or loose fitting - notice only the left side melted & not the whole H4 connector. The melting is only on the slot that the loose connection - resulting in electrical sparking, thus melting that particular slot. Most of the time, this can be prevented by lightly greasing the connections when u change your bulb & always make sure all the connections fit tightly.

[ric78]

thanks for the info, Aalex82

[ric78]

Hi limbat, u are rite, u are genius

I remember I once did use a screwdriver to dig that connector.

So are u selling any of it?

[limbat]

Now y did u do that mate ?? ................. sure i have them - even the ceramic type .................

[ric78]

hai... that time the connector very hard to remove from the bulb, den i use force and i spoil my bulb.

So i use the screwdriver to loosen that connector loh...



would u mind taking the photo of your items and post it with your price here?

Im needing it urgently...thanks



maybe blade_trinity21 will need 1 too

[limbat]

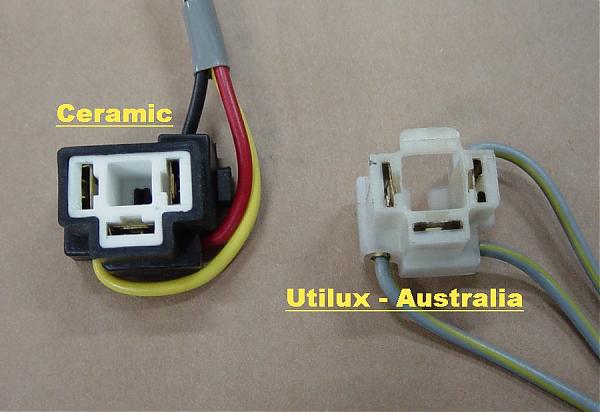

here are their pictures -

[ric78]

yoyo limbat...

I want the ceramic type.

how can I purchase from u? Price?

[Addictive]

here are their pictures -



oh ya, how much does the ceremic 1 cost??

[limbat]

yoyo limbat...

I want the ceramic type.

how can I purchase from u? Price?



oh ya, how much does the ceremic 1 cost??



hi guys - i pm u the price already .......... cheers

[limbat]

hai... that time the connector very hard to remove from the bulb, den i use force and i spoil my bulb.

So i use the screwdriver to loosen that connector loh...



would u mind taking the photo of your items and post it with your price here?

Im needing it urgently...thanks



maybe blade_trinity21 will need 1 too



Pls note - that some OE H4 connectors have a locking device - so to remove the H4 bulb - u need to depress a lock b4 the bulb can be removed. If that little pin is not press on the bulb will not be released from the holder & if u force the bulb pin will break. cheers

[ric78]

Hi limbat

you got mail...

[ric78]

Hi limbat

you got mail...

[limbat]

Hi.............. morning - i hv replied yr email ............ thank you 4 yr interest..
