[Need Help] How to take out x1 Front wheel?

[xdcphrx]

the mudguard is fitted with with the brake hose, how do i take it out because i need to change my mudguard. Do i need to dismantle the front wheel? or is there another way? and is it possible to DIY and take out the front wheel? is there any special tool needed?

[ProFatSir]

i dun think there is any lines attached to the mudguard.

do not need to remove wheel when changing the mudguard







see pic



http://images02.olx.com.ph/ui/1/65/49/6575649_1.jpg



http://images04.olx.com.ph/ui/1/01/35/3959635_1.jpg





if needed to remove the wheels

just remove the wheel and use back the plastic holder for the speedo lines or take the speedo line out and slot it thru.



take note...



do not depress the front brakes after the wheel are out.

put the speedo line "cup" sit nicly into the hub.

check the speedo working by turning the wheel before you tighten the wheels.

[indiewhispers]

if have to take out the brake lines means need to re-bleed the brakes? i also want to take out wheel to spray rims

[ProFatSir]

if have to take out the brake lines means need to re-bleed the brakes? i also want to take out wheel to spray rims



the brake hose are attached to the fork lah...thats what i see in the pictures.



take out brake hose confirm must bleed the lines.



just dun depress the front brakes .



wash your rims with degreaser dry it,

spary it thin layer by layer.

[xdcphrx]

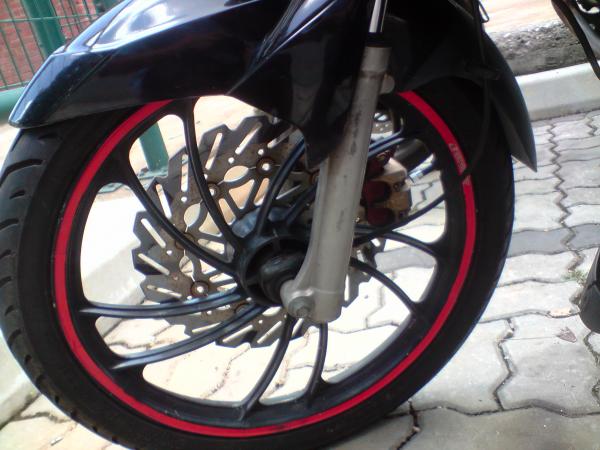

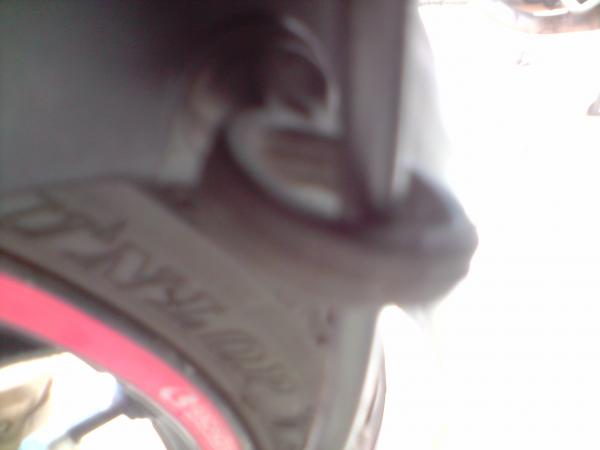

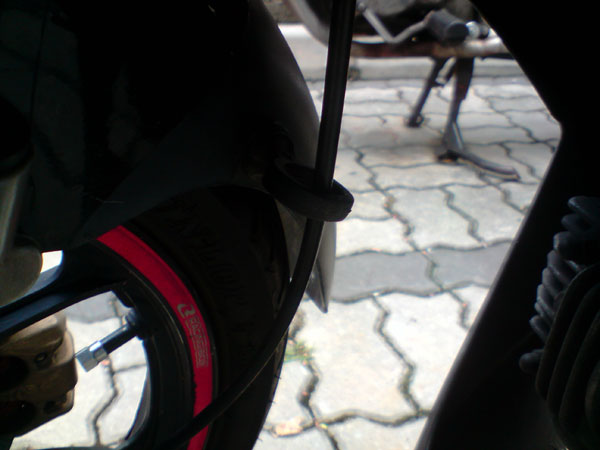

this is how my front wheel look like. there's this rubber thing attached to my mudguard. How do i go around and take it off?

[ProFatSir]

this is how my front wheel look like. there's this rubber thing attached to my mudguard. How do i go around and take it off?



that is the speedo line! not your so call brake line......



when you loosen the rims and put out the bolt,the speedo " cap" will come out.just unscrew it from the cup and you can take out



TAKE NOTE



do not depress the fronts brakes as once you press you need to go re-bleed the lines.



there is 2 "teeth" @ the speedo cup holder.pls place it into the rims correctly.

[xdcphrx]

ohhh. hahaah sorry sorry. i just starting riding 2 months ago. haha.

[ProFatSir]

ohhh. hahaah sorry sorry. i just starting riding 2 months ago. haha.



so how?done?



pls post pics and steps here.

[xdcphrx]

actually i just took out the speedo line and changed the mudguard. haha. i guess there wasn't a need to actually take out the whole wheel out.
