DIY Project: Alarm with remote startup for less than $15! (success)

[asmi]

Hi guys,



Need some help to install steelmate alarm, as i bought from a forumer here, and he doesn't have the wiring diagram, nor the manual. As it is in chinese, and i don't know how to read chinese, can any bros here help me with the wiring? The chinese character is very chim, cause even my GF doesn't know the meaning.

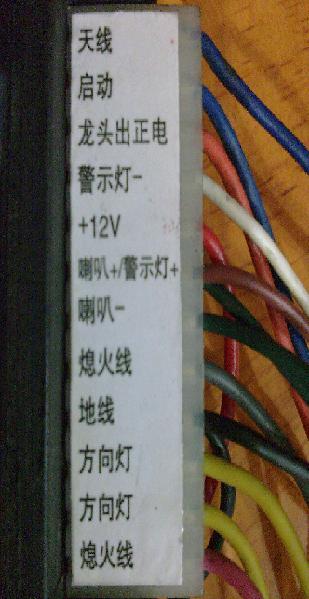

I will post a picture here, then you guys help me k.. The pic is with the attachment..

Edited August 19, 2009 by asmi

[asmi]

ups ups.. someone help me translate leeehhh

[ProFatSir]

gimme a min.i go w0rk it out

[ProFatSir]

remember to follow.

top to bottom

i use colour code

1-blue-antenna

2-blue-ingition

3-orange-i dunno

4-white-led light -

5-red-battery +

6-brown-siren and led light +

7-green-siren -

8-green-circuit cut off

9-black-battery or body ground

10/11-yellow-signal light left and right

12-red-circuit kill off





refer to this



http://www.singaporebikes.com/forums/showthread.php?t=249484



post # 12 got wiring



if simple installation

just use the +/- 5 and 9

led/siren 4/6 and 7

signal light 10/11



arm and disarm.

[asmi]

hmm.. i need an extra relay system to install this ?

[ProFatSir]

for the connection i sugest



if have is good,dun have also ok.

just add in a in line fuse will do.

[asmi]

ok.. i got the idea liao.. Hmm.. but still need to know whether, orange is for the ignition key, to connect to the relay ?

[asmi]

err.. i thought a relay is an electrically operated switch? how does an in-line fuse, helps in the circuit diagram ?

[ProFatSir]

do a google search on relay installation.

got relay pole 87/87a if i not wrong N/C



example

when you turn on the acc

circuit is off

acc off,parking.

circiut is on

[asmi]

Oh ok.. i thought the relay is used to ignite the bike, like for eg. i press the button, the bike will power on, and start ignition.



If i just connect the ignition to my ignition button, nothing will happen right? cause my bike is in lock-off position.



Then, how do i start the remote ignition, without putting my key in it?

[ProFatSir]

you need to connect into the wire harness of the bike connect to the starter.



be careful.wrong installation might fry your CDI

[asmi]

Hmm.. ok.. Every shop i go to, they say need to have another relay for the remote start. Does that mean that there will be two relays? One is to kill the system, if my ACC on.



They other is to remotely ignite my bike?

[ProFatSir]

Hmm.. ok.. Every shop i go to, they say need to have another relay for the remote start. Does that mean that there will be two relays? One is to kill the system, if my ACC on.



They other is to remotely ignite my bike?



have you refer to the link i posted??????????



u need 1 relay for the starter.



actually alarm does not take much power.



for my suggest installation is without remote start just power up/signal/siren/led for arm and disarm ONLY.



add in a relay is to stop the alarm from having power when acc is on/bike running.



remember to add in a in line fuse for the alarm.(i think is included in the package)



why you need remote start?i find its always give problem on my old phamtom and super 4.1st few time was ok than after 3-4 mth cannot start up well.few of my friends also disable the remote start function.just normal arm/disarm

[asmi]

Relax man.. its a hands on thread :s

[ProFatSir]

Relax man.. its a hands on thread :s



im relax man....



i just highlight the "main" for you to see.



if im angry i type all in "cap" already.



keep us update od the installation!!:sleepy:

[asmi]

OK bro..



I drew up my own circuit diagram, and installed the alarm with remote startup for less that $15 Rather than $90 when i went to shops :S



I will post up a picture for my circuit drawing aight.. for those who wanna DIY their alarm.. hehe... Posting pictures and videos up soon..

[asmi]

For a start, lemme post my videos first, as its only 1.8mb..



Pictures still uploading...





Total spent..



2xSPST relay $4 ($2 each)

1xSPDT relay $1.50

Solder $1

Circuit board $2.50

Wire (2m) $2

2 x diode $1.80 (0.90 each)



Total = $11.30

[ProFatSir]

well done!!!!



impressive!!



got buy yourself a milo???



wasted you should post the steps in jpeg.

[asmi]

Yes bro.. i'm now uploading the steps in jpeg.. still upload photos la.. too high MB.. all taken with nikon =X

[crazydj]

Bro the video is so COOL! Now if only you had a button to "Transform"...

[asmi]

Here are a few photos...

My DIY PCB board.

http://i27.tinypic.com/21oa152.jpg

Connection to my electric start...

http://i26.tinypic.com/352gnqx.jpg

connection to keyhole

http://i28.tinypic.com/2wnvfr7.jpg

Connection to left and right signal

http://i31.tinypic.com/20svty0.jpg

Whole overview

http://i32.tinypic.com/2le6iwh.jpg

overview yet, again..

http://i30.tinypic.com/2zfiur4.jpg

You can see that i tape my circuit board with white tape.. to prevent it from contact with with earth..

http://i31.tinypic.com/11kuyon.jpg

last but not least.. the schematics

http://i27.tinypic.com/34fbk05.jpg

[crazydj]

Gosh your handwriting is so cute for a guy!

[joajas]

Here are a few photos...

My DIY PCB board.

http://i27.tinypic.com/21oa152.jpg

Connection to my electric start...

http://i26.tinypic.com/352gnqx.jpg

connection to keyhole

http://i28.tinypic.com/2wnvfr7.jpg

Connection to left and right signal

http://i31.tinypic.com/20svty0.jpg

Whole overview

http://i32.tinypic.com/2le6iwh.jpg

overview yet, again..

http://i30.tinypic.com/2zfiur4.jpg

You can see that i tape my circuit board with white tape.. to prevent it from contact with with earth..

http://i31.tinypic.com/11kuyon.jpg

last but not least.. the schematics

http://i27.tinypic.com/34fbk05.jpg



In your schematic, you wrote 10mA fuse. Is it 10A or 10mA?

[asmi]

Ooops... its actually 10A... hehe.. paisei

[Winners]

Hi Bro Asmi,



Mind to share where you buy your 12V relays? I need these to do some modifications to my headlight. Thanks.
