Honda Shadow 400

[One Headlight]

OMG! 3000 posts already on our Shadow thread!

[One Headlight]

The rainy season is here. Keep your bikes dry.

Exclusive parking on my garage for Honda.



http://img.photobucket.com/albums/v671/jim3553/Post%20Pics/My%20%20Garage/20130519_145146.jpg

[One Headlight]

Welcome to a happy place - One Headlight's Garage.



http://img.photobucket.com/albums/v671/jim3553/Post%20Pics/My%20%20Garage/20130618_162854.jpg

[One Headlight]

It's time to ride!



http://img.photobucket.com/albums/v671/jim3553/Post%20Pics/My%20%20Garage/20130408_110357.jpg

[Hydher]

You dont diy on your bike? the walls missing tools! heheheh

[One Headlight]

You mean this one?



http://img.photobucket.com/albums/v671/jim3553/Post%20Pics/My%20%20Garage/5664e702-21e9-463c-b850-44ce3aa06ace.jpg

[Hydher]

real neat jimmy!!!!

[Hydher]

Tip #01



Adding on to the shadow 400 thread.

Taken from the manual.



Engine oil recommended viscosity 10w40. Rated API SF or SG or higher.

8k km max. 3-5k km is the popular range.

Oil filter 8k km max

Spark plug 8k km max



Oil change only 2.2L

with filter 2.4L



With bike off the side stand, oil level should be within the dashes after 3 min warm up

too little oil, bye bye to engine

too much oil, sluggish performance and high oil pressure. Will lead to gasket leaks.

Edited June 27, 2013 by Hydher

[Hydher]

#Tip 02



Tripmeter is a common point of failure.

Easily fixed with a momentary switch.



just diy fix my trip meter. total cost.. $0.50 cents for the switch!

Edited June 27, 2013 by Hydher

[One Headlight]

Thanks for the maintenance info and tips, Hydher.

[gohjohan]

You mean this one?



http://img.photobucket.com/albums/v671/jim3553/Post%20Pics/My%20%20Garage/5664e702-21e9-463c-b850-44ce3aa06ace.jpg



Your garage is much more organised than mine!

[One Headlight]

Your garage is much more organised than mine!



That was only on the first day. After that it's a real mess.

[Hydher]

hello riders.



Japanese metric cruiser meet up at yishun damn 7pm first then jalan kayu 7.30pm 28june today.



Look for the rest of the cohort and park neatly together ok



hydher 83368968

Edited June 28, 2013 by Hydher

[Hydher]

#Tip 03



There is a tool box compartment below the cover of left side of the bike below your thighs when seated.

Just yank that cover outwards.



#Tip 04

Speedometer too dim? Get a T10 led bulb which is less than 2.6cm in height.



Confused with led codes?

Led type 1206 is closer thus lights more evenly(good for illuminating areas).

Led 5050 is brighter but you will get dead spots(good for illuminating particular spots).

White will illuminate best.

Edited June 28, 2013 by Hydher

[Jonborah]

Correction Hydher,



7pm at Yishun Dam. Convoy ride off at ~7.15pm. Will probably reach Jalan Kayu at 7.30pm.



hello riders.



Japanese metric cruiser meet up at jalan kayu 7pm 28june today.



Look for the rest of the cohort and park neatly together ok



hydher 83368968

[Hydher]

When a piaggio vespa meets a Honda shadow

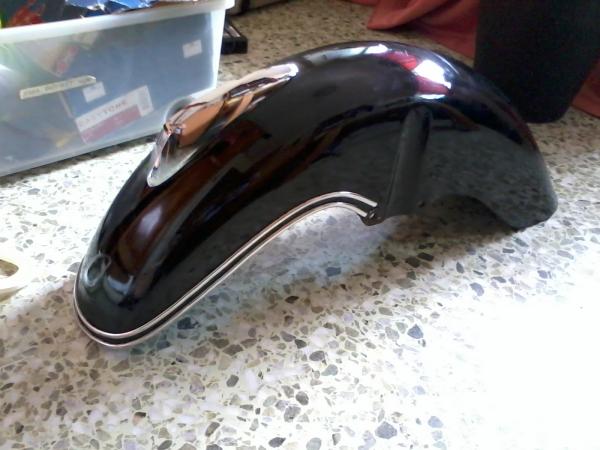

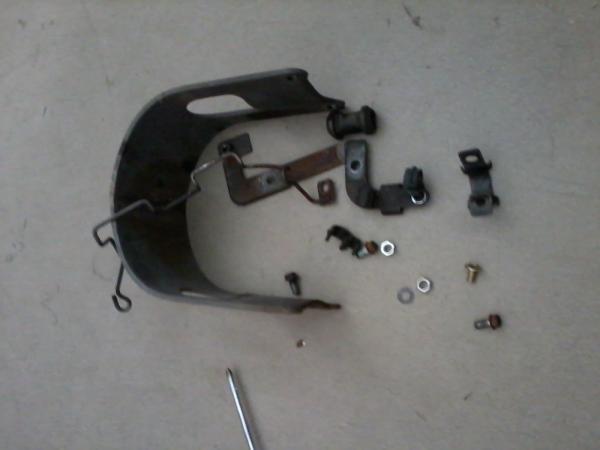

Took off a load of crap at the front end too



[Hydher]



Just a simple pic!

[Cruiserian]

Shadow thread forever so active! Dragstar thread is so quiet. Haha













_____________________________

Pardon me for typo error as this is sent by mobile.

[One Headlight]

Hey Mike, its time to change your avatar pic.

[Cruiserian]

Hey Mike, its time to change your avatar pic.



Oh yah! I'm finding time to take photo of my dragstar!













_____________________________

Pardon me for typo error as this is sent by mobile.

[Bardamuz]

Oh yah! I'm finding time to take photo of my dragstar!

_____________________________

Pardon me for typo error as this is sent by mobile.



maybe you can't as they don't do the same bike for men

[Cruiserian]

maybe you can't as they don't do the same bike for men



Nah, just that recently are busy so no time to bring the bike out for proper photo shoot. Will definitely upload the pic to fb once available 😄













_____________________________

Pardon me for typo error as this is sent by mobile.

[rogngts]

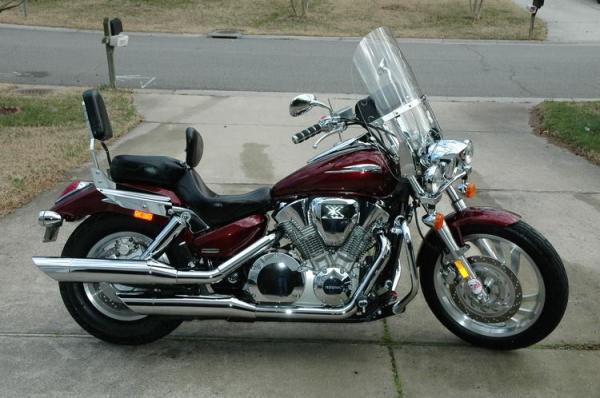

My dream big brother shadow

[Hydher]

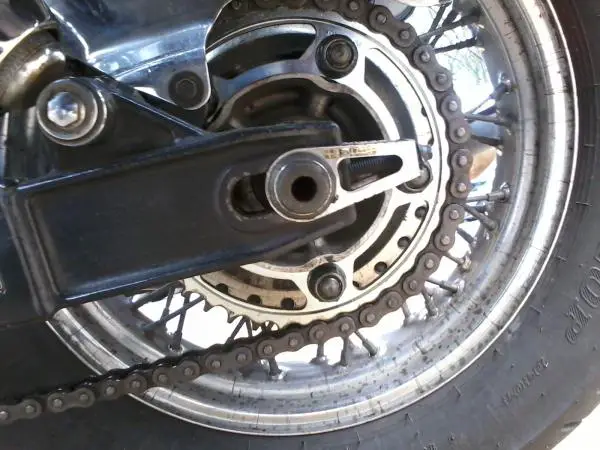

My personal account of changing to a smaller rear sprocket

I have been reading overseas shadow ace 750cc forum and they have been giving good feedbacks on a smaller rear sprocket modification 38tooth from the original 41tooth.



Since the modification allowed me to use a 120 525 links chain(commonly used for a super four ; giving me a wider, cheaper range of chains) instead of a 122 link and I was due to a chain change, for shits and giggles, since it was never spoken here in our forum, i went ahead to order it online. Despite mine being a 400cc.



Mechanic said it will give me less power and its not a good mod for a 400cc. Climbing up carparks will be hard.

I am stubborn and ordered it anyway. As by ratio, the change was minimal.



I bought a chain and it was on the way on freight but its taking too long! But waiting for it means my mods are reversible!

I was impatient and since i was at the mechanic, i had him to it.

I watched as he grinded off two links and when he took off the sprocket, it was 43 TOOTH!

Siao liao



Riding off, bike keeps stalling when clutching in so i had to increase the idling.



As I hit the first gear, it seems 10-15% slower than normal but the taller gearing meant that i could drag it longer. So its not something too much of a difference.

Second gear was the same as the first.

But once it hit 40km/hour, OMG! You need less rpm to increase your speed!Its really obvious!

I shifted too early and at 60 at the last gear, it gave that draggy wrong gear feeling. However, at 70, it felt right.



I found myself moderating well at the highway from 90-120km/hr.

It no longer gives that finding the last gear feeling.



Its a really nice smooth cruising experience now.



This is a great mod and i strongly reccomend it.

I will never change back to the stock 43t gearing.

This really feels right and is the best mod i have ever done to my shadow.



I will update this again with the fc and the multi storey carpark climbing abilities.





Cheers

Hydher

Edited July 4, 2013 by Hydher

[One Headlight]

I have a Sunstar 38 tooth sprocket on my ACE too. And I agree, its one of the best mods I've done (next to the heel-toe shifter, of course).
