Electrical connectors

[MiddleAgedBiker]

Hi does anyone know where I can buy automotive grade electrical connectors? I'm looking for one which can connect 3 wires. Hopefully waterproof but can be easily disconnected when needed. Thanks.

[Phang]

Get AMP Superseal series, it is rated to IP67, immersion in water up to 1 meter.



You can get it from ebay, RS Component, Farnell or maybe Sim Lim



http://storage.supremeauction.com/flash/ebay2/18/05/85/18058582/23548245.jpg

[ezzyoiler]

Hi does anyone know where I can buy automotive grade electrical connectors? I'm looking for one which can connect 3 wires. Hopefully waterproof but can be easily disconnected when needed. Thanks.



just get normal crimp connectors and shrink tube...this will give you ip65 ,...joints..

bike done need waterproof stuff..

waterproof= able to survive underwater..

[limbat]

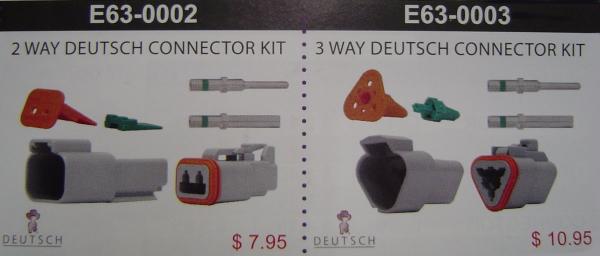

Here are the Deutch IP68 connectors..................

[limbat]

Btw these Deutsch connectors come in 2 to 12 ways size.. & are use extensively in the Mining Industry bec of their IP68 rating...



They aslo comes in a Mini size as well for the automotive Industry applications....

[Phang]

Great, the guru is here:thumb:



Limbat, any lubang to get Deutsch connectors and its accessories in Singapore?

[limbat]

hi mate - Me no guru laaaaa - we stock the 2 ways set & will be bring in the 3 ways set for our new VisionX Prime LED lamps soon.......

[Phang]

From what I understand, Deutsch connector has 2 types of pin/socket. The normal stamp & formed type and the solid type which require a special Mil-Spec 4 indents crimper, those working in avionic should be very familiar with this tool



http://proweldperformanceparts.com/sitebuildercontent/sitebuilderpictures/ConnectorsElectrical/14621622_big.jpg



http://proweldperformanceparts.com/sitebuildercontent/sitebuilderpictures/ConnectorsElectrical/14601422_big.jpg



http://proweldperformanceparts.com/sitebuildercontent/sitebuilderpictures/ConnectorsElectrical/14622014_big.jpg



http://proweldperformanceparts.com/sitebuildercontent/sitebuilderpictures/ConnectorsElectrical/14602024_big.jpg



http://www.edmo.com/modules/products/xarimages/Large/AFM8.jpg

[limbat]

Wahhhh I love MIL-specs items ................. cool ney ........................

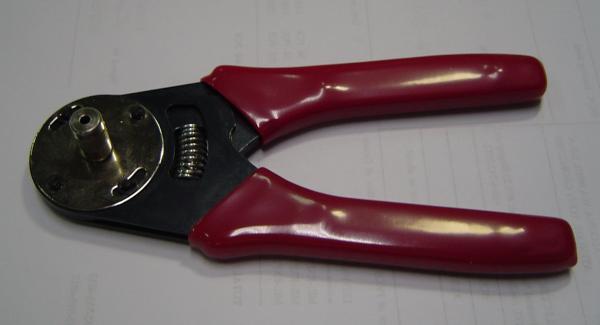

Here is my aftermarket Deutsch tool

[MiddleAgedBiker]

Thanks Phang and everyone. Phang will a normal crimp tool work with the connector you suggested?

[Phang]

Yes, you can use a normal non-insulated connector crimping pliers to crimp the wire barrel, the insulation barrel taps can use a pair of long nose pliers to fold them in.
