[Discussion] CB400 SUPER FOUR HYPER VTEC Revo

[JbAtRaCeR]

Woo thanks bro. Good share. Nothing beats a manual



It would be better if can share the "service manual"...that way can troubleshoot electricals better..

[Swo7pes]

I believe the new selling price will be at least between S$1.5k and S$2k more than the current model.

http://www.creditgif.com/02.jpghttp://www.creditgif.com/28.jpghttp://www.creditgif.com/03.jpghttp://www.creditgif.com/05.jpghttp://www.creditgif.com/04.jpghttp://www.creditgif.com/29.jpg

[ramsnake]

Woo thanks bro. Good share. Nothing beats a manual



You're welcome...

You can download a soft copy of the manual. I've posted the link before. It's now on the FAQ thread.



It would be better if can share the "service manual"...that way can troubleshoot electricals better..



Agreed. But those who have the service manual are too scared to share because of KopiLight issues (they say) and SBF won't allow it to be shared on their site. Boo hoo....

[justforme]

@breadman

Not so fast, mate!









Nope. Sorry, but there's nothing rough about the indicator and leaving the bike on the side stand will give you the wrong reading.







Changing oil every 5,000km, which I don't recommend, doesn't mean that you don't have to check the oil level.











If you can see the oil in the sight glass when the bike is on the side stand, there is too much oil in your engine.







Check oil level when engine is warm, i.e. 2-3 minutes after idling for 3-5 minutes.



Refer page 41 of User Manual.

(Tried to upload image of page but SBF isn't working...)



just to check... isn't the starting of the engine is just to confirm that your engine is able to maintain engine oil pressure?



according to the manual u have to switch off the engine after the oil pressure light goes off and wait for a couple of minutes to ensure that oil flows back down into the 'container' and not sticking onto the pistons so that u can have a more accurate level.



not to challenge you but just to cfm my knowledge

[JbAtRaCeR]

just to check... isn't the starting of the engine is just to confirm that your engine is able to maintain engine oil pressure?



according to the manual u have to switch off the engine after the oil pressure light goes off and wait for a couple of minutes to ensure that oil flows back down into the 'container' and not sticking onto the pistons so that u can have a more accurate level.



not to challenge you but just to cfm my knowledge



Low oil pressure can also be caused by insufficient engine oil on the sump.



Starting the engine to warm up the bike is a good practice..can check for leaks..especially after changing oil filter. Untorqued oil drain plug which we humans at times forget or even leaks thats was there all along but no attention was paid...

[tomdickharry]

Me. Check your chassis number. If it's on the list, call them to re-confirm (65139326). Then make appointment.



Recall for owners of CB400, if your motorcycle VIN range within the following numbers:

JH2NC429*8K010001 to JH2NC429*8K010070

JH2NC429*9K100001 to JH2NC429*9K100053

JH2NC429*AK200001 to JH2NC429*AK200160

JH2NC429*BK300001 to JH2NC429*BK300393

JH2NC429*8M000001 to JH2NC429*8M000174

Source:

http://www.boonsiewhonda.com.sg/boonsiew/home.asp



mine is in there!!!!!!! =O

[justforme]

Low oil pressure can also be caused by insufficient engine oil on the sump.



Starting the engine to warm up the bike is a good practice..can check for leaks..especially after changing oil filter. Untorqued oil drain plug which we humans at times forget or even leaks thats was there all along but no attention was paid...



thanks for the info but in this case we were discussing about whether checking engine oil level need to warm up engine and letting it settle for a few minutes.

[hanern]

mine is in there!!!!!!! =O



I'm going down tomorrow.

[ramsnake]

just to check... isn't the starting of the engine is just to confirm that your engine is able to maintain engine oil pressure?



according to the manual u have to switch off the engine after the oil pressure light goes off and wait for a couple of minutes to ensure that oil flows back down into the 'container' and not sticking onto the pistons so that u can have a more accurate level.



not to challenge you but just to cfm my knowledge



@justforme

Don't worry about challenging me or anyone else, for that matter. This is a public forum and it is good to ask for clarifications or to correct wrong information posted. Anyone who has a problem with being questioned on their post, is just too egoistic, and perhaps shouldn't be here in the first place.



Starting the engine and then ensuring that the oil pressure light goes off serves 2 purposes:

- Testing Sensor Operation: If there is enough oil and oil pump is working properly, oil pressure light must go off. If it doesn't go off, then the sensor needs to be checked.

- Testing Oil Pressure - If the light remains on, it is an indication of low pressure. Check for 2 things - sufficient oil and pump operation.



Honda recommends starting the bike first primarily to ensure that the oil pressure sensor & light is working properly as well as to ensure that the oil pump is operating.



Because Honda prioritise checking that the sensor and pump is working fine, they then calibrated the sight glass is to measure oil level when the oil is warm. This also takes into consideration how much oil remains in the upper section of the engine.



So, the way to check oil level may differ from one manufacturer to another.

[tomdickharry]

I'm going down tomorrow.



read from boon siew site...do u encounter e problem they stated???? do update here after u went...thks!!!

[azman ibrahim]

my bike have been recalled bro. later at 130pm will be my appointment. what time is yours!

Me. Check your chassis number. If it's on the list, call them to re-confirm (65139326). Then make appointment.



Recall for owners of CB400, if your motorcycle VIN range within the following numbers:

JH2NC429*8K010001 to JH2NC429*8K010070

JH2NC429*9K100001 to JH2NC429*9K100053

JH2NC429*AK200001 to JH2NC429*AK200160

JH2NC429*BK300001 to JH2NC429*BK300393

JH2NC429*8M000001 to JH2NC429*8M000174

Source:

http://www.boonsiewhonda.com.sg/boonsiew/home.asp

[ramsnake]

@azman ibrahim

I've had mine done already.

[hanern]

read from boon siew site...do u encounter e problem they stated???? do update here after u went...thks!!!



Mine do not have this issue. Maybe cause i parked mostly shelter area.



@azman ibrahim

my appointment also at 1.30pm.

[Yat-]

Guys,



Those kena recalled, how long does the process take? Thanks.



Sent from my GT-I9100 using Tapatalk 2

[tomdickharry]

Mine do not have this issue. Maybe cause i parked mostly shelter area.



@azman ibrahim

my appointment also at 1.30pm.



can u share wad is being done to ur bike???

[r1der]

Think its about rear stop switch corrosion issue, hence they'll just replace the switch? Corrct me if i'm wrong.



Anyway, its a small matter, not a major life threathening defect.

[ramsnake]

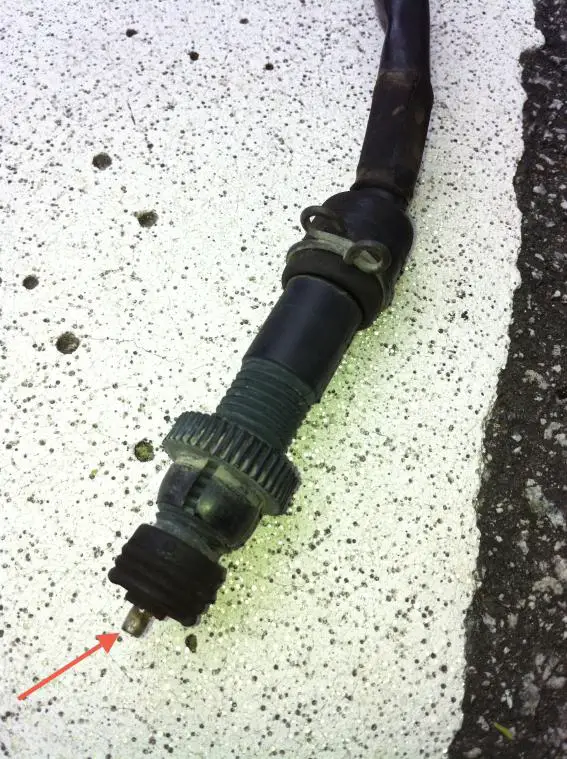

This is the part that may be faulty. The connector may be corroded resulting in brake lights not being activated when applying rear brakes. They will check the part for corrosion. Whether or not they replace the part or just clean/repair the part depends on the level of corrosion.



Mine was replaced.



[urbanfighter]

This is the part that may be faulty. The connector may be corroded resulting in brake lights not being activated when applying rear brakes. They will check the part for corrosion. Whether or not they replace the part or just clean/repair the part depends on the level of corrosion.



Mine was replaced.



[ATTACH=CONFIG]274206[/ATTACH]

Did u leave ur bike there? How long is the process?

[ramsnake]

Did u leave ur bike there? How long is the process?



I waited for them to finish. 2 hours inclusive of lunch hour.

[breadman]

Gd morning guys.



Been noticing a slight oil leak at the part where my sidestand meets the ground.

The oil looks clean, unlike engine oil colour.

Anyone familiar with this? Where the leak is from?

[HaiR1]

Gd morning guys.



Been noticing a slight oil leak at the part where my sidestand meets the ground.

The oil looks clean, unlike engine oil colour.

Anyone familiar with this? Where the leak is from?







It maybe the oil-fling from the chain if u are lubing your chain with EO



OR



there's leaking from your gear lever shaft



Or



Anyting

[r1der]

It maybe the oil-fling from the chain if u are lubing your chain with EO



OR



there's leaking from your gear lever shaft



Or



Anyting



Or



Water pump is leaking... hopefully not this one coz tis one is d most expensive one.

[breadman]

Or



Water pump is leaking... hopefully not this one coz tis one is d most expensive one.



Water pump leak is oil? If its water pump then should be leaking coolant right?

[r1der]

Water pump leak is oil? If its water pump then should be leaking coolant right?



Not really, if the water pump not working well, some engine oil may seep in n tats why u could see oil leaking from water pump.

[r1der]

Water pump leak is oil? If its water pump then should be leaking coolant right?



Not really, if the water pump not working well, some engine oil may seep in n tats why u could see oil leaking from water pump.
