SBF Silverwings / HOM Cafe 2012

[confusehaha]

  SW9000 said:

Add my name.

Every night I cover 100km for you.



Hey David, i will keep u update on your request.. haha ur inbox max out liao.. cant reply.

[Atlantic 200]

  SW9000 said:

Add my name.

Every night I cover 100km for you.



Mmmm....... can do that for my VFR, no need every night. 1 week once will do.



Sent from my LG-D958 using Tapatalk

[Atlantic 200]

  SW9000 said:

Add my name.

Every night I cover 100km for you.



Mmmm....... can do that for my VFR, no need every night. 1 week once will do.





Sent from my LG-D958 using Tapatalk

[sting]

Hi Guys,

Need some advise. My voltmeter when on ignition - 12v

Engine Started - 13.9v

On the move -13.9v to 14.1v (speed at 100 to 120 km/hr)

Is it normal? I looked at the sw tech forum, engine started is 13v +++, on the move above 14v. My main concern here is that the difference in voltage when idling and on the move is so little.

[confusehaha]

  sting said:

Hi Guys,

Need some advise. My voltmeter when on ignition - 12v

Engine Started - 13.9v

On the move -13.9v to 14.1v (speed at 100 to 120 km/hr)

Is it normal? I looked at the sw tech forum, engine started is 13v +++, on the move above 14v. My main concern here is that the difference in voltage when idling and on the move is so little.

Mounted voltmeter isnt 100% accurate. It only serve as a rough guide of ur voltage. To get precise voltage, you will need a mutlimeter to measure it.

[confusehaha]

Double post..

Edited February 8, 2014 by confusehaha

[SW9000]

Really must change my fork oil liao.

Front is vibrating all over the place when the road is rough.

No confidence over the traction in the front.

[Uncle]

  SW9000 said:

Really must change my fork oil liao.

Front is vibrating all over the place when the road is rough.

No confidence over the traction in the front.



Which fork is closer To Honda's original weight and red in colour?

[SW9000]

Not sure. I tried using 10wt oil (Cst 36) but still seems to have some stiction and slowness in the fork movement.

Will be testing 7.5wt (Cst 26) or even 5wt if it doesn't work.

[Chubb]

  sting said:

Hi Guys,

Need some advise. My voltmeter when on ignition - 12v

Engine Started - 13.9v

On the move -13.9v to 14.1v (speed at 100 to 120 km/hr)

Is it normal? I looked at the sw tech forum, engine started is 13v +++, on the move above 14v. My main concern here is that the difference in voltage when idling and on the move is so little.



engine start e voltage will be high cos its cold start and rpm is usually higher abit, once engine warm rpm will drop..

rpm high = voltage will be high as its charging..

ride for awhile and stop voltage shd read ard 13+-

as long as voltage dun go over 15v its safe, and dun drop to lower den 13 when riding..

[Chubb]

any idea current price on SW-t400?

[sting]

Thanks for all the replies!

[Nighthawk_250]

Hey Guys..



some advice if u are using the electric 12v "gun" to remove the variator



(1) are you able to loosen and tighten the variator nut without using the Y-tool?



(2) is there suppose to be a foam or papper filter at the white cover?

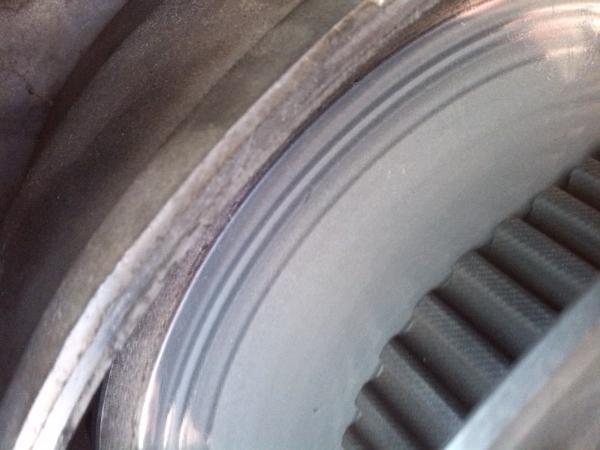

(3) the groove at the variator survace are obvoius to touch already, is it time to change? Any estimate $$?





I cant remove the variator nut because it has been previously tighten by workshop air torque gun.

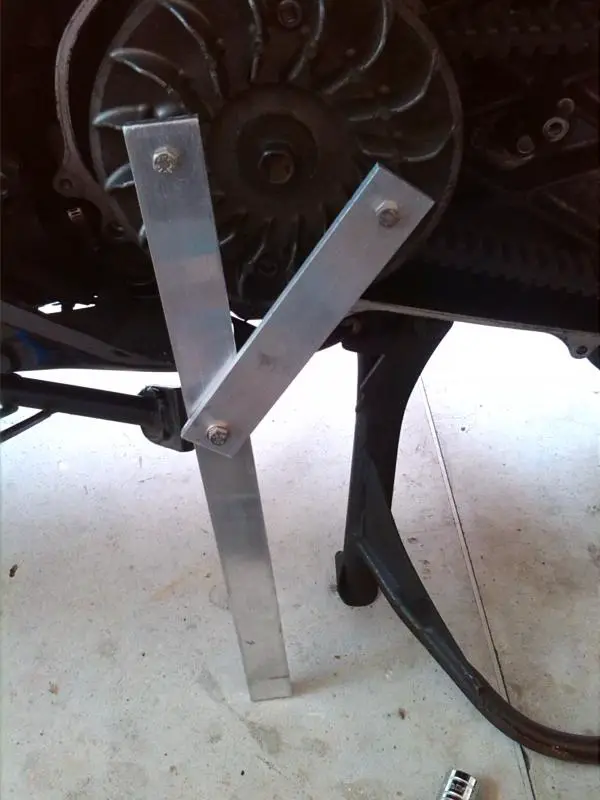

Used my DIy Y-tool to pry it until i lifted the bike

[Uncle]

(1) are you able to loosen and tighten the variator nut without using the Y-tool?



Yes

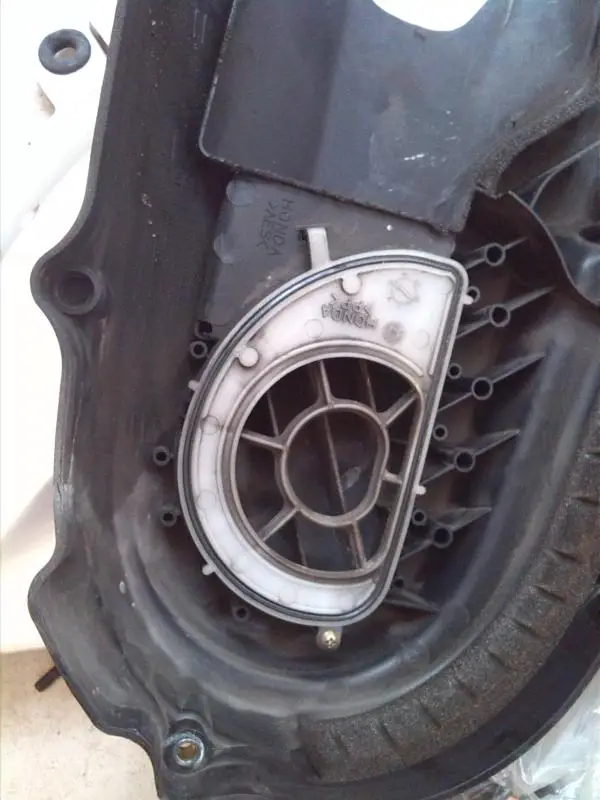

(2) is there suppose to be a foam or papper filter at the white cover?



Yes, a foam filter. Can DIY.



(3) the groove at the variator survace are obvoius to touch already, is it time to change? Any estimate $$?



If it's at the edge, sound be ok. Can use a fine sandpaper to smoothen it. Couple of hundreds to change. Scoobydoo knows.

[SW9000]

Variator:

Outside plate approx $45.

Inside Plate (roller holder) approx $75.

[Nighthawk_250]

Thanks Uncle and Sw9000 for the advice n info



Decided to change the Variators (inner and outer drive face) ...doing my due diligence maintenance

since mileage is >100k liao



Have called one stockist to check, the price quoted are



-Outer Drive Face part no. 22102......................... $55

-Inner movable Drive face B part no 22130............ $90

-Rear Clutch Bell or cluth outer part no 22100...... $105



Still have to buy the 12v torque gun ....





Edit : Uncle...where do you buy the appropriate foam filter to DIY?

If big piece I buy liao cut and distribute

[Uncle]

  Nighthawk_250 said:

Edit : Uncle...where do you buy the appropriate foam filter to DIY?

If big piece I buy liao cut and distribute



One of those high density foam. SW9000 also DIY as no ready stock in SG. Give you my spare piece if you want as no longer need.



http://i1065.photobucket.com/albums/u382/raymondsg/Silverwing/Miscellaneous/1326aa46.jpg

[Nighthawk_250]

  Uncle said:

One of those high density foam. SW9000 also DIY as no ready stock in SG. Give you my spare piece if you want as no longer need.



http://i1065.photobucket.com/albums/u382/raymondsg/Silverwing/Miscellaneous/1326aa46.jpg



Thank you. Sent u a pm



On my way to autobac buy the 12v torque gun!

[Nighthawk_250]

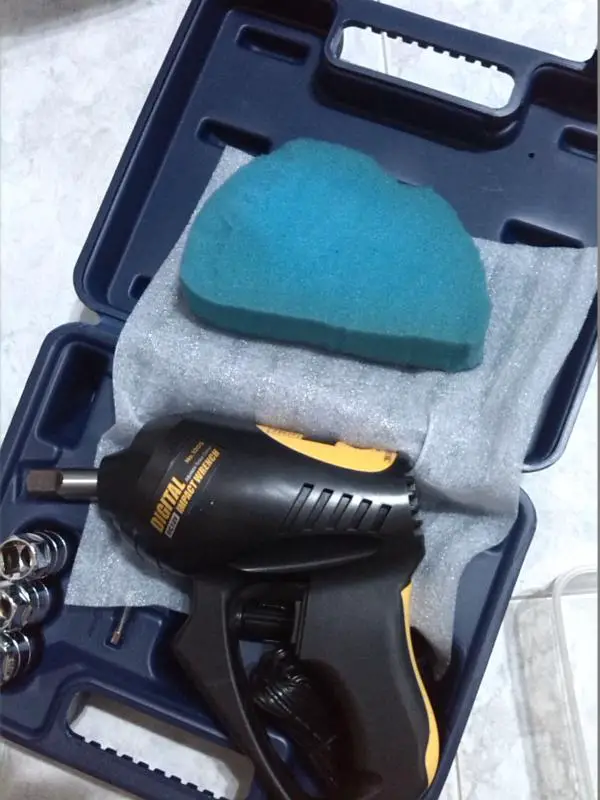

Home sweet home with the foam from Uncle and the 12v ratchet



Anyone DIY having problem remove the bloody variator Nut feel free to beep me





Am I suppose to oil the foam before putting it? totally no clue since mine dont come with one

[Uncle]

  Nighthawk_250 said:

Home sweet home with the foam from Uncle and the 12v ratchet



Anyone DIY having problem remove the bloody variator Nut feel free to beep me [ATTACH=CONFIG]299098[/ATTACH]





Am I suppose to oil the foam before putting it? totally no clue since mine dont come with one



The impact wrench will spin freely and engage the clutch only when it reach a certain rpm. Apply some air filter oil but don't over do it.

[HelmetBOX1605198525]

  Nighthawk_250 said:

Home sweet home with the foam from Uncle and the 12v ratchet



Anyone DIY having problem remove the bloody variator Nut feel free to beep me [ATTACH=CONFIG]299098[/ATTACH]





Am I suppose to oil the foam before putting it? totally no clue since mine dont come with one



What is the cost of the ratchet?



Sent from my HTC Butterfly s using Tapatalk

[SW9000]

Usually I don't oil the filter as it only needed to stop big particles from messing with your belt and variators.

Must wash periodically to allow enough air flow to cool the transmission.

I use Red Sponge, cut to size. 1 piece can make 3, I think.

[Nighthawk_250]

  HelmetBOX! said:

What is the cost of the ratchet?



$105. There is another model at $118 but without the variable torque setting.

Autobac ubi, stock left one of each.



  Uncle said:

The impact wrench will spin freely and engage the clutch only when it reach a certain rpm. Apply some air filter oil but don't over do it.



Okie dokie, will be careful tomorrow. Likely ride few days without oil see how first.



  SW9000 said:

Usually I don't oil the filter as it only needed to stop big particles from messing with your belt and variators.

Must wash periodically to allow enough air flow to cool the transmission.

I use Red Sponge, cut to size. 1 piece can make 3, I think.



Tks will take note. Where do u purchase the sponge? If not too costly will keep changing after each service:p



Just want to share with folks who also may not have sponge

Prior to the discovery, the belt area gets dirty fast and my rpm usually after service will get 90km/h at 5k rpm.

In a month or so it will go to 5.5k rpm just to do 90km/h and after that even higher rpm.

[Nighthawk_250]

Double post

[HelmetBOX1605198525]

  Nighthawk_250 said:

$105. There is another model at $118 but without the variable torque setting.

Autobac ubi, stock left one of each.







Okie dokie, will be careful tomorrow. Likely ride few days without oil see how first.







Tks will take note. Where do u purchase the sponge? If not too costly will keep changing after each service:p



Just want to share with folks who also may not have sponge

Prior to the discovery, the belt area gets dirty fast and my rpm usually after service will get 90km/h at 5k rpm.

In a month or so it will go to 5.5k rpm just to do 90km/h and after that even higher rpm.



Wow.. Got torque setting not bad.





Sent from my iPad using Tapatalk
