Honda Blackbird CBR1100 XX

[braveiron]

Koolbeat - What to learn............just twist the throttle till cannot twist anymore and let the bird fly but first leave your nuts and brain at home:P....hehehe. Welcome new BB bro.

[rok_yantzen]

Juz wanna ask guys, lately my bb temp is very hot...when stationary at traffic lite, can shoot up to 110 at day time...nite time can shoot up to 108....but when riding at constant speed, the temp is normal, abt 95....any ideas?

[greysnail]

Normal ah.. Read at CBRXX, u can actually put 2 fans, wonder if the mech here can do for us.

[blue jellyfish]

HAlu bros !! long time never write-write here lah ... Bro GS .. the guru, I tink u start a class for BB riders lah .. can earn on part-time .. i help arrange .. wa take 20% onli .. how ? hihihihhihihi ...



To all Birdies ... Ride hard n ride safe .



To New Birdies .. welcome to the nuthouse ..



To the Seasoned Birdies .. Wen wan to burn tyres together-gether ah .. hihihihihhihi

[E Aumno]

Juz wanna ask guys, lately my bb temp is very hot...when stationary at traffic lite, can shoot up to 110 at day time...nite time can shoot up to 108....but when riding at constant speed, the temp is normal, abt 95....any ideas?

mine highest temp encountered is 104 so far. When traveling the differences can be btw 85-100 which is normal I think. Is ur temp sensor working correct to trigger the fan also?

[koolbeats]

Welcum koolbeat, u got the carb bb orange kaler is it?



oh yes..the orange one. :-)

[greysnail]

Bj- no la i only refer to other forum only....

Koolbeat- carb bb is very powerful if u noe how to set up properly.

[JbAtRaCeR]

Juz wanna ask guys, lately my bb temp is very hot...when stationary at traffic lite, can shoot up to 110 at day time...nite time can shoot up to 108....but when riding at constant speed, the temp is normal, abt 95....any ideas?



These few days quite hot bro..dry and dusty too..you might want to check on the radiator fins..sometimes got small stones or leaves stuck on the fins..if all clear than check radiator fan..its should switch on somewhere when it hits 102 degress..



Greysnail :- can fit two radiator fan bro..need to make special mounts for fan..dunno which shops does...but if keen sure can diy..

[greysnail]

Bro jbat if can diy gd la. I tink need to save up for new rad la coz like no confident my tampal-ed rad can tahan long ride... Still have yet to receive my allowance for my last project, once otr, i'll be paging u guys for a ride be it local or obersea

[STRYKER]

Regarding the temperature issue, y not fix a bypass switch? so that if u find ur temp too high, u just turn it on. when u find the temp acceptable, u just off it. for the analog meter there's no way of noeing our actual temp coz its analog. for me with the bypass switch once my temp reach 3/4 mark i turn it on and it drops and maintain at abt 1/4 mark. from wat i notice is usually the temp rises during normal road ride where theres alot of stop n go....but on express roads, usually its below 1/2 level mark....

[JbAtRaCeR]

Another simple check to be done when bike running a little bit hot is to check the hoses joints..there can be little leaks that causes the radiator to lose its pressure..



Even a small leak near the water pump seal leakoff hole can send the bird running abit on the high side..http://img.tapatalk.com/cb7525d8-c90c-a5a6.jpg



Here's mine a few months ago..bike's running abit hot by almost 10degress and when i park the bike i get coolant dripping near the side stand area...

[STRYKER]

Another simple check to be done when bike running a little bit hot is to check the hoses joints..there can be little leaks that causes the radiator to lose its pressure..



Even a small leak near the water pump seal leakoff hole can send the bird running abit on the high side..http://img.tapatalk.com/cb7525d8-c90c-a5a6.jpg



Here's mine a few months ago..bike's running abit hot by almost 10degress and when i park the bike i get coolant dripping near the side stand area...



Hmm...something new for me...



just to check eh anyone did a chain conversion before?is it adviseable??? coz i noe our birds using 530 chains...if i use 520 or 525 is it recommended? heard some where its not recommended coz 530 is pitch is bigger therefore more suitable for our birds whereas 520 or 525 might not be...

[STRYKER]

Another simple check to be done when bike running a little bit hot is to check the hoses joints..there can be little leaks that causes the radiator to lose its pressure..



Even a small leak near the water pump seal leakoff hole can send the bird running abit on the high side..http://img.tapatalk.com/cb7525d8-c90c-a5a6.jpg



Here's mine a few months ago..bike's running abit hot by almost 10degress and when i park the bike i get coolant dripping near the side stand area...



Hmm...something new for me...



just to check eh anyone did a chain conversion before?is it adviseable??? coz i noe our birds using 530 chains...if i use 520 or 525 is it recommended? heard some where its not recommended coz 530 is pitch is bigger therefore more suitable for our birds whereas 520 or 525 might not be...

[JbAtRaCeR]

Hmm...something new for me...



just to check eh anyone did a chain conversion before?is it adviseable??? coz i noe our birds using 530 chains...if i use 520 or 525 is it recommended? heard some where its not recommended coz 530 is pitch is bigger therefore more suitable for our birds whereas 520 or 525 might not be...



Can bro if you get the 530 to 525 chain and sproket kit..most track riders opt for this setting coz they want lighter combo. Problem is that wear and tear will be more as the 525 chain has lesser tensile strength..

[STRYKER]

Can bro if you get the 530 to 525 chain and sproket kit..most track riders opt for this setting coz they want lighter combo. Problem is that wear and tear will be more as the 525 chain has lesser tensile strength..



Ok tanx...so its more advisable to stick to 530 lah since im not a track junkie....





}STRYKER{ sent this post via iPhone using Tapatalk

[vinho_16]

Guys guys...anyone can recommend a place that does a good spray paint job with a decent price... Xie xie.

[greysnail]

vin- watsup?...bb had a fall????

[vinho_16]

vin- watsup?...bb had a fall????



Nay. No fall. Wanna give the beberd a fresh new coat of color.

[greysnail]

Can try Alai or bikewerks in range of 600 or less depend on design

[vinho_16]

*thumbs up* xie xie nie.

[koolbeats]

hi guys..may i know which workshop is best for bb maintenance & service. may i know where is Alai shop and bikewerkz sound familiar..tanx

[AeROSmitH]

Nay. No fall. Wanna give the beberd a fresh new coat of color.



haha me too! i just sent to bikewerks.



let u noe how the workmanship and price be like after i get it back!

[vinho_16]

haha me too! i just sent to bikewerks.



let u noe how the workmanship and price be like after i get it back!



Pawer la u arrowsmit.

Dont wanna close my eyes.

[STRYKER]

hi guys..may i know which workshop is best for bb maintenance & service. may i know where is Alai shop and bikewerkz sound familiar..tanx



Ah lai is at autobay in kaki bukit near unique.

Bikewerkz is also ard kaki bukit area,its ruby industrial blding if im not wrong.





}STRYKER{ sent this post via iPhone using Tapatalk

[greysnail]

For those who has backache due to long ride and can't afford to buy those expensive aftermarket bars.Got a solution for u guys.Did this mod long time ago and tested proven to ride safely with no issue.

1) Loosen the nut holding the clip.

2) Remove the circlip from the fork

3) Remove the 1 bar and put the circlip all the way down to the yoke

4) Adjust the bars so that it will become higher abit.Not too much,prefer that the screw be able to grip the fork.

5) Align the lug nut to the slot den tightened the screw.

6) Start engine,and turn left and right. If the rpm goes higher while turning the handlebars,it shows that the bars are too high.

Once done,confirmed that u've tightened the handlebar screws.

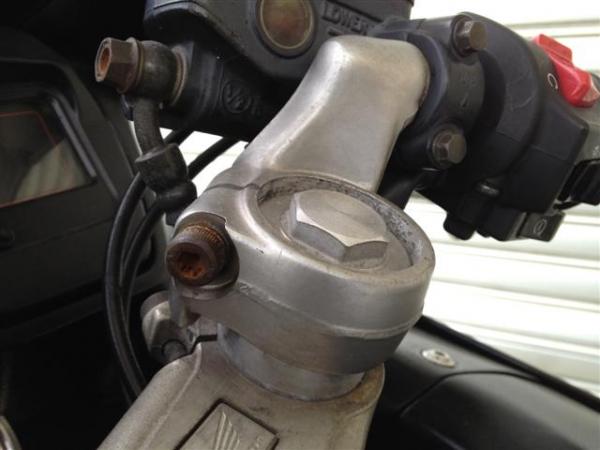

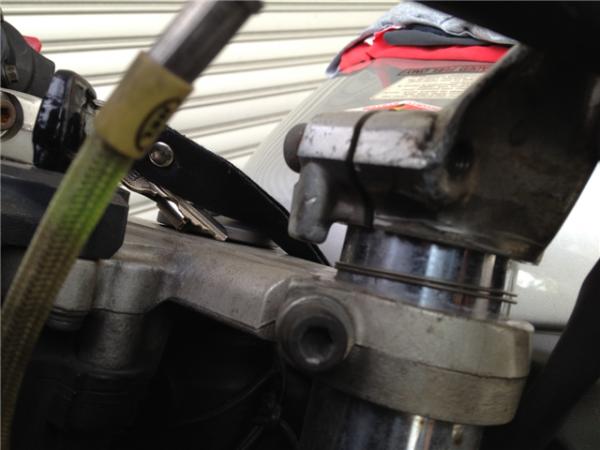

Here are the pics on the bars of my ride.
