DIY Hazard Light

[pyro13]

Hi Guys..

Just DIYed a hazard light for my spark wit Fusionzone A.K.A andy!!!



will try to be as vlear in my instructions!



wat u will need is:

a 4 pole switch - can be bought from sim lim tower at 2 bucks(rough price)

a blinker relay 12V - bought from LAB at 4 bux



wat u first need to do is to remove the front and head fairing

ter are a toltal of abt 20 screws to open

http://i175.photobucket.com/albums/w153/huzairhyder/-7.jpg



http://i175.photobucket.com/albums/w153/huzairhyder/-6.jpg



remember to unplug the two sockets connected to the front fairing.



after tat remove the condenser!

and replace with the relay!

IMG]http://i175.photobucket.com/albums/w153/huzairhyder/-10.jpg[/img]

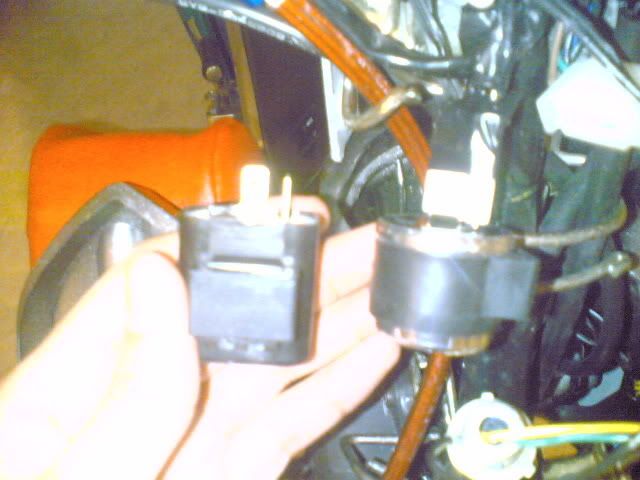

the one on the left is the condenser.. the right is the new relay! round in shape

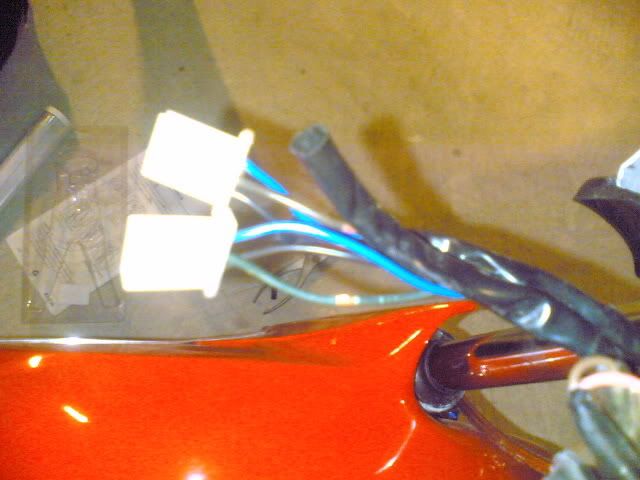

get a wire cutter and start strippng the two wre at the front. the will be two bundles!

cut the middle of each bundle.. we only need a exposed section so its best u do it withn a wire cutter.

IMG]http://i175.photobucket.com/albums/w153/huzairhyder/-13.jpg[/img]



after which connest a long wire the the exposed area and duct tape it!



PS..ter will be no pics after this.. so hope i am clear!



after tat u get another two wires. a red and a black preferable.. strip the ends and

place it at the relay contact. the right arm.



now u have 4 wires. the 2 wires from the 2 sockets and two wires from the relay.



tape them im group A and B.



group A.. both wires from the two sockets

group B.. wires from relay



get the switch and behind wll be 4 poles.

P.S.. i dun have a pic of these as i myself biugh a wrong switch.. will get a new one soon and post a pic up!



ter wil be 4 contacts.. connect it like this



Group A

l l

l l

Group B



now ur hazard light is ready to go!



get a plaace to mount the switch!



and screw back ur fairing and u should be done!



i am going to get a new switch and pics will be up soon.

[pyro13]

Hi Guys..

Just DIYed a hazard light for my spark wit Fusionzone A.K.A andy!!!



will try to be as vlear in my instructions!



wat u will need is:

a 4 pole switch - can be bought from sim lim tower at 2 bucks(rough price)

a blinker relay 12V - bought from LAB at 4 bux



wat u first need to do is to remove the front and head fairing

ter are a toltal of abt 20 screws to open

http://i175.photobucket.com/albums/w153/huzairhyder/-7.jpg



http://i175.photobucket.com/albums/w153/huzairhyder/-6.jpg



remember to unplug the two sockets connected to the front fairing.



after tat remove the condenser!

and replace with the relay!



http://i175.photobucket.com/albums/w153/huzairhyder/-10.jpg



the one on the left is the condenser.. the right is the new relay! round in shape



get a wire cutter and start strippng the two wre at the front. the will be two bundles!

cut the middle of each bundle.. we only need a exposed section so its best u do it withn a wire cutter.



http://i175.photobucket.com/albums/w153/huzairhyder/-13.jpg



after which connest a long wire the the exposed area and duct tape it!



PS..ter will be no pics after this.. so hope i am clear!



after tat u get another two wires. a red and a black preferable.. strip the ends and

place it at the relay contact. the right arm.



now u have 4 wires. the 2 wires from the 2 sockets and two wires from the relay.



tape them im group A and B.



group A.. both wires from the two sockets

group B.. wires from relay



get the switch and behind wll be 4 poles.

P.S.. i dun have a pic of these as i myself biugh a wrong switch.. will get a new one soon and post a pic up!



ter wil be 4 contacts.. connect it like this



Group A

l l

l l

Group B



now ur hazard light is ready to go!



get a plaace to mount the switch!



and screw back ur fairing and u should be done!



i am going to get a new switch and pics will be up soon.

[ImEG]

RESPECT!!!!

[Thai_R]

Yeah respect....but could have taken the pics without the flash.

Too bright lah !

[pyro13]

the place was wuite dark.



if no light very cialat



http://i175.photobucket.com/albums/w153/huzairhyder/-14.jpg

no flash



http://i175.photobucket.com/albums/w153/huzairhyder/-15.jpg

wit flash

[kurarensu]

great job there.. shall find u when i wana make hazard light in future.. hahaz

[ZoRoM]

Two thumbs upz... :thumb:

[pyro13]

would give the credit to fusionzone!

[Ashcroftx]

ehhh i also want to do lar.!!!



[paiseh]

let me help with some pics once i have done my hazard lights probably after the end of may. now too busy!

[pyro13]

ok! thx bro!!

[Mark Ng]

[TD_HsH]

i oso wanna do hazard lights...



mayb can meet come out do together..

[pyro13]

can.. no prob.. doing it wit man v.1 next week

[cheowseng]

done my sparkie too but no time to share...

busy with sch n wrk



nice job there

[Mudd]

Great job and thanks for sharing...



Just wondering in theory, if we turn our signal switch to the right, the right signal lights would flicker and vice versa on the left.



What if we add a switch such that it is connected to both the left and right signal wire and when we switch it on, both will flicker without adding any additional relay?



Is that possible? Just enquiring ya bros.. hehe.

[vyzyl]

  Quote

Originally posted by Mudd@May 21, 2007 12:43 am

Great job and thanks for sharing...



Just wondering in theory, if we turn our signal switch to the right, the right signal lights would flicker and vice versa on the left.



What if we add a switch such that it is connected to both the left and right signal wire and when we switch it on, both will flicker without adding any additional relay?



Is that possible? Just enquiring ya bros.. hehe.

Yes it is indeed possible.

[paiseh]

  Quote

Originally posted by Mudd@May 21, 2007 12:43 am

Great job and thanks for sharing...



Just wondering in theory, if we turn our signal switch to the right, the right signal lights would flicker and vice versa on the left.



What if we add a switch such that it is connected to both the left and right signal wire and when we switch it on, both will flicker without adding any additional relay?



Is that possible? Just enquiring ya bros.. hehe.

yes, definitely can. but doing this has 2 disadvantages



1. u dunno whether your wires can take the extra current (99% can take la )

2. troublesome. u need to signal left or right first den activate the switch to on hazard light.

[Demon]

  Quote

Originally posted by Mudd@May 21, 2007 12:43 am

Great job and thanks for sharing...



Just wondering in theory, if we turn our signal switch to the right, the right signal lights would flicker and vice versa on the left.



What if we add a switch such that it is connected to both the left and right signal wire and when we switch it on, both will flicker without adding any additional relay?



Is that possible? Just enquiring ya bros.. hehe.

that's possible but why bother to add another switch. What i did was to connect (as you mentioned) to a Double Pole, Single Throw (DPST) switch. No need for relay, and no cutting of the stock wirings.



[Mudd]

I am enlightened now.. thanks guys..

I think this thread really good for many people who like to D.I.Y.. upz.

[cheowseng]

I also install DPST switch...

6 pin if i'm not wrong

[paiseh]

  Quote

Originally posted by cheowseng@May 22, 2007 01:02 pm

I also install DPST switch...

6 pin if i'm not wrong

DPST means double pole single throw



usually ppl use DPDT = double pole double throw which is 4 pins.

[pyro13]

i am using the DPDT switch..



MUDD,

for spark, if we signal right the light tat blinks is the same as when we signal left.



in short, its using the same light wen the signal light is on.

[ImEG]

if i wan my front light to blink with the signal light can ma?

[Mudd]

  Quote

MUDD,

for spark, if we signal right the light tat blinks is the same as when we signal left.



in short, its using the same light wen the signal light is on.



okie.. now i understand.. : ) anyway, great work!
