My DIY chain oiler [With alot of pics!!!]

[S750WP]

the orange valve?

got it at a aquarium shop in clementi

the stretch of blk that S750WP suggested

all my valves got it there



bro the orange valve I used before, it will leak at the lever where you open and close after approx 2 weeks so watch out for it.

[alvinyansg]

bro the orange valve I used before, it will leak at the lever where you open and close after approx 2 weeks so watch out for it.



actually i suspect it is already leaking a bit

any idea where can get better valve?

the shop behind ah boy i can't find leh

only got one shop selling those industrial valves

too big and heavy

[alvinyansg]

double post

[S750WP]

actually i suspect it is already leaking a bit

any idea where can get better valve?

the shop behind ah boy i can't find leh

only got one shop selling those industrial valves

too big and heavy



Do you know the coffee shop opposite Lim Ah Boy, walk across to it and walk behind there are many hardware shop there, cross the road you will find there is some more hardware shop, the shop which sell the hose and fitting has a glass door and they place many hose outside the shop for samples, walk in and ask the boss for valve applicable for oil, the size is for 4mm tubing size.





http://i54.photobucket.com/albums/g81/furious_88/Picture004.jpg

[alvinyansg]

Do you know the coffee shop opposite Lim Ah Boy, walk across to it and walk behind there are many hardware shop there, cross the road you will find there is some more hardware shop, the shop which sell the hose and fitting has a glass door and they place many hose outside the shop for samples, walk in and ask the boss for valve applicable for oil, the size is for 4mm tubing size.





http://i54.photobucket.com/albums/g81/furious_88/Picture004.jpg



is it the shop that supplies a lot of commercial valves?

the last time i went did not tell them the yube size

just say i want fuel valve

and they give me those commercial huge ones

will drop by again to check out

[furious_88]

is it the shop that supplies a lot of commercial valves?

the last time i went did not tell them the yube size

just say i want fuel valve

and they give me those commercial huge ones

will drop by again to check out



Yup I got it from them, the boss very friendy bought this and the host from them. It's a very good valve , no leak at all

[ayoasti]

awww man...juz wen i tot the orange valve is good enuf

[alvinyansg]

Yup I got it from them, the boss very friendy bought this and the host from them. It's a very good valve , no leak at all



bought the vavle today

told them 4mm

but i nv bring my hose along

when i got home then realise my original hose too big :cry:

2ml going back again to get the hose

then need to redo the whole set up again...

[ayoasti]

awww thats terrible man. but look on the bright side at least u got the rite shop!

cheers bro!

[alvinyansg]

awww thats terrible man. but look on the bright side at least u got the rite shop!

cheers bro!



it was the same shop i went to the 1st time

just that i did not ask for the correct item

[alvinyansg]

bought the vavle today

told them 4mm

but i nv bring my hose along

when i got home then realise my original hose too big :cry:

2ml going back again to get the hose

then need to redo the whole set up again...



awww thats terrible man. but look on the bright side at least u got the rite shop!

cheers bro!



it was the same shop i went to the 1st time

just that i did not ask for the correct item

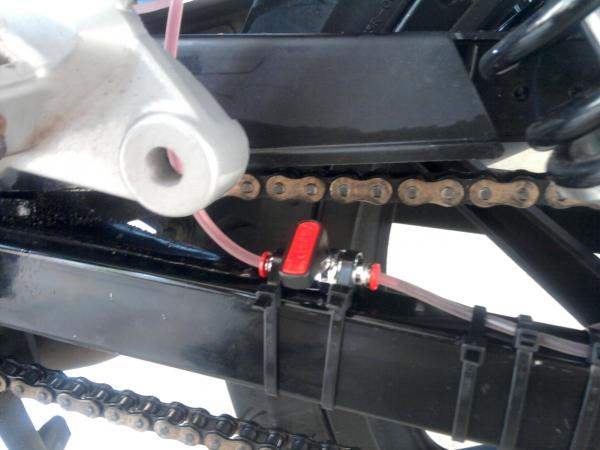

went back to the shop this morning

and decided to get a smaller diameter tubing rather than change the valve to a bigger diameter one

i forgo my regulator and used the valve as an on/off & regulator

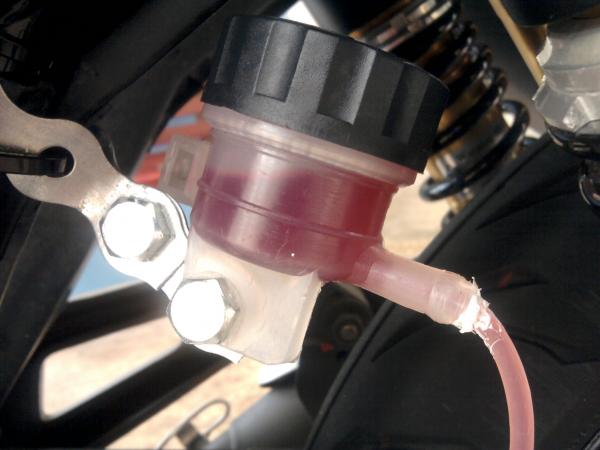

cos the tubing is of smaller diameter i pushed it straight into the outlet of the container and use silicon to seal up the outlet part

and the flow rate is slow also cos of the smaller diameter

the valve is good...:thumb:

tried out riding and no leak at any point of the oiler at all

readjusted my container to make it more straight so that i can fill up more oil and also the oil won't leak out from the top cap

took out the small metal valve from the top of the container and fitted in a plastic plug...when i top up the oil very clean...no dripping outside at all:thumb:

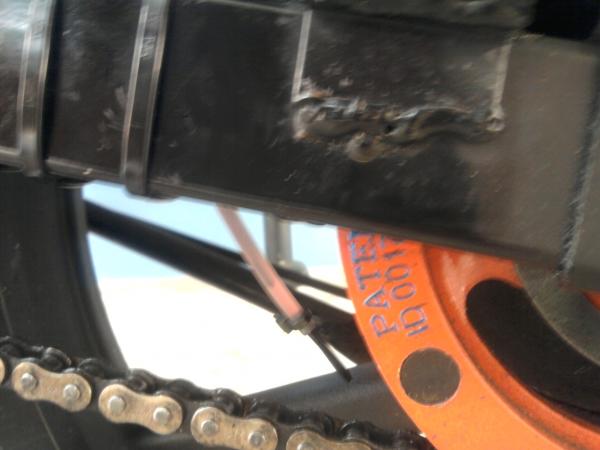

re-did my set up and here are my pics of my oiler ver 3.0



[ayoasti]

Superb bro! Maybe u wanna clean up the connection betwn the tube and reservoir tip. Make it nicer and super leak proof.

[alvinyansg]

Superb bro! Maybe u wanna clean up the connection betwn the tube and reservoir tip. Make it nicer and super leak proof.



thanks bro

yah will be doing some touching up to make it nicer

when i put the silicon i nv bring along any stick to smooth out the surface

so use cable tie to clean up a bit only



those who wants to look for the valve i got the name of the shop

it Teck Siong Huat Hardware Pte Ltd

[ayoasti]

Fan-tabulous bro! will look for the shop the next time i go there...

Btw the current aquarium tube can be use on the valve rite?

[alvinyansg]

Fan-tabulous bro! will look for the shop the next time i go there...

Btw the current aquarium tube can be use on the valve rite?



bring down your tubing so that can get the correct size valve

the shop ppl advise me to change the tubing cos the aquarium one is too soft and flimsy...

up to your preference

Edited October 17, 2010 by alvinyansg

[ayoasti]

icic. so hv to redo huh?

aiya troublesome hehe

but doesnt matter thats the fun in doin DIY projects rite?

thnx again bro!

[alvinyansg]

btw for those who go down to get the smaller tubing which fits nicely in the 4mm valve

the normal electrical wire is too big to fit into the smaller tubing

can get the 1.5mm dia metal crafting wire from diaso to fit into the tubing

[ayoasti]

thnx for the update bro

[BlkeIover]

bro den u jus fix ur thing there never tak out??

[ayoasti]

dun need ma. wana refill juz open the container and top up

[whazzupo]

wah.... got spare oiler to sell?

[alvinyansg]

wah.... got spare oiler to sell?



spare oiler to sell?

i think you are in the wrong thread

here is to share DIY your own oiler

[BlkeIover]

wow dats troublesome why not jus go to shop and get it lubricated?

[furious_88]

different la bro.. chain oiler can make our chain last at least 7 times longer B4 we change a new one.

Unless you go to motor shop every 2-3 days.

[ayoasti]

aiyoo bro everytime go bike shop...waste time and $$$.

this 1 time do it good can last u for sometime.

sumore most of us here like doing DIY stuffs especially if it can save us $$$. correct me if im wrong bros(hope im right)



cheers!
