[Group] SBF Suzuki Raider

[gunshead]

after CNY 12058km means 112,058km

10/2/16



raider absorber oil seal broke causing oil leak and become soft



bearing handle spoilt



12058km means 112,058km

10/2/16

Kang Soon spare part shop

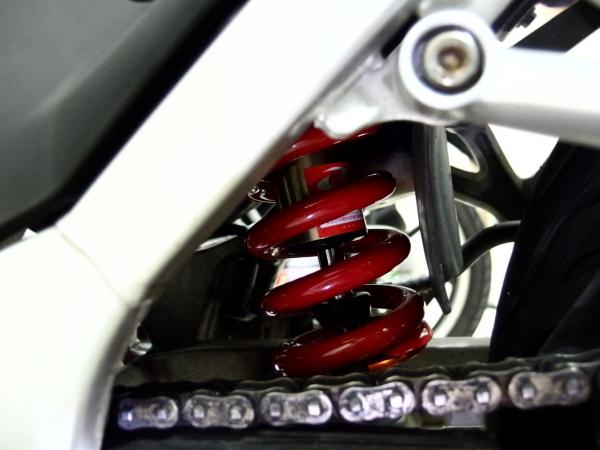

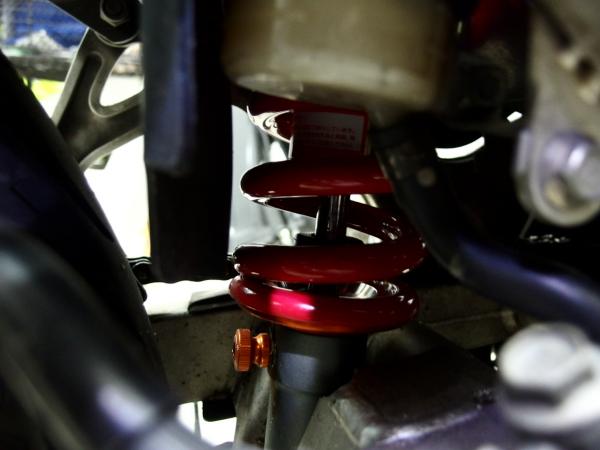

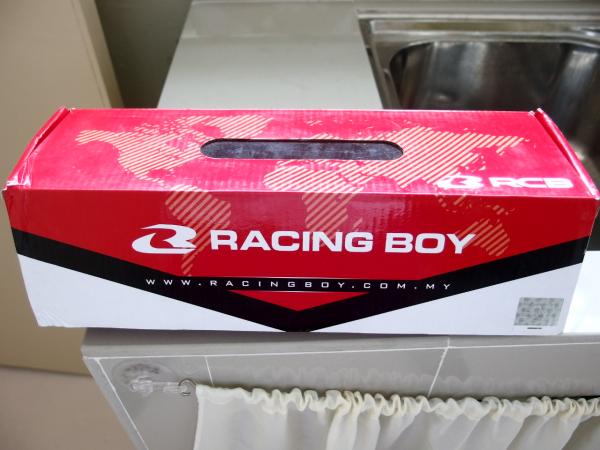

Racing Boy RCB absorber RM286 incl. gst

red color F/S/R setting

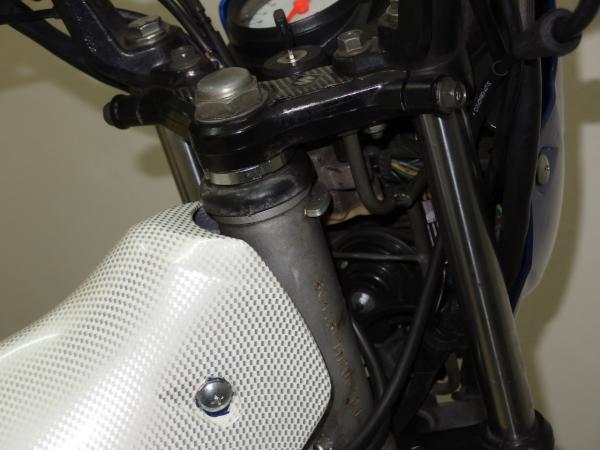

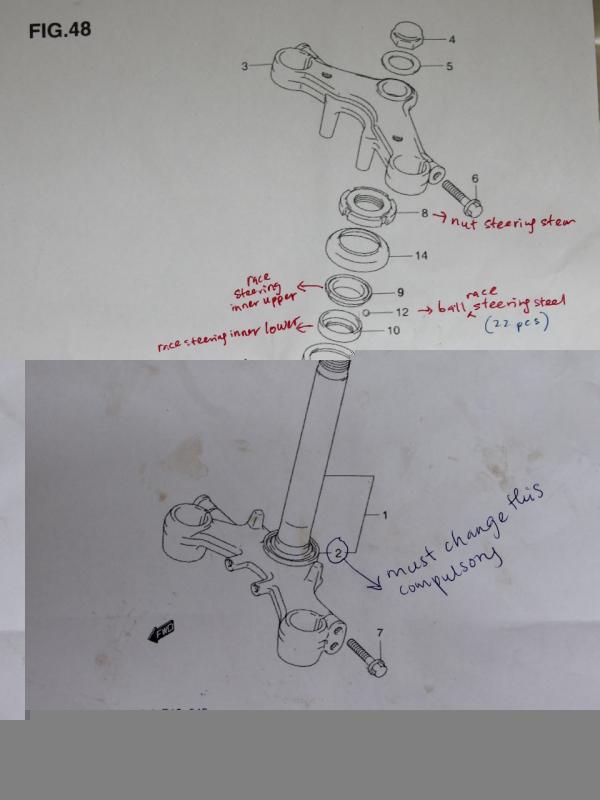

bearing handle

change one set exclude item no.2 RACE STEERING OUTER LOWER - the part is available correct part number but wrong size from made in japan so could not change.



changed

NUT,STEERING STEM

RACE STEERING INNER UPPER

RACE STEERING INNER LOWER

RACE,STEERING OUTER UPPER

BALL RACE 50pcs







change NGK g-power plug RM12



change carb diaphgram RM8



labour charge RM80

Edited February 23, 2016 by gunshead

[7seater]

Hi Gun



As long you are ok is good. Bike damage can be repaired.

[pufferfis]

19 feb 2016

6pm

met accident on causeway jb towards woodlands



very sad day



raining



repaired



broken clip shield cowling leg 48211B25G01N - RM3.50

broken rhs fairing - liquid glue then fibre A+B mix glue then cable tight

loose handle - tighten

rhs footrest slanted - adjusted



get well soon bro!

[gunshead]

8/3/16



changed engine oil shell R4

[gunshead]

wash bike

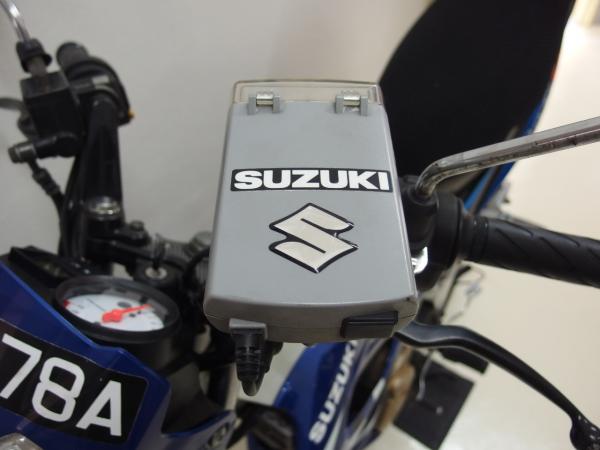

put new S logo on IU unit

Edited April 22, 2016 by gunshead

[gunshead]

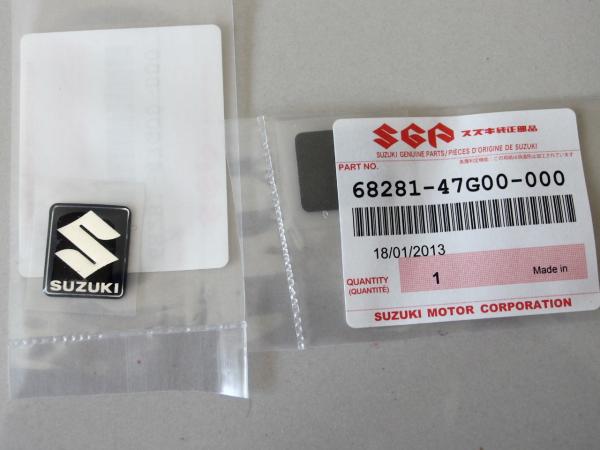

bought at SC setia tropika

suzuki emblem

60 cents

[gunshead]

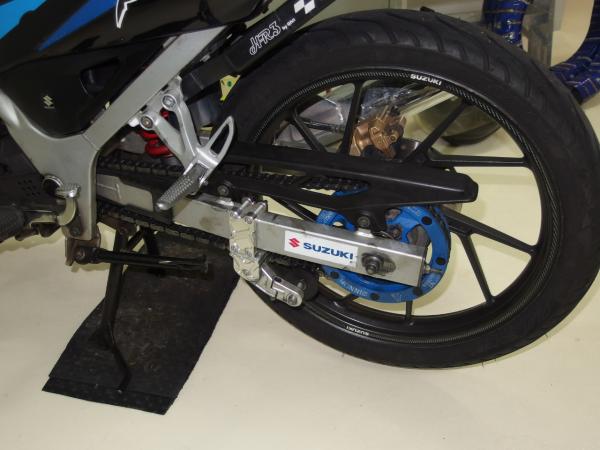

20/4/16 meter 13942km means 113,942km

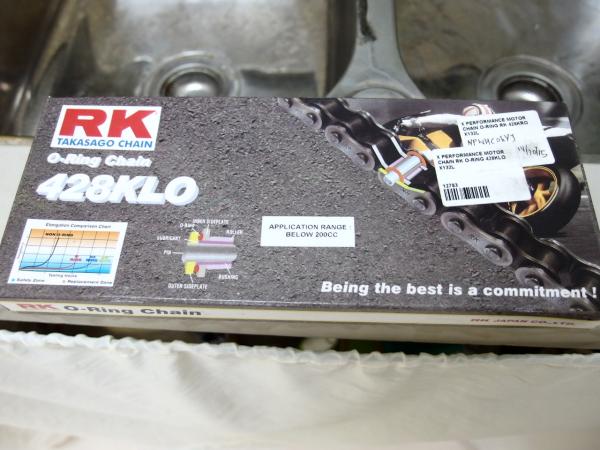

chain RK ring 428KLO

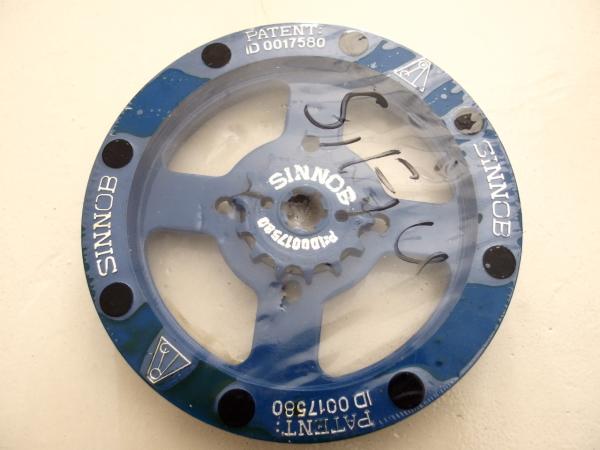

sprocket front/rear sinnob blue

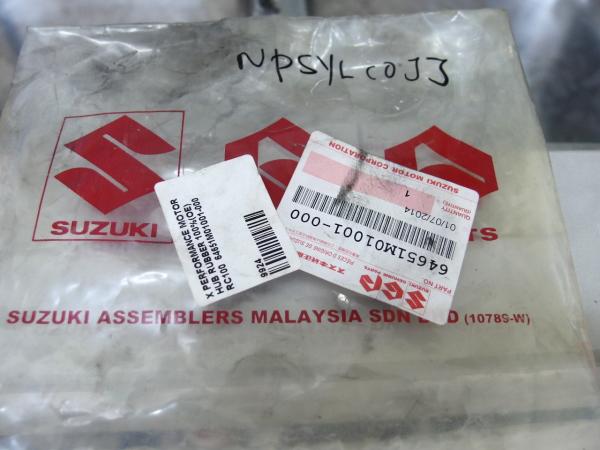

change rear wheel sprocket rubber hub ( genuine suzuki )

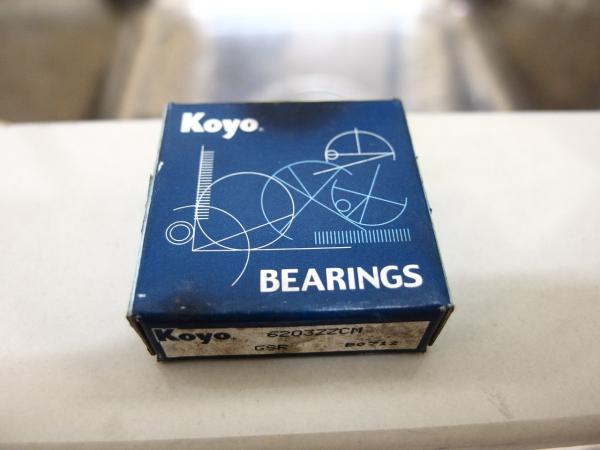

rear wheel sprocket hub bearing Koyo

[gunshead]

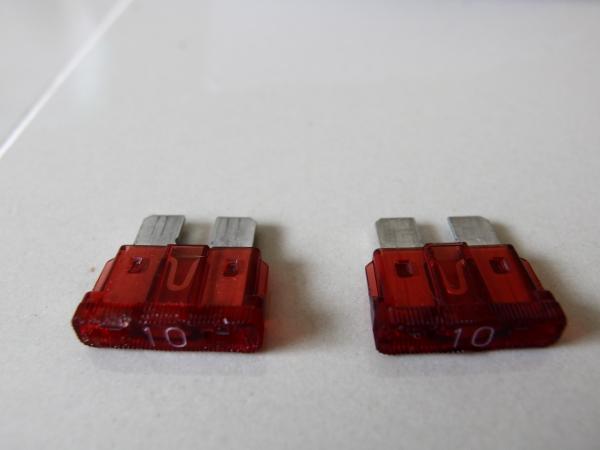

this is FU 150 raider R fuse 10A I got two extra for future use

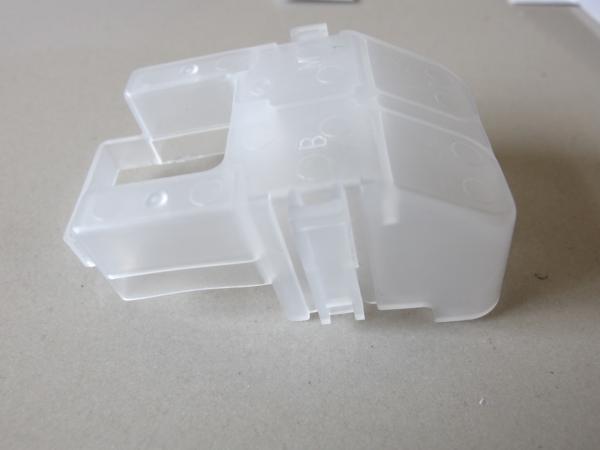

relay box new cover which is mild transparent



bought jacket Suzuki

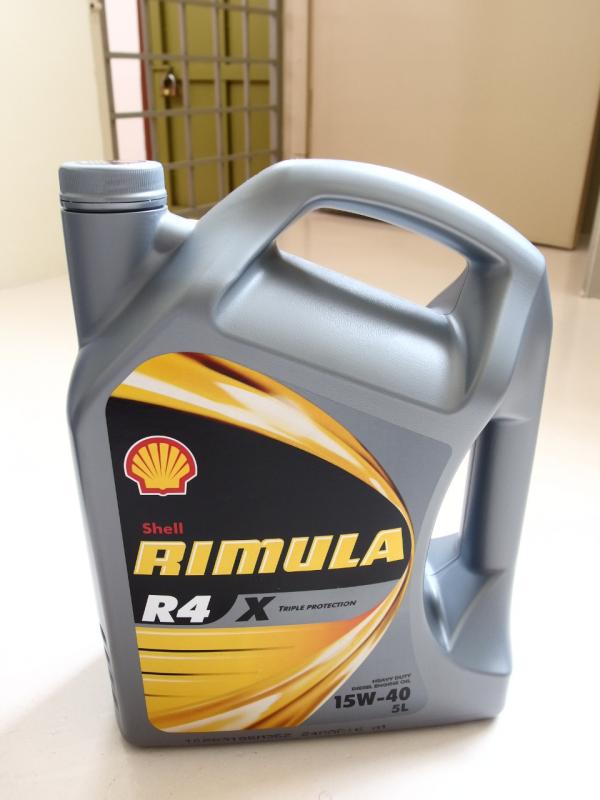

bought shell 5 liter R4

Edited May 6, 2016 by gunshead

[gunshead]

good lesson to learn



got from engineer of the bike

for all of us to learn



since raider r in spore are at high mileage



raider R uses a 3-phase generator. For units with high mileage, 1 or more of the 3 lighting coils may eventually give way and lead to dimming of headlight.



The other part to pay attention is the starter clutch bolts. There are 3 pcs. Over long time of usage, the bolts may become loosen and may cause damage to the coils of the generator. if there is abnormally loud noise when you switch OFF the engine, you need to get the bolts checked to see if they are securely tightened.





my opinion

hand tight will do , do not force machine tight



10 n-m

1.0 kg-m

I suppose

Edited June 21, 2016 by gunshead

[7seater]

Now using 15T in front for a few months. Rear remain at 43T. When riding pillon seems a little weak. Will change the rear to 45T or 46T. Having 15T, the speedo seems on par with cars. So more accurate.

[7seater]

My bike is using the manual chain tensioner. Thinking of changing back to auto tensioner. But it is not cheap. Just worry whether will have problem if put in the auto tensioner.

[gunshead]

9 june 2016

meter 15,636km

means 115,636km



SC

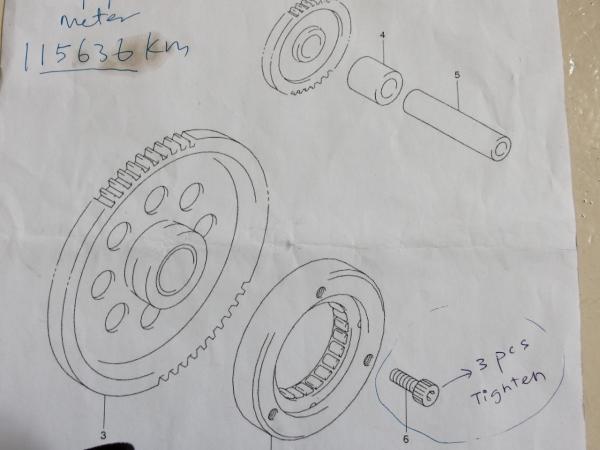

starter clutch 3 bolts tighten



changed GRIP COMP THROTTLE and GRIP L

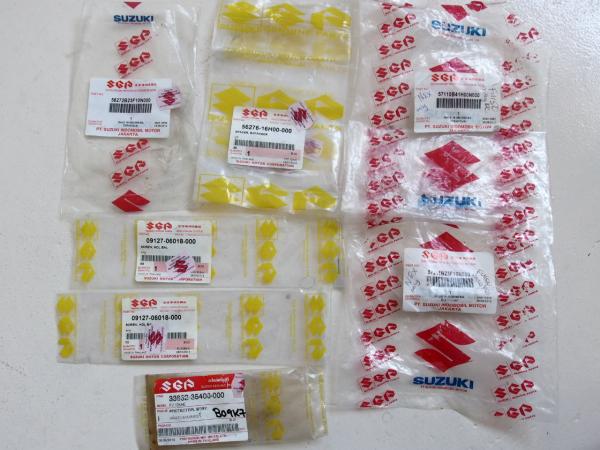

inside handle bar cleaned rust and changed internal components of BALANCER HANDLEBAR

spacer expander 2pcs RM7.40

screw handle balancer 2 pcs RM3.40

expander hdl balancer inner rubber 2 pcs RM2.20



sticker 'S' RM5



arranged headlamp wiring



insulation tape for wiring



pictures self explanation

Edited June 21, 2016 by gunshead

[gunshead]

17 June 2016

meter 16283km means 116,283km

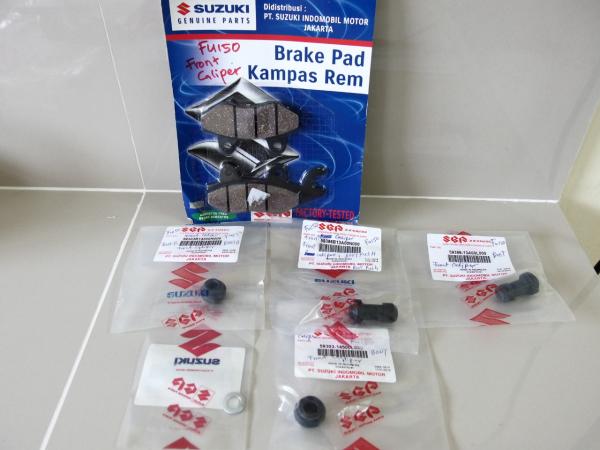

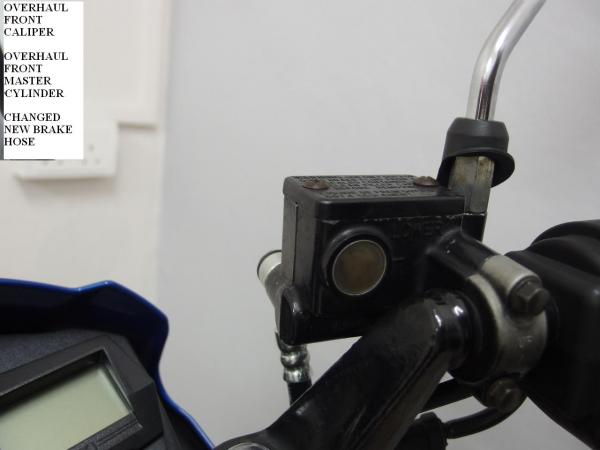

overhaul FRONT CALIPER

overhaul Master cylinder

changed brake hose



front disc caliper, changed

Seal set piston 4 pcs

WASHER SPRING

BOOT B

BOOT PUSH



Changed PISTON CUP SET inside master cylinder

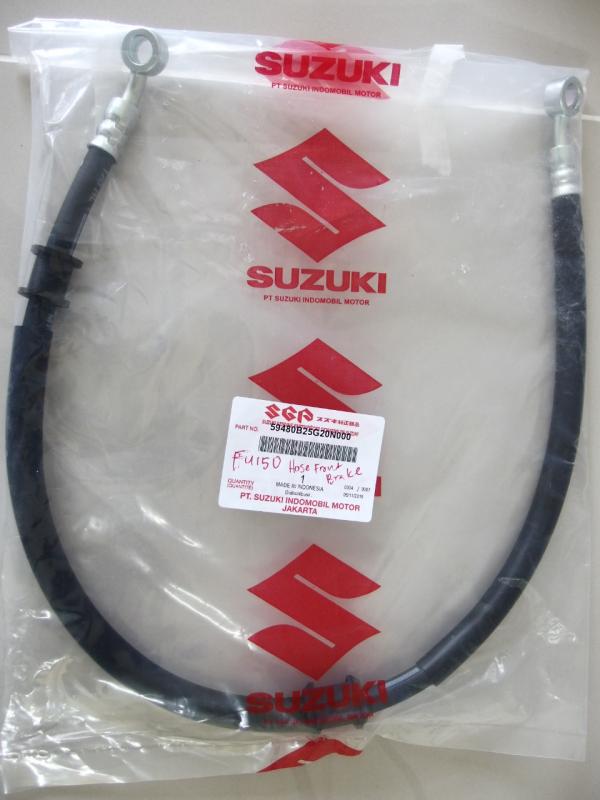

Changed new brake hose design G20

new brake hose design 59480B25G20N000

bigger hole and more fluid kept inside hose

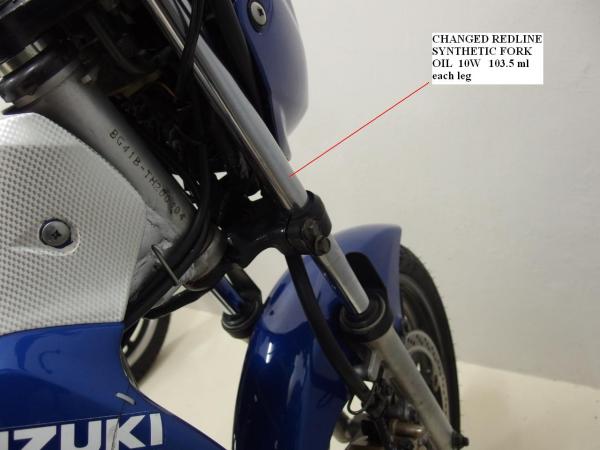

redline fork oil 10w



shell R4 1050ml

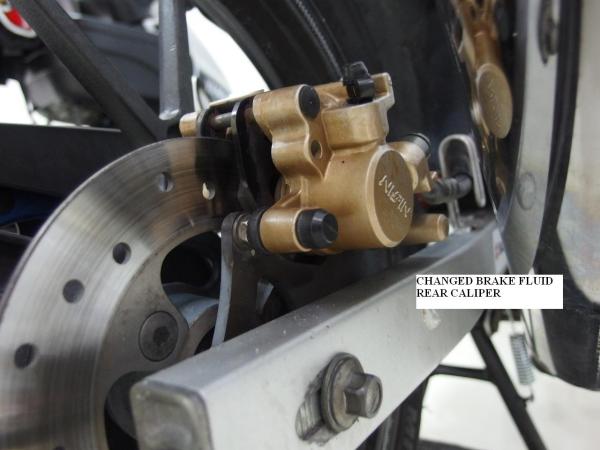

DOT 4 caltex brake fluid both front / rear disc calipers



Air filter Red color G20 new design



fix extra new clamp rr rsvr new design G10 for rear brake hose



add sponge for anti-vibration on headlamp cover

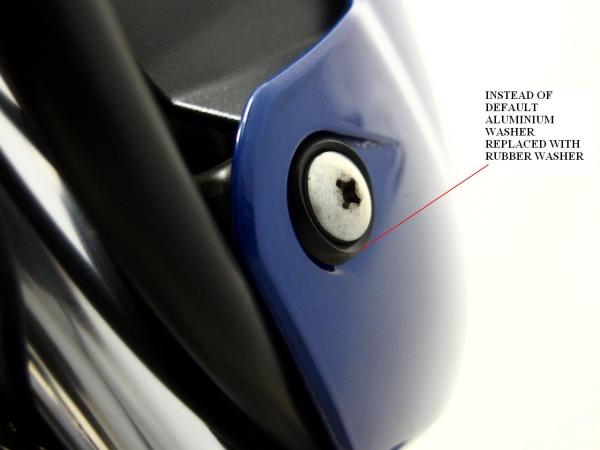

add front headlamp cover screww new rubber washer instead of default factory aluminium washer.

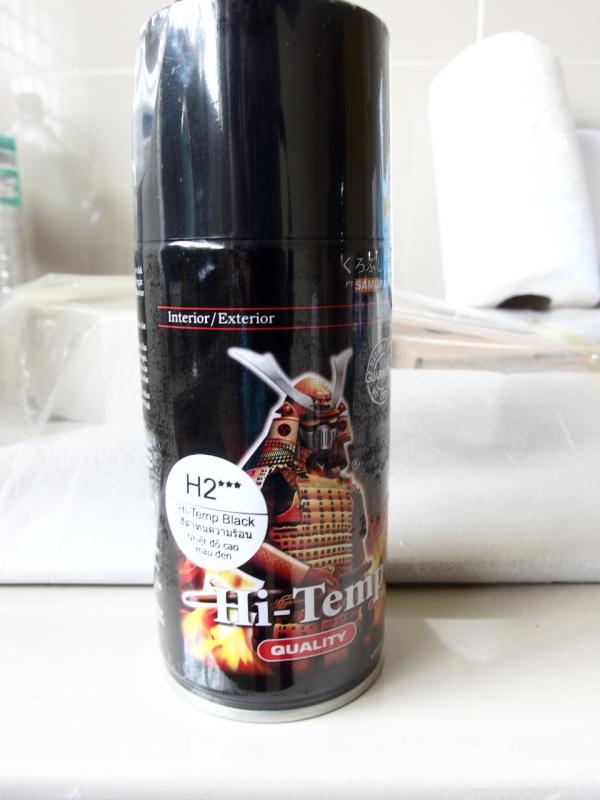

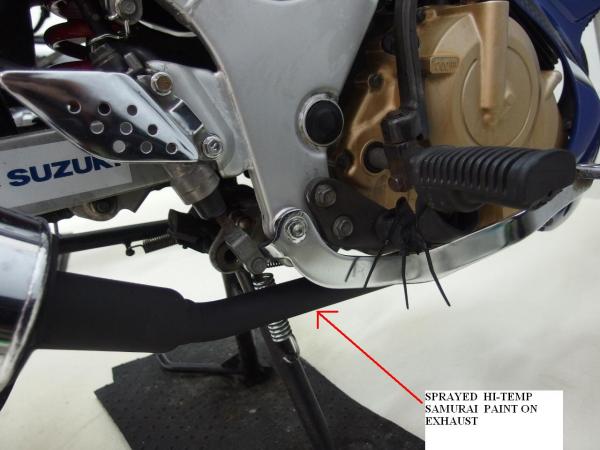

spray exhaust hi-temp paint samurai brand

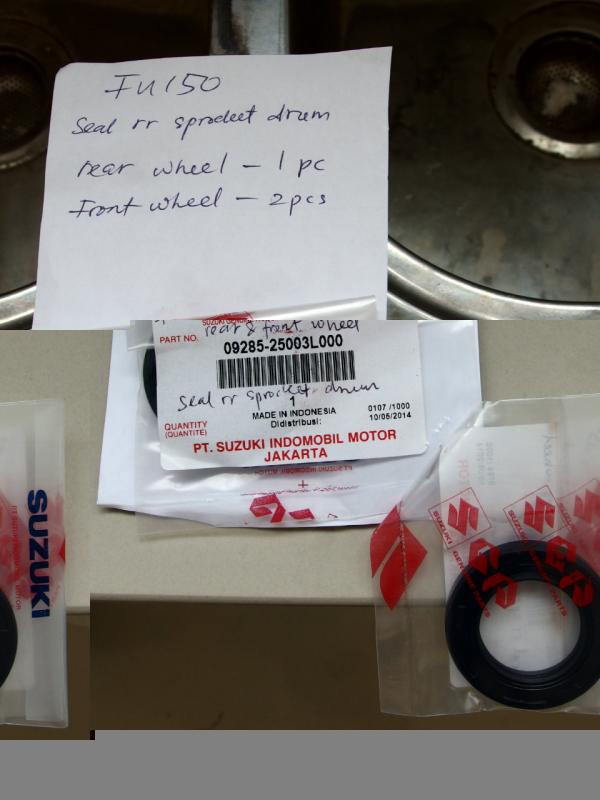

front wheel changed both side " seal rr ". Used pennzoil premium wheel red grease

[gunshead]

part 2 for above with more pictures

[gunshead]

23 june 2016

meter 16550km means 116550km

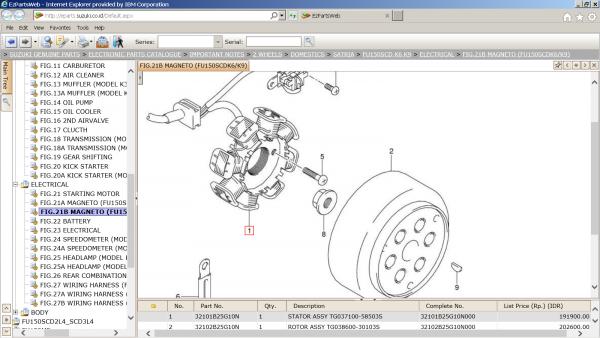

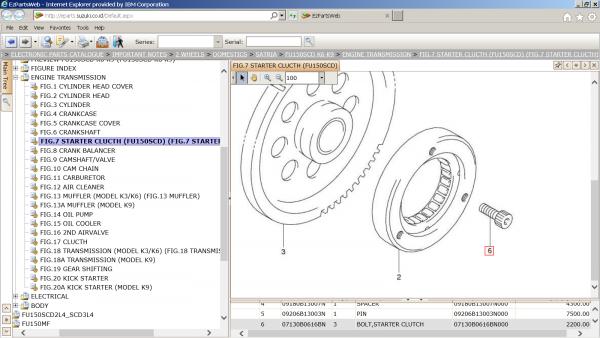

read above this thread forum I attached diagram on stater clutch and description on failure symptoms

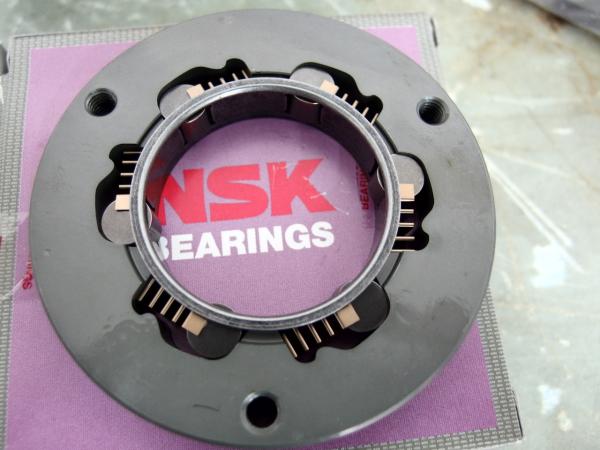

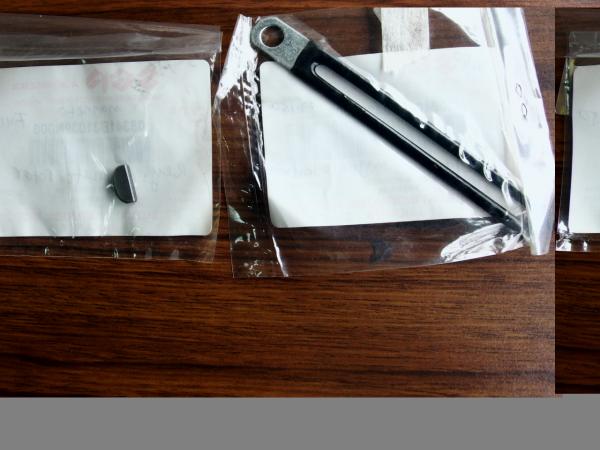

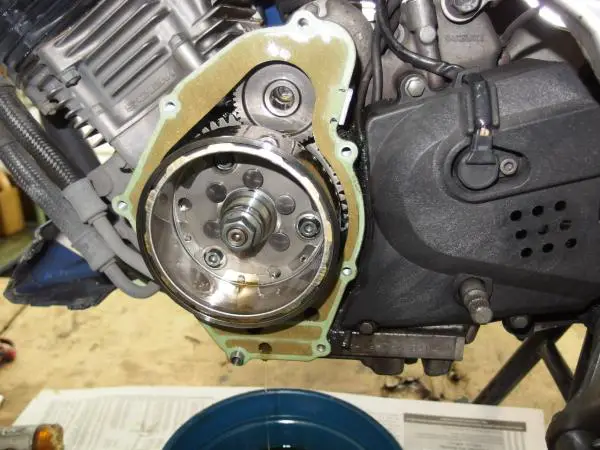

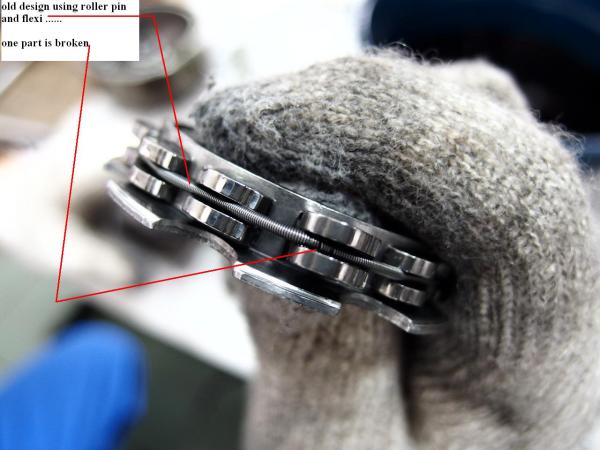

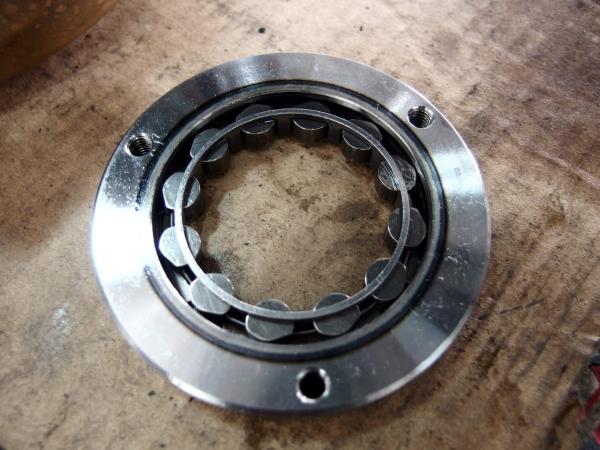

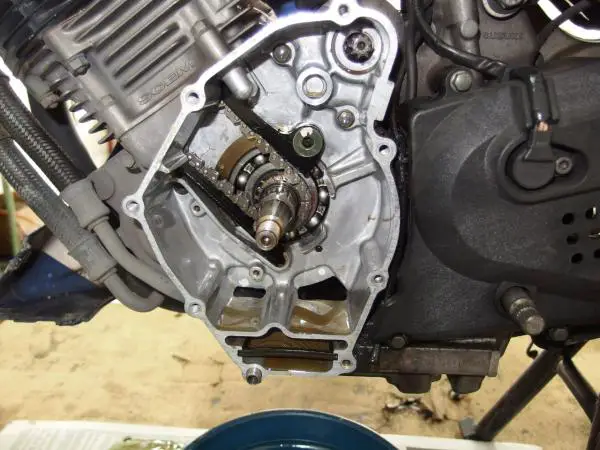

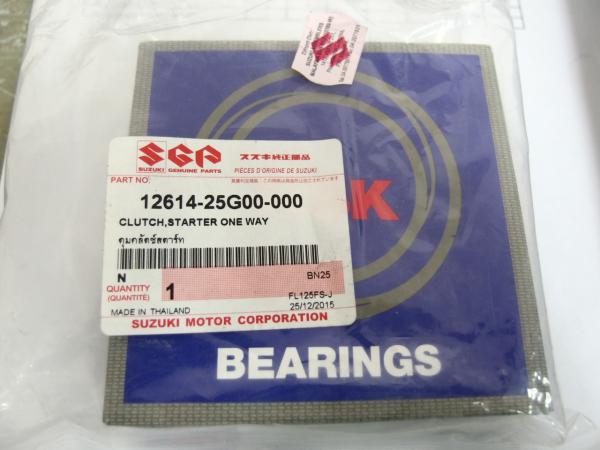

changed "starter clutch one way". New design FL125FS-J made in December 2015 made in Thailand.

malaysian catalogue new part number is 1261425G00-000.

RM154

engineer said this part has been changed entirely.

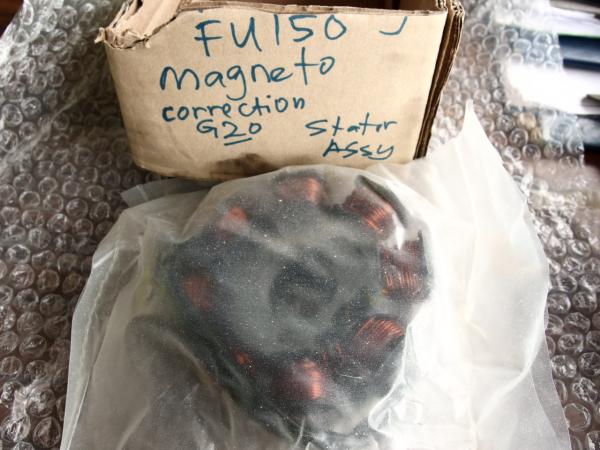

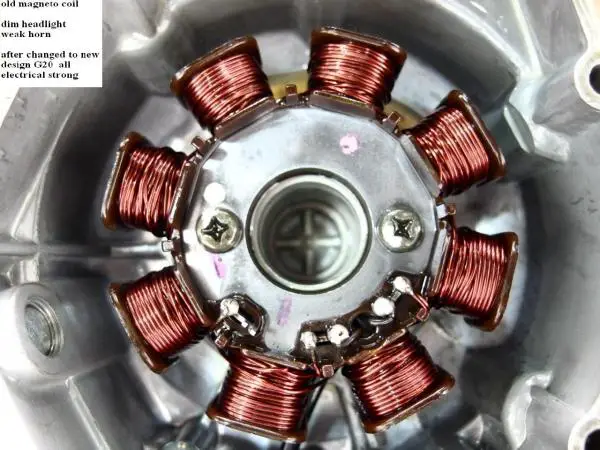

changed magneto coil new design G20



changed gasket magneto cover fxr 150



changed CLAMP magneto lead wire

[gunshead]

more photos to support above

[gunshead]

after 11 years old

mileage 16,701km means 116,701km

30 june 2016



changed all o-ring for oil sump



oil filter cover o-ring

oil filter o-ring

dipstik engine oil fill o-ring



changed oil shell R4 with oil filter 1150ml

[gunshead]

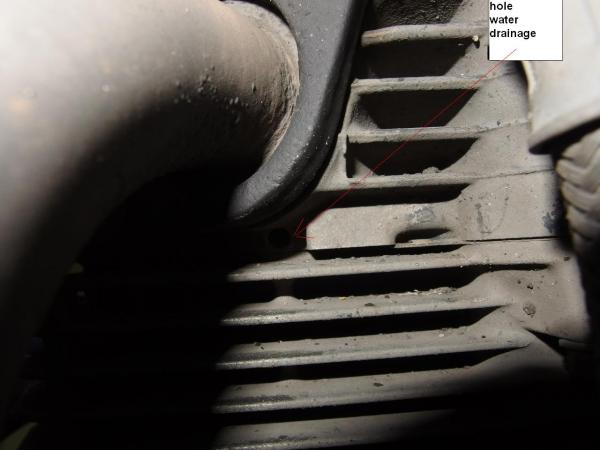

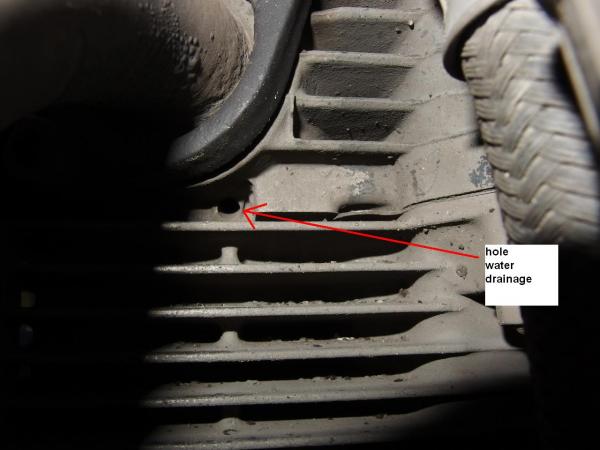

there is tiny hole below exhaust pipe hole

this tiny hole must be clean always

spray direct air into the hole and keep it clean or else when rain water enter plug hole it will not drain out

Edited July 21, 2016 by gunshead

[gunshead]

FYI



SC at setia tropika Suzuki closed down permanently from 15/7/2016



be happy

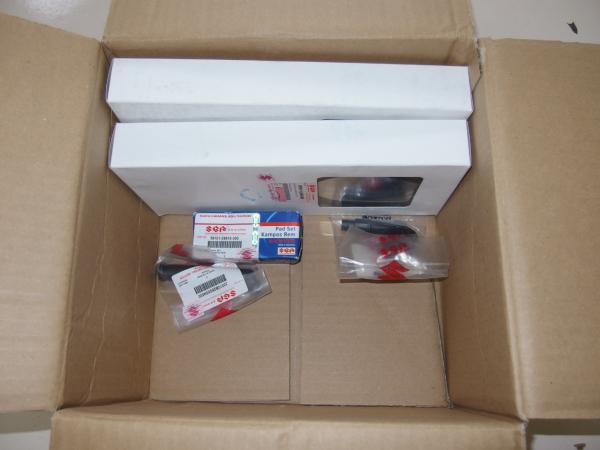

now you can call spare part dept in penang and order parts and they will courier to your home directly



http://www.suzuki.com.my



Spare Parts Department

Suzuki Malaysia

Penang .

Tel : 604-3977091

Edited July 18, 2016 by gunshead

[Isopropyl]

@gunhead



may i know where did you buy the Redline fork oil and it price?

[gunshead]

Singapore red line



http://www.kaiguan.com.sg/Redline_Where_WorkShop.html



Where To Buy



Company Location



3 Upper Aljunied Link, Joo Seng Warehouse

#01-03, Singapore 367902



Operating Hours

Monday to Friday: 9am to 6pm

Saturday: 9am to 3pm

Sunday & Public Holiday: CLOSED





For all Red Line Oil

enquiries, please contact

Alex via mobile thru sms

at +65 94526985

or email

alex@KaiGuan.com.sg

[gunshead]

20 July 2016 16,985km

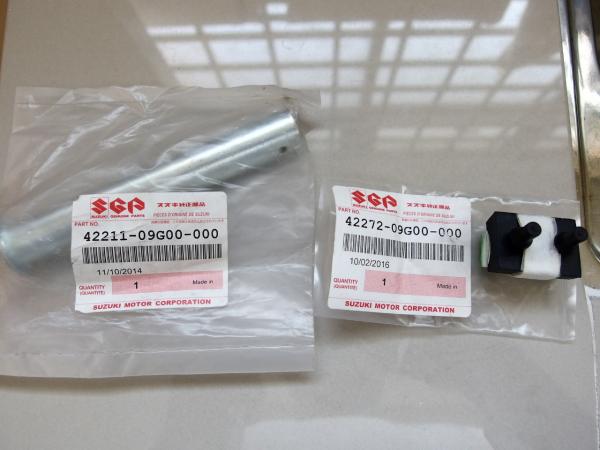

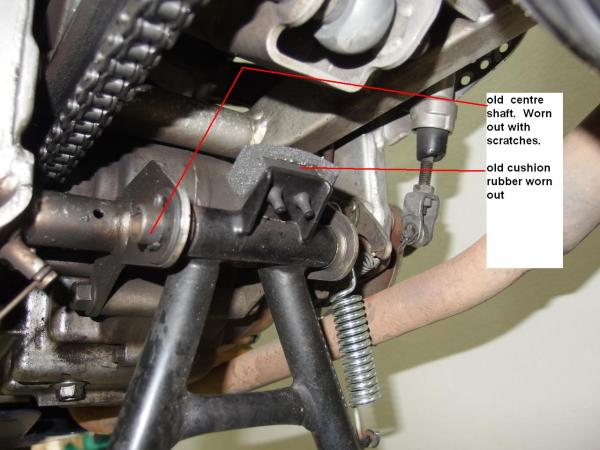

changed shaft inside double stand due to worn out and mild shaky double stand.

42211B20G00N000 SHAFT CENTER STAND

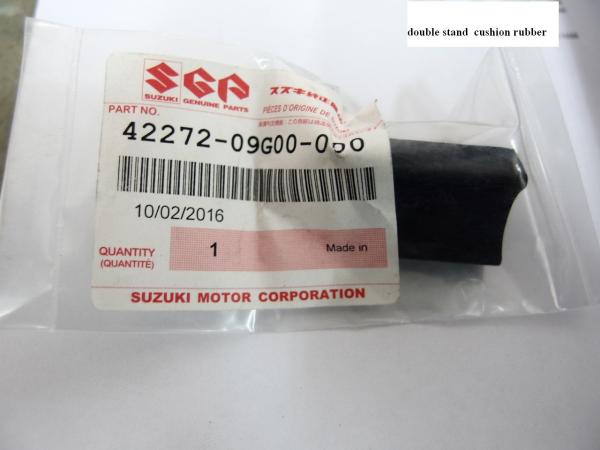

42272B09G00N000 CUSHION CENTER STAND



long time ago changed spring and centre stand new design G20

[gunshead]

20 July 2016 16,985km



symtoms

heavy rain bike getting stalled

found out the plug cap is wet and ignition stops

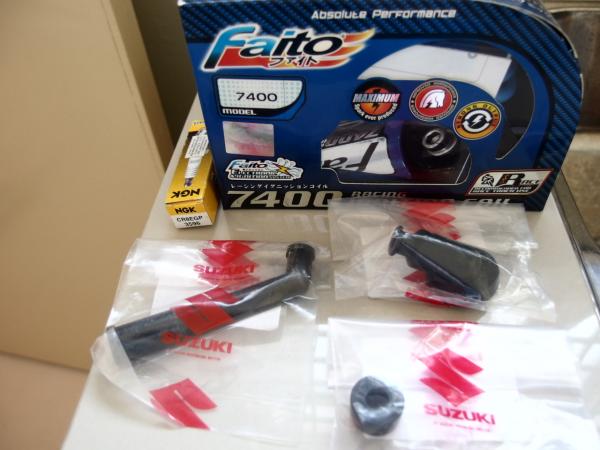

after 11 years first time changing whole set

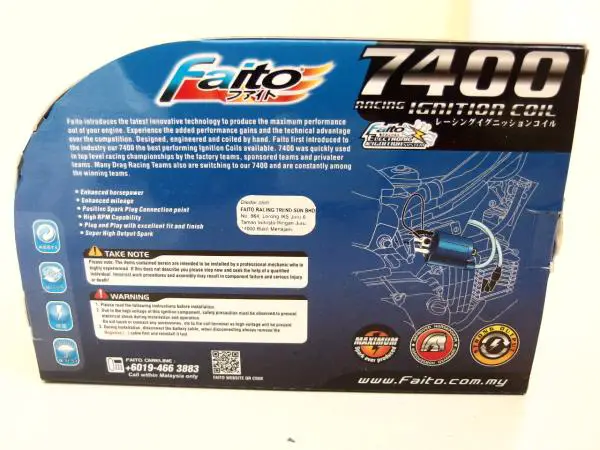

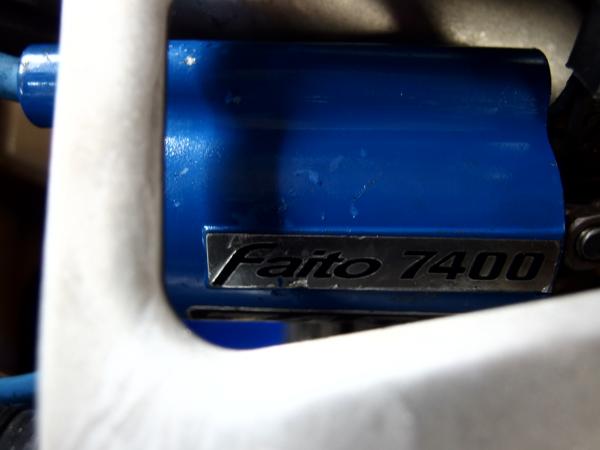

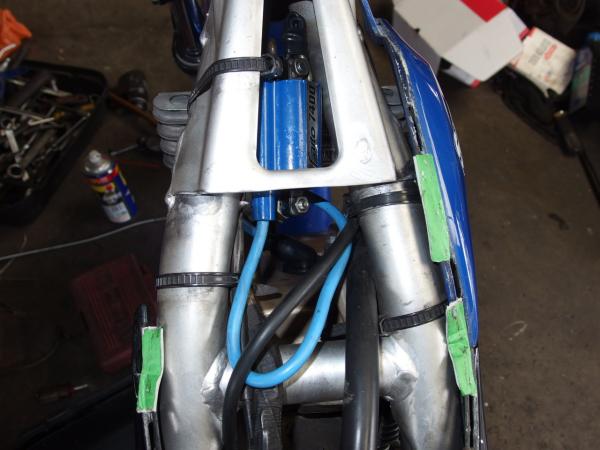

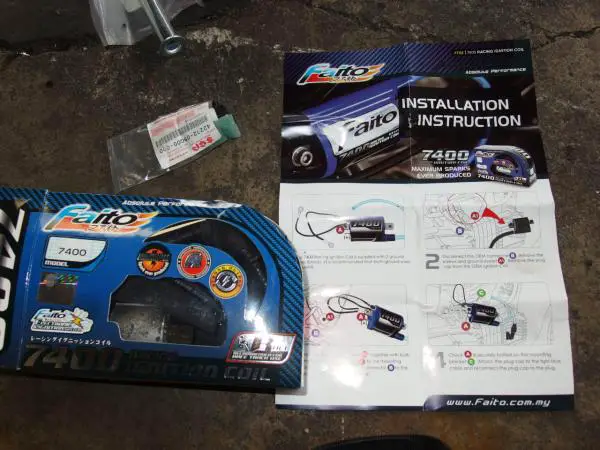

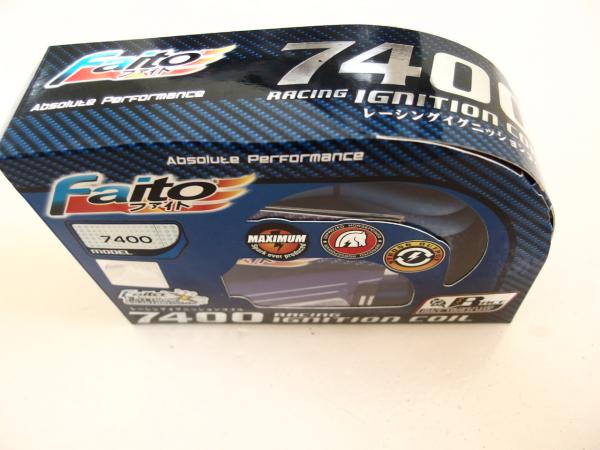

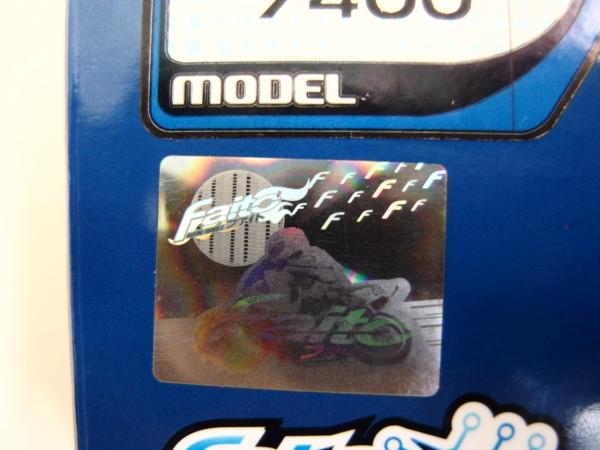

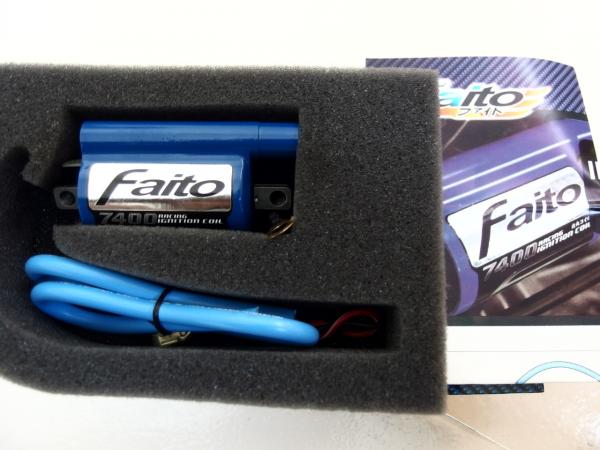

changed FAITO 7400 ignition coil RM75

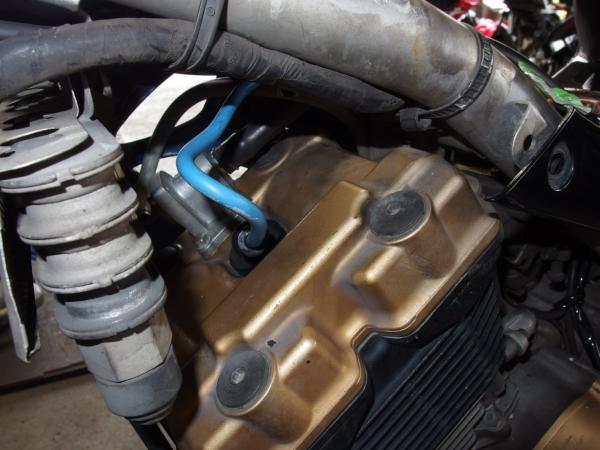

changed high tension cord - 2nd time changing

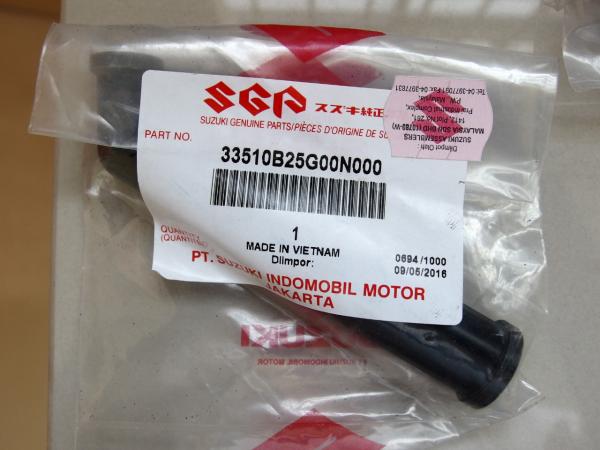

changed plug cap RM50

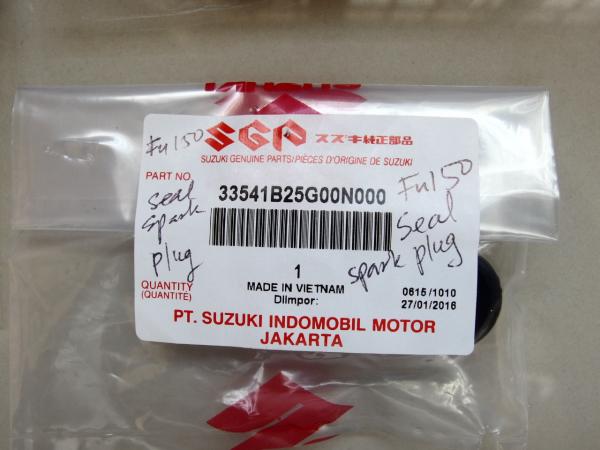

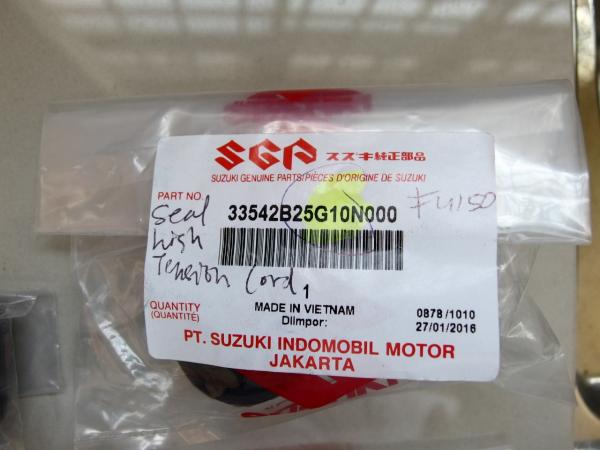

changed cap seal







there is tiny hole below exhaust pipe hole

this tiny hole must be clean always

spray direct air into the hole and keep it clean or else when rain water enter plug hole it will not drain out

see photos of tiny hole (above in this page)

Edited July 21, 2016 by gunshead

[gunshead]

more photos to support above writing



after fixing faito 7400 i tested



result:



1. super smooth acceleration

2. need open little throttle the bike will move very fast

3. believe will consume low petrol as power is adequate with little throttle

4. one press electric start bike ignite fast.

[gunshead]

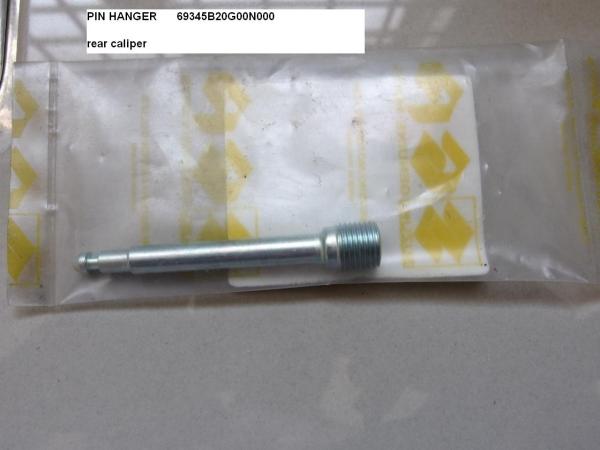

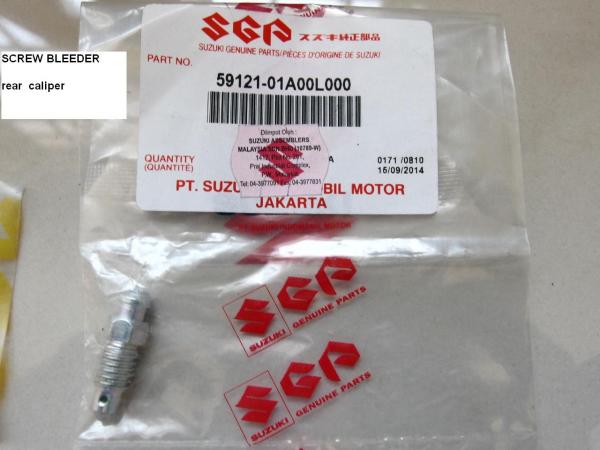

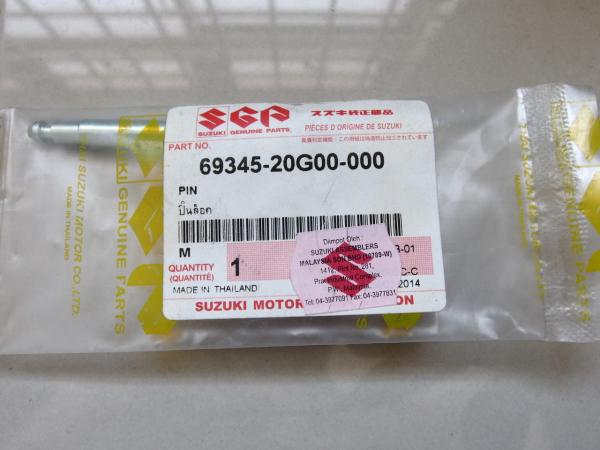

check your disc caliper



if pin hangar and screw bleeder is rusty

pls change them

otherwise when u bleed brake fluis it is not smooth

clean screw bleeder witll drain out brake fluid easily

therefore u get to do changing brake fluid faster and efficient
