2004 Kawasaki Z750 DIY Guide

[S750WP]

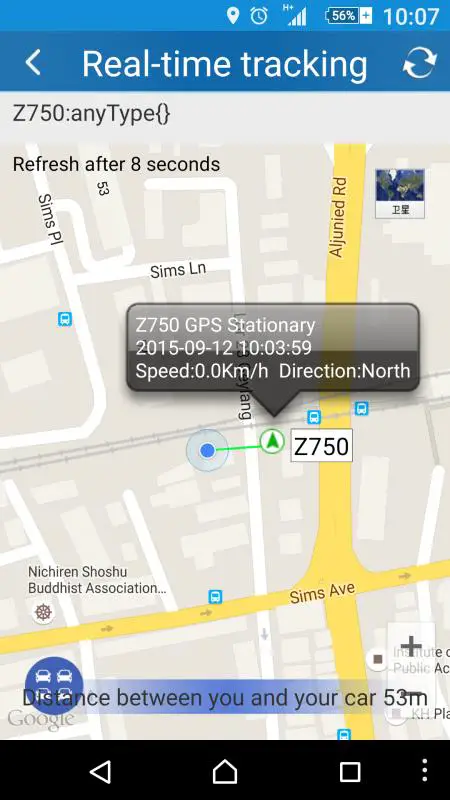

Install a GPS tracker on my bike yesterday. This can be bought cheaply from online website. Will need a GSM SIM card to work. Connection is only 3 wires.

Red to battery positive terminal

Black to battery negative terminal

White connect to relay link to fuel pump to cut fuel if bike was stolen.





Sent from my D6503 using Tapatalk

[S750WP]

Installed Kappa K22N side box at Lim Ah Boy for $220.



http://images.tapatalk-cdn.com/15/09/16/77342f02e37a5d40b2249587c468d3dc.jpg



http://images.tapatalk-cdn.com/15/09/16/27f1034f570f5b023fecd1424bb5a586.jpg

Edited September 16, 2015 by S750WP

[S750WP]

DIY to install led strips, power by a 9v battery inside the box for illumination at lowly lit places.



http://images.tapatalk-cdn.com/15/09/24/22fc5e1a3bd6d5d5fb3b62a142f99fc5.jpg



Sent from my D6503 using Tapatalk

[S750WP]

Replace the rear wheel cush drive as the old one has worn out.



Sent from my D6503 using Tapatalk

http://images.tapatalk-cdn.com/15/10/17/d978d6aa55b6d0b6105343f5861ad089.jpg

http://images.tapatalk-cdn.com/15/10/17/8eb18e3b691bc3ebac9e50097cd07579.jpg

http://images.tapatalk-cdn.com/15/10/17/d602f8909086d64ed933d8ad4a184615.jpg

http://images.tapatalk-cdn.com/15/10/17/b2e612efc578751f1c01bc98bed033ee.jpg

[S750WP]

Got a new set of front brake disc from TaoBao for approx $80, and new EBC Kevlar brake pads for $80. This is my second set of China brake disc and no issue at all.



http://images.tapatalk-cdn.com/15/10/17/bc6199064128b4a28c1d788870da6d89.jpg



Sent from my D6503 using Tapatalk

[S750WP]

Did the steering cone bearing change today



Remove the head fairing and handle bars

http://images.tapatalk-cdn.com/15/11/28/6e84312a9ca3d80296a022774d2b263e.jpg



Remove the brake calipers and front wheel.

http://images.tapatalk-cdn.com/15/11/28/c13cacc00146044b38f2ebecd0051fda.jpg



Remove the fork assembly, chisel out the bearing race

http://images.tapatalk-cdn.com/15/11/28/e1b0b32b2baa8f540feae2e2d4f6f66c.jpg



The old steering bearings

http://images.tapatalk-cdn.com/15/11/28/e2c1a8110ba2c0d3b2f9ddb2dca677fd.jpg



New bearings and race installed

http://images.tapatalk-cdn.com/15/11/28/a56940fa7eb8279b246fbe2d7c7cdcc2.jpg



http://images.tapatalk-cdn.com/15/11/28/0d7728fbd4024e488be3bccf5d1ace78.jpg



Installed everything back and adjust the steering nut

Edited November 28, 2015 by S750WP

[yatan73-regok]

How much does this change cost in sg motor shop?how long does it take for you to complete it?



Sent from my SM-N9005 using Tapatalk

[S750WP]

Not sure about the price I hardly goes to bike shop for servicing now, many years back it was $80 for 400cc Suzuki Bandit. It took me a 1/2 day for the work, the removal of the bearing race with chisel is the most tedious part. I tell myself next time I will send to bike shop.



Sent from my D6503 using Tapatalk

[ooitn]

ya... did once for a friend's bike.. chisel until you thought you had bended the fork...kekeke

[kish_garfield]

hi bro S750WP



is your purchase of $220 from ah boy of the kappa with or without rack?

[yatan73-regok]

Not sure about the price I hardly goes to bike shop for servicing now, many years back it was $80 for 400cc Suzuki Bandit. It took me a 1/2 day for the work, the removal of the bearing race with chisel is the most tedious part. I tell myself next time I will send to bike shop.



Sent from my D6503 using Tapatalk

Half day is quite a lot of time, if shop charge 100 or below, can consider going to the shop. Thumbs up for your DIY spirit though!



Sent from my SM-N9005 using Tapatalk

[S750WP]

hi bro S750WP



is your purchase of $220 from ah boy of the kappa with or without rack?

Inclusive of universal rack.



Sent from my D6503 using Tapatalk

[kish_garfield]

my current soft side bags from komine is crap for the z750s....



but my top box is sengwangs bracket. uno how would that work.



You spoke to danny or Ah boy?

[S750WP]

my current soft side bags from komine is crap for the z750s....



but my top box is sengwangs bracket. uno how would that work.



You spoke to danny or Ah boy?

I am using the 04-06 Z750 GIVI bracket for top box, Ah Boy salesman quoted me the price of the side box. Their mechanic mount the side rack to my existing rack and charge me 20 but was very shaky as the support was not enough. Went to bike fabricator to fab additional bracket but he was reluctant and say need to cut the tail board to add bracket. Went to SK also same thing, I show them how the Hepco Becker side pannier were mounted and asked him to follow and make the bracket to link the side rack to my left foot peg and right end can, after which no more shaking. It cost 100 from SK. No drilling of existing rack or cutting of the rear tail board needed, I can switch back to naked bike easily by removing just a few bolts.



Sent from my D6503 using Tapatalk

Edited December 28, 2015 by S750WP
