[Discussion] CB400 SUPER FOUR HYPER VTEC Revo

[0men.g]

Hi.. any Bro knows what thing is spoil. After my accident. My fuel meter keeps show full tank. Is there a floater in the tank or isotope sensor.? Went unique... thy say thy haven't come across such cases for revo... TIA. And happy Friday everyone.... cheerssss

[Skuzz]

Hi.. any Bro knows what thing is spoil. After my accident. My fuel meter keeps show full tank. Is there a floater in the tank or isotope sensor.? Went unique... thy say thy haven't come across such cases for revo... TIA. And happy Friday everyone.... cheerssss



Yes there is a floater in the Revo tank. It is attached to Decription: Pump Assy., Fuel P/No.16700-MFM-003

[oldcat5000]

Hi guys, need some help on this.

previously rode to pahang, kuantan from SG. Midway did a pit stop with coffee break.

After coffee break when restarting my bike, the PGM-FI light was on and unable to start but after turning key to off and let it cool for 15mins more.

i was able to start bike again. I encountered this problem on a 2013 Revo, up till now only 1 years old.

Any1 have similar problem before?

Planning on doing a trip up cameron highland in the coming month slightly afraid this problem might surface again midway.

Any opinion is welcomed.

[oldcat5000]

I met with the same Issue. Did you manage to find out where was the fault?

[Siphon]

I met with the same Issue. Did you manage to find out where was the fault?



Seems like a common issue... i had the same problem... Was showing full tank even when there was less than 2 liters of fuel in the tank.



Turns out the float and the pump are now 1 single part... about $750 for the parts... good thing under warranty...

[Siphon]

The one from LAB is hard plastic and will crack and break after a few months due to constant "swinging" during the ride.



For me, I go to the rubber shop at Towner Road, bought a suitable piece of rubber of about 2.5mm thickness, cut it to the shape of the mudflap and it is lasting me forever.



I did the same for my front wheel and it has been serving me well. Otherwise, those small stones and pebbles will always be churned up and damage the cooling fins on my radiator. Bloody HONDA should have incorporated this onto their bikes. My ex-SUZUKI came pre-installed with the mudflap extension for the front wheel.



Nice then how u secure it to the plastic? drill hole? or just stick it with some super tape?

[oldcat5000]

Hi guys, need some help on this.

previously rode to pahang, kuantan from SG. Midway did a pit stop with coffee break.

After coffee break when restarting my bike, the PGM-FI light was on and unable to start but after turning key to off and let it cool for 15mins more.

i was able to start bike again. I encountered this problem on a 2013 Revo, up till now only 1 years old.

Any1 have similar problem before?

Planning on doing a trip up cameron highland in the coming month slightly afraid this problem might surface again midway.

Any opinion is welcomed.



went down to Planet Motors and threw this question at Chong, his answer was that it was running a bit too hot which is why the FI light was on and prevented me from starting the bike. Mayb i should change my coolant to engine ice instead of the stock honda coolant and see if there is any improvement

[HaiR1]

went down to Planet Motors and threw this question at Chong, his answer was that it was running a bit too hot which is why the FI light was on and prevented me from starting the bike. Mayb i should change my coolant to engine ice instead of the stock honda coolant and see if there is any improvement







Try using Voltronic coolant

[nsr1980]

guys,



should I go for 2013 or 2014 revo?



which resale value is good

2014 euro 5

[Winners]

Nice then how u secure it to the plastic? drill hole? or just stick it with some super tape?

For the rear mudguard, you can drill 2 holes and screw onto. Also, have to cut out a rectangular slot for the piece of reflector.



For the front mudguard, I used contact cement + =show&tx_lwshopitems_pi1[controller]=Product&cHash=f356628e1ae992687a041a94c75a7a1e"]good quality super glue (not those S$1 a tube type). It had worked very well. You can get the ZACKI ELAPOR glue locally from NTC ENGINEERING HOBBIES (150 South Bridge Road #B1-22, Fook Hai Building, Singapore 058727, Telephone: 65341162. Facsimile: 64382252, Website: http://www.myrcstore.com). I'm just their customer, not doing any soliciting here.

Edited July 21, 2014 by Winners

[oldcat5000]

guys, any 1 know if the ecu for revos are the same setting throughout all revos?

or are they self educating and can learn the style of their riders and update accordingly?

coz a fren told me becoz i ran my bike hard during the run-in phase thats why my fuel consumption is higher as the ecu was tuned during the 1st 1000km for high performance instead of fuel economy.

[GHOSTRECON]

Help friend sell all original vtec 3 fender 2 in 1 only sell $69.90.......

If u need to completed modify version R'S ,vtec1 and vtec2 TO vtec 3 , meybe u need this one fender !



Conform no many shop keep stock at all s'g ! http://img.tapatalk.com/dcff0150-740f-fe62.jpghttp://img.tapatalk.com/dcff0146-741d-[img]http://img.tapatalk.com/dcff0155-743e-9af0.jpg7a34.jpg[/img]http://img.tapatalk.com/dcff0122-7527-1fbc.jpghttp://img.tapatalk.com/dcff012d-7533-902a.jpg

Pls SMS 843one one 333



hi do you sell this item to international buyers i am really interested in buying this item



Sent from my iPhone using Tapatalk





Sent from my iPhone using Tapatalk



hi i am from maldives i need to buy this item what shall i do what are the procedures

[Skuzz]

guys, any 1 know if the ecu for revos are the same setting throughout all revos?

or are they self educating and can learn the style of their riders and update accordingly?

coz a fren told me becoz i ran my bike hard during the run-in phase thats why my fuel consumption is higher as the ecu was tuned during the 1st 1000km for high performance instead of fuel economy.



I think it is a very basic ECU as the bike does not have an O2/Lambda sensor. As such altering your riding style (i.e. avoiding VTEC power band) should immediately give better fuel consumption. Of course may not be possible on Singapores busy roads.

[SparkerS1]

guys, any 1 know if the ecu for revos are the same setting throughout all revos?

or are they self educating and can learn the style of their riders and update accordingly?

coz a fren told me becoz i ran my bike hard during the run-in phase thats why my fuel consumption is higher as the ecu was tuned during the 1st 1000km for high performance instead of fuel economy.



Yes, same original setting throughout from HONDA.

The HONDA ECU is not automatically adjustable.

I don't understand what you meant by ran the bike hard during the run-in phrase.

[Siphon]

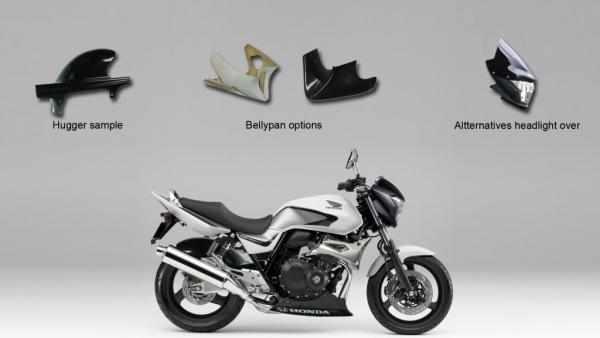

Any bros know where i can get those items in the picture?



[oldcat5000]

Yes, same original setting throughout from HONDA.

The HONDA ECU is not automatically adjustable.

I don't understand what you meant by ran the bike hard during the run-in phrase.



I mean that i used the hard run in when i just bought the bike. A friend of mine told me that is the reason why my bike's fuel consumption is higher as compared to his spec 3 even tho revo is supposedly more fuel saving as its tech is more advanced

[justforme]

I mean that i used the hard run in when i just bought the bike. A friend of mine told me that is the reason why my bike's fuel consumption is higher as compared to his spec 3 even tho revo is supposedly more fuel saving as its tech is more advanced



from what i know revo is less fuel efficient, meaning uses more fuel as compared to spec3 due to it's fuel injection technology. so far i've not known any revo that is able to hit 26km/l. if anyone with revo did hit 26km/l please do some sharing...

[idbiot]

Hi All,



Can I check with you where can I purchase originals Revo Parts such as the clutch cable and mirrors?



Please advise.



Thanks.

[robmysoul]

Hi All,



Can I check with you where can I purchase originals Revo Parts such as the clutch cable and mirrors?



Please advise.



Thanks.



Hi idbiot, you can check w FJT Parts & Accessories Pte Ltd as they are the main Honda distributor in SG.



Address: 15 Rowell Rd

Tel: 63925928

[oldcat5000]

from what i know revo is less fuel efficient, meaning uses more fuel as compared to spec3 due to it's fuel injection technology. so far i've not known any revo that is able to hit 26km/l. if anyone with revo did hit 26km/l please do some sharing...



quite true, my revo nv got more than 20km/l =\ makes me wonder if the revo is actually an improvement or not

[justforme]

quite true, my revo nv got more than 20km/l =\ makes me wonder if the revo is actually an improvement or not



less than 20km/l is really bad you know...? from what i know revo is around 22-24km/l. my spec3 currently is having 26-27km/l

[Skuzz]

quite true, my revo nv got more than 20km/l =\ makes me wonder if the revo is actually an improvement or not



Improvement was to clean the emissions to meet many countries demand for this. I often wonder if we are actually achieving any thing, I would say burning less fuel should be the ultimate goal.



In your very warm climate the fuel consumption will at least be optimised by much less running from cold with a very rich fuel mixture. Here in the UK my fuel consumption drops by around 10% in the winter time (average temperature of 3.3 degrees C).



I improved my economy by fitting 16T front and 42T rear sprockets - chain will need to be shortened & the speedometer re-calibrated. Still accellerates well though.



Edited August 7, 2014 by Skuzz

[Skuzz]

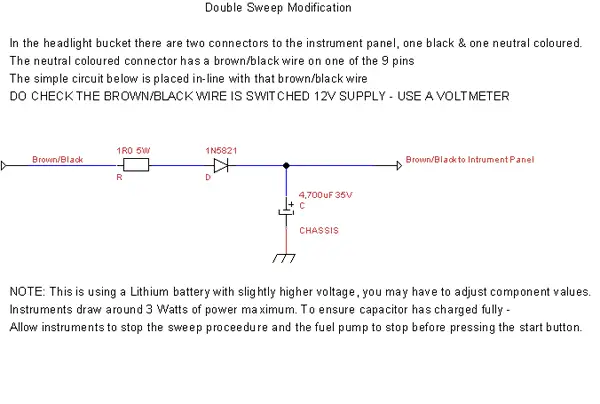

Anyone have problems with a double sweep of the instrument dials?



I cured mine with this modification





Table of testing showing a standard silicon diode v's a Schottky diode



[table=width: 500, class: grid]

[tr]

[td]Silicon[/td]

[td]Input Voltage[/td]

[td]Anode[/td]

[td]Cathode[/td]

[/tr]

[tr]

[td]1R0[/td]

[td]13.1V[/td]

[td]12.9V[/td]

[td]12.1V[/td]

[/tr]

[tr]

[td]2R2[/td]

[td]13.1V[/td]

[td]12.67V[/td]

[td]11.86V[/td]

[/tr]

[tr]

[td]4R7[/td]

[td]12.22V[/td]

[td]12.22V[/td]

[td]11.42V[/td]

[/tr]

[/table]



[table=width: 500, class: grid]

[tr]

[td]Schottky[/td]

[td]Input Voltage[/td]

[td]Anode[/td]

[td]Cathode[/td]

[/tr]

[tr]

[td]1R0[/td]

[td]13.1V[/td]

[td]12.9V[/td]

[td]12.58V[/td]

[/tr]

[tr]

[td]2R2[/td]

[td]13.1V[/td]

[td]12.67V[/td]

[td]12.34V[/td]

[/tr]

[tr]

[td]4R7[/td]

[td]13.1V[/td]

[td]12.22V[/td]

[td]11.9V[/td]

[/tr]

[/table]



The Schottky allows a little more headroom voltage before brown out occurs. Instruments seem to reset at a voltage of around 8 to 9 volts, this is why a slightly weak battery causes a double sweep.



There is not enough room to place circuit inside the instruments, so I had to tuck it into the headlight bucket. Wrap in insulating tape.



Comments welcome

Edited August 16, 2014 by Skuzz

[Baal]

quite true, my revo nv got more than 20km/l =\ makes me wonder if the revo is actually an improvement or not



Is this with 'moderate' riding style?



Previously, on my version S, i always drag my rpm to 8-9k rpm whenever possible. had never gotten below 20/L.

[Winners]

Ayone have problems with a double sweep of the instrument dials?



I cured mine with this modification



[ATTACH=CONFIG]309556[/ATTACH]



Comments welcome



Brother, can we just omit the resistor and diode, but just connect the capacitor in parallel to chassis. In case of the capacitor turning bad and shorting in the future, maybe can place a 1A fuse just before the capacitor as an additional safety.
