Guys. Thinking of changing my signal lights. Our current lights, they use 3 wire or 2 wire?

[Roadrunner71]

Who's buying the components? I might need extra relays.

Bro, I'm sure Lindavw has tried his best to make Method 1 work but to no avail. And I think he has reached a dead end.



So this is my suggestion:



If u still feel that Method 1 can work, y dun u DIY on ur bike 1st b4 the DIY session? Or meet up with Lindavw to try to solve the prob together. So if a solution is found, then it can be done for others who want the same installation method (Adriel78 & Noraachan; Blueyeagle no response yet). If still no solution, then we'll know we just have to make do with Method 2.



Frankly speaking, I dun think we can afford the time for trial & error during the DIY session.



To answer ur query, Lindavw & Paiseh will buy & prepare the materials (Lindavw for UG3; Paiseh for Ver 1 & 2). But they need to know wat & how many/much to buy. So everything must be settled & confirmed 1 wk b4 the DIY session so that they'll have enough time to buy & prepare the materials.



Hope u see my point .....

[Roadrunner71]

Guys. Thinking of changing my signal lights. Our current lights, they use 3 wire or 2 wire?

2.



How I know? Cos 2 wires were dangling out where my left rear signal light was supposed to be after it was broken by some moron at my carpark last Sat nite

[Roadrunner71]

Meet Up To Go To 3rd Bajaj Pulsar DIY Session Together

Sat 21 Jul



Meet at Esso station next to BBDC. Moving off to Jln Kayu at 6.30pm sharp.



1. Roadrunner71

2. Gorjes

3. Z^^kia

4. SuVespa

5. Joajas

6. spai_duhz



Wah more & more people. This is turning into a gathering session in itself

[NoraaChan]

3rd Bajaj Pulsar DIY Session

Sat 21 Jul



Meet at Jln Kayu carpark, 7 pm OR

Blk 413 multi-storey carpark (2nd-last level), Fernvale Link, 7.15 pm.

If raining, Blk 413 multi-storey carpark (2nd-last level), Fernvale Link, 7 pm.



Street directory - Jln Kayu Carpark

Street directory - Blk 413 Fernvale Link



Chief Mechanics

1. Paiseh (for Ver 2)

2. Lindavw (for UG3)



For UG3 - Independent hazard light switch. Hazard lights can be turned on only when in 'ignition on' mode ($20 tops; estimated)

1. spai_duhz

2. Adriel78

3. Noraachan

4. Joajas

5. Blueyeagle



For Ver 2 - Independent hazard light switch ($5)

1. lancified

2. Outspoken

3. Rubberduckie_sg

4.

5.



Attending but not doing any mod

1. Roadrunner71

2. Intelcore2duo

3. SuVespa

4. ray0006

5. dnotorious

6: Z^^kia

7. GoofRider

8. Gorjes



Tools needed (if u have)

1. Spanner, size 10mm, open-end or ring

2. Socket wrench or spanner-socket combo, size 10mm

3. Screwdriver, Phillips



Deadline for confirmation of attendance: Sun 15 Jul, 2359 hrs



Yoz Roadrunner71 Bro, sorry didnt touch my com for awhile. Thanks to Lindavw bro for trying out the wiring. I think jus try the method 2 lorz I no problemz : )

[Nemesis]

Lindavw,



Can this works ? All we need is "tape" on the signal light cable...

[blueyeagle]

3rd Bajaj Pulsar DIY Session

Sat 21 Jul



Meet at Jln Kayu carpark, 7 pm OR

Blk 413 multi-storey carpark (2nd-last level), Fernvale Link, 7.15 pm.

If raining, Blk 413 multi-storey carpark (2nd-last level), Fernvale Link, 7 pm.



Street directory - Jln Kayu Carpark

Street directory - Blk 413 Fernvale Link



Chief Mechanics

1. Paiseh (for Ver 2)

2. Lindavw (for UG3)



For UG3 - Independent hazard light switch. Hazard lights can be turned on only when in 'ignition on' mode ($20 tops; estimated)

1. spai_duhz

2. Adriel78

3. Noraachan

4. Joajas

5. Blueyeagle



For Ver 2 - Independent hazard light switch ($5)

1. lancified

2. Outspoken

3. Rubberduckie_sg

4.

5.



Attending but not doing any mod

1. Roadrunner71

2. Intelcore2duo

3. SuVespa

4. ray0006

5. dnotorious

6: Z^^kia

7. GoofRider

8. Gorjes



Tools needed (if u have)

1. Spanner, size 10mm, open-end or ring

2. Socket wrench or spanner-socket combo, size 10mm

3. Screwdriver, Phillips



Deadline for confirmation of attendance: Sun 15 Jul, 2359 hrs





Hi bros,

Me no prob with the method 2. If method 1 able to work, lagi best.. But method 2 is gd enuf oready...

[lindavw]

Bro joajas - adding a diode is possible but u have to risk cutting ur original wires... hazard lights that I have DIYed no need to cut any original wires juz tapped from the existing.

What i conclude from tapping the fuse,battery,ERP, so on is that the signal wires go into this electrical box which is only found in UG3 is LINKED to an electrical circuit board that explains Y the current would flow to the speedo circuit. The circuit in the box is unknown cos i neva dare to open it up cos it is totally sealed. It is juz like powering on the bike, which powers on the speedo, indirectly, the signals get current. If to short the signals to do hazard lights, indirectly we r providing current to the board which indirectly provides current to the speedo n entire bike.



Im buying the DIY stuff y u need more relays?





bro spai_duhz - our signal lights have only 2 wires, 1 ground 1 live. u 1 2 change signal lights??? u need to but connector clips too. unless the new clips are the same as existing or the whole set u got to change.

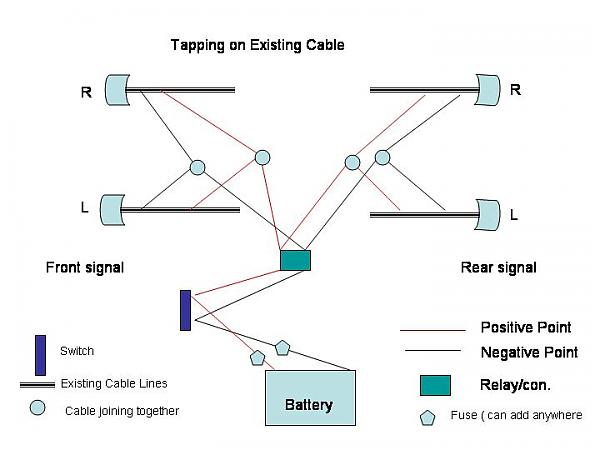

bro Adriel78 - Ur diagram cannot work, cos the flasher relay has only 2 pins which are meant for +ve current. if u 1 -ve n 1 +ve the flasher cannot get current to flash.
