Faulty Rear Brake-Need Immediate Help!! (Spark135)

[AhBin.]

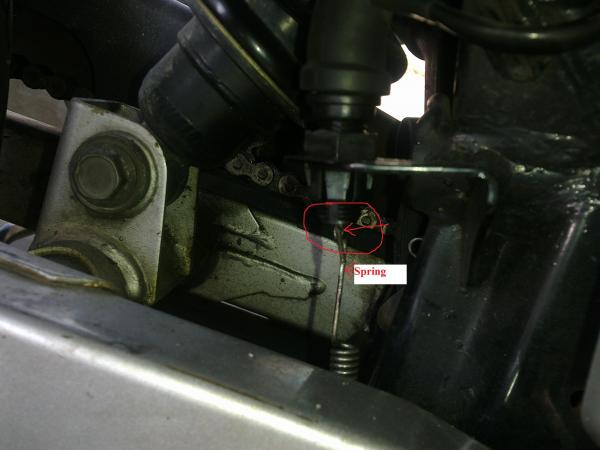

Any one can help me fix the problem about my rear brake? My rear brake is faulty. no matter how i tried to repair it at diff bike shops. see the attached picts.

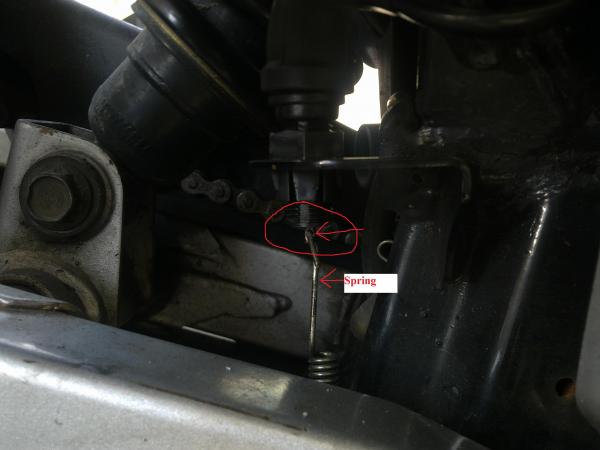

The circled part in red with the arrow pointing does not seems to work. when i step on the rear brake the rear brake light will light up but release the rear brake the rear brake light will not go off cos the part indicated by the red arrow, the 'head', will not be pushed back upwards by itself after being pulled down by the spring connected to the rear brake level. can that part, the 'head', be lubricated or must i change the whole mechanism?

[ytiniffa]

just take out the whole spring. -_- im assuming at least ur front brake will still trigger the rear brake light.



anyways are u using stock footrest?

[AhBin.]

just take out the whole spring. -_- im assuming at least ur front brake will still trigger the rear brake light.



anyways are u using stock footrest?



if take out the whole spring then if i use only rear brake to brake then there wont be any rear brake light.



yar. still using stock footrest. why?

[Pandoras Kitten 3]

Lol stock works well actually. I never got that fad of "racing" footrests because it's like squatting on toilet bowl. Not for me LOL.

[Suede]

Try to turn a bit bro....I mean turn anti clockwise a bit only. Just a bit. The top part there....

[Suede]

Or otherwise try to turn clockwise...

[AhBin.]

Try to turn a bit bro....I mean turn anti clockwise a bit only. Just a bit. The top part there....



ok...shall go and try again. tried before but maybe i turn it too much.

BTW. nice bike u got there.

[Suede]

U should try coz i experience it before... i itchy hand go adjust end up the brake light on all the way hahahaha....Got to play with that thing i dunno what it is called. Hope ur problem will be solved. Thanx on ur commenting for my bike....

[duracell]

Any one can help me fix the problem about my rear brake? My rear brake is faulty. no matter how i tried to repair it at diff bike shops. see the attached picts.



The circled part in red with the arrow pointing does not seems to work. when i step on the rear brake the rear brake light will light up but release the rear brake the rear brake light will not go off cos the part indicated by the red arrow, the 'head', will not be pushed back upwards by itself after being pulled down by the spring connected to the rear brake level. can that part, the 'head', be lubricated or must i change the whole mechanism?



you can try lubricating the 'head' with small amount of chain lube...



make sure that the spring and 'head' is moving in a straight line/ in good alignment when the rear foot pedal is operated, if not you may need to bend the spring or bracket holding the brake switch (head) to make them align...

[AhBin.]

you can try lubricating the 'head' with small amount of chain lube...



make sure that the spring and 'head' is moving in a straight line/ in good alignment when the rear foot pedal is operated, if not you may need to bend the spring or bracket holding the brake switch (head) to make them align...



thanks. where can buy chain lube except bike shop? :X

[duracell]

thanks. where can buy chain lube except bike shop? :X



mustafa shopping centre

[yeukeong]

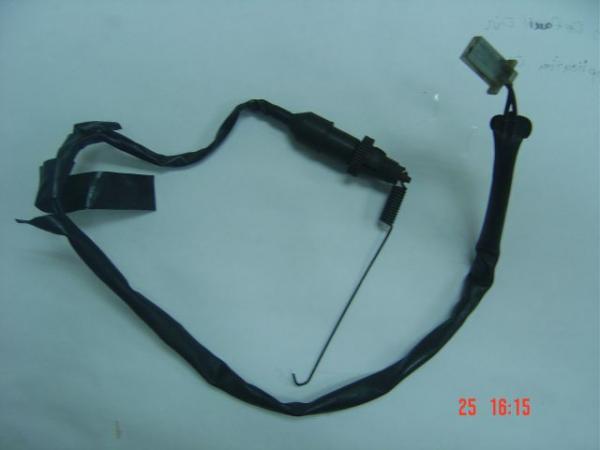

This is a stop switch assembly for rear brake.

If the above suggestion could not solve ur problem. U might need to remove ur stop switch assembly, if u could not perform the following testing.

[ATTACH]157269[/ATTACH]

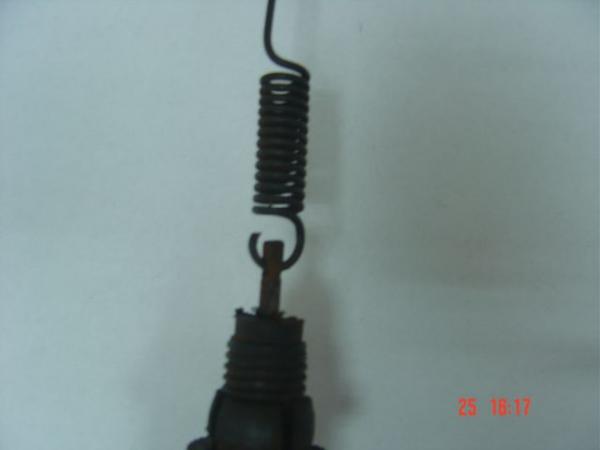

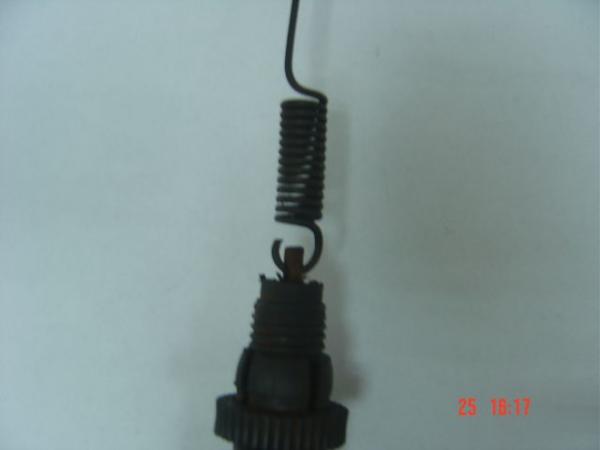

1. Check the mechanical function, there is spring inside the assembly.

Pull and release, it should spring back.

[ATTACH]157270[/ATTACH]



[ATTACH]157271[/ATTACH]

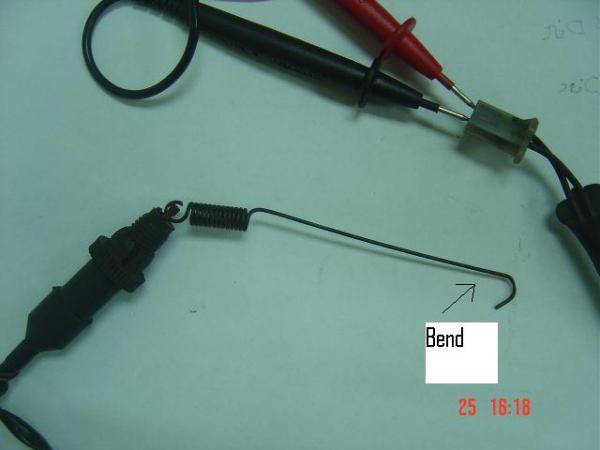

2. Check the switch continuity. U need a multimeter.

Insert the probe into the coupler as shown.

Pull the spring, u should hear the continuity signal from u multimeter.

If u d not remove the stop switch for ur bike, the rear brake light will light up with main switch ON.

[ATTACH]157276[/ATTACH]

If there is nothing wrong, try to bend the spring end. It might due to insufficient length to activate the switch.

Edited May 25, 2010 by yeukeong

[bntyl]

take the whole thing out. and if possible, change your rear brakes to a better one.

my friends who are riding spark always complain that the rear brakes for spark arent efficient.
