[Group] SBF Suzuki Raider

[RickMan]

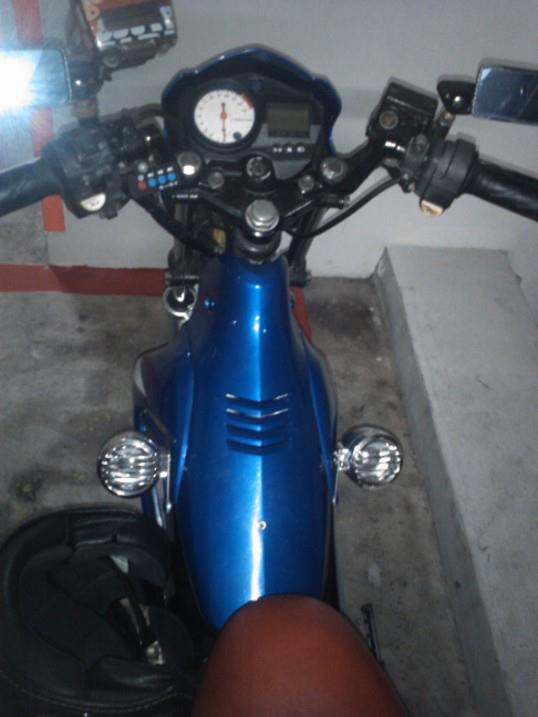

Hi Bros,



I just brought Super4 and no choice but to sell my raider if not I ride once a week.



Many parts in my raider N i assured you, one of the fastest you seen. (135km/h with box and big wheel and spoket)



1) SP carb (best)

2) BRT CDI - less then one month (best thing you can find)

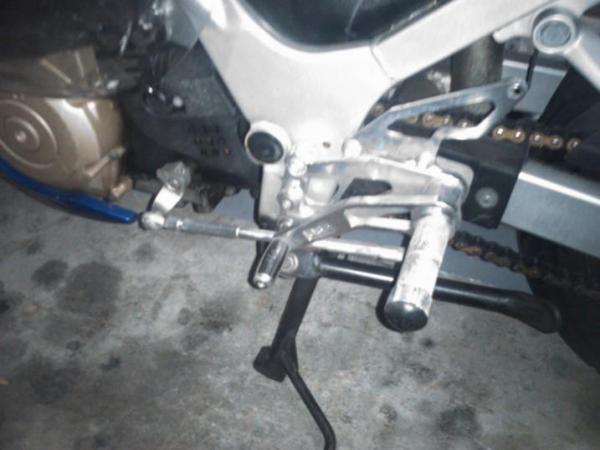

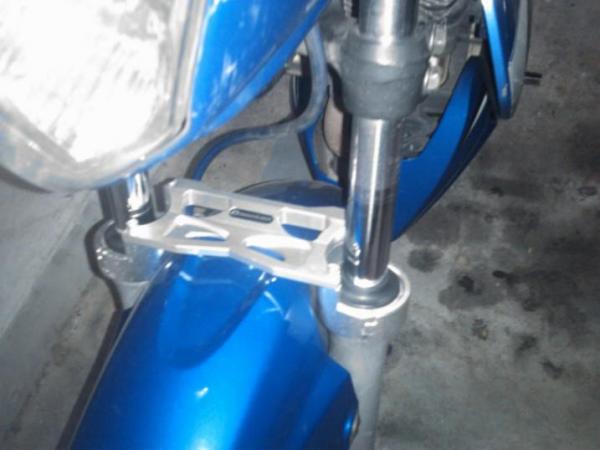

3) Yoshi Racing foot rest

4) Steel brake hose

5) Gold chain and 43 spoket

6) tires quite new

7) "tong" pipe

8) Racing boy front fork guard

9) speaker with MP3 Player builted in (new, loud with steering control)



This is a FX9XXXG Plate - Only clocked 45 000km. Asking $2000 NEG.

You may want to view it, let me know(sengkang)



Rick 90043014



I still have a few spart parts with me. (cdi etc)

[RickMan]

Hi Guys,



Will push to shop soon if no taker, come and view! intro your frends!

[gunshead]

Me going this shop



to change Koyoko battery and shinko tires



MJ Maniam, Taman Saujana, Kota Tinggi

07-8827049

[gunshead]

3 Jan 2012

Meter 63704km



change brake fluid DOT 4 Mobil both disc

changed semi synthetic shell advance 10w-40 engine oil

changed oil filter

checked boosh swingarm - ok



wash bike RM 7

polished bike with soft 99 RM 10

[treyhatsu]

hello raider experts im looking to buy a raider any place to recommend ? parts availability ready in singapore malaysia ? =D

[gunshead]

treyhatsu,



do ur homework

refer to previous all pages

u fins answers for ur questions

[gunshead]

treyhatsu,



do ur homework

refer to previous all pages

u find answers for ur questions

[RickMan]

Hi All, Still no takers, if thats the case, I will push to shop. Dekit before selling.





1) SP carb (best)

2) BRT CDI - less then one month (best thing you can find)(Less then 2 months)

3) Yoshi Racing foot rest

4) Racing boy front fork guard(less then 2 months)

5) speaker with MP3 Player builted in (new, loud with steering control)(less then 2 months)

6) Box with rack



Rick 90043014

[gunshead]

will be bringing my bike to Suzuki SC next month to do checking before going to Pahang for jalan-jalan

[gunshead]

6.3.2012

BMRajah, JB

63789km

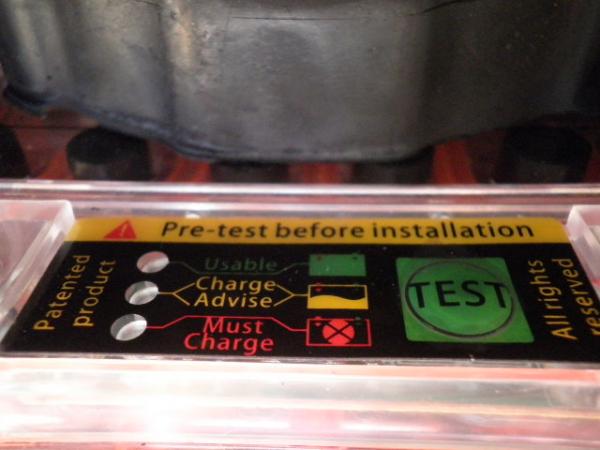

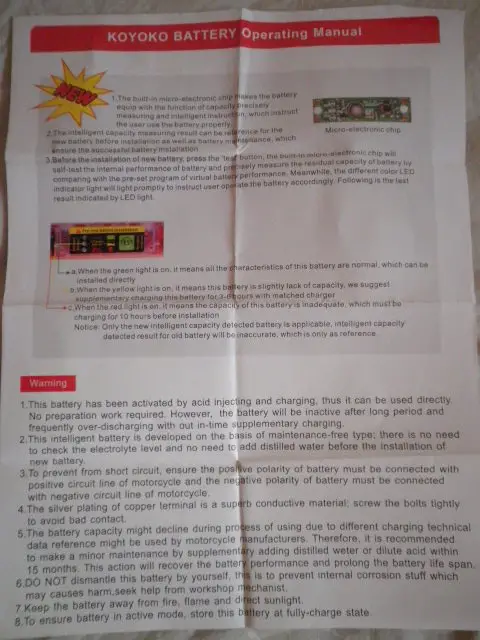

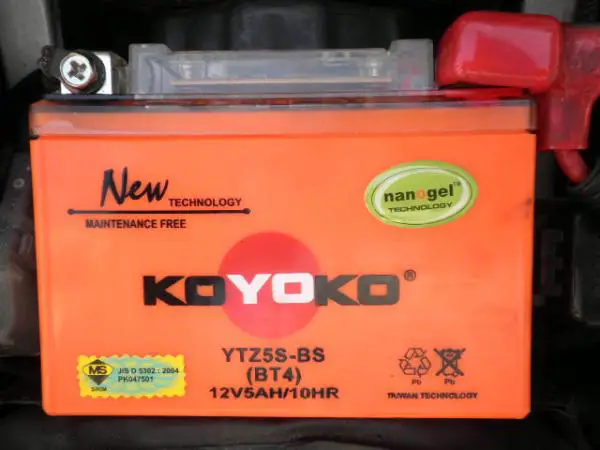

changed battery koyoko GEL type YTZ5S-BS BT4 12V 5AH /10HR

Rm70

but this size is fit yamaha lagenda spark Z. it is so small size for suzuki but can use. No choice cause it was 11pm , just took ...

Old battery bonk due to seldom use bike , spoilt - cannot charge anymore. Used exact one year.



koyoko said almost equivalent for suzuki belang raider R is koyoko's YT6B 12V 6AH

suzuki origianal factory is GTZ7S 12V 6AH

[gunshead]

meter 64507

12.3.12

suzuki technician , JB



cleaned PAIR system 2 plates in PAIR membrane VALVE ASSY, 2nd air reed . Used knife to remove dirt sluggish carbon.

cleaned air filter

cleaned air filter box and water outlet pipe

re fit diaphgram and cleaned PISTON VALVE ASSY ( SLACK NEEDLE )

cleaned slack diaphgram

cleaned with autosol slack interior

cleaned spark coil area

checked water under nut in carb - NO h20

check both tyre bearings - OK

tighten rear view mirrors

checked why meter vibrate. Headlight cover broken. Now use rubber tire as anti-vibration

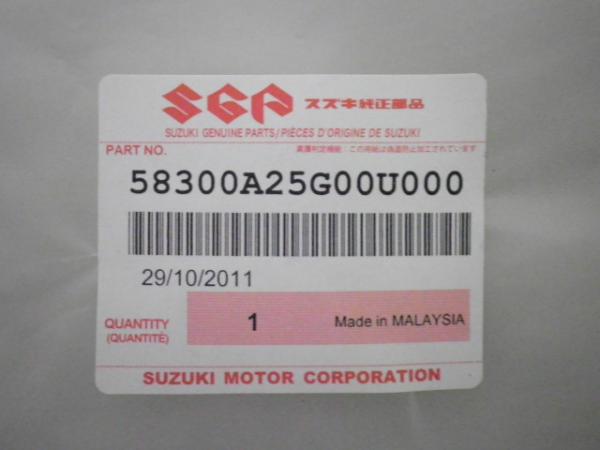

changed throttle cable - short type . New white belang is long throttle cable RM12.80 genuine made in msia

58300A25G00U000

oil throttle cable and positioning body



service charge RM25



total RM 37.80

attached

[gunshead]

filled 5.26 litre full tank caltex Rm9.99 ron 95 @RM1.90 per litre .....default tank is 4.9 litre tank only

[gunshead]

Meter 64990km

16/3/2012



motor skudai , jay bee



1. Changed front head light bulb - up 32W and below 30W

below 30w NO point , next time put 18w original better cause rectifier never allow high flow current



2. changed shell advance semi-synthetic oil



3. redo bracket and use HARDEX cement for front broken headlight cover. Now look perfect without vibration on meter panel.



Good job by mechanic.

Edited March 17, 2012 by gunshead

[gunshead]

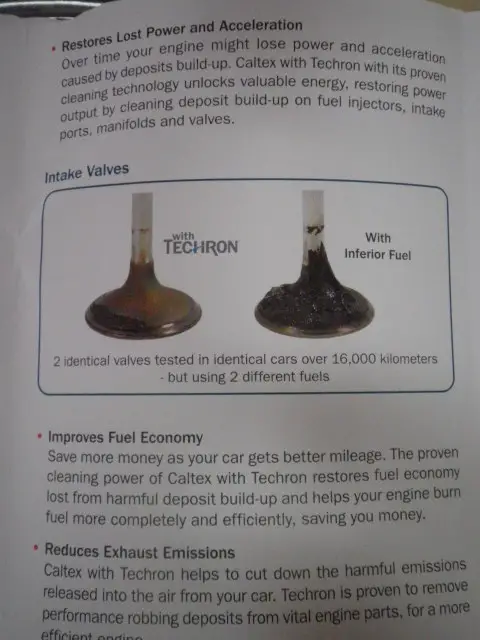

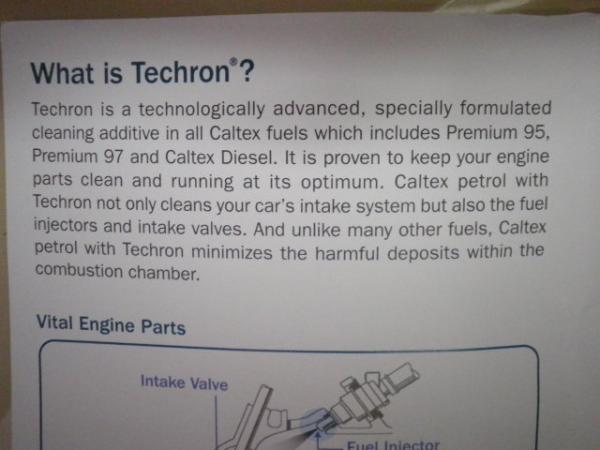

My favourite petrol is caltex with techron



I never regretted



Best petrol



all my bikes yamaha , suzuki and honda uses caltex techron Ron 95



Read here more on the techron research via msian caltex www



http://www.caltex.com/my/techron-tech/science-of-techron/





it reduces knocking in bike engines

. i experience it myself

http://www.caltex.com/my/techron-tech/advantage/power

Edited March 23, 2012 by gunshead

[gunshead]

just back from batam shopping for suzuki spare parts

[gunshead]

Engine noise reduction and air pollution from exhaust

Identified  2nd air valve reed , air filter and Adjuster tensioner





30 April 2012

Suzuki Indomobil Batam , Indonesia



Full Set Belang R - K9 Seat Assy $25 Made in Indonesia

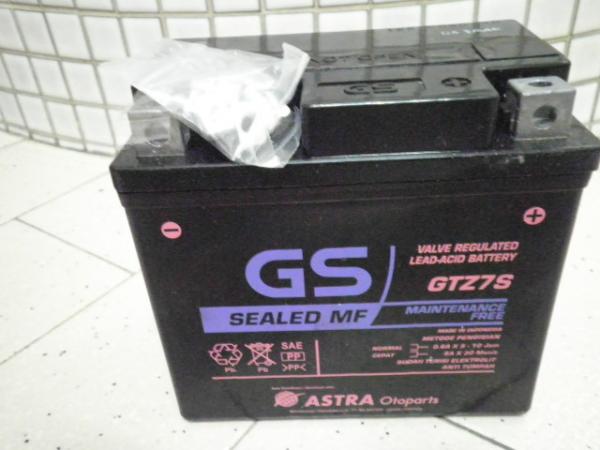

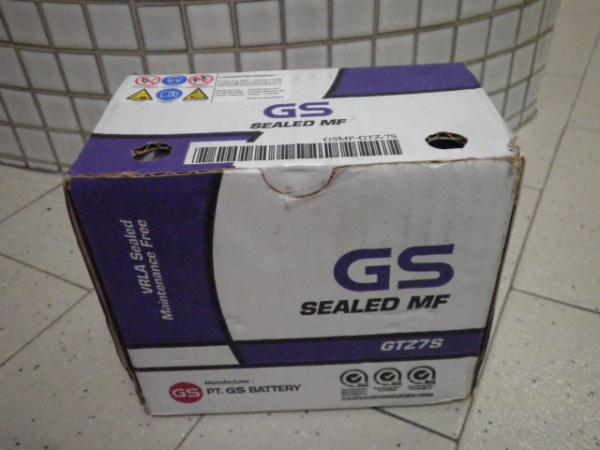

Battery GTZ7S 12v 6AH $40 Made in Indonesia



Gasket Cylinder Head Cover $6 Made in Indonesia

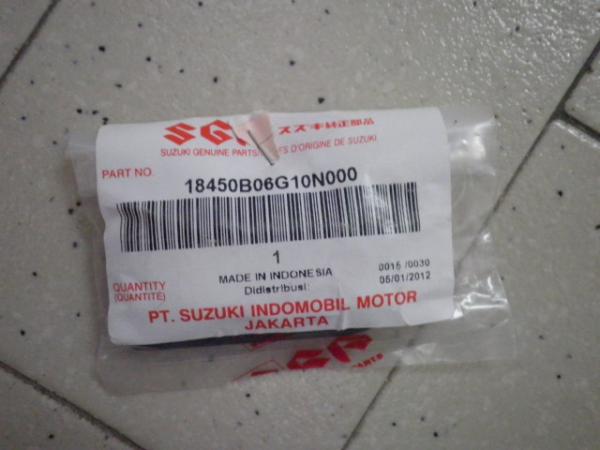

Valve Assy , 2nd Air Reed $4 Made in Indonesia

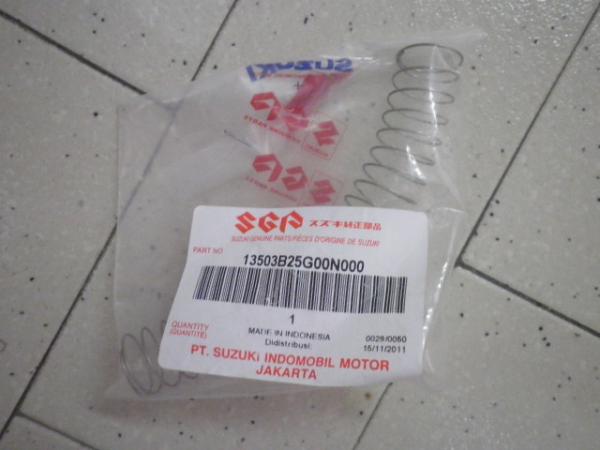

Comp, Spring carburetor $2 Made in Indonesia



Air filter $5



Rubber front footrest $2 Made in Indonesia

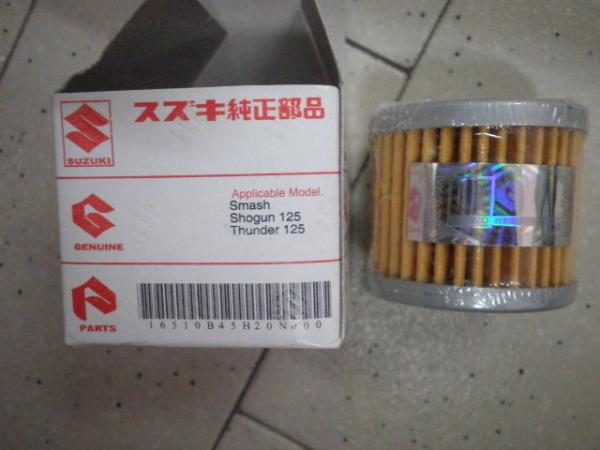

Engine Oil filter $1 x 4 pcs Made in Indonesia



Plate Clutch Drive (5) $18 Made in Indonesia



Chain camshaft drive $19 Made in Thailand



Guide cam chain no.1 $5 Made in Thailand



Tensioner Cam Chain $5 Made in Thailand



Gasket Tensioner Adjuster 20 cents Made in Indonesia



Adjuster Assy Tensioner $24 Made in Thailand

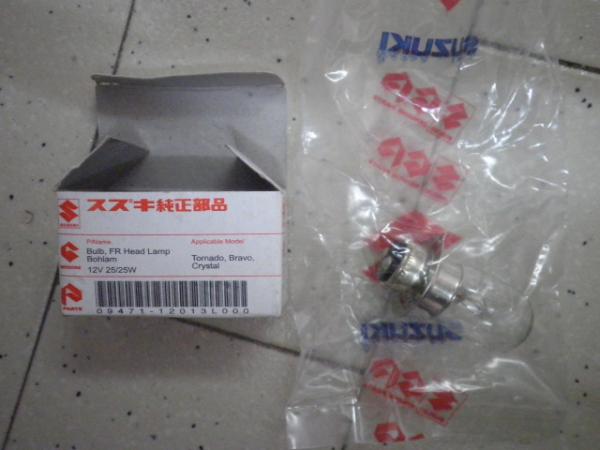

Bulb 25w/25w 12v $1.20







7 May 2012

Meter 67966km

Skudai JB



Lion Suzuki OEM cushion hub rear wheel

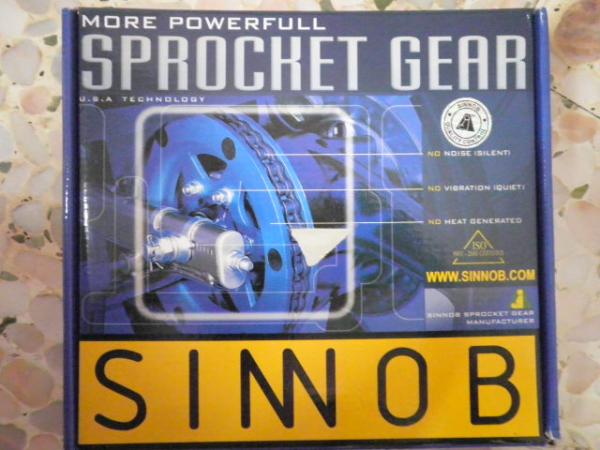

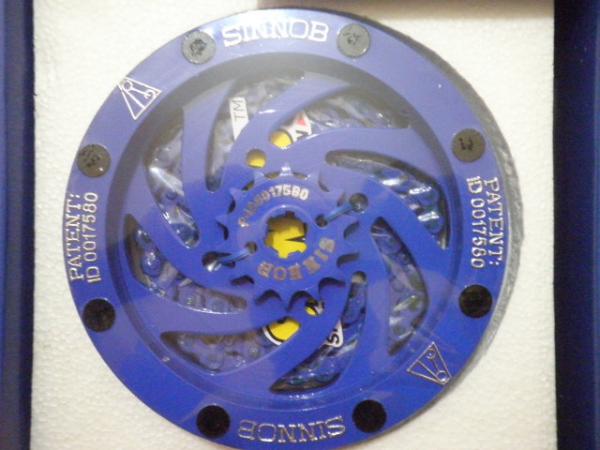

Sprocket chain drive SINNOB SGD138

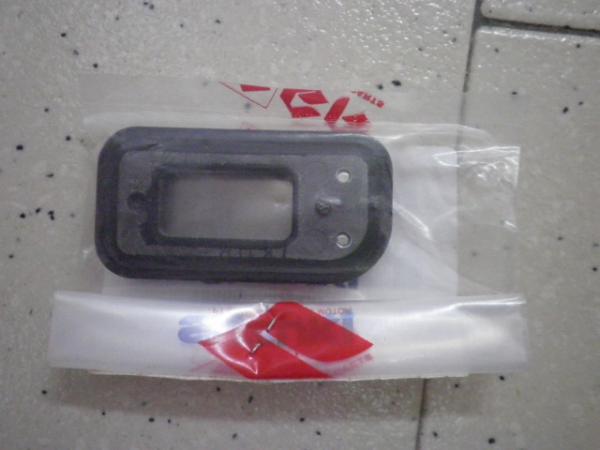

Fuel tank cover cap rubber

2nd valve air reed

Service speedometer sensor gear

Air filter

Check fuel leakage odour – came from fuel tank cap rubber

Total RM12



12 May 2012

Meter 68025 km

Skudai JB

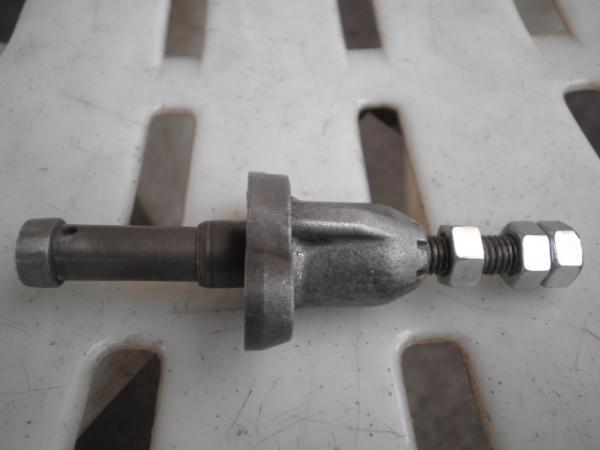

New Adjuster Assy Tensioner sent for rebore, insert long screw and 3 nuts

RM 12

Used old existing Gasket Tensioner Adjuster cause perfect condition.

Total RM 15



Now engine very low noise and automatic tachometer shows became 1200rpm. DOHC controls smoothness.



LUMP SUMP for engine noise reduction and air pollution from exhaust = SGD 33 + RM 27 = RM 107

Identified  2nd air valve reed , air filter and Adjuster tensioner



Wash bike RM7

ArmorALL protectant gel polish

Edited May 14, 2012 by gunshead

[gunshead]

continue above with more photos

[gunshead]

fuel smell after full tank

testing



1. shake bike - NO leakage from fuel cap lid

2. replaced fuel cap lid rubber

3. smelled fuel leakage from fuel level gauge sender

4. fill half tank and tested smelling - NO leakage

it happens when I fill in full tank petrol

[gunshead]

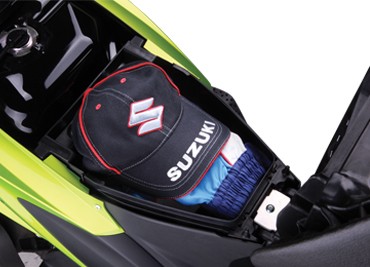

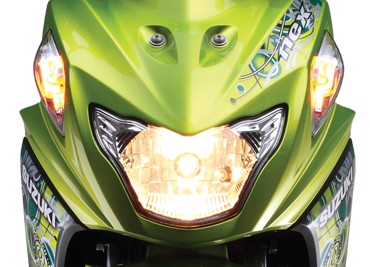

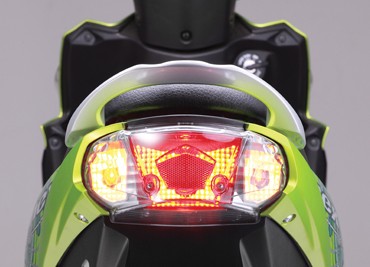

SUZUKI NEX 113cc



Bibliography

THANKS TO

http://www.zerotohundred.com/2012/auto-news/launch-suzuki-nex-promises-sheer-riding-pleasure-rm4218-otr/



Possessing 113cc, it’s now lighter, faster and better in terms of maneuverability and fuel economy



113cc single-cylinder engine that has a Throttle Position Sensor (TPS) for better throttle feel and response



The engine produces 9bhp that’s mated to a CVT automatic gearbox, and is capable of achieving 52km/L in terms of fuel-efficiency



In terms of handling, Suzuki has lowered the the NEX’s centre of gravity allowing the bike to flick from side-to-side with relative ease, making it certainly more fun to ride.



much of the weight improvements lie hidden within the engine with a lightened crankshaft pin diameter of just 25.1mm from its previous 28mm, which helps to reduce mechanical losses.



The NEX is the first Suzuki scooter in ASEAN to possess Roller Rocker Arms, which puts the is in direct contact with the with the engine’s valves in order to reduce frictional and mechanical losses help boost fuel economy.



The TPS senses the throttle position and controls the ignition to help provide the best power delivery, which can especially be felt at lower engine speeds



Suzuki has also revised the chassis for the NEX allowing the seat’s height to be dropped to a lowly 735mm, thereby dropping the centre of gravity for that ‘flickable’ feel.

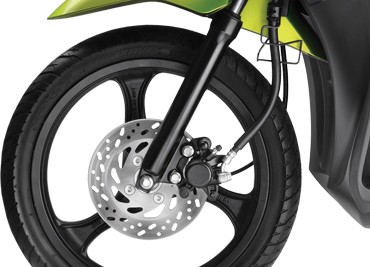

The NEX’s 3-spoke alloy rims also shed some weight thanks to its hollow core, which means it’ll be easier to get these wheels in motion as compared to heavier rims.



For more visit

http://www.zerotohundred.com/2012/auto-news/launch-suzuki-nex-promises-sheer-riding-pleasure-rm4218-otr/



mY CHOICE OF COLOR IS Pearl Sakura Pink

Edited June 2, 2012 by gunshead

[gunshead]

Check fuel leakage odour – came from fuel tank cap rubber - changed in skudai RM1



later root cuase identified was the fuel level gauge sender



- ORDERED IN BATAM AND COLLECTED ON 29 MAY 2012

CHANGED ON 31 MAY 2012 skudai. FREE SERVICE

RP. 60,600 = SGD 9

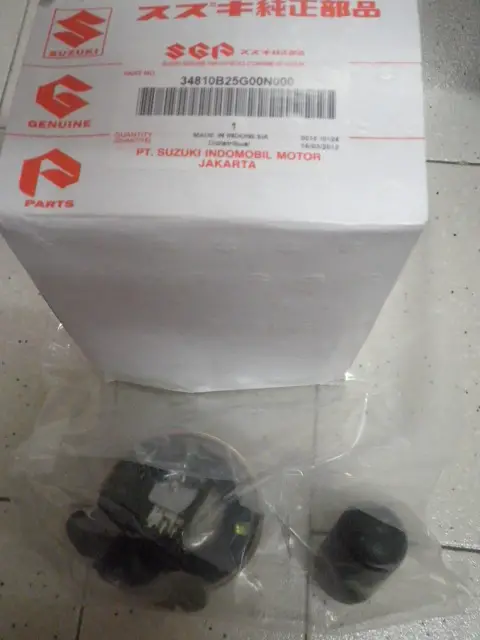

FUEL GAUGE LEVEL SENDER

IN JUNE 2012 NO MORE LEAKAGE GASOLINE SMELL

[Pritzker]

Hi, just wondering do you know any bikeshops have new suzuki raider r for sale?

[ahten]

Hi all if anyone looking for raider.



Can refer to this link!



http://www.singaporebikes.com/forums/showthread.php/360235-S-gt-2017-suzuki-raider-150cc



PRICE REVISED TO 1.8k!!!!!!! BIKE MUST GO!!!!!!!!!!!!!!!!! COE 2017!!

[wengz]

anyone else here selling off their raider?



and i wanna ask. is there any legal exhaust for raider?

Edited June 26, 2012 by wengz

[Yzx]

Hi all ,

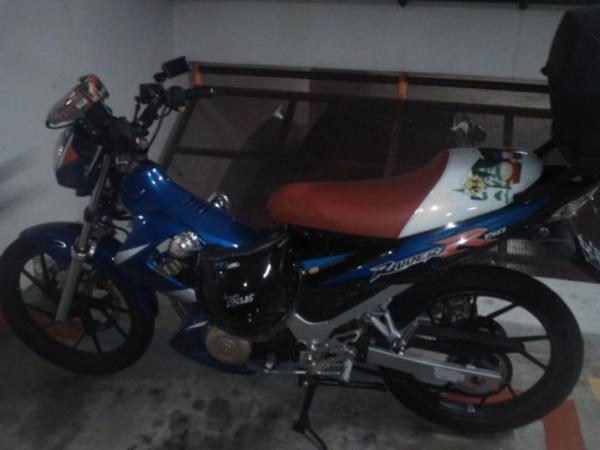

I just brought this bike from AHTEN. This bike was awesome.

[Yzx]

Hi ,



Anyone have spark plug cap with top rubber for Suzuki Raider to sell ? Used or new wanted.



Pls contact me on 91275897,
