Honda Blackbird CBR1100 XX


Recommended Posts

Posted
anyone knowss??? pls enlighten meee~~~



Hi bro..u might wanna check the connector juz behind the meter..juz try luck..i oso not too sure about this..or at the ecm there theres a small black connector at the loom..try bridge ta wire..its a 3 hole..connect center and either left or right..juz give a try...

2006-2008>>YAMAHA TZM

2007-2009>>YAMAHA SPARK Z

2008-2009>>HONDA CB400

2009-2010>>YAMAHA RXZ:

2009-2012>>SR-71!:thumb:

2012>>>HONDA CBR1000RR

Posted
anyone knowss??? pls enlighten meee~~~



Hi bro..u might wanna check the connector juz behind the meter..juz try luck..i oso not too sure about this..or at the ecm there theres a small black connector at the loom..try bridge ta wire..its a 3 hole..connect center and either left or right..juz give a try...:)

2006-2008>>YAMAHA TZM

2007-2009>>YAMAHA SPARK Z

2008-2009>>HONDA CB400

2009-2010>>YAMAHA RXZ:

2009-2012>>SR-71!:thumb:

2012>>>HONDA CBR1000RR

Posted

hmmm okok thanks all i will go and look see look see.

There is no replacement for displacement, except for Ah Seng

:angel:

Posted

Very subjective in regards with eo n plugs.

As for me iridium plugs can last 10k or more. See the lifetime of the plugs shud be more unless the firing ain't mormal den change la,as for eo,i dun follow rule. 10 k den i change coz i seldom ride hard and i use 20/50 thicker but shud last long. Take note of our climate too so since it hotter here 20/50 shud be gd. It makes ur bike heavier in operation but dats my view lor.Trackies choose lighter viscosity coz it makes their bike light in operation and they normally change religiously .

My orgasm starts at 299km/h.....

Personal ride -

1st ride - TRZ 125

2nd ride - GSXR-K

3rd ride - CBR400RN

3rd ride - Super 4(S)

4th ride - R1

5th ride - CBRXX1100:thumb:

Posted
Btw, these are pictures of the frame plugs by Extreme Works. Material used is derlin and the o-ring used is rubber...



Well they are sure nice but wif a hefty price...lol

still awaiting for the frame plugs to arrive...

Cheers!!!!



Very subjective in regards with eo n plugs.

As for me iridium plugs can last 10k or more. See the lifetime of the plugs shud be more unless the firing ain't mormal den change la,as for eo,i dun follow rule. 10 k den i change coz i seldom ride hard and i use 20/50 thicker but shud last long. Take note of our climate too so since it hotter here 20/50 shud be gd. It makes ur bike heavier in operation but dats my view lor.Trackies choose lighter viscosity coz it makes their bike light in operation and they normally change religiously .



Totally agreed but not wif yr mileage clocked then change oil..lol

Well as said very subjective....

for me...



EO change depends on wat oil i using....

Motul 5100 ard 2.8k change

Agip Tec 15w50 ard 4k change

of course when i feel the oil getting "tight" i will change eariler so the above-mentioned served as a guideline....

Usually aft a long touring session like last last week i went solo to hat yai total mileage below 2k...

when i bck i change my oil even though still relativly new....



Plugs i use normal plugs as i gt bad experience wif iridium plugs...lol

for me every 3-4 mths change a set of plugs ba or when i feel like it or when my bike feel like it...lol

some change every half year aka 6mths... so depends...



Since i changing plugs will wash air filter (using those reusable ones)

those on stock filters should be ard 10k km bah...

same as those washing & reoiling ....



Oil filter is every oil change personal peference...

normally will be 2nd oil change then change...



just something to add on since toking abt oil stuff....

I bleed my front & rear brakes & clutch regularly 3-4 mths...

this is something many ppl overlook & end of the day spend more $$$ buying the repair kits for the pumps which cost more $$$....

Regular bleeding will ensure braking & feel of clutch to be at the optimal always thus safety & long run save u $$$$...



Well these are my personal preferences...



Cheers!!!

http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Posted

Mind sharing wr u send for brake fluid change,pricing?....thnx

My orgasm starts at 299km/h.....

Personal ride -

1st ride - TRZ 125

2nd ride - GSXR-K

3rd ride - CBR400RN

3rd ride - Super 4(S)

4th ride - R1

5th ride - CBRXX1100:thumb:

Posted
Mind sharing wr u send for brake fluid change,pricing?....thnx



i so far went to Sporting Motors find Meng Tong or Republic Motor find Ah Boon....

Pricing i can't rem mate..paisay..

should be ard $40

http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Posted

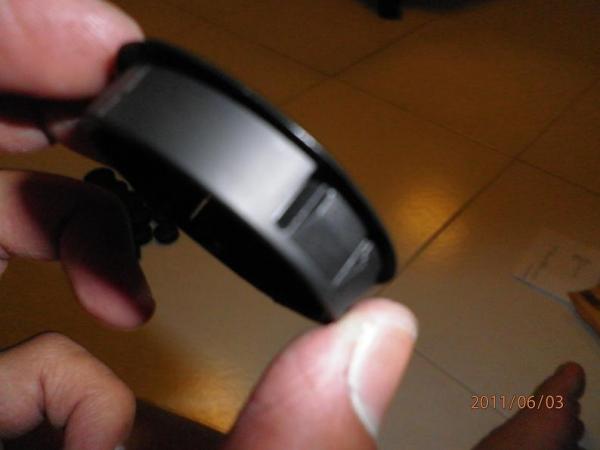

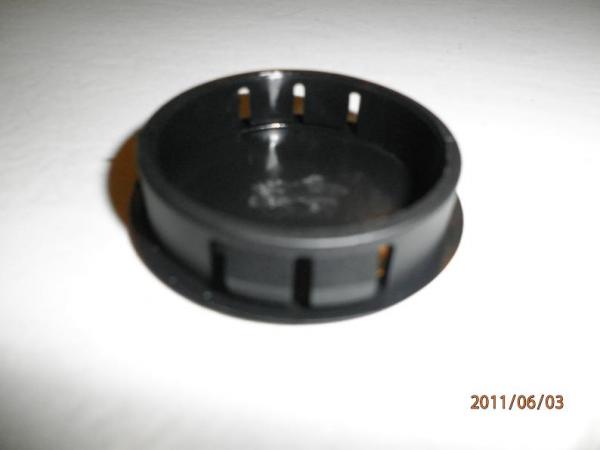

Finally the frame plugs arrive...

made of plastic...

it self locking....



Will later test & install to see how the fitting & see if secure...



of course compare to Extreme works it a heaven & earth but the pricing are poles apart...

this is more of a budget choice...lol



Wil update u all birds again...



Cheers....




http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Posted

seems that most of the guys sold/selling their bikes ya...y leh?..bb not good enuff?...hmm..

2006-2008>>YAMAHA TZM

2007-2009>>YAMAHA SPARK Z

2008-2009>>HONDA CB400

2009-2010>>YAMAHA RXZ:

2009-2012>>SR-71!:thumb:

2012>>>HONDA CBR1000RR

Posted
Finally the frame plugs arrive...

made of plastic...

it self locking....



Will later test & install to see how the fitting & see if secure...



of course compare to Extreme works it a heaven & earth but the pricing are poles apart...

this is more of a budget choice...lol



Wil update u all birds again...



Cheers....



the quality looks like cmi.. hehee... if its made of plastic den it cannot last long since the frame is above the engine.. lets see the outcome.. never try, never know rite... cheers

Posted
seems that most of the guys sold/selling their bikes ya...y leh?..bb not good enuff?...hmm..



actually bro.. once the bike hits 12 years, the value will drop like no ones business.. My friend also advise me to sell..

Posted
the quality looks like cmi.. hehee... if its made of plastic den it cannot last long since the frame is above the engine.. lets see the outcome.. never try, never know rite... cheers



Well we will know in a week time mate...



Hope it work &u all will be saving big bucks..lol



Cheeers!!!



Btw any one install TPO Smog emission removal aka block off plates on their right...?

http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Posted
Mind sharing wr u send for brake fluid change,pricing?....thnx



Diy bro...lagi syiok..heheh!! save lots of money...



Bro stwb :- Once i intend to put those blockoff plates,but i love the flames on the bird...

http://sphotos-c.ak.fbcdn.net/hphotos-ak-ash3/582610_512257702123995_1975741852_n.jpg



"Irreplaceable"

Posted

Haizzzzz......Lately I've discover that there's knocking sound coming from my BB....The strangest part is, it can be heard when the engine is hot...Went to racewerk and they say that maybe my rod have problem and need to undergo overhaul...prices quoted 3K...WOW!!! wan to faint sia!!!!!!!!! Anyone experiencing my situation before??

Can it be other thing that cause the knocking sound??? Any shop to recomend if ever my BB need to overhaul?

IM STRESSSSSSSS!!!!

Posted

Bro Rok ... i had the same issue too... some mech says its con rod ... if really its con rod , then cia lat ... but through some advices from some of the gurus here, u will be surprised that its quite normal for BB .. and i have been riding my BB with dat for the past 3 years .. ask for second opinions ...veri-veri important ..

In life, there are important decisions that you have to make.

I chose to ride ... And I chose to Ride Hard and Ride Safe ... On a BLACKBIRD.



Past Rides : Ali Baba (P.Ramlee period), Chopper (Disco season), BMX (ET season), Piyo-Piyo (2008-??)

Posted
Diy bro...lagi syiok..heheh!! save lots of money...



Bro stwb :- Once i intend to put those blockoff plates,but i love the flames on the bird...



flames? meaning the blockoff plate will prevent the backfire? :X pardon my noobness. haha

Posted
Haizzzzz......Lately I've discover that there's knocking sound coming from my BB....The strangest part is, it can be heard when the engine is hot...Went to racewerk and they say that maybe my rod have problem and need to undergo overhaul...prices quoted 3K...WOW!!! wan to faint sia!!!!!!!!! Anyone experiencing my situation before??

Can it be other thing that cause the knocking sound??? Any shop to recomend if ever my BB need to overhaul?

IM STRESSSSSSSS!!!!



Maybe we guys should have a meetup...chit chat on bb stuff...its been quite sometime we have a kopi session...how about next weekend?...tonite i also ok!! sms me at 98565723





flames? meaning the blockoff plate will prevent the backfire? :X pardon my noobness. haha



Purpose of the blockoff plates is to disable the PAIR system. What's a PAIR system?. Due to strict exhaust emission law in certain countries bike manufacturers install this to actually reduce the exhaust emission.



How it works?. The PAIR system basically draws air from the airbox and injects it directly to the exhaust port thus causing unburned fuel from the combustion chamber to reburn again in the exhaust header thus reducing emission one the exhaust exits the tail pipes. Bikes with rich mixture(using PC3 for better HP) then to have flames exiting from the tail pipe under hard deceleration.



However while dynotuning,you need to block off this PAIR system from working as it messes with the true reading of the Air Fuel meter.

http://sphotos-c.ak.fbcdn.net/hphotos-ak-ash3/582610_512257702123995_1975741852_n.jpg



"Irreplaceable"

Posted
Bro Rok ... i had the same issue too... some mech says its con rod ... if really its con rod , then cia lat ... but through some advices from some of the gurus here, u will be surprised that its quite normal for BB .. and i have been riding my BB with dat for the past 3 years .. ask for second opinions ...veri-veri important ..[/quote



Hmmm...u hav this problem too??? Then wad is ur fastest speed u ride? The mechanic advice me to stay 120 km/h at most.....Wad did u do to rectify ur problem?

Posted

mine bb is running on a dyno stage 1 from previous owner...

i dun noe have the block off plates a nt hmm...

i only noe when i got my bb it carb tuning was horrible...

after sending to 3 mechs then finally solve the problem...



o well.... so does the TPO block off plate boost in any performance??

so just plug & play onli right..?

http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Posted

my bike also has the knocking sound.. its rhythm is also quite constant.. even when its hot, can still hear a lil.. but it still can go 200++... if its really con rod den, using bj's words, CIA LAT...



we shud meet up soon.. but Im gg JB tonight.. next week will be in KL till fri..

Posted

sound from the engine????

Need to hear what kind of sound

I think I'm the only one here who has had that problem

spent abt 4k to full overhaul including the whole clutch

system... after that smooth and silent as a showroom bike

When you realize that you are trapped and surrounded, you will become fearless.

When you have no way out, you will tap into your courage to stand firm.

When you have no choice, you will fight back with all you might.

~ Sun Tzu (11.33)

Posted (edited)

ok birds...

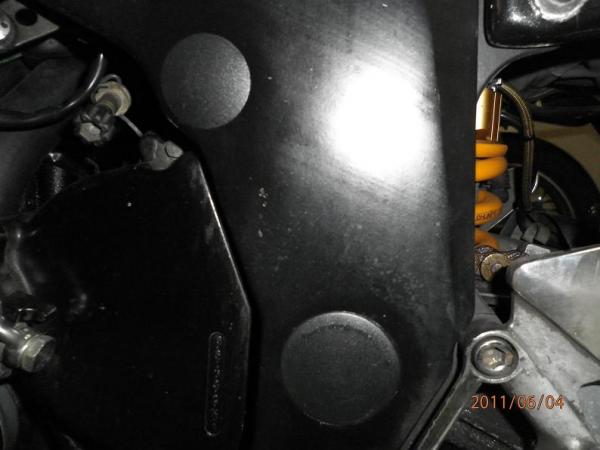

here are some photos of the frame plugs that I got in...

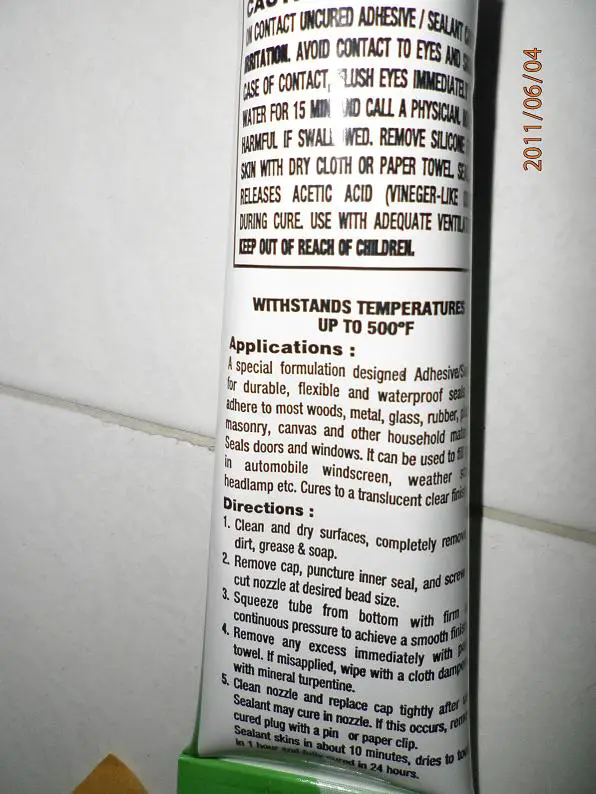

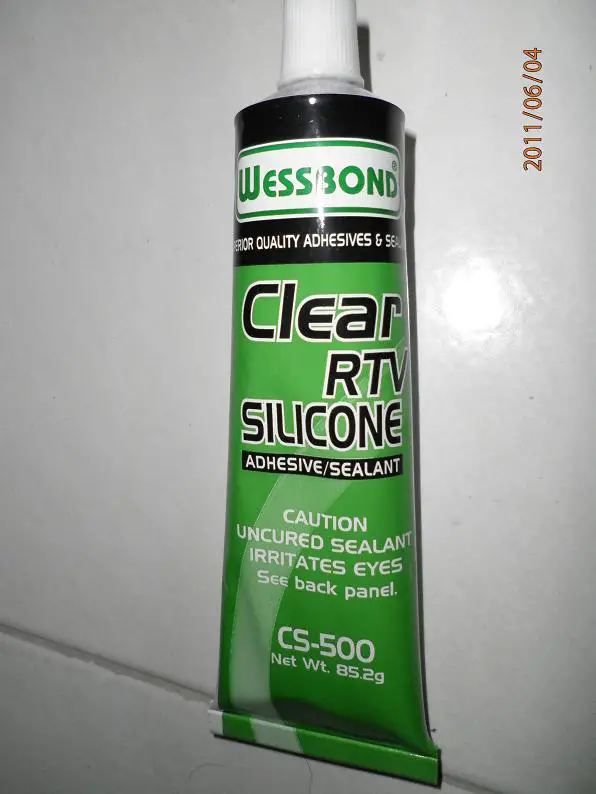

tried to find O rings like the extreme works but couldn't find at the hardware stores...

so use silicion. able to withstand heat till 500 degree F so it ard 268 degree C....

waterproof, durable & flexible...



I will test it to see if can withstand my daily usage (heat, speed grim etc)

Will update result in 2 to 3 days....

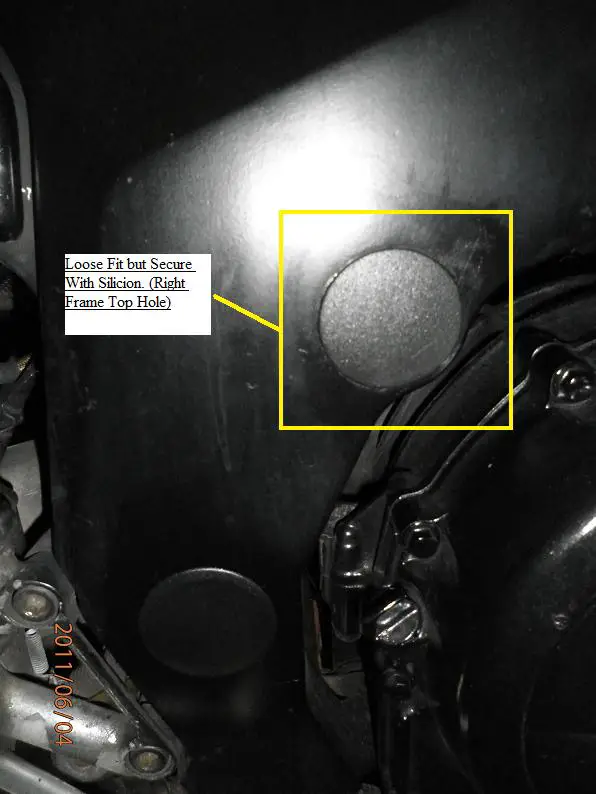

all have a tight snug fit less one hole on the right frame top one...

nt very tight but i secure all using silicon even those tight ones...

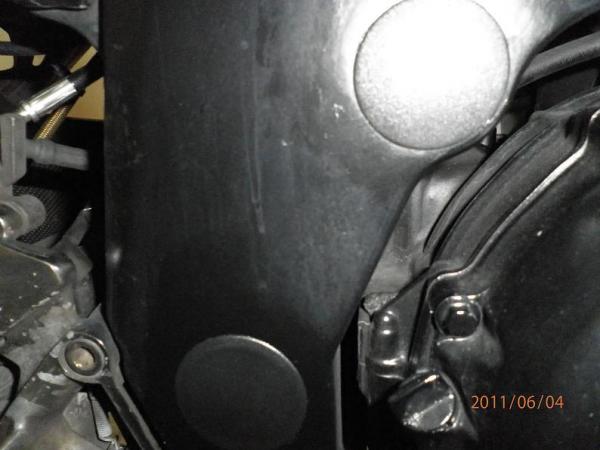

Pictures show 1st the silicion I'm using, the right frame follow by left frame follow by right frame with the abv mentioned problem & lastly the silicion i'm using (rear)...

installation just took mins... with the Frame Plugs, Silicon, Wet Tissues & "dry Tissues".



1st Wipe down the holes with wet tissues

2nd Dry them using tissues

(u can wash your bike then install oso ok)

3rd Choose the right frame plug size & apply a thin layer of silicion around the plugs

4th Push in the frame plugs & make sure it is flush with the frame

5th Wipe off any excess silicion that ooze out with wet tissues

6th Let it dry for at least 30mins or more before riding... Silicon will cure at least overnight or 24hrs...



6 easy steps...lol



If all goes well, those who order I will help u to install & secure the plugs by silicion....(since i only use 1% of the silicion..lol)

let keep our fingers cross...



Cheers!!!






Edited by stwb1981

http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Posted
mine bb is running on a dyno stage 1 from previous owner...

i dun noe have the block off plates a nt hmm...

i only noe when i got my bb it carb tuning was horrible...

after sending to 3 mechs then finally solve the problem...



o well.... so does the TPO block off plate boost in any performance??

so just plug & play onli right..?



No boost in peformance....it just stops the poping or flames coming out from the exhaust. Plus its makes job of tuning the bike on dyno using air/fuel meter easier..



Its hard to see of one have it or not,have to peek into small holes of the side fairing...Best time to see is when changing sparkplugs. If blockoff plates were installed,there's wont be a hose between sparkplug hole 1 and 2 or 3 and 4.

http://sphotos-c.ak.fbcdn.net/hphotos-ak-ash3/582610_512257702123995_1975741852_n.jpg



"Irreplaceable"

Posted (edited)
No boost in peformance....it just stops the poping or flames coming out from the exhaust. Plus its makes job of tuning the bike on dyno using air/fuel meter easier..



Its hard to see of one have it or not,have to peek into small holes of the side fairing...Best time to see is when changing sparkplugs. If blockoff plates were installed,there's wont be a hose between sparkplug hole 1 and 2 or 3 and 4.



Roger that mate....



Cheers!!!



Just ran an errand to Amk then to Sengkang then to Punggol...

Cruising around 110km/h to 120km/h....

in small road as usual searching for place my fan started temp gauge is 3/4....

so far the frame plugs are still going strong will update u all birds again...



Cheers!!!



BTW maybe i ask this before but any one have lobang for bird left engine slider..?

unable to source for 1 sia...lol

Edited by stwb1981

http://sphotos.ak.fbcdn.net/hphotos-ak-ash1/hs773.ash1/166356_131601833567489_100001530181591_182770_5027349_n.jpg

More for less . . . Always!!!



M.B Products : Lifestyle, Performance, Electronics, Security, Accessories . . .



Click here ---> Visit Motore Bici Section for more details

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
×
  • Create New...
