All Signal Lights ON?

[LollyPoP]

i wish to DIY a switch tat will allow mi to ON both my front & rear signal lights w/o disturbing the normal operation of the lights.

meaning:

1) i still can 'pak' left/right/hazzard light when the switch is OFF.

2) i still can 'pak' left/right/hazzard light when the switch is ON.



i understand tat i'll need a relay, additional wirings, a switch. (mayb i missed out some)

but now i need to koe wat type of relay to get & how to get it up.

anyone?

thanks....

[ShnHwA-]

i wish to DIY a switch tat will allow mi to ON both my front & rear signal lights w/o disturbing the normal operation of the lights.

meaning:

1) i still can 'pak' left/right/hazzard light when the switch is OFF.

2) i still can 'pak' left/right/hazzard light when the switch is ON.



i understand tat i'll need a relay, additional wirings, a switch. (mayb i missed out some)

but now i need to koe wat type of relay to get & how to get it up.

anyone?

thanks....



hmMm..wat bike u riding? for my s4..only tap wire can liao..no need switch..all light up..signal left..left side will blink while right still on..all working fine..can c frm my sig

[LollyPoP]

hmMm..wat bike u riding? for my s4..only tap wire can liao..no need switch..all light up..signal left..left side will blink while right still on..all working fine..can c frm my sig



okie, i understand tat for bikes like S4 (who's front signal lights are ON all the time) u onli need to tap additional wiring.

but i'm going to do for a couple of bikes, mi & my friends'.

they will be a spark135, FZ6, R6 & R1.

[LollyPoP]

no one?

so many done it b4, no one seems to share.

-.-

[junji3_jj]

for the bikes u mentions im not too sure.. currently for my sp is connect a wire to tap from a wire which is connected to my head lights and connect n add in a additional bulb into my signal case.. need some drilling of course.. den when i on my head lights.. the pilot lights comes up also.. it does nt affect the functions of ur normal signal lights

[FunkyChicken]

wad i noe u need dual filament bulb to get this done. one filament u tap to ur ignition and the other one u connect to ur signal light.

[biting_point]

yupz.. i've once done it on my rs125.. needa change the bulb socket..

[Guest @h_püi™]

wad i noe u need dual filament bulb to get this done. one filament u tap to ur ignition and the other one u connect to ur signal light.



but if one of the filament is perment on, then when you signal left or right.. is just go on > dimmer > on > dimmer



rather then on off on off...



so is just like the brake light...



but from wat i know pilot light is both front signal light on and when signal is needed.. it will go into normal signal operation on off on off... not dim on dim on..

[Guest @h_püi™]

Btw.. where can get the signal light socket that can hold two filament?

[FunkyChicken]

Lim ah boy...hehehee or Lim Batt maybe?? all the Lims... hahahha

[lionfuR-]

ah pui, u made a cashcard reminder diy? any idea how to make a key reminder?

[Guest @h_püi™]

key reminder? what you mean? you PM me for more detail

[paiseh]

edited. pls ignore

[paiseh]

edited pls ignore

[paiseh]

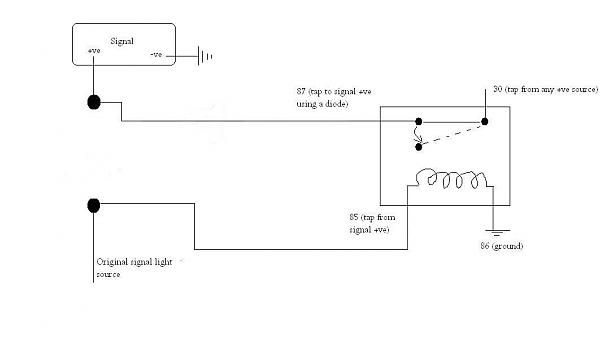

http://img169.imageshack.us/img169/5015/signallightsetupka2.jpg



1. u got to split the live wire of the signal.

2. connect the wires as shown above using a dual contact 5 pin relay.

3. as u signal, the contact on the signal will be off on off on giving the signal on and off.





i will try this out myself first b4 doing an update here

[paiseh]

total u need 1 dual contact 5 pin relay for each signal. usually only the front 2 signals are lit up.



if u wan all 4 to light up, den u will need 4 such relays. and such relays are really difficult to find in the market

[paiseh]



i understand tat i'll need a relay, additional wirings, a switch. .



hi, good news is u do not need a switch! the relay is a 5 pin dual contact relay. not the usual 5 pin relay.



how to differentiate?

normal 5 pin relay is laboured:

85, 86, 30, 87, 87



normal 4 pin relay is laboured:

85, 86, 30, 87



the dual contact 5 pin relay is laboured:

85, 86, 30, 87, 87a

[limbat]

Lim ah boy...hehehee or Lim Batt maybe?? all the Lims... hahahha



I got the 2 pin plate to convert the 1156 bulb holder to a 1157 holder

[oOQiangOo]

hmmm.. tink it will be nice.. i wan make oso.. lols...

[paiseh]

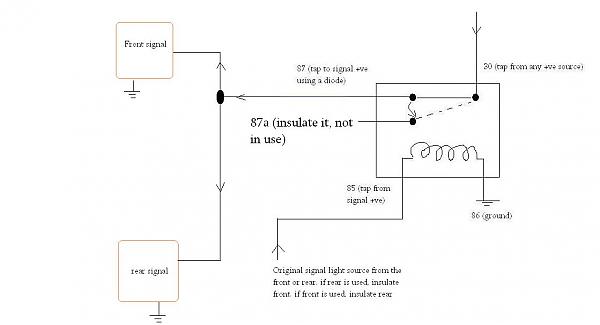

sorry, my mistake regarding each signal light having 1 5 pin dual contact relay.



actually, 1 dual contact relay can cater to the left front and rear or the right front and rear.





http://img150.imageshack.us/img150/8552/signallightsetup2yq4.jpg

[paiseh]

pls understand in such a set up, each signal light draws 12watt. 4 signals would mean 48watt.



a typical bike's headlight draws 35watt to 55watt depending on which bike we are toking abt.



a super 4's front dual filament always on bulb only draws 5watt. when u signal, the higher rated 2nd filament which is the 12watt one lights up. hence we still can see the difference in brightness.

[lionfuR-]

paiseh. wat abt if i wanna fix a strobe light or rather a 12v bright light which doesnt blink... i wud need a relay? cos i wan it to flash..

i went sim lim tower and they showed me this huge controller which cost 25.. seems like i dun need tt high end 1 man.. any suggestions

[paiseh]

yep, still need relay to protect ur own bike wiring system.



sim lim tower tat one not bad la, price quite ok also i feel.

[lionfuR-]

but the controller a bit like big man... lol. hmm.. i din buy in the end, buy liao also i dun think i noe how to fix it..

[lionfuR-]

btw if there any way to put the wire it so tt instead of needing an extra switch i can juz put to to like passing or smtg..
