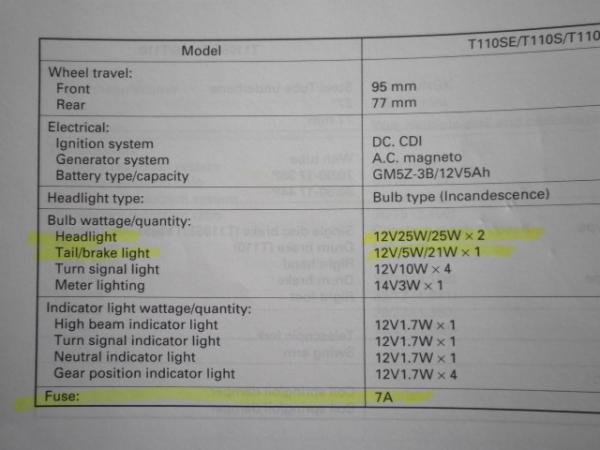

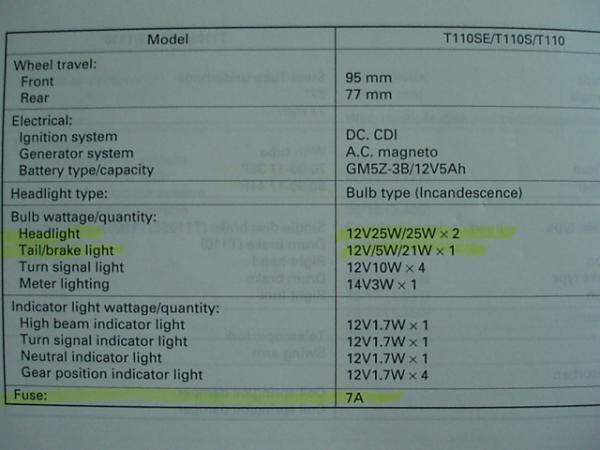

for those u forget about the bike original factory specification for electrical bulb watts

see attached

[gunshead]

Yamaha Spark Z 110cc

19 June 2010

Meter : 17866

Skudai, Jay Bee.

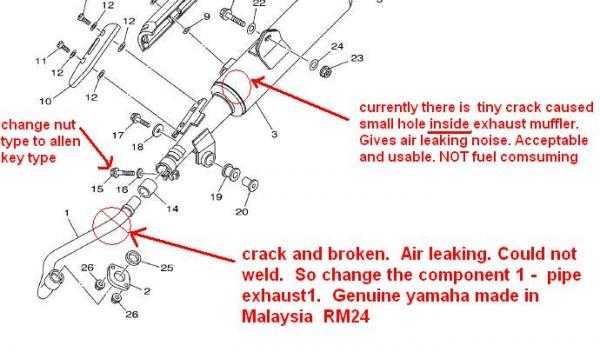

Exhaust crack , air leaking giving loud noise.

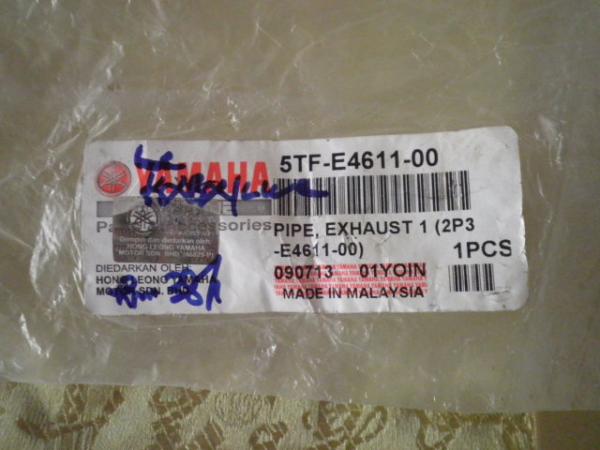

5TF-E4611-00 / 2P3-E4611-00 / 5TP-E4611-00

PIPE, EXHAUST 1

HLB price RM24.00



nut type changed to allen key type - longer , bigger and stronger . Tightens from minor air leak.

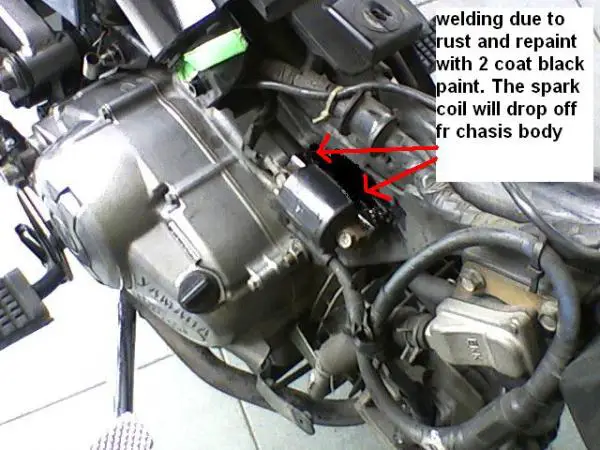

Spark ignition coil bracket rusted. Welding coil bracket to body chassis. Repaint with 2 coat black paint.



Clean air filter



Valve intake & exhaust used gauge measurement clearance.



Add sarung / cover for seat .



10:30am – 2pm

Total with labour charge RM50

SEE ATTACHMENT DIAGRAM - WILL ExPLAIN THE ABOVE

[gunshead]

19/6 2010

Arasu motor , JB

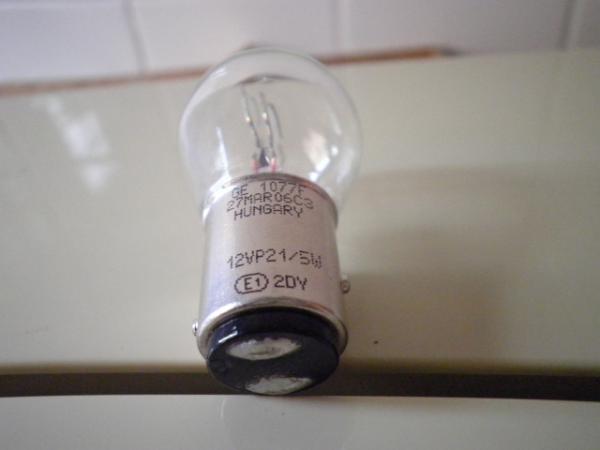

rear bulb

12v/18/5w

RM4

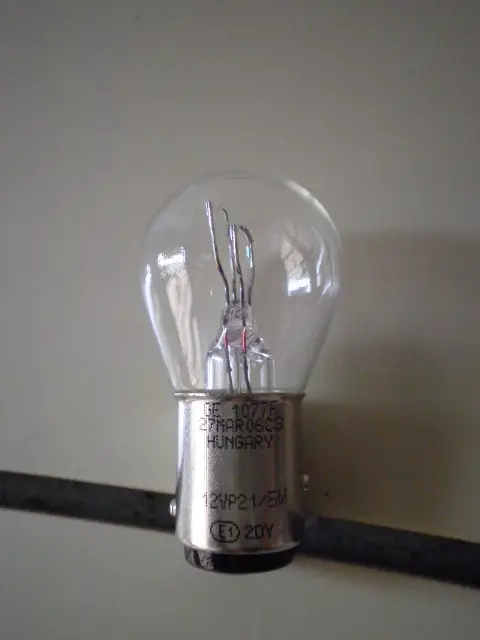

original factory is 12v/21/5w

see bulb attached ;next time use this with longer durable solder

[gunshead]

saw at east cost rd on 20/6/2010

meter showed 18,000km

means done 118,000km

[gunshead]

Yamaha Spark Z

30 June 2010

Meter : 18345



Overhaul carburetor



Was



- Dirty , water inside and screw worn out and jam



- Pilot jet chocked



- Carb screw jam ; took to foundry to open



Checked fuel and air pipes - realign

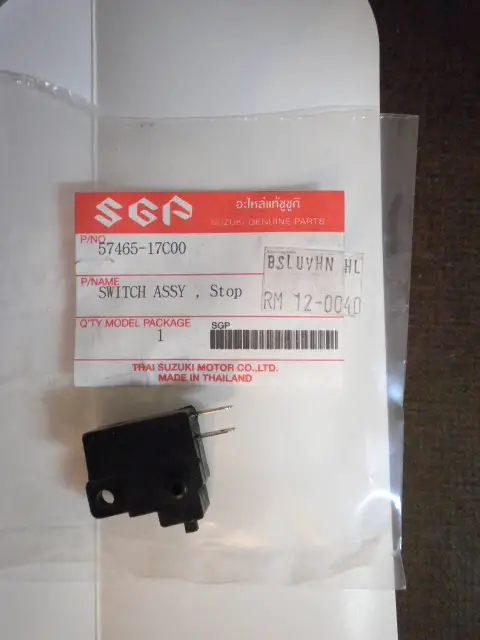

Front brake lever switch spoilt. No rear brake light. Changed switch assy . Used genuine Suzuki made in Thailand.



Water run test on carburetor, spark coil and engine.

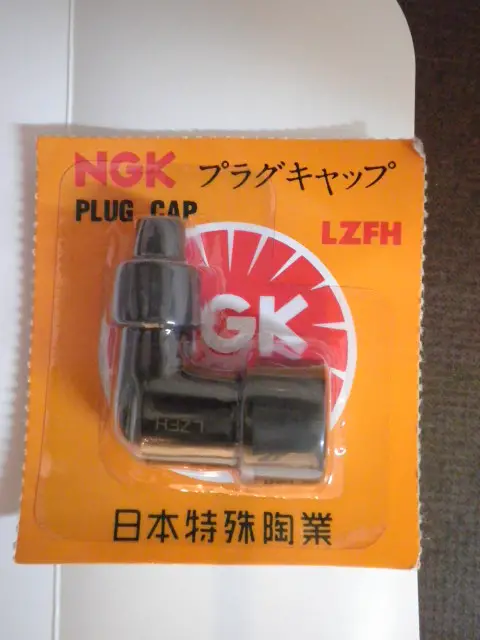

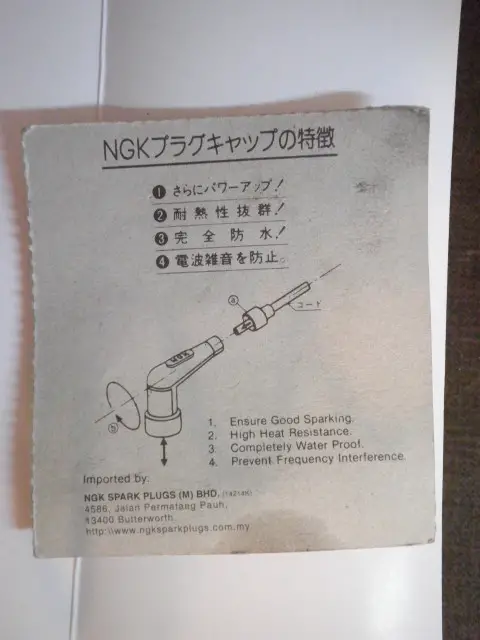

Changed spark plug cap genuine NGK - first time using



Total RM20



Started shell Ron97 v-power new petrol

Stopped esso opposite pelangi. No More Esso Ron 97

[gunshead]

Currently me using front wheel Battlax tire - world superb tire for cub kias

since i am in budget now, i think try change to Maxxis

I saw this in JB

RM75 for front wheel 70/90-17

tubeless

the pattern is unique

diamonds at edges

made in vietnam

Edited September 19, 2010 by gunshead

[gunshead]

23 July 2010

Meter 19718 means 119718

Skudai, JB



changed

Air filter genuine yamaha



Shell 4T 15w-40 engine oil RM18.50



Redo carb timing to factory setting

Air screw 1.5 turning

Petrol screw 1200rpm



changed 4 yellow signal bulb each RM1.50.....first time changing since bought bike in Dec 2004



washed rear light lens



===========è confirmed deep inside gearbox a particular part is causing roaring noise.

Ah Tek said do not disturb, just leave it since only during overhaul can repair.

Edited July 26, 2010 by gunshead

[gunshead]

http://www.bhpetrol.com.my/petrolubes.htm



I now started using BHP Ron 97

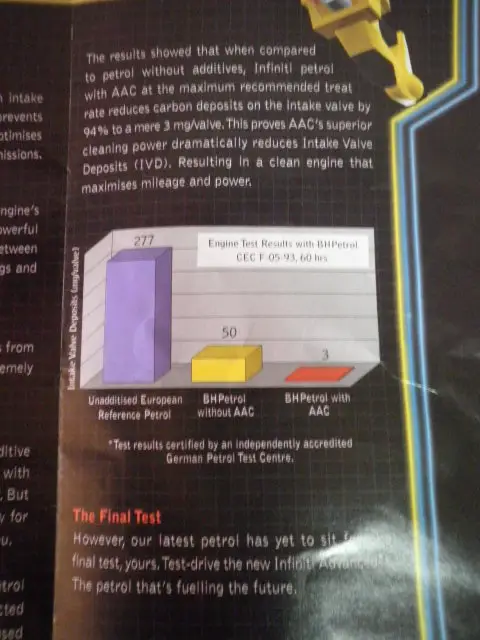

latest august BHP launched AAC advanced infiniti 2x

Edited August 24, 2010 by gunshead

[gunshead]

meter 20126

28.7.10

skudai



1. changed spark plug



2. charged battery 1 hour



3. cleaned battery box. did rewiring - replacing clips connector on battey. cleaned all rusts and deoxidaised area. Greased.



4. valve tappet adjustment



5. retune timing.

[gunshead]

Meter 21296

12/8/2010



SENT FOR SERIVICING

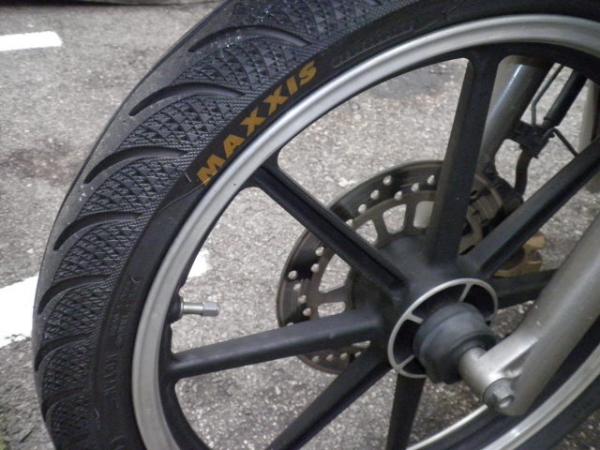

Maxxis Diamond tyre front 70/90-17 tubeless made in Vietnam RM87

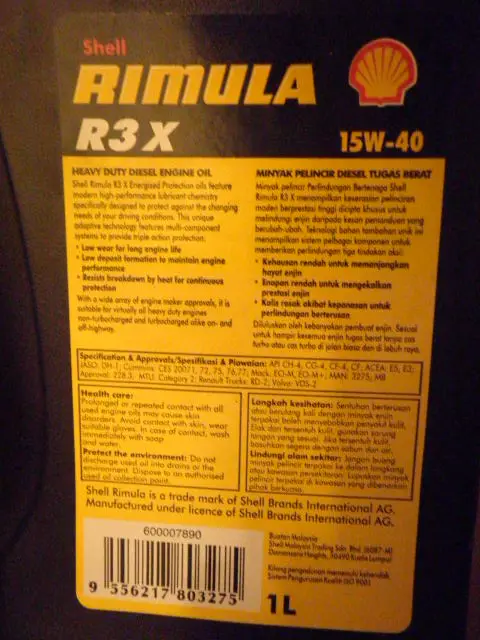

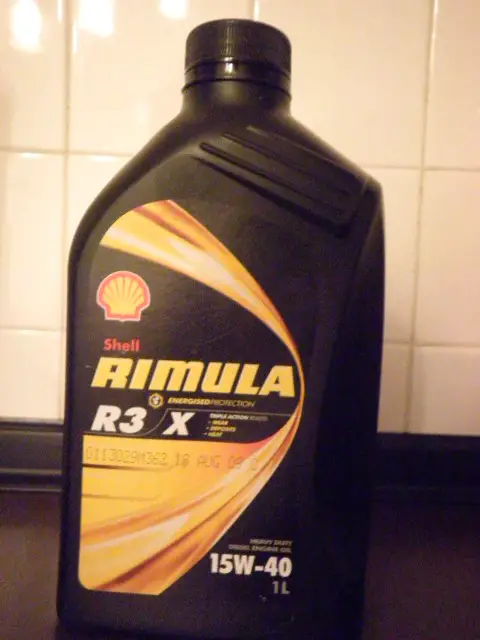

Shell Rimula X hr3 engine oil 15w-40 RM 14.50

Adjust valve tappet clearance

Adjust chain drive

Labour charge Rm2



This tyre seriously I DON"T recommend. Not good grip on dry road and also slippery on wet road. You can feel the handle bar front shaking due to bad grip.



once botak I will change to Duro racing.

Edited September 19, 2010 by gunshead

[gunshead]

Yamaha spark Z 110cc

Skudai , JB

17 Sept 2010

Meter 23435



1.Changed brake shoe. Genuine Yamaha made in Indonesia.



2.Changed DOT 4 Shell brake fluid

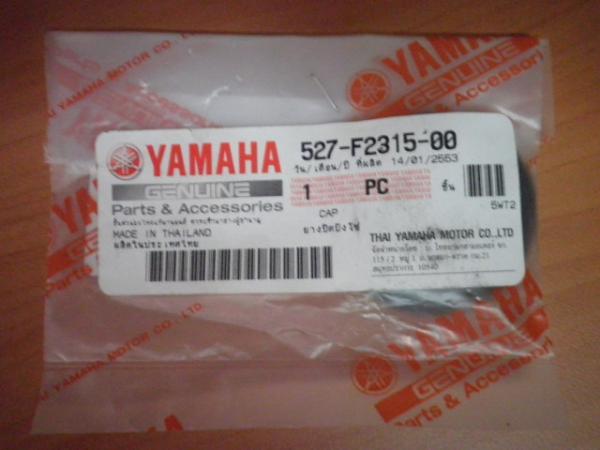

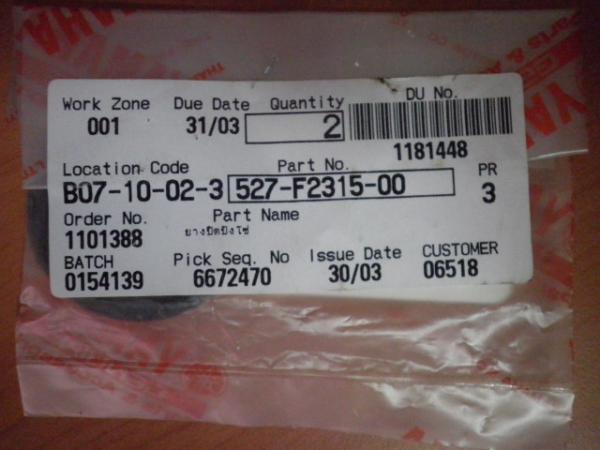

3.put new chain box cap which lost. Genuine Yamaha made in Thailand

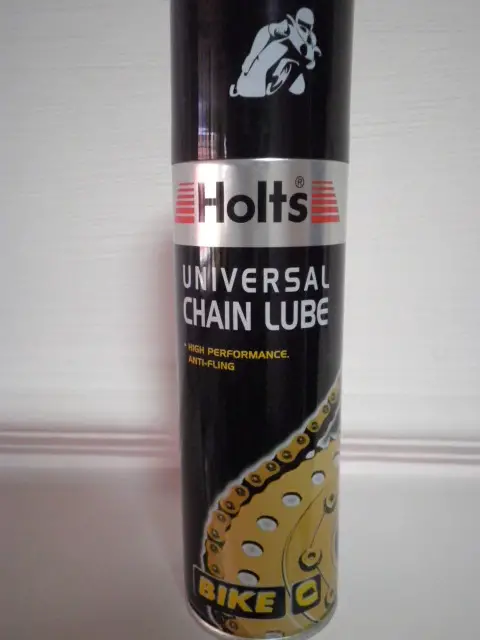

4.spray chain lube HOLTS non-fling



5.serviced horn



6.serviced LHS switch inside thoroughly. Dismantle and greased



7.front headlight cowling vibration – put double side tape



Service charge RM 5



Checked chain drive set. Now running 20,001km. Giving sound when open throttle at gear 1. ‘Clung’ sound. Will change drive chain set once 28,000km or 30,000km

[kguanz]

Hi Bros, Is Yamaha T110Z a spark z? new to this. Hmm used to be a SP rider but change to yamaha spark. Any kind bro could give me advice on the maintenance of the spark? And what's the market price of it now?

[gunshead]

I ordered pilot jet and main jet from hong leong singapore

will collect and fix inside carburator

time to change the old parts inside carb'

bad idling

HL spore has good customer service at parts centre

they order according to our need

thank you

[gunshead]

BKP basket

I use this

super high quality

http://bkphelmet.blogspot.com/search/label/Basket

[gunshead]

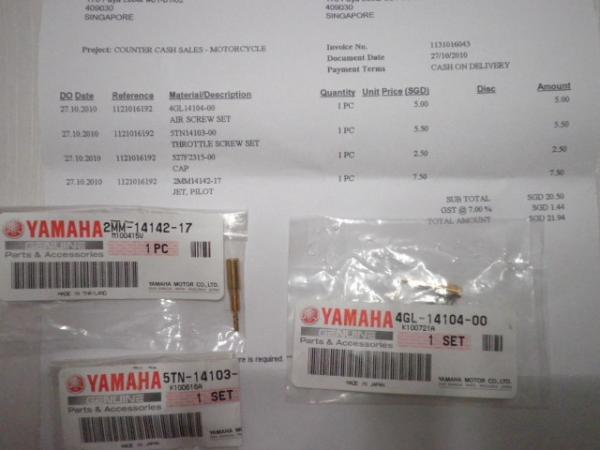

ordered and bought carburator parts

today collected at HL yamaha , paya lebar road

[gunshead]

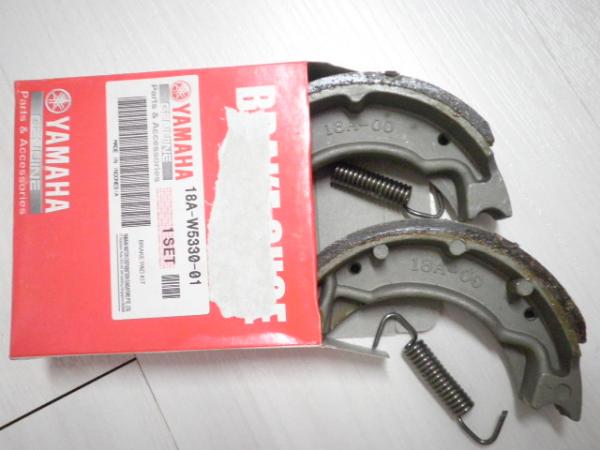

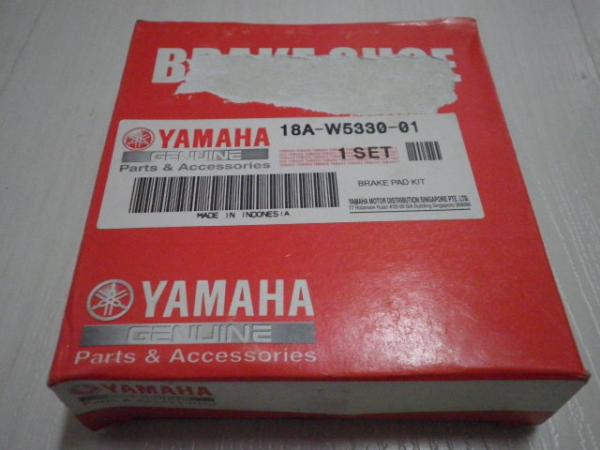

bought genuine brake shoe for yamaha spark Z

made in indonesia yamaha

SGD 8 one box



Good quality and the spring is very long and strong.

[gunshead]

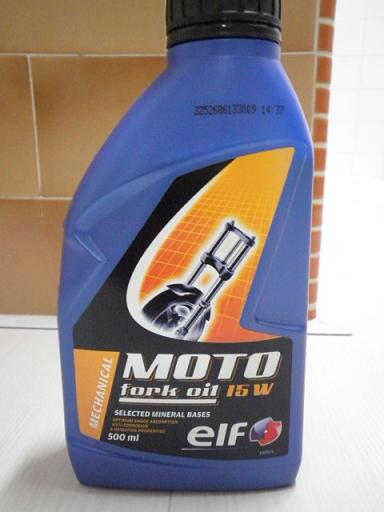

in December gonna change fork oil

bought this ELF 15w viscocity at serangoon road

SGD 7

[gunshead]

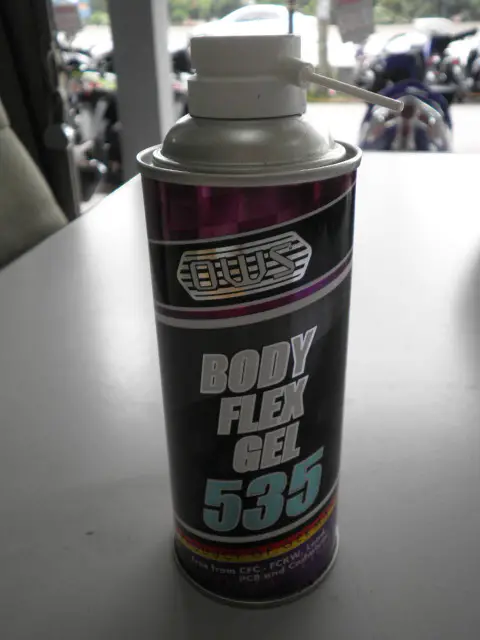

i bought OWS body flex gel to apply on my bike dasboard , rear mudguard and side rubbers.

It's waterproof and also UV resistance. Good for bikes lying under sun at hdb.

Bought it in stamford tyres, macpherson rd.



http://www.ows-germany.com

[gunshead]

10/11/10

Seng hoe motor

skudai, Jaybee



meter : 26164

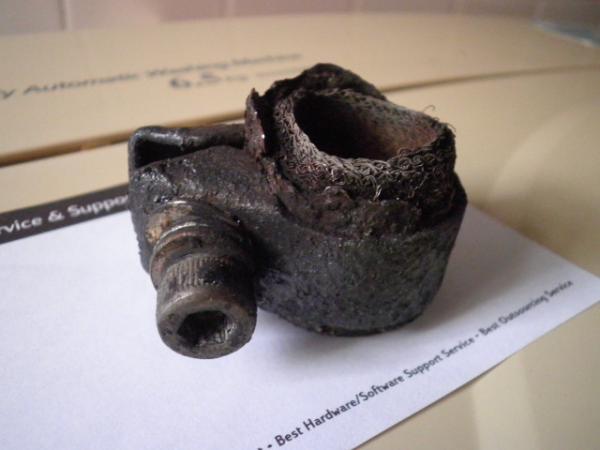

my bike the centre part of exhaust which has gasket broken with holes and cracks



so cut the centre part and rewelding



attached photo of the centre gasket and broken item



1. welded exhaust pipe RM10

2. changed R3 shell Rimula X engine oil labour RM2

Edited December 4, 2010 by gunshead

[gunshead]

Bike wash RM7



Meter: 27051 means now 6 years this month 127,051km

30 Nov 2010

Skudai seng hoe , jay bee



11:30am – 2:30pm

Service labour RM50

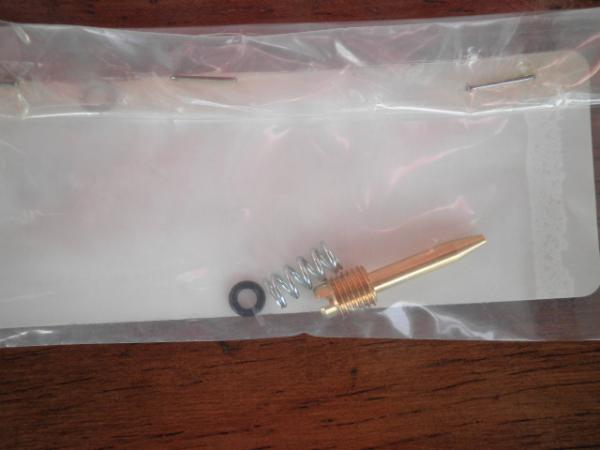

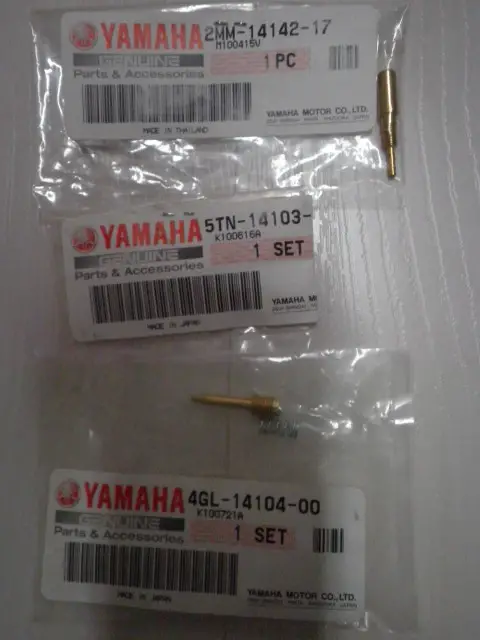

OVERHAUL CARBURETOR WITH CARBURETOR KITS

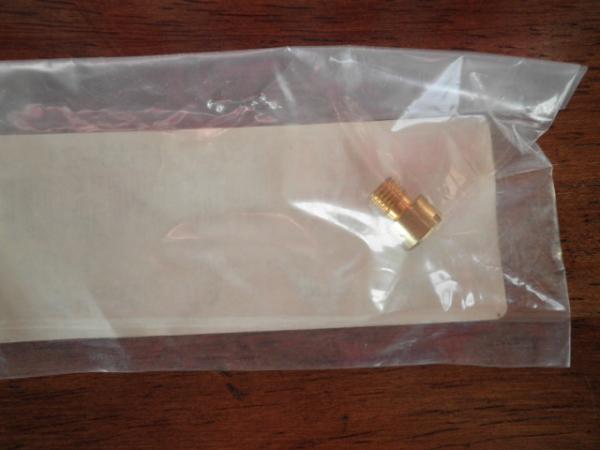

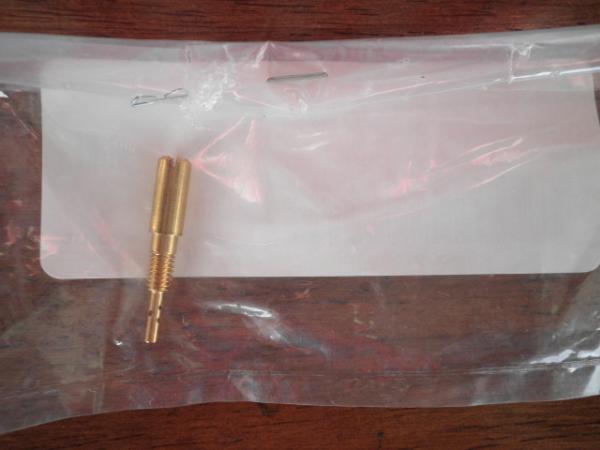

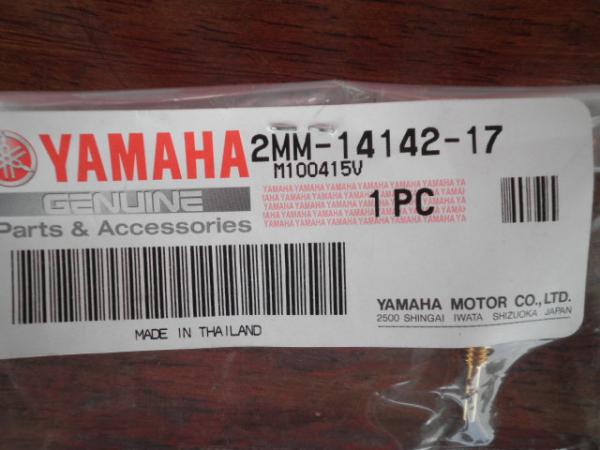

i. 2MM–14142–17 .JET, PILOT (# 17.5)

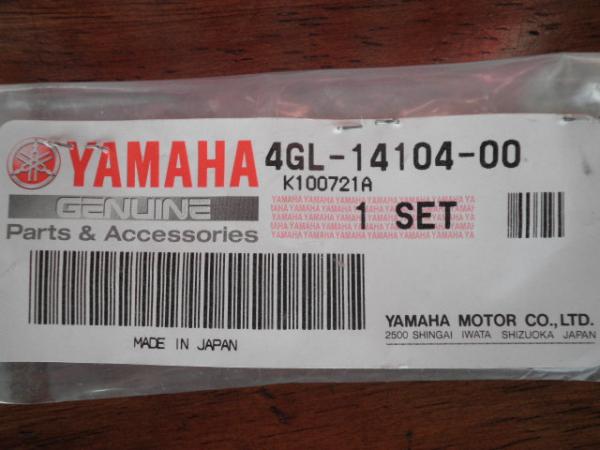

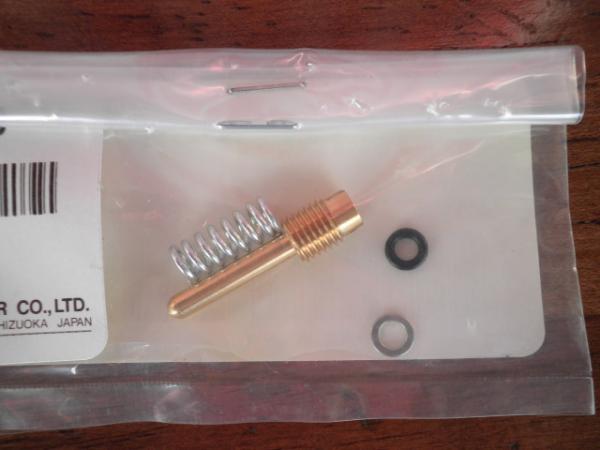

ii. 4GL–14104–00 .AIR SCREW SET

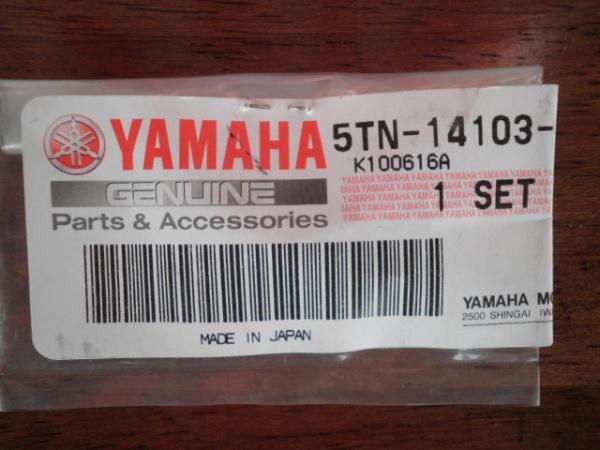

iii. 5TN–14103–00 .THROTTLE SCREW SET

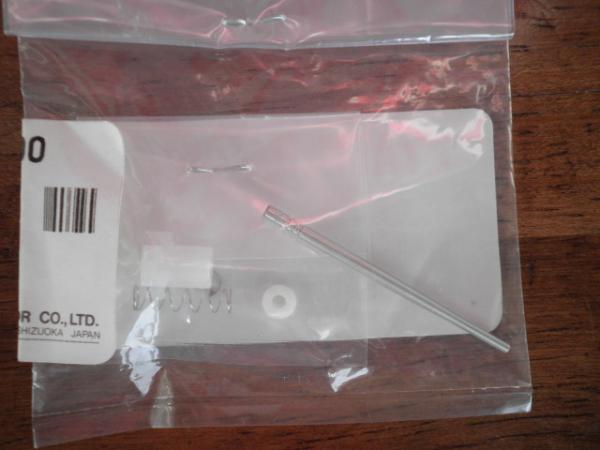

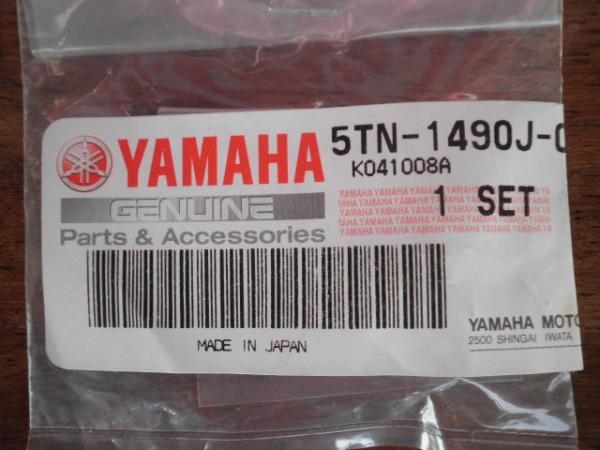

iv. 5TN–1490J–00 .NEEDLE SET - throttle slide needle set



Throttle put oil into cable

Battery re-charge

Fork oil ELF 15w changed 61cc each fork

Air filter Clean Only

Exhaust rust - repaint

ELECTRIC STARTING STARTER MOTOR CLEANING & GREASING

Bulb 12V25W/25W front headlight RHS only

Tire pressure - full

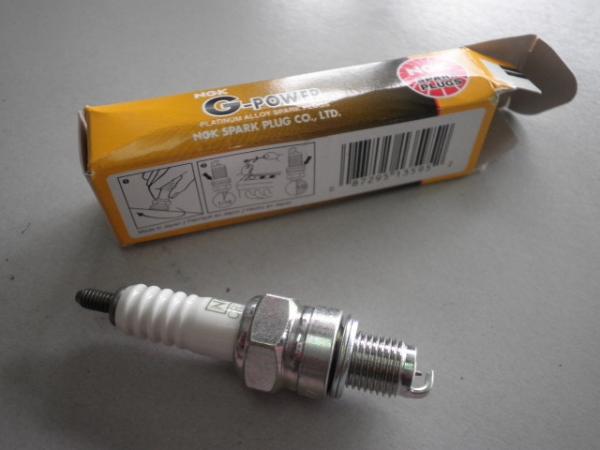

NGK G-Power platinum alloy spark plug

SHELL Rimula X R3 diesel engine oil 800ml

SHELL DOT 4 brake fluid

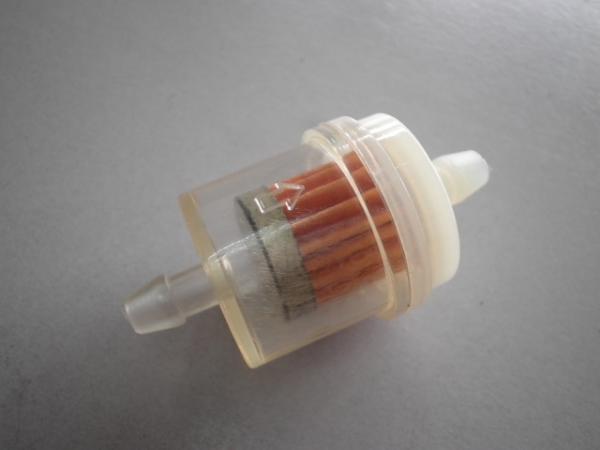

NEWLY FIX FIRST TIME FUEL FILTER

Double stand shaft oil WD-40

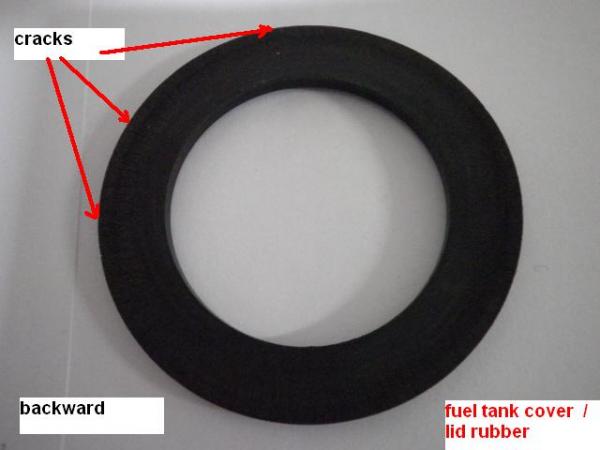

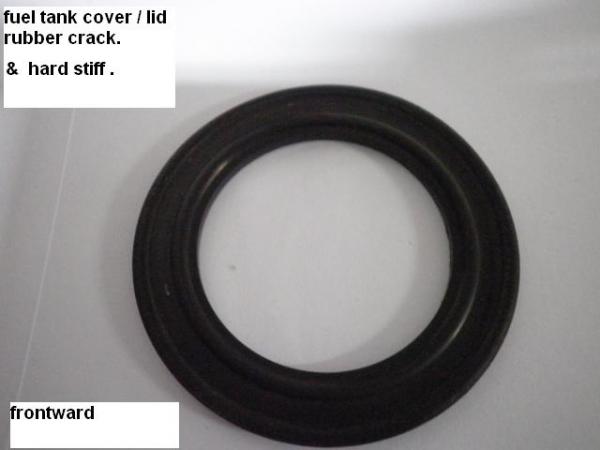

FUEL TANK RUBBER CHANGED TO NEW. OLD WAS STIFF HARD AND SIDE CRACKED

[gunshead]

continue with parts photo

[gunshead]

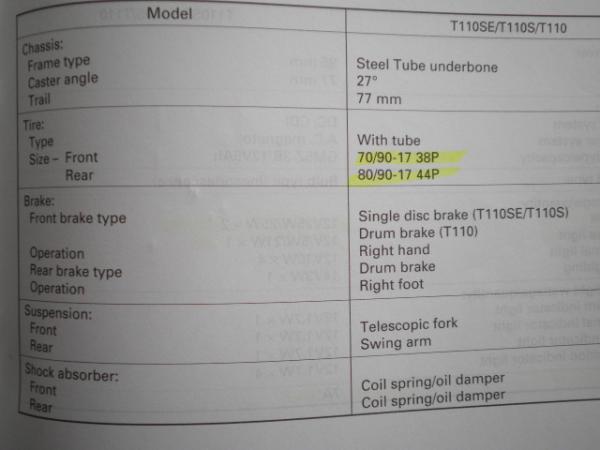

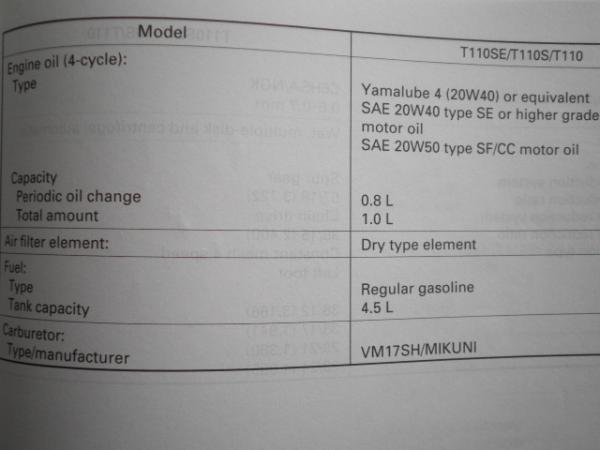

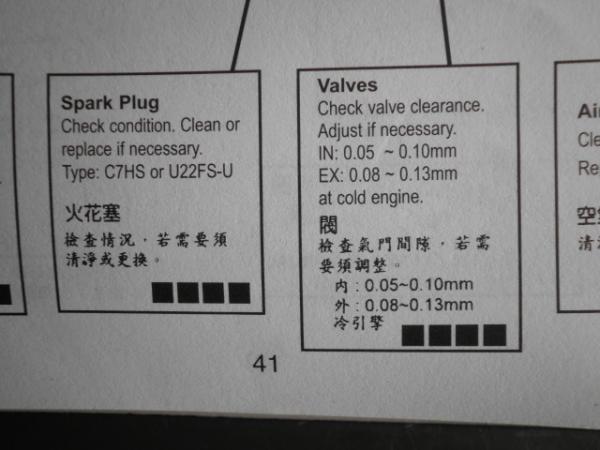

continue parts photo and also for those who forget the critical parts in manual for reference

[gunshead]

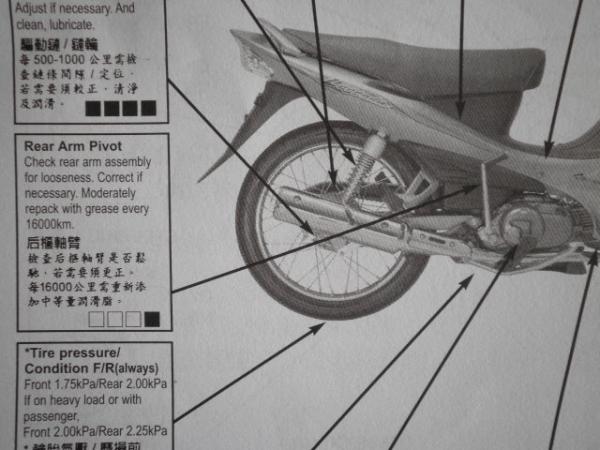

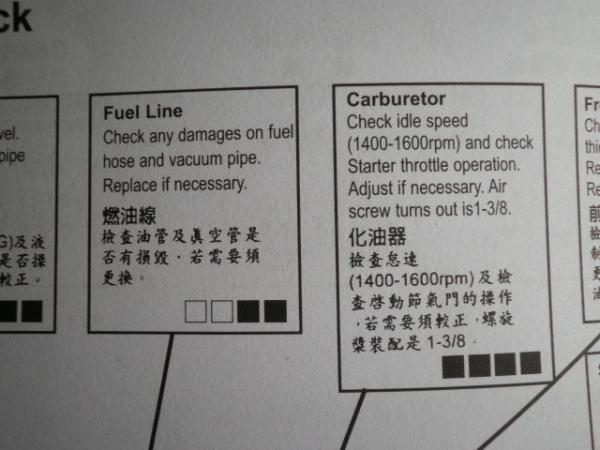

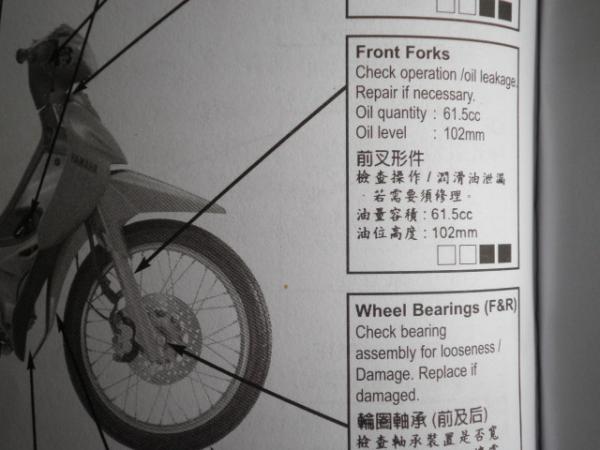

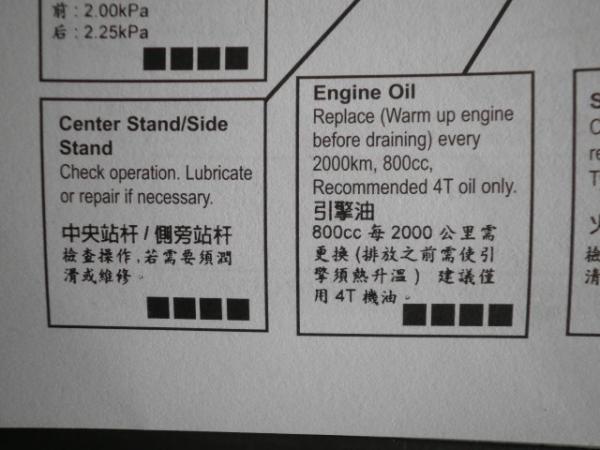

more on schedule maintenance manual for memory

[gunshead]

I love OWS body gel http://www.ows-germany.com

it gives shiny smooth protection for yamaha spark z dashboard

[gunshead]

I saw in this mechanic shop in skudai, JB - the owner put recycle bins. It was full with items to recycle. It seems bike shops has many things to recycle. So lovely shop in skudai.

Very good move to save earth. Wish to see these bins everywhere in world provided people are educated to use them.
