[Group] SBF Yamaha Spark Z & X

[gunshead]

seng hoe motor

JB



18/3/2011



meter : 132,241 km



steering cone loose

retighten back



retighthen chain drive

currently chain drive set running above 29,000km



retighten rear brake light spring switch



checked petrol from nut carburator for any water

no water

[gunshead]

31 March 2011



Overhaul III



32777

[ramien]

dear spark users with yoshi installed, do you guys experience your brake lever get in contact with your exhaust? how to solve it?

[gunshead]

use shorter spring for the foot brake lever

[gunshead]

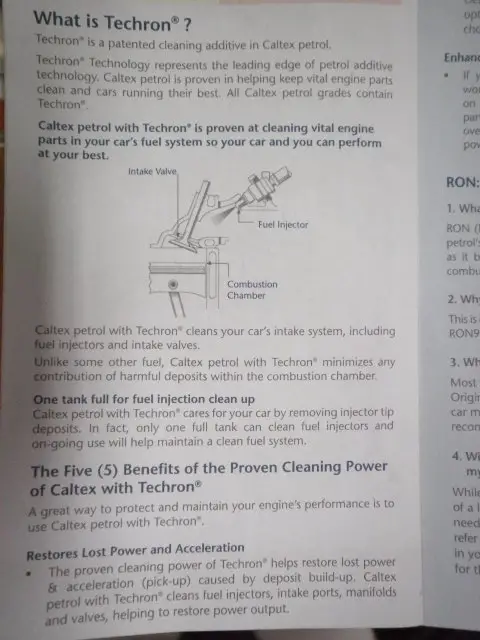

use techron ron 97 caltex

best caltex

Edited April 5, 2011 by gunshead

[gunshead]

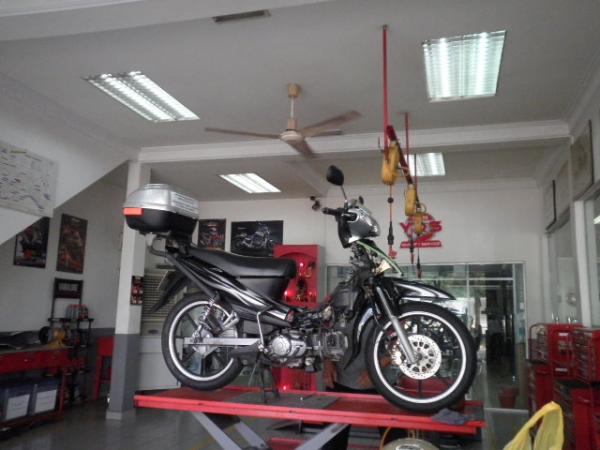

Overhaul Part III



31 March 2011

Meter 32777

132,777km



10:45am till 5pm



Skudai, JB

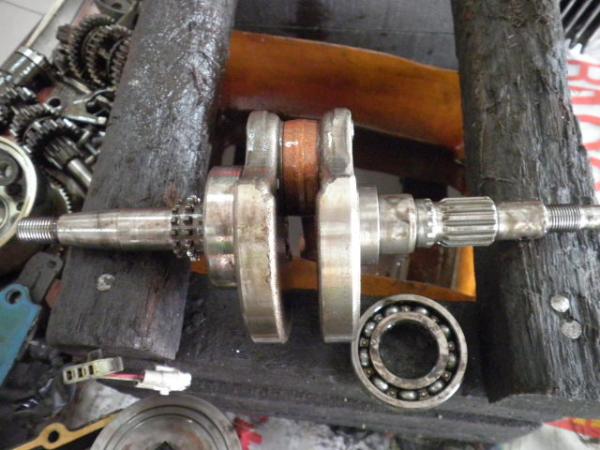

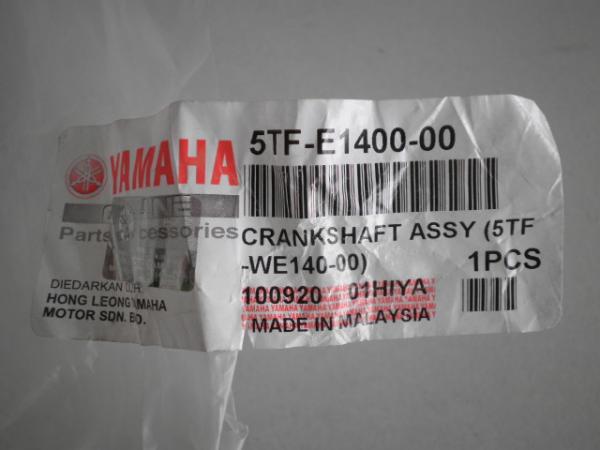

Original Yamaha Lagenda crankshaft one set with connecting rod and single bearing RM342

Did balancing crankshaft in Yamaha HQ SC using gauge



Original Yamaha Lagenda Piston Pin = RM 4.90

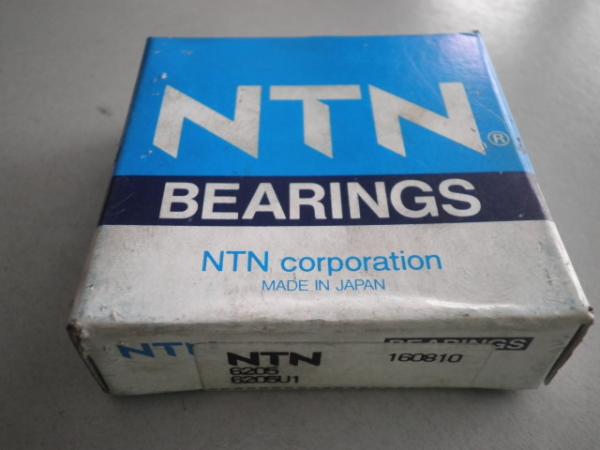

Bearing NTN made in Japan 2 pieces. One big for crankshaft and one more small bearing for gearbox body. RM36 Used gauge to compress bearing into and out of crankshaft in Yamaha agent Seng Hoe. NO hammer allowed.

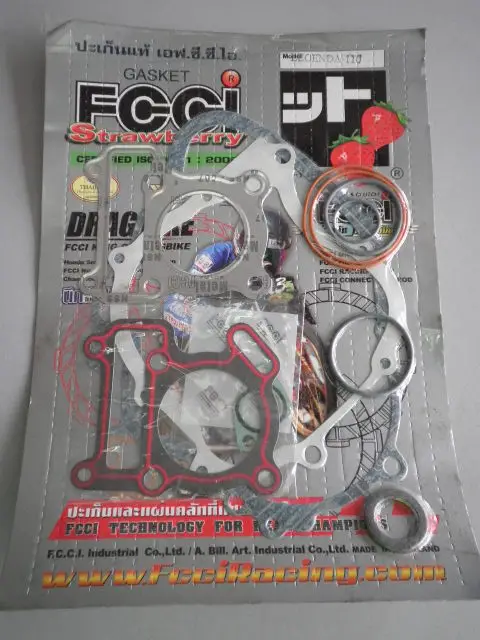

Gasket FCCI set LHS / RHS RM28



Oil seal FCCI set RM18

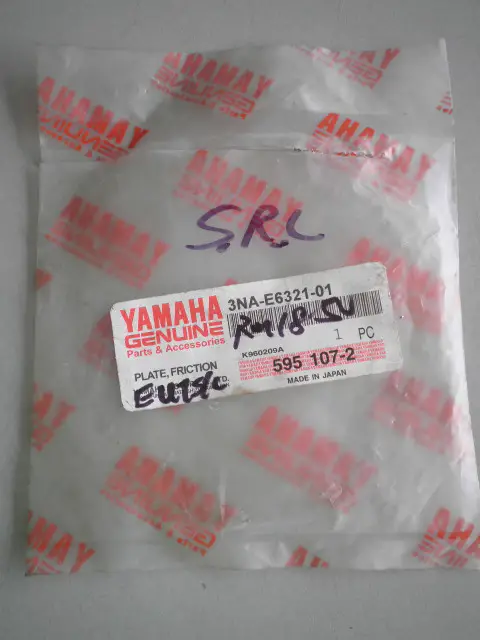

Original Yamaha made in Japan Clutch friction plate. Old 4 pieces very good but one has wear and tear at sides. So better just change now. 5 pieces RM90

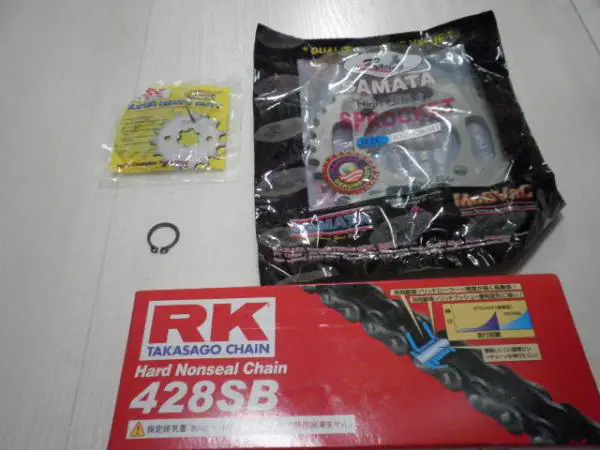

34T Samata steel + SSS 15T steel + RK chain 428 = RM 36

circlip 19 inch front sprocket 60 sen



air filter cleaned only



Carburetor NO need to service. Still very good.



spark plug NGK G-Power RM12

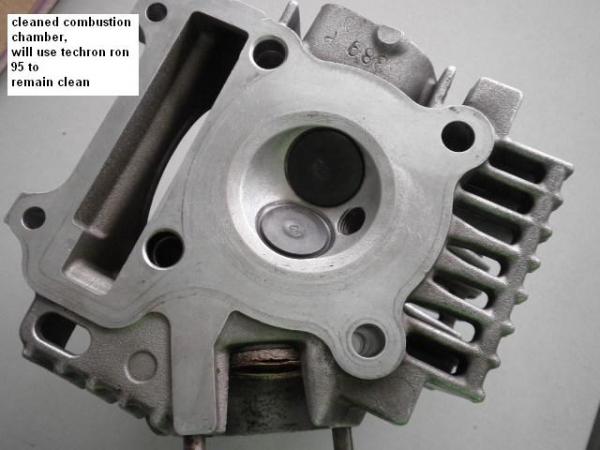

Cleaned piston head and combustion chamber valves and wall

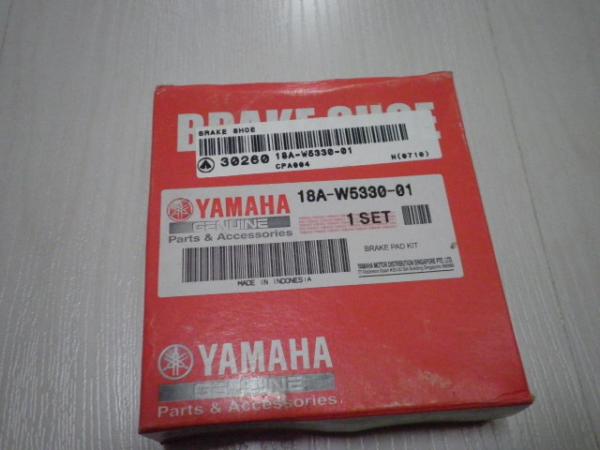

Brake shoe original Yamaha Jupiter made in Indonesia



Engine oil 1000ml

[gunshead]

continue with more photos

[gunshead]

i love caltex techron ron 95 and ron 97

[gunshead]

wish all bike shops has these bins for recycle, bike shop throws many oil bottles, plastics and paper boxes daily. it should be recycled. this one i found in goodwill of yamaha

[copt1000]

any suggestions on a fair price i should put for my 04 Spark Z which im putting up for sale?

[gunshead]

rear chain sprocket never put 34T if bike is original factory setting of piston and block

cannot overtake treler.



The best combination is 15T + 35T

[gunshead]

changed engine oil SHELL

went to mersing and did round round 356km

[Inflames_67]

Hey bro.



My X1 now mileage already almost 130000km. Now the bike is 'eating' the engine oil. Maybe 2 weeks empty already. I think it might be the piston worn up coz i'm also getting backfire upon deceleration. What do you think?



I see you list quite a few recommended shops; which one the best?



Now my fuel consumption also dropped to about 40+/L only.



Also, if re-bore the block, will fuel consumption decrease? I don't really care about going fast (the bike in stock condition could go 130km/h full throttle for now); just reliability and fuel consumption quite important to me (travel about 110km per day).



Also, you mentioned about putting 'double sided tape' to decrease vibration; care to share more in details coz my bike has been vibrating all the while. Just gotten used to it i guess but its always good to be able to reduce it.

Edited April 21, 2011 by Inflames_67
being more precise

[gunshead]

go to seng hoe motor, skudai



rather then you rebore , i suggest u do like mine

see previous pages



just buy brand new block and piston and piston rings



buy from yamaha

then bring to skudai

he will fix for u

and u pay him labour charge



see previous page

i did put the brand and type of double tape i used

just used in between of cowlings / fairings



u tell seng hoe motor, bike got vibration

he can do the best of the best beautifully

[fi_east]

Since this thread is more active, i shall ask my question here, im riding x1 and i intend to install racing cdi on it?... Any idea how much it cost in jb?.. Ahboy spore currently sold out, other shop selling $150 man... Any idea if jb cheaper?, lets say ah boy jb?.. Or anyone going jb, can by for me than i pay u, haha

[gunshead]

never ever go ah boy JB

don't u people reliaze it is a con man shop

i was almost being con but exscaped narrow

[fi_east]

Bros, where is the CDI located man on the x1?, cant find it man, thanks

[gunshead]

CDI located beside the fuel tank. it is big black color.

[gunshead]

waiting to change tyres to Shinko sr877 korean made

Edited June 24, 2011 by gunshead

[jackster]

anyone noes how much is a spark z 110 cdi costs?

[gunshead]

you may contact msian yamaha to quote yamaha lagenda 110 cdi. It is the same same with spore yamaha spark z 110

customerservices Yamaha motor.com.my

or

call spore yamaha hong leong in paya lebar to quote



see previous pages for contacts

Edited July 13, 2011 by gunshead

[gunshead]

29 and 30 July 2011



Engineers of Yamaha coming to seng hoe motor , jalan barau 2, Skudai

free service yamaha campaign

[Wildboar]

gunshead bro, i sold my bike already

[ezzyoiler]

for your infor...a diy is being organised at the yamaha x1 thread..check it out..

[episode2]

hi guys....not new to cub but that was 17years back = Sparkz 110 aka Lagenda 110 year 05 registered model.. ... so most of the time is either 2 or 2A bikes...so i just downgraded to 110 Sparkz... the FC is terrible BAD~~~ 35km/litre... saw rear sprocket is 38T ... EO sipping out from O-ring side only ..top and bottom still dry.. so need advises here on roughly the pricing for = Changing all 3 engine O-rings .. wash carb + Tunning .. air filter .. normal plug .. rear wheel 3 bearings.. also need to check on the valve too.. so how much should i prepare for doing inside JB * after shell junction turn right on the left row of bike shops there* ??? EO i just changed myself last 3 days so no need this round..
