[Group] SBF Yamaha Spark Z & X

[gunshead]





amazing design by msians

i just called the manager

he is in Penang

factory is in Penang



i read the features



gel electrocyte

electricicty storage

longer life span

plug and play

argentums plating

gel type liquidless

INSTALLATION DATE IS TRACEABLE ----- wow



i think think RM 55 for our X1





I read the FAQ in http://www.koyoko.com.my



2. Is this a Maintenance Free (MF) type battery?

a. Yes, it is MF type.



b. However, this battery provides an option for those users like to prolong their battery life span. You could open the lid cover and add in battery water or battery acid (approx. 10ml) to each slot, every 8-12 months. This is to ensure the gel is in tip top condition and continue to provide its best performance.







5. Why some newly installed battery malfunction after few days/weeks?

There are 4 major possible causes:



i. The battery itself defective once out from manufacturing. However, the quality is well maintained above 99.95%. It means approx. 5 pcs. or less battery will be faulty out of 1000 pcs. produced.







ii. There is a minor physical shock due to handling process when load/unload from the track/lorry during transportation. It causes the battery positive plate and negative plate disconnect; and the battery cannot be re-charged during motorcycle is running.







iii. The motorcycle user driving habits also play an important role on the battery life span. For instance:



The brake pedal is always been pressed and the brake light is always being activated.

User only use the motorcycle in very short distance daily (example less than 5 minutes/drive). Where the battery is not fully re-charged in such short period of time.





iv. The motorcycle charging system may have some problems. Such as:



The rectifier or coil is not working well or consistently.

The quality of the rectifier is an important part to ensure the battery is lasting. It should able not to over-charged the battery.

Edited September 11, 2011 by gunshead

[gunshead]

Skudai

Meter 42594 means 142, 594km 8 years



wash bike RM6

polish bike SOFT 99 RM 10 labour

vinyl polish OWS gel bodyflex

tip RM5 - 2 hours job



battery charge 1.5 hour

changed fuel filter

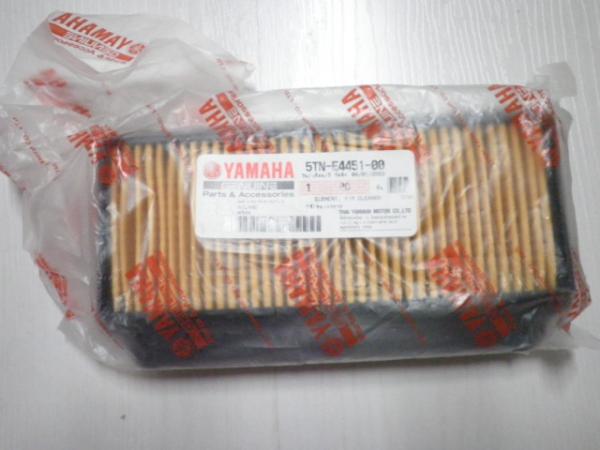

changed air filter

checked tires and pressure - 40psi

changed DOT 4 brake fluid MOBIL

sprayed new paint on whole exhaust - SAMURAI hi-temp

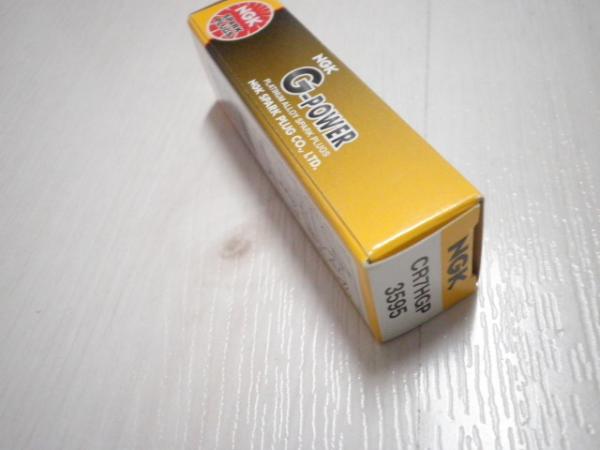

changed NGK G-POWER spark plug

changed front fork oil ELF 15w

Cleaned and greased speedometer cable bearings

Did anti-vibration for cowlings and fairings

Greased whole vital parts

Changed engine oil 15w-40 SHell Rimula X

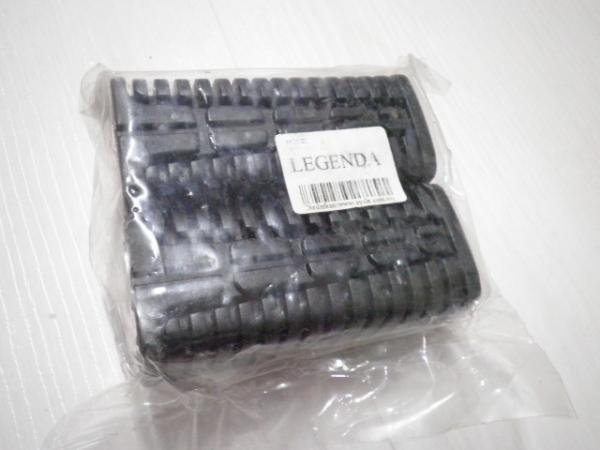

Changed footrest rubber



2 hours job SGD14 labour charge and new fuel filter



Bought items

HOLTS chain spray SGD 9.50

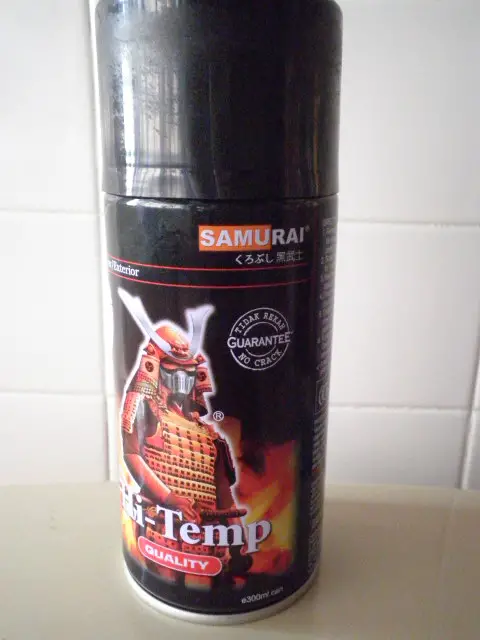

SAMURAI hi-temp paint RM28

Edited September 30, 2011 by gunshead

[Wildboar]

selling castrol 4T 20W-40 Engine oil for $3. Interested pls PM me as bike sold

[fx]

that is cheap.. hehe

[johnjames01]



my yamaha x1 from philippines...



for more information pls add me up at facebook account. my email is domingo_johnjames@yahoo.com

[Dai]

Hi, anyone know how much is it to change the coil and rectifier? Do I need to change my batt also?

[gunshead]

Meter 43719 oct 2011

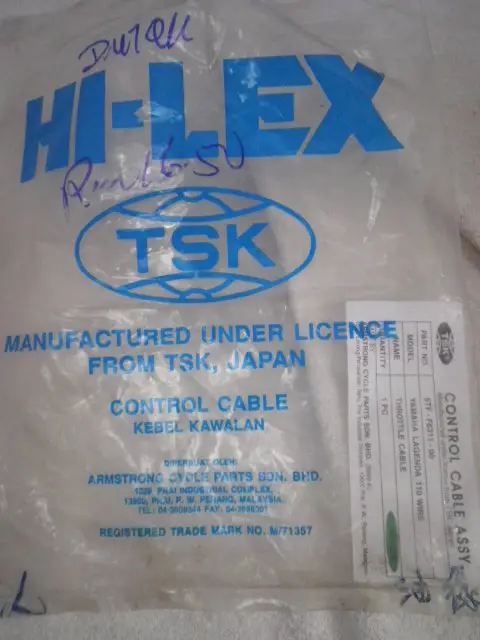

change TSK throttle cable after 8 yrs

RM 12

Edited November 15, 2011 by gunshead

[johnjames01]

devol _ 707,



1. suspension

2. body rear swingarm

3. rim

4. tyre

5. your body weight

6. your knowledge on handling

7. your heart beat



If your bike and yourself satisfies the above 7 criterias then your can corner at high speed.



The most No.1 important is TYRE



Do not have GIVI / Kappa boz at rear.



Spookey or sport rim doesn't matter.

Spookey is lighter then sport rim but it still depends on material and manufacturer , sometimes sport rim lighter then spookey.



Try to read more on Michelin Pilot Sporty and the design or other tyre brand design on which is best for cornering. Then you will know the right tyre to choose.



You can fix front and rear bigger RIM but what is the point when the TYRE IS more important. Stick with the current RIm and use low profile and racing type tyres.





good day i heard a lot of your bike in here,,, im in the philippines sir and my name is john james,

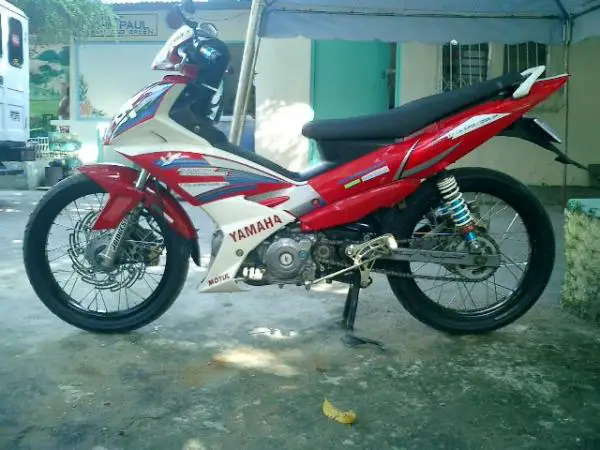

here's my bike



we have the same engine sir... but now my engines is knocking from the right side.

my problem is i cant buy here in our place...

if un dont mind sir can u give some parts that u already used? plss

this is my facebook account https://www.facebook.com/domingo.johnjames





https://www.facebook.com/groups/131690573559901/238322569563367/?notif_t=group_activity



hope to hear from u soon...



plss help me sir...

[johnjames01]

plsss help... TIA

[gunshead]

23/11/2011

meter 45929km



changed yamaha siam made brake shoe RM15

adjusted valves tappet setting

Redo spark plug head - changed to suzuki shogun type

changed

chain drive 15T / 35T ALLOY STEEL brand SSS RM35

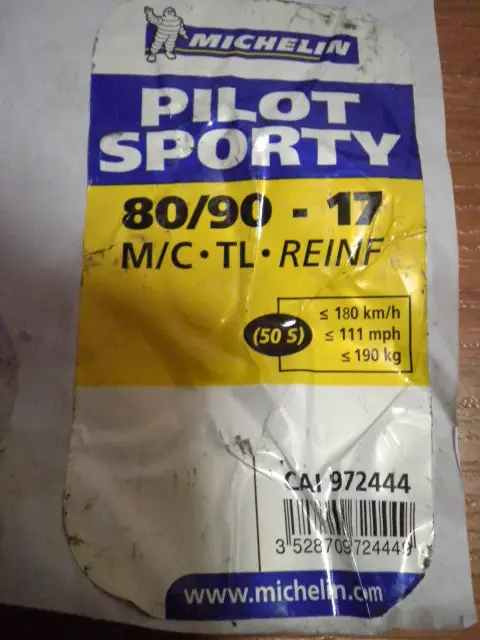

Michelin pilot sporty 80/90-17 RM 85

Edited November 24, 2011 by gunshead

[gunshead]

johnjames,

i was on leave

email me gunshead ad yaho com



anyway, NO old parts should be used.

Buy new parts

For right side knocking , I think it is the clutch plate housing.

Refer to my previous this forum pages.

You see hundred pictures of parts, prices and also the overhaul I did.

It consist of the housing I replaced /changed perhaps 2 yrs ago

Edited November 23, 2011 by gunshead

[gunshead]

i have ordered LED 3rd brake light

Edited December 21, 2011 by gunshead

[gunshead]

Me going this shop



to change Koyoko battery and shinko tires



MJ Maniam, Taman Saujana, Kota Tinggi

07-8827049

[johnjames01]

guns head good day!!! if you dont mind can get ur old parts like block cylinder head and others... how much it will cost to ship here in the philippines

[gunshead]

johnjames01,



i don't keep old parts

all thrown



anyway, buy suzuki

suzuki shogun axelo better then yamaha

[gunshead]

10/1/2012

fixed 3rd brake light LED RM 22

changed shell rimua r3x engine oil RM15.60

Labour RM2

checked front disc brake pad - OK

[gunshead]

after CNY , need to bring bike for tappet clearance

cause now got ticking sound



need to recharge battery

Edited January 24, 2012 by gunshead

[Ice_cougar]

Finally my bike got towed yesterday to my home from PIE for SGD $35 bike BikeBulance. Very good & fast service. My Spark Z engine died.. can't start. Have to wait til bike shop open after CNY.

[Ice_cougar]

Oh btw gunshead, r u stil using the Osram head lights for RM8? The shop still selling? I want to try those.

[gunshead]

Don't use halogen bulbs. Halogen buls gives high heat and destroys the bulb foot solder and bulb socket.

Halogen bulb last exact one year

after using for two years of halagen

i now using original stanley normal bulb



also halagen bulb of white color or blue is dangerous in mist or rain. U cannot see anything on road. U need yellow bulb.



It does not matter what brand of halaogen. As long as halogen - AVOID



i think i have sent u two mails two days ago.



my bike now need tappet clearance and battery recharge. I waiting for skudai shop to open after CNY

Edited January 24, 2012 by gunshead

[Ice_cougar]

31/1/2012, Tues.



Meter - 14,184km (+100000km)



Repaired Spark Z 110 in SG for $300. I felt i got conned/cheated. The only damaged part he gave me was the broken camshaft. All the other items in the list are in Chinese & almost nobody can make out what he wrote! And now the electric starter is making a very loud weird noise eveytime I start the bike. It never happen before, & this is ridculous.



1/2/2012, Wed.



Meter 14248km.



Went to JB, 1st to Seng Fong Motor at Jln Larkin. After much searching, unable to find the shop.



Then next off to Jln Kangkar Kecil at Kangkar Tebrau to look for Xing Motor Service. After quite a distance of riding, found the shop. What a big place with tons of spare parts and accessories. This place have all kind of stuffs u can imagine, from exhaust pipes to LEDs to carburetors to engine blocks etc etc!

Bought a set of 15T/35T SSS chain sprocket set for RM30 from here.



Next off to Taman Ungku Tun Aminah to locate the shop, Pusat Perkhidmatan Motor Wahin. Found it at Jln Perwira 1, easy to find just beside the main road. Also got quite a no of spare parts, so I bought a NGK C7HSA spark plug at RM5 & a 15T/36T SSS chain/sprocket set for RM38.



Next off to Seng Hoe Motor Enterprise at Jln barau 2 in Skudai. Another easy shop to locate but from where I was coming from, I had to go quite far to U-turn to reach the shop. Here the mechanics are dressed in Yamaha uniform & they provide good service.



Changed 2x front Stanley light bulbs for RM 4.50 each.

Changed front disc brake lining for RM 18.



But my bike stil got clutch problem where the auto clutch doesn't disconnect easily resulting in engine stalling while slowing down before stopping. The mech said it might be the clutch plate or most probably the auto clutch bearing but he needs time to open up to check. So I will come another day for servicing.



It was a tiring day travelling in JB but it was a good experience. In the end, topped-up RON 95 at BHP full tank and came back to SG.

[gunshead]

icy cat,

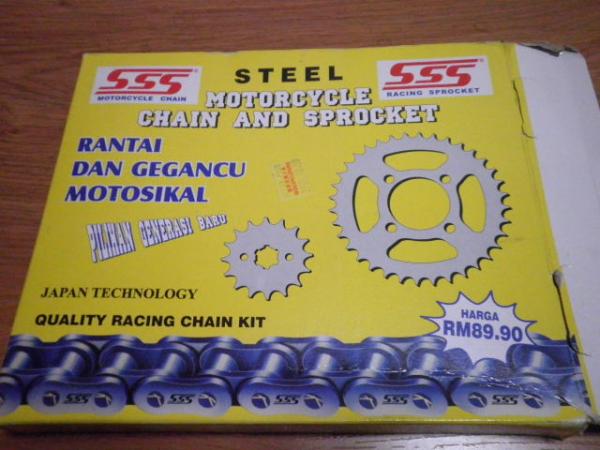

i use this sprocket set



all original genuine from http://www.kilangrantai.com

made in penang



i buy more cheaper for yamaha spark z in taman setia indah

RM30 one box set

the guy teach me to use SSS sprocket has it has more heated treatment and high steel and use RK chain which is best !

[gunshead]

meter 48876 means 148,876 km

30 jan 2012

skudai , Jay Bee



1. changed shell rimula X r3 engine oil

2. adjusted valve tappet clearance

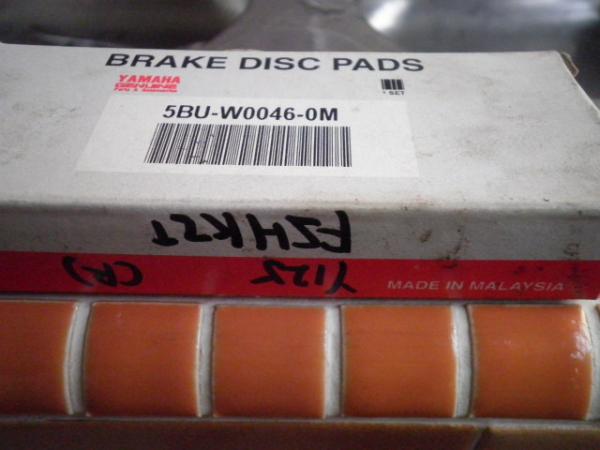

3. changed front disc brake pad yamaha genuine made in msia

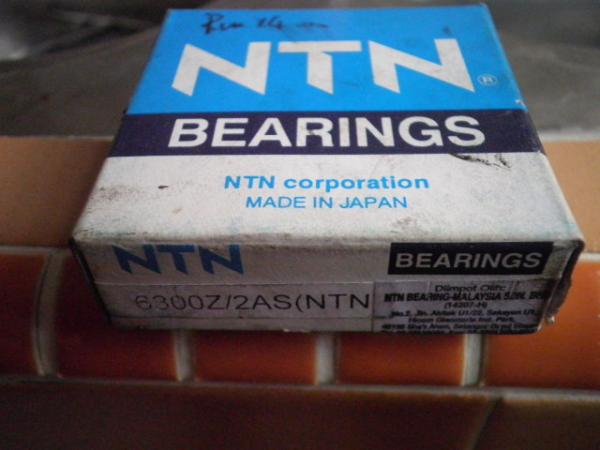

4. changed front wheel bearing NTN made in japan ( one sided cover only bearing ) 2 pcs

5. charged battery

6. serviced front disc caliper



wash bike RM 7



engine oil shell RM 15.60

total skudai RM48



Previously used KOYO Japan bearing ( two side covered bearing ) - lasted for > 3 yrs or more.



My advise do not use single side covered bearing. WIll not last long. I wonder what happen to NTN full covered bearing - unavailable.

Maybe fake ntn in msia

yucks

Edited February 11, 2012 by gunshead

[gunshead]

icy cat



go back to Seng Fong Boring Motor. Jalan larkin. It is not in larkin but along the akua lane.

akua lane is long stretch.

u see esso ...... go straight , u see one indian 24*7 big restaurant . Vanavil

see beside vanavil one shop bike . that is seng fong boring motor. U look for one chinese guy short and slim. He is expert and specialist. He off on thursday. he work on sunday too

[Ice_cougar]

Just came back from JB.



Replaced new plastic chain guard as the old metal 1 is broken.

RM 15.00



Yo gunshead,



I will go check it out again. My auto-clutch stil got problem.



Thanks.
