Hi, Thanks for you reply. I have a Raider 150 and found the battery was flat, so I re charged it again , and put it back, I noticed that when I put the battery connection cables to the battery, there was a Large spark on the terminal, like some thing was switched on, I checked every thing was switched off, and I removed the ignition key. But there was still a large spark when I touched the battery terminal, so it looks like there was s short some where that was draining the battery, even when the ignition switch was off. I then one by one disconnected every electrical part , and finally found that when I disconnected the stator coil unit, the short disappeared , so ive taken out the coil unit out



Electrical lead going to the coil ...



http://i451.photobucket.com/albums/qq232/Filesaver1/DSC06263.jpg







Then I removed the outer casing and un screwed the Two screws





http://i451.photobucket.com/albums/qq232/Filesaver1/DSC06279.jpg







http://i451.photobucket.com/albums/qq232/Filesaver1/DSC06285.jpg



and checked to see if the coils were showing any signs of a problem, as far as I can see there's no problems showing on the coils,



When I check the electrical connections , A +B are shorted to the silver metal base , connection C is also shorted to the metal base







http://i451.photobucket.com/albums/qq232/Filesaver1/DSC06286.jpg



So I am wondering if any one here has had the same problem, as I am not too sure if the electrical connections are correct or they are faulty?



Also when I took off the outer coil engine casing the coils were covered in oil, should there be oil inside the coil casing ..?



Thanks for any adivce ...



Best advice for u. Bring it down to the bike shop. Don't try to be smart and DIY just to save a few cents and end up spending hundred of dollars for the thing u spoil while u fix it yourself.

[raiderRteam_vn]

Hi all! Im new mem from Viet Nam. I love raider 150 alot, and we have small club of Raider 150 in Ho Chi Minh city Vn. As i know, new bike BELANG R 150 very nice. I like the head lamp of Belang R 150 to put in my Raider 150 ( 2006 ). How can i get that? Help me pls. Tks all!

[raiderRteam_vn]

hi all



i just got a raider for myself recently.



join me for TTS.



email me



gunshead at yahooooo comm





i have the CD of engineer service manual

parts catalogue

owner manual



contact list where to get spare parts

Hi guy! Pls share that for me pls. Tks alot. My email: [email protected]. By the way, could u show me how can i bought the head lamp pf BELANG R 150???

[gunshead]

hi guys,



i repeat

those want to have service engineer manual and spare part catalogue



email me personnaly

gunshead at yahoo com



i will try to zip and sent via my email otherwise give me ur house address and i will sent u a CD



other countries want to have have facelifted items of new raider which has many name given to country like in indonesia and phillipines and malaysia.



http://www.suzuki.com.my

give a try

[Raider150]

Hi all! Im new mem from Viet Nam. I love raider 150 alot, and we have small club of Raider 150 in Ho Chi Minh city Vn. As i know, new bike BELANG R 150 very nice. I like the head lamp of Belang R 150 to put in my Raider 150 ( 2006 ). How can i get that? Help me pls. Tks all!



That model belang R if i not wrong only malaysia have at the moment. singapore no longer bring in any raider since 2 yrs ago. so if u're so interested in the head lamp maybe gotta find shops or dealer from malaysia

[gunshead]

suzuki Raider now facelifted with more modern technometer with modes for economy, power and normal controller. and also new digital meter



but this facelift only in indonesia, phillipones and malaysia



http://www.suzuki.com.my



got black, red and blue color.



it is more elegant with sporty muffler.

[Gilera Runner]

Hey bro gunshed, i hv change my clutch plate at woodland link workshop...

cost at 68.50... wif casket n labour bout 100 ar......

[gunshead]

This time you guys must help me



help help



my raider monoshock suspension lembik.....spoilt.

Supreme soft



When i ride it wobbles and bouncy and also give the squeking sound.



NOW PLEASE LET ME know any aftermarket monoshock with gas for me to fix



maybe some of u have changed the monoshock



kindly guide me



u may email me at gunshead yahoo com



or reply here



i tried B plus, rowell road and kelantan lane



all don't have monoshock for raider...



i say thank you in advance for saving me and my bike.

[Raider150]

This time you guys must help me



help help



my raider monoshock suspension lembik.....spoilt.

Supreme soft



When i ride it wobbles and bouncy and also give the squeking sound.



NOW PLEASE LET ME know any aftermarket monoshock with gas for me to fix



maybe some of u have changed the monoshock



kindly guide me



u may email me at gunshead yahoo com



or reply here



i tried B plus, rowell road and kelantan lane



all don't have monoshock for raider...



i say thank you in advance for saving me and my bike.



Mine is Gazi one.



Got it from B Plus quite some time ago.



Think they don't really want to bring in as the sales of it is kind of slow. But what i can tell u is the original stock suspension is better than the aftermarket one.



So why not just replace it with the stock one.

For cornering wise i still like the stock one.



The aftermarket one is abit too hard already. Price wise i get it at about 160+ if i never remember wrongly.



Which is not worth it.

[gunshead]

raider 150,



thank you for your reply.



suspension original stock cannot find anymore in singapore, i tried rangoon rd, lavender st, ah boy, rowell rd, desker rd.....all i gave up. Nobody has it but someone in desker rd said try http://www.yss.co.th but then the other problem is YSS also for raider don;t have in singapore. Any other shops u may think got raider suspension ?

[seitan07]

Bro gunshead,u cn try chong aik dey sell YSS for raider @ $195&HKL b.merah @$190. Last result if u prefer ur stock monoshock den u cn try go 2 ah gua lane @ jb ask dem 2 mod ur stock shock. bt let me tell u 1st nt all shop r willing 2 do it, i got mine done @ 1 of d shop called malay panjang , his shop got d green sprinta banner in between ahboi & panjang cheena shop. hope tis info mite help.

[gunshead]

guys,

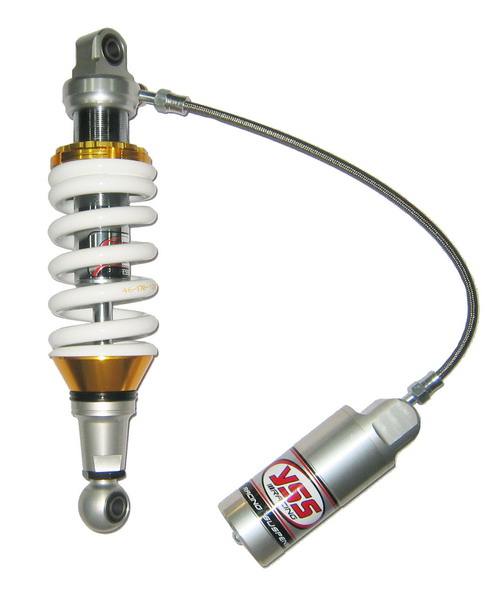

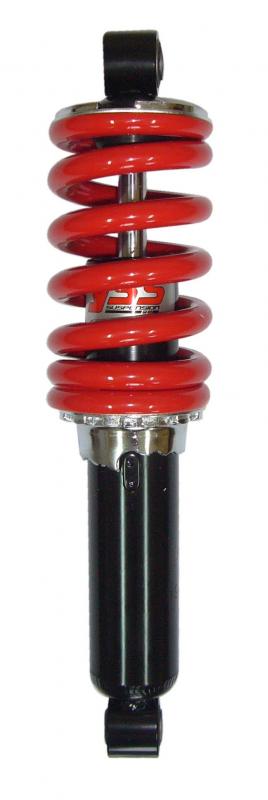

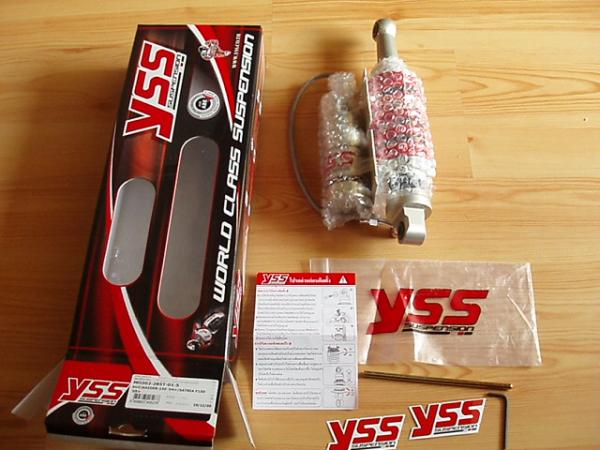

finally i got the suzuki raider R 150 monoshock from http://www.yss.co.th



i ordered from thailand YSS



they have sent me via TNT courier .



But now i relaize that what I have ordered is for racing type which is super LOW



see the two attachment.



The original stock monoshock is tall but now i could not get mechanics in singapore to fix it. It is correct racing YSS monoshock with gas emulsion.



But many mechanics here says they doubt to fix it.



Can sOMEONE LOOK AT THE PHOTO AND GUIDE ME



93800108



gunshead ad yahoo.com

[MisledSoulRider]

Yo peeps! How's everyone doing? So long never come here sia... now like got more kaki like that

syiok syiok.

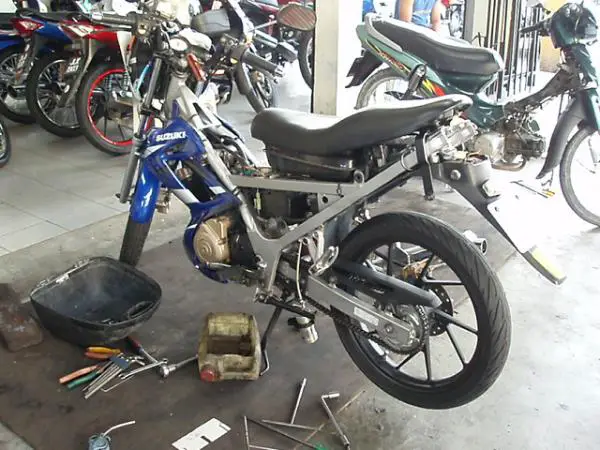

My raider just came out of workshop. overhaul engine before the whole thing cannot use.

It was fortunate that i asked the mechaninc to do a thorough checking and this was what happened.

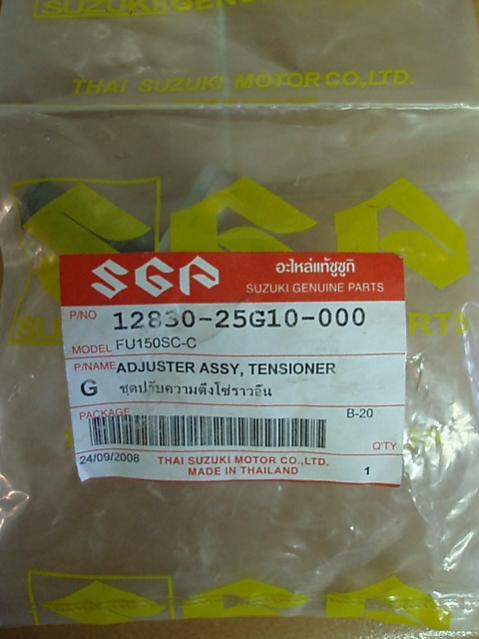

Sent in to just change my tensioner, filter, engine oil n plug, but i told him never mind you down engine and checj for me. So he did and this was what i found.



Engine oil never swim up to radiator grill, my timing chain is rusted, piston ring also rusted, all bearings are still in good condition, so i told him change the timing chain, piston, piston rings and bearings.



Then i inspected my block, got scratch from the piston ring, so i told him to look at it anf after opinion from three other mechaninc and the boss, i decided to change block, now my bike sounds very quiet just like new bike. Hehehehe.



But still one problem i have yet to solve. My rear suspension. I want to use original shock but cannot find leh. The G@Zi that im using now is already 4 years old and its nt so nice, too stiff.



Anyone got original shock to sell? or know where i can find? or anyone wanna exchange? HeeHEe

[cicak]

Yo peeps! How's everyone doing? So long never come here sia... now like got more kaki like that

syiok syiok.



My raider just came out of workshop. overhaul engine before the whole thing cannot use.

It was fortunate that i asked the mechaninc to do a thorough checking and this was what happened.



Sent in to just change my tensioner, filter, engine oil n plug, but i told him never mind you down engine and checj for me. So he did and this was what i found.



Engine oil never swim up to radiator grill, my timing chain is rusted, piston ring also rusted, all bearings are still in good condition, so i told him change the timing chain, piston, piston rings and bearings.



Then i inspected my block, got scratch from the piston ring, so i told him to look at it anf after opinion from three other mechaninc and the boss, i decided to change block, now my bike sounds very quiet just like new bike. Hehehehe.



But still one problem i have yet to solve. My rear suspension. I want to use original shock but cannot find leh. The G@Zi that im using now is already 4 years old and its nt so nice, too stiff.



Anyone got original shock to sell? or know where i can find? or anyone wanna exchange? HeeHEe



Hey bro, im using the original shocks which i dont like, a bit too soft for my liking. Are u talking bout a 1 to 1 trade, or must top up?

[gunshead]

next week I will have the old original suspension in my hand



those wanna buy the old suspension original stock can get from me.



some one sms me first. SO he will get it first.

[gunshead]

guys,



who wants the original suzuki raider monoshock



I have it



come and get from me



i have changed to YSS and mine original stock is good condition.

Clean and available .

-----------------

soory



GIVEN AWAY TO CICAK

UNAVAILABLE NOW SINCE GIVEN FREE TO SOMEONE ELSE.



-------------------------

Edited May 27, 2010 by gunshead

[gunshead]

Hi guys, I just sharing this info



suzuki raider R



suzuki satria F



suzuki belang R



you can get racing items



order from this website



I just contacted them via email and my friend planning to buy



via courier service



including camshaft



http://tdr-racing.com/x/suzuki-satria-m-79.html?osCsid=e44e734432ff249b99b939cb1d6ba25c





Yoshimura brand :



- Camshaft



- Muffer





TDR Brand :



- Muffler



Racing CDI



Clutch friction plates





TDR RACING INTERNATIONAL



LODAN CENTER BLOK G No.2



Jl. Lodan Raya No.2



Jakarta Utara 14430 -INDONESIA



Telp. :+62-21-693 0777 (Hunting)



Fax. :+62-21-691 6568



WEB : http://www.tdr-racing.com



Facebook : TDR RACING INTERNATIONAL

[gunshead]

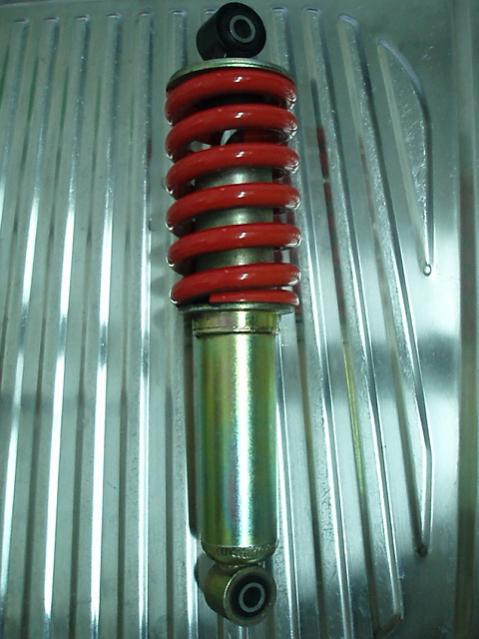

who wants the original suzuki raider monoshock. come and get from me. i have changed to YSS and mine original stock is good condition.

Clean and available . See Photos





GIVEN AWAY TO CICAK

UNAVAILABLE NOW SINCE GIVEN FREE TO SOMEONE ELSE.

Edited April 1, 2010 by gunshead

[gunshead]

Sent for bike wash at Jalan Tebrau, JB



wash = RM7

polish with AUTOGLAZE

polish sport rim with WD-40

polish dashboard with KIT UV protector



labour charge RM10



total RM17 + give tips as you wish.

[gunshead]

For suzuki raider /satria /belang Parts



Malaysia



Mr. DIn, SC Taman Molek

07- 3533131, 07-3527131

[email protected]



http://www.suzuki.com.my

[email protected]



service centre in Prai ( 04-3977314)



Seng Hoe Motor

70 & 71 Jalan Barau 2, Main Road,

81300 Skudai

07-5571025, 07-5545653



AMG Motor enterprise

14E, ground floor, Jalan tebrau, JB

012-7218636, 012-7599893



Xing Motor Service

3, Jalan Kangkar Kecil,

Kangkar tebrau, Johor Bahru

07-3583448





Singapore



KS motor only sell suzuki

62940392



auto machinery supply

41, rowell road

62929452



B PLUS Motorsport - excellent - all parts

and direct import thailand

227, Lavender Street

62923890



GNG Motor Trading

Ong Eng Zhuan

blk 6 defu lane 10,

#01-564

62836560, 62805065



Chong Aik International Pte Ltd

Desker rd

[email protected]





Indonesia



TDR RACING INTERNATIONAL

LODAN CENTER BLOK G No.2

Jl. Lodan Raya No.2

Jakarta Utara 14430 -INDONESIA

Telp. :+62-21-693 0777 (Hunting)

Fax. :+62-21-691 6568

WEB : http://www.tdr-racing.com

Facebook : TDR RACING INTERNATIONAL

email: [email protected]



Spare Parts Division

PT. Indomobil Suzuki International

Spare Parts Directorate

Jl. Diponegoro KM 38,2

Tambun - Bekasi 17510

Telp : (021) 8809940,

(021) 8809941 ext 206

(021) 8809488 (direct)

Fax : (021) 8809950



Sales Division

Wisma Indomobil 7th Floor

Jl. M.T. Haryono Kav. 8

Jakarta 13330

Telp : (021) 8564530,

(021) 8564540,

(021) 8564550

Fax : (021) 8564813

[gunshead]

guys and gals,



be considerate

think of others



I notice many bikes chain oil drop on bike parking lot floors/roads.

When other bike tire step on it .... think of it - danger

when chain oil drop on roads .... rain ... think of it - danger



when rain , oil will float and rubber cannot grip road



a lot of rain slipperyness accident caused by oil



danger for others, we die ok but how about causing others death - KO.



not sin ?

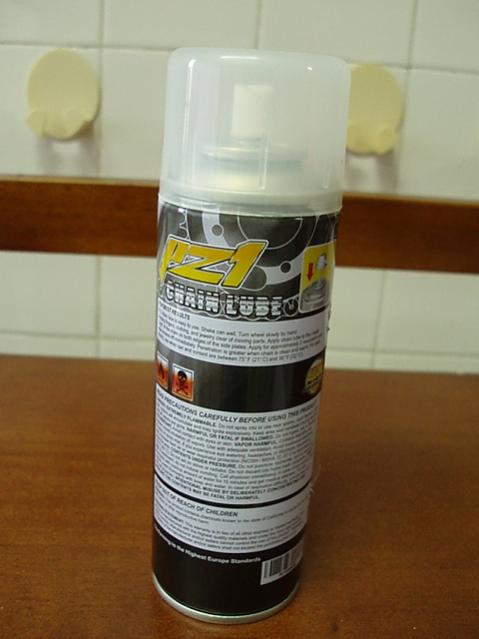

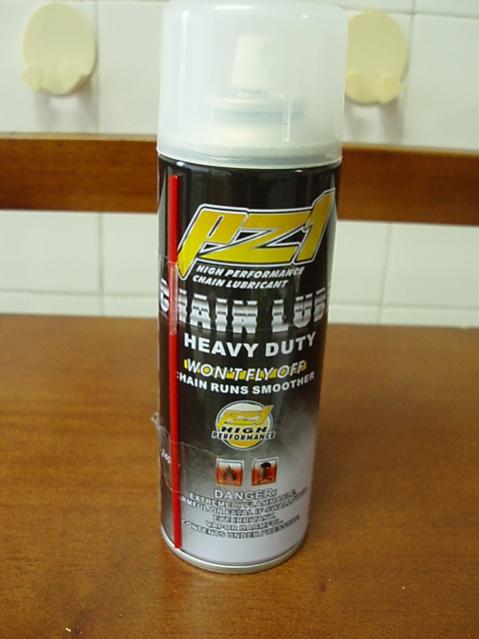

I went to kelantan lane and saw the demo of one new product called PZ1

SGD8

The staff did demo on how the oil penetrate and dissappears. EXCELLENT.



The oil tin says WON'T FLY OFF

[gunshead]

Report from day 11 Sept 2009 (3rd owner) repair maintenance expenses



Kelantan lane:-

OKADA bike cover L size $25



29/10/09

Wahin, Skudai

Suzuki Belang R original factory sprocket set from Kilang Rantai RM75



1/12/09 service at seng hoe , skudai



Wash Bike Rm7

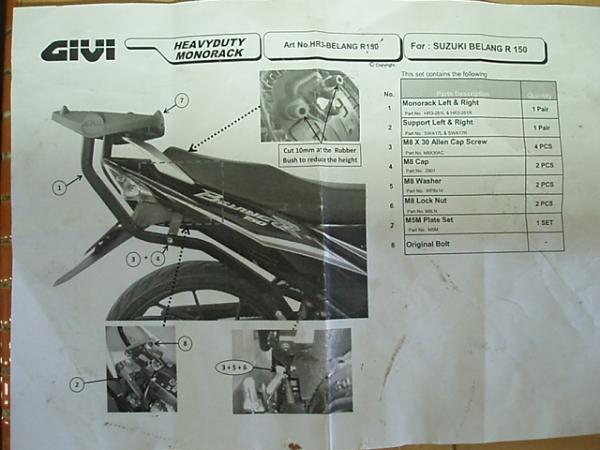

Givi HR3 Rack with ‘box stand’ RM98





3/12/09



Lavender street

sticker alphabet loose each 70 cents for rear plate $5.50

front complete sticker computer print $8



Kelantan Lane

Rear LED motocross light $32

ELF 15w fork oil $9

Chain lubricant $5





Monday 7/12/2009 , Lion Suzuki, SC JB

meter 36488

Check bike by suzuki technician.



Tuesday 8/12/09, Skudai, Seng Hoe Shop

meter 36580

fixed number plate rear - zinc

rear spore standard alphabets

washed rear lights lens

fixed 3rd brake light

changed air filter

spray high temperature 1200 Fehrenhiet black paint on exhaust pipe.

welding single stand with steel pusher

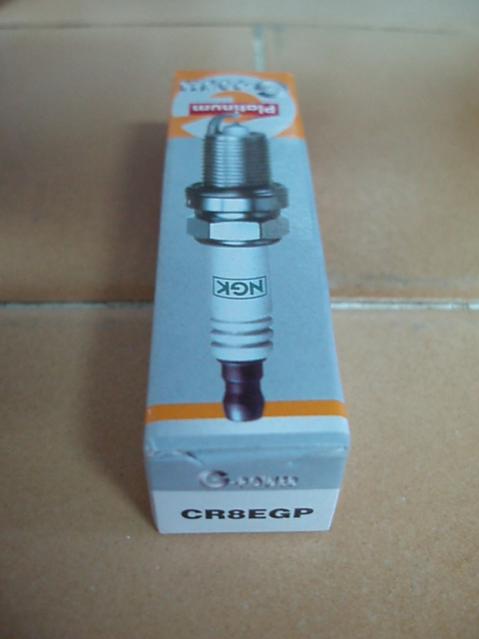

bought spare 10A fius and NGK G-power plug for emergency in MSIA highway.

changed VSX shell 4T engine oil Rm27

service charges total with items = RM31



wednesday 9/12/09

meter 36697

changed fork oil 15w ELF

changed dust seal 1 pair for front fork

changed brake fluid Dot 4 Caltex

service charges RM15



Thursday 10/12/2009

set timing idle at 1400rpm cold start setting





29/12/09, JB



12v 32/32w old bulb Stanley Spore

12v 25/25w now changed Stanley Msia



RM4 * 2= RM8 old bulbs blacken so changed to new



Findings on the headlight cover: -



1. bike was either fallen on left or something fall on top of it

2. ex-owner redo wiring & changed sockets and bulbs. Sockets rusty.

3. side LHS head cover crack & senget steel bar/holder for headlight cover.





12 Jan 2010 Seng Hoe Motor

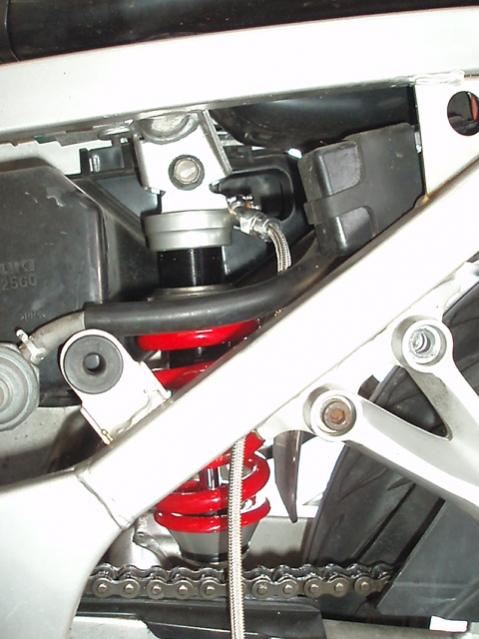

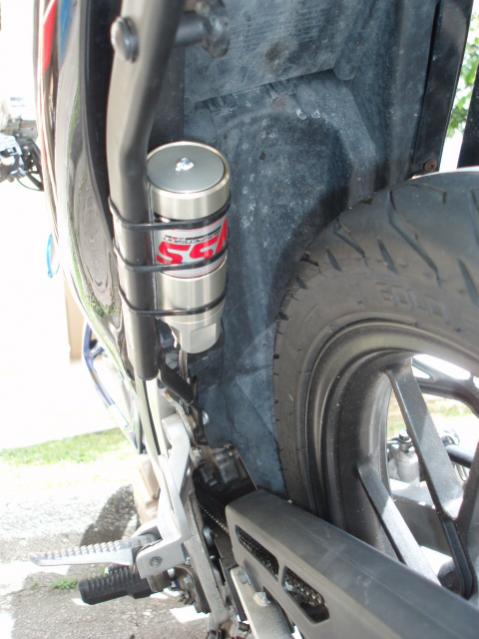

Fixed perfectly YSS monoshock

Checked petrol flow pipes

Cleaned fuel tank cover lid



RM30 labour charge





19 Jan 2010 Meter 37918 Araison Motor



1. Welding for double stand (one bearing height) RM20



2. Checked why got sound coming from front wheel? Changed brake lining using 3rd party standard Suzuki. Red color holder and thin layer pad. RM15



21 Jan 2010 Meter 38012

Suzuki Service Centre, JB



1. Changed diaphragm Part 13507B25G00N000 RM7.60



2. Tune the JET NEEDLE into 3rd position for high speed smoothness.



3. Changed VSX Shell 15w-50 1.1litre RM27 *2 = RM54



4. Oil filter RM5.40



5. Service charge RM10



CLAIM ONE TO ONE EXCHANGE LHS REAR VIEW MIRROR DUE TO MIRROR OBJECT NOT SHARP.



Redo seat cushion, In front of Bomba, JB RM40

1. add on silver thick foam

2. put another thick layer cushion fully cover seat.

3. put transparent plastic cover

4. put new thick partially anti slippery black cover



Wash bike RM7

Polish bike AUTOGLAZE RM10

Rim WD-40

Blacken KIT UV protector



7 Feb 2010 Kelantan Lane SGD 7

PZ1 Oil won’t fly off.

Edited February 9, 2010 by gunshead

[gunshead]

I use shell VSX semi-synthetic

RM27

see fact sheet of the oil ... attached

Shell Advance VSX4 15W-50.pdf

Edited February 9, 2010 by gunshead

[SlowButSteady Bro]

Hmm look awkward if 1.76m above rider ride it huh?

[gunshead]

Hai Raiders,



Join Facelifted Suzuki Raider in Malaysia forum called suzuki belang R



Those still owning suzuki Raider Spore , wanna join 10 -14 april 2010 to Phuket .... joining msian /siamese suzuki raiders too.



ONLY for suzuki raider.



see photo - copyright trademark of Suzuki new raider http://belangr150.org

Edited March 18, 2010 by gunshead
