Honda Blackbird CBR1100 XX

[JbAtRaCeR]

To access air box,you just need to loose the two size 12mm bolts..pull the tank back and lift it up..use a wood as a stand to hold up the tank..no need to take out side fairings..



As for changing sparkplugs,i find taking out the air box is infact more easier than fairings..undo the radiator bolts and windguards(for fi birds)..like what the service manual indicates.

so if taking out airbox to access sparkplugs, juz tilting the tank rear upwards with support as u mentioned is enuff for access to take out the airbox?



coz for s4, i have to remove the whole tank to replace sparkplugs..



like dis from wat u mentioned the airbox must be quite slim to able to do dat..



so now then i know carb birds dun have windguards ah



thanx



For s4..changing plugs is a breeeze bro..bb is like a toot!..the newer sports bike lagi more toot!!!...thats why is good to invest in iridium plugs..and change it once a year or every 30 000kms..



A friend of mine rode 90 000kms on his iridium plugs..plugs still useable but the iridium tips looks like a non stim nipple..



Oh ya one advice..have fun changing the plugs...must relax..dont drop any bolts or nuts..the bb engine got lots of nook and crannies..

[greysnail]

Anything for the bird, we sick, see doctor, bike sick also see doctor.simply love the bird so i'll go all the way to keep it.

[E Aumno]

jbat- yah, iridium plugs have o-rings on it compared to normal ones also, downplaying the chances of getting foul or moist plugs when bike top block gasket deteriorated or exposed to excessive rain..dats naked s4 experience la



greysnail- honda new bike designs been going downhill imo..though design wise appeals to diff pples la..



late to the 'party' la..missed bb in her prime..though might be tough to afford if buying her new when still in production

[sanasakai]

Y i No See any BB at KKH @_@



u all parking basement ar? lol



Alamak bro legion u only see my bike if i come to reservist i will park at basement.

[sanasakai]

Anything for the bird, we sick, see doctor, bike sick also see doctor.simply love the bird so i'll go all the way to keep it.



Bro that place is for women and children hospital.

[greysnail]

sanasakai~ i was refering to umno's reply la.

Bike lay up for nearly 3 yrs.Took my time rebuilding it from the day it fell.I'm not a rich guy so sourcing every parts and if u're lucky to get the best deal on parts.Paid my COE and now i have a free 10 yr old bike which i'll never letgo.........unless i clicked with 1 hot wealthy MILF....wagagagagagagagaga

[sanasakai]

sanasakai~ i was refering to umno's reply la.

Bike lay up for nearly 3 yrs.Took my time rebuilding it from the day it fell.I'm not a rich guy so sourcing every parts and if u're lucky to get the best deal on parts.Paid my COE and now i have a free 10 yr old bike which i'll never letgo.........unless i clicked with 1 hot wealthy MILF....wagagagagagagagaga





hahahahah...... sorry bro im out of topic. Who know bro later got one super rich MILF want you.

My bike got over heat again FI blick 7 time ETC problem.

When back to shop change new ECT sensor temp change to 132 dregree than temp never come down.

Dont know whats wrong.

[greysnail]

U got ask the shop to check ur cooling system?

[blue jellyfish]

Bro BJ, where do you go for breakfast at Desaru. Just went there last week but can't find any makan place. Care to share



I always eat at the town area lah .. what the name .. penawar .. there got one makan place open early by the roadside .. follow the road that goes towards the town, u will pass by the mosque..

[blue jellyfish]

Usually which area of batu pahat u all hang arnd? Batu Pahat my kampung lei...Near the wet world theme park



Bro rok .. mine is at kg istana, opposite batu pahat mall .. further in will be sarang buaya ..



Bro Jebat kampung oso at bt pahat ..



lets organise one BB tour to Batu Pahat ... We Shake The Kampungs .. and the penghulus .. and the rempits .. and the aweks !!!!

[blue jellyfish]

sanasakai~ i was refering to umno's reply la.

Bike lay up for nearly 3 yrs.Took my time rebuilding it from the day it fell.I'm not a rich guy so sourcing every parts and if u're lucky to get the best deal on parts.Paid my COE and now i have a free 10 yr old bike which i'll never letgo.........unless i clicked with 1 hot wealthy MILF....wagagagagagagagaga



I like the MILF project bro .... lets work threesome .. hahahahahahahaahahahah



No Doubt .. Bro GS is one hardcore BB rider ... and a very dedicated and committed one ... unless he finds one MILF lah like he said .. hihihihihhihi .. wen one to fly together again dei!!

[blue jellyfish]

sanasakai~ i was refering to umno's reply la.

Bike lay up for nearly 3 yrs.Took my time rebuilding it from the day it fell.I'm not a rich guy so sourcing every parts and if u're lucky to get the best deal on parts.Paid my COE and now i have a free 10 yr old bike which i'll never letgo.........unless i clicked with 1 hot wealthy MILF....wagagagagagagagaga



I like the MILF project bro .... lets work threesome .. hahahahahahahaahahahah



No Doubt .. Bro GS is one hardcore BB rider ... and a very dedicated and committed one ... unless he finds one MILF lah like he said .. hihihihihhihi .. wen one to fly together again dei!!

[JbAtRaCeR]

Bro rok .. mine is at kg istana, opposite batu pahat mall .. further in will be sarang buaya ..



Bro Jebat kampung oso at bt pahat ..



lets organise one BB tour to Batu Pahat ... We Shake The Kampungs .. and the penghulus .. and the rempits .. and the aweks !!!!



Power da..one more trip to batu pahat walk lah before the school holiday ends lah..we shake the rempits and aweks there..



Ouh ya my kampung is at parit yusof..nearby the sarang buaya side..the only place you can see a buaya riding a sampan..

[sanasakai]

Yesterday FI blink 7 time change the ECT sensor still FI light comes out. This time funny the temp remains at 132 deg nvr come down. Shop already change the new whole set harness wire from honda but still the same any old bird bro encounter this problem before. Seems like the shop DE XING dont know what they are doing. HELP!!!!



Temp hit 80 deg FI light turn on. Also change the aluminum thing (im not sure wat is it) it where the coolant pass through . After replace that thing it also same.

Edited June 18, 2012 by sanasakai

[STRYKER]

Yesterday FI blink 7 time change the ECT sensor still FI light comes out. This time funny the temp remains at 132 deg nvr come down. Shop already change the new whole set harness wire from honda but still the same any old bird bro encounter this problem before. Seems like the shop DE XING dont know what they are doing. HELP!!!!



Temp hit 80 deg FI light turn on. Also change the aluminum thing (im not sure wat is it) it where the coolant pass through . After replace that thing it also same.

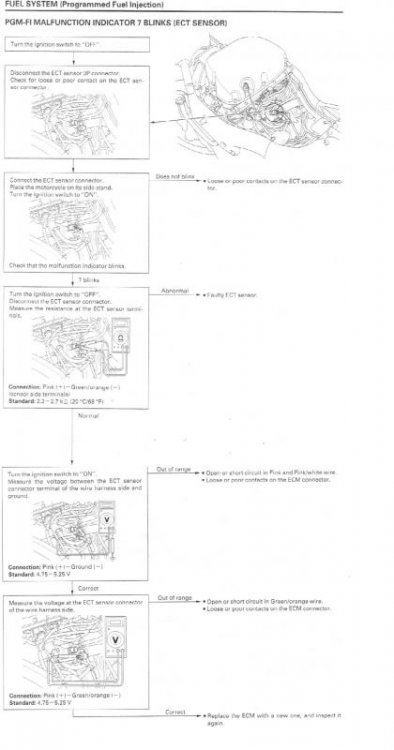

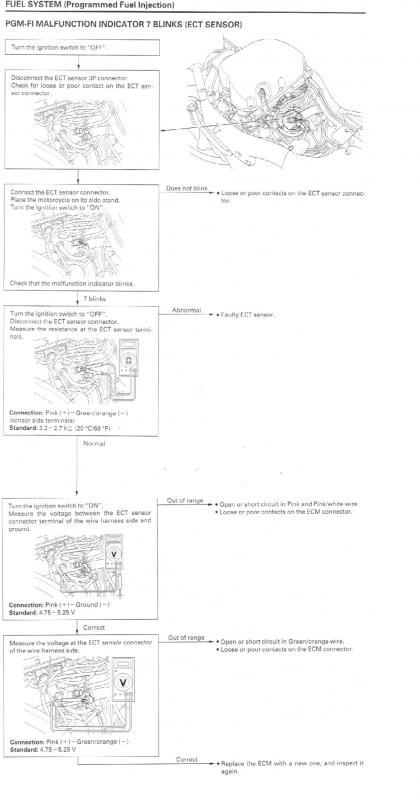

Maybe u wanna try doing this from the manual:



[greysnail]

So u've change harness and thermostat...i suggest u bring the bike to Alai.He's more well versed in blackbird.

Call him at 9437 5035

[JbAtRaCeR]

One thing about bb's electrical is straight forward..check sensor..check wire...if cannot last step change ecm (thats if its just electrical problem and not mechanical...)..

[Bo_Slasher]

Is it the infamous 25blinks? Because that gives a 7 blinks (Total) as well.



Sent from my GT-P1000 using Tapatalk 2

[JbAtRaCeR]

Is it the infamous 25blinks? Because that gives a 7 blinks (Total) as well.



Sent from my GT-P1000 using Tapatalk 2



Ya can be also bro..if the mechanic dunno how to read the error code..7 blinks will be 7 continuous short blink..25 blinks will be 2 long and 5 short blinks...

[sanasakai]

ya can be also bro..if the mechanic dunno how to read the error code..7 blinks will be 7 continuous short blink..25 blinks will be 2 long and 5 short blinks...





ya bro i got this type of blink. What is the problem. Pls tell me.

2 LONG 5 SHORT

[JbAtRaCeR]

ya bro i got this type of blink. What is the problem. Pls tell me.

2 LONG 5 SHORT



2 long n 5 short is 25 blinks..this refers to knock sensor abnormality..the service manual indicates to replace the knock sensor..if error code still flashes the its either wire harness or ecm.



To check harness you simply need to find the wire from the knock sensor to the ecm( not sure about the colour you need to check the wiring schematics) for continuity (by using a multimeter). If continuity is ok..then its highly ecm..most blackbird before 04(if i'm not wrong)have ecm problem unless a newer updated ecm is installed.



Basically when the bike have 25 blinks,its still rideable..bro bluejelly's bike have this problem n he still happily ride the bike up north..only thing is the iritating blinks flashing, the bike will not work 100% full potential power and eat up abit more petrol..

[rok_yantzen]

ya bro i got this type of blink. What is the problem. Pls tell me.

2 LONG 5 SHORT



The normal problem for blackbird, 25 blinks.....Highly recommended for u to bring ur bike to Alai....

[Bo_Slasher]

2 long n 5 short is 25 blinks..this refers to knock sensor abnormality..the service manual indicates to replace the knock sensor..if error code still flashes the its either wire harness or ecm.



To check harness you simply need to find the wire from the knock sensor to the ecm( not sure about the colour you need to check the wiring schematics) for continuity (by using a multimeter). If continuity is ok..then its highly ecm..most blackbird before 04(if i'm not wrong)have ecm problem unless a newer updated ecm is installed.



Basically when the bike have 25 blinks,its still rideable..bro bluejelly's bike have this problem n he still happily ride the bike up north..only thing is the iritating blinks flashing, the bike will not work 100% full potential power and eat up abit more petrol..



Sounds like me also. Maybe all blue birds are like this.



Sent from my GT-P1000 using Tapatalk 2

[blue jellyfish]

BRO SANASAKAI ..



I have the 25 blinks for ages but still my bike moving well n even hit 270 ( n that last for only about 5 seconds or less) n even hit hatyai without problems .. so far lah .. touch wood ah ... but if i got the money i sure do sometin about the lite, not the bike ...



U may want to consider goin to other mechanics like ah lai, bikewerkz, bangbus or volvo for second opinion especially on the high temperature... all the best bro !!



BRO JEBAT !! ONE RIDE TO BT PAHAT COMING UP !!!!!!!!!

Edited June 19, 2012 by blue jellyfish

[AeROSmitH]

Juz a question.....any possibilities to install a quickshifter????



yes it can be done!! do it!
