[Group] DAELIM roadwin

[Suppose]

tat's the tank top drain tube, it is connected to the fuel filling cap area in case when over spill during top up.

tube suppose to be route at the back of the engine with other drain tubes eg. carb n airbox.

there is a something like a bracket welded at the swing-arm to hold these tubes together.



will this cause the bike to not start? when i hit the starter, the bike just wont start anymore..like there's no throttle. this just happened after washing my bike

[stsoh]

no, tat's just a drain tube.

check your battery, might be flat.

made sure u change new battery every 2~3 yrs.

if u r able to start after battery charged up.

ask your bike shop mech to check stator coil.

rev engine to 5k rpm, voltage between battery should be 14.5 volts (-+ 0.5).

burnt stator coil may not have sufficient voltage to charge up battery.

[Suppose]

before, i tried starting the bike right after washing it. it started but then died out slowly after..after that, it couldn't start anymore but there's the spark sound when i press the starter. how do i check whether my battery is flat?



really appreciate ur help stoh, thanks a million

[xishuo]

Hi Suppose,



I had this problem too about 2 months ago. Like Uncle Soh said, it's my stator coil. I had to replace it. After that I'd no more problem. Maybe go check it out?



Cheers. =)

[Suppose]

hmm...but its so weird..right after washing my bike with water this happens..might just be a coincidence..will go check it out asap! thanks for the info guys

[stsoh]

before, i tried starting the bike right after washing it. it started but then died out slowly after..after that, it couldn't start anymore but there's the spark sound when i press the starter. how do i check whether my battery is flat?



really appreciate ur help stoh, thanks a million



first sign of battery flated is unable to crank engine when u press start button.

old/bad battery can coz stator coil to burnt.

there r three phase + one ignition coils in the stator.

three phase coils is the electric generator tat generates 3 phase electricity to your bike.

these phased current r converted to DC by rectifier n regulator to 12~15 volts.

normally one of the set coils will burnt out can be due to shorted by bad battery.

if u can recharge the battery, the ignition coil can fire up the engine but will not charge the battery due to insufficient electrical charge.

it is encouraged to change battery every 2~3 yrs to prevent stator coil burnt out.

u might be lucky tat it's just the battery if the stator coils r check out to be fine.

replace your old battery.

[stsoh]

hmm...but its so weird..right after washing my bike with water this happens..might just be a coincidence..will go check it out asap! thanks for the info guys



well, it happens, it happens.

it does happen at anytime, can' be help.

my case happens during a raining day.

press the start button, suddenly the sky flash lighting simultaneously.

second press on the start button, nothing happens, no cranks.

weak electrics......gone case.

was good an hour b4, battery was good for more than 2yrs..

[xishuo]

uncle,



they said that a spoilt stator coil will discharge battery. Its true rite?

[stsoh]

yes, not just the stator, any short in the electrical system will do tat too.

sometimes a faulty bulb/switch/devices can create a short,

sometimes the short was low drain amps doesn't blow the fuse

but will drain the battery power.

[xishuo]

kk thnks for clarification. =)

[Suppose]

guess what...it was the spark plug rubber thing and it was loose..i took it out and tried fitting it back in properly but couldn't work, but when the mechanic tried, it just worked! this is the 2nd time already..

[stsoh]

great, nothing seriously wrong n u r able to locate faulty spark cable/gun.

best get it replace, since it's second time u have the same problem.

[mmkbad]

Hi guys! I'm new to this thread and riding and all in general. Just passed my TP test last week and bought over my friend's Roadwin since last Saturday.



Hope u guys can share some tips on maintaining and servicing the bike. Rode the bike for 5 days already and i must say its a VERY VERY nice ride. Looks big, feels big and i feel confident riding alongside errant taxis in major roads. hehehe.



If u see a Black roadwin with plate no FBA XXXX P on the road with p-plate, horn me and say hi!



[stsoh]

welcome mmkbad.

my rw is black but not fba......it's fx, will wave too.

enjoy your ride.

[lazykatak]

mine black too... fy**j... hahaa..

but mine is the new rwr paintwork la.. the side have the white2 stuff

[Suppose]

Hi guys! I'm new to this thread and riding and all in general. Just passed my TP test last week and bought over my friend's Roadwin since last Saturday.



Hope u guys can share some tips on maintaining and servicing the bike. Rode the bike for 5 days already and i must say its a VERY VERY nice ride. Looks big, feels big and i feel confident riding alongside errant taxis in major roads. hehehe.



If u see a Black roadwin with plate no FBA XXXX P on the road with p-plate, horn me and say hi!





haha..u sound like a very happy satisfied roadwinner, the bike is great, hope u enjoy every bit of it ..!

[xishuo]

^_^ im also FBA 3*** (forgot the alphabet) alamak... (Black also)



hi 5 ^^

[lazykatak]

woohooo alot of blackie.....

anyone staying at batok? at gombak area... saw 1 blackie rw there.. new blk 370 i think..

[Suppose]

great, nothing seriously wrong n u r able to locate faulty spark cable/gun.

best get it replace, since it's second time u have the same problem.



yeah..but the thing is that i've just replaced my spark plug 2 months ago..i guess its the rubber that i should replace. anyway the bike works perfectly now.

[tmcrider]

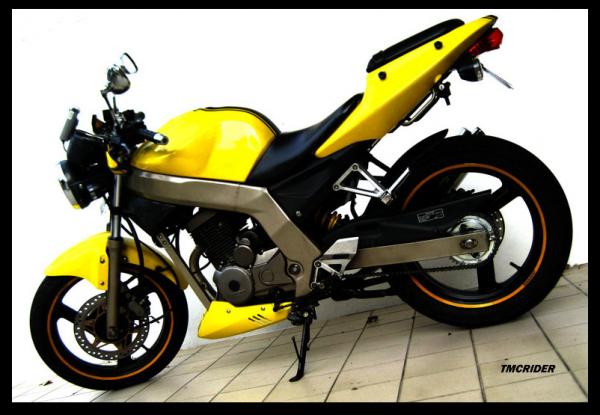

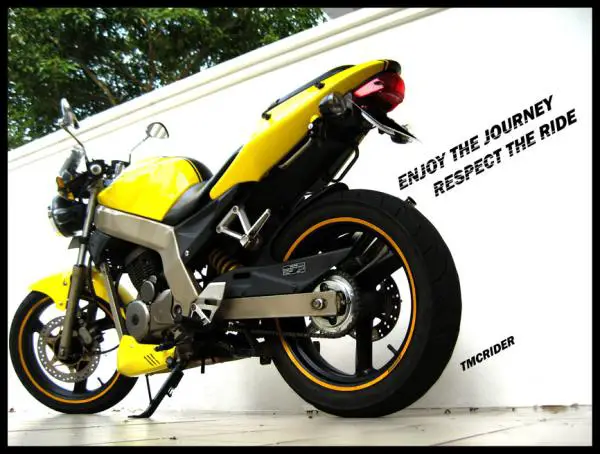

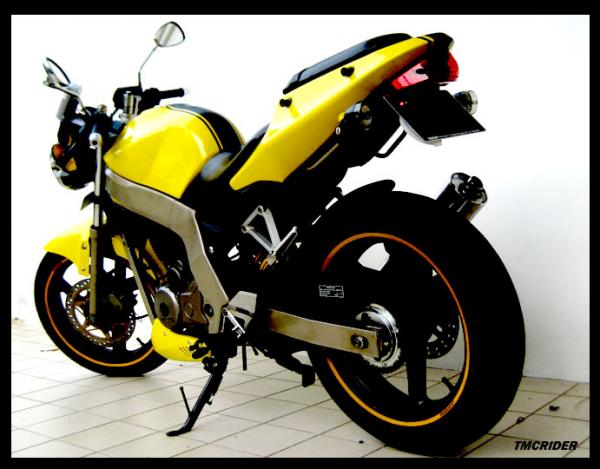

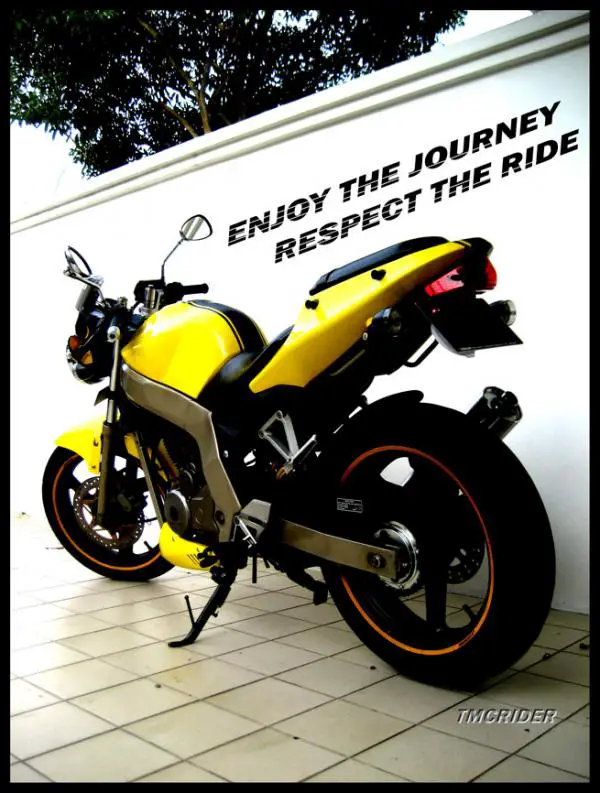

After scratches, sweat, blood and tears.....

Here's the current reincarnation of my pride & joy



Now all that's left is a mean exhaust.

Can anyone spell M-O-R-I-W-A-K-I ? haha



ENJOY!

[xishuo]

After scratches, sweat, blood and tears.....

Here's the current reincarnation of my pride & joy



Now all that's left is a mean exhaust.

Can anyone spell M-O-R-I-W-A-K-I ? haha



ENJOY!





omg nice ride....

[Suppose]

After scratches, sweat, blood and tears.....

Here's the current reincarnation of my pride & joy



Now all that's left is a mean exhaust.

Can anyone spell M-O-R-I-W-A-K-I ? haha



ENJOY!



dang!gotta love the yellow moriwaki? how much would it cost man?

[lazykatak]

carb tuning question... where to find the jets in our carb to adjust the setting??

[stsoh]

read this, will can help u understand more about carb tuning:

http://hondanighthawks.net/carb14.htm



jets can be brought at FJT but u must bring samples to show them.

[lazykatak]

thx man...
