[Group] SBF Yamaha Spark Z & X

[gunshead]

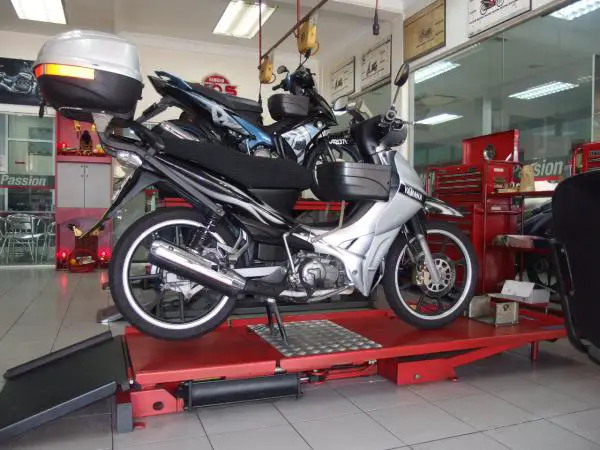

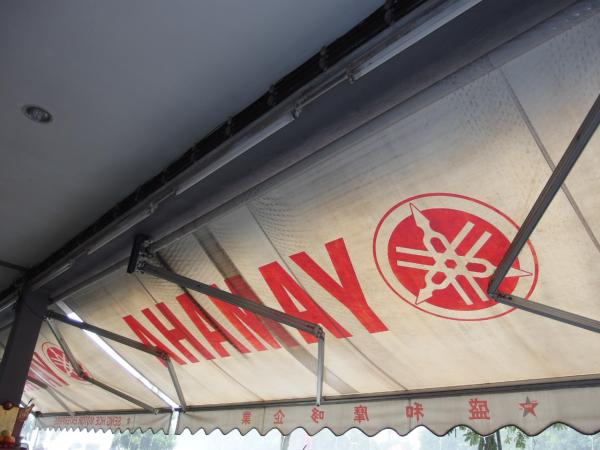

you can do at seng hoe motor shop

jalan barau

skudai



it is yamaha hong leong STARSHOP



i was there just now



10/6/2015

today went for bike wash RM7



Change engine oil Shell R4 850ml



Adjust valve clearance tappet

[gunshead]

pls check summon if u have one

now everywhere is camera



http://www.police.gov.sg/epc/eOutstandingTrafficOffence.html

[Misterrookrook]

omg nice !

[gunshead]

went to kang soon yesterday



did shopping spare parts



bought SIT harden steel sprocket rear RM15 and front RM4

DID HD-DS chain RM38

[gunshead]

coming soon

need to change front / rear tires

ordered from setia indah Michelin pilot street

[Ice_cougar]

Seriously where is Kang Soon? Maps doesnt show, google doesn't show. Is it at Jalan Tanjung, Tampoi dere?

[gunshead]

just forget kang soon

why not u go to champion motor spare part in kempas



xe motor , kangkar tebrau



maybe your gps can lead u



kang soon is direct opposite kipmart at tampoi and along skudai highway

[gunshead]

kang soon motor accessories and enterprise

20 jalan tanjong

taman dato penggawa barat

tampoi

81200 JB

[Ice_cougar]

just forget kang soon

why not u go to champion motor spare part in kempas



xe motor , kangkar tebrau



maybe your gps can lead u



kang soon is direct opposite kipmart at tampoi and along skudai highway



Ohh. I know where is kipmart tampoi. Thanks I'm going there now.

[Ice_cougar]

Went to Kang Soon a few times. They r closed on Sundays.

I wanted to buy the autoclutch full set for spark Z. Dey quoted me RM125 for a local set. Is dat ok?

[gunshead]

have printed and asked mechanic to order parts for Yamaha spark z

due next service 200,000km

[gunshead]

today did change oil shell R4 only

meter already 197,6xxkm

[gunshead]

i have ordered Pirelli tires front/ rear for cub kia / cub chai



i will get on Monday 9 November

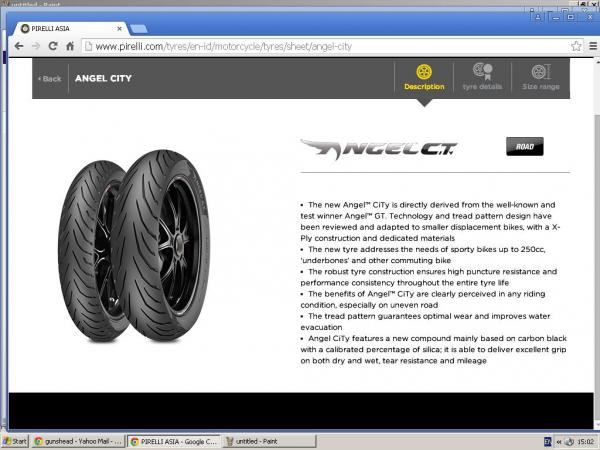

moving from michelin pilot street to pirelli angel ct

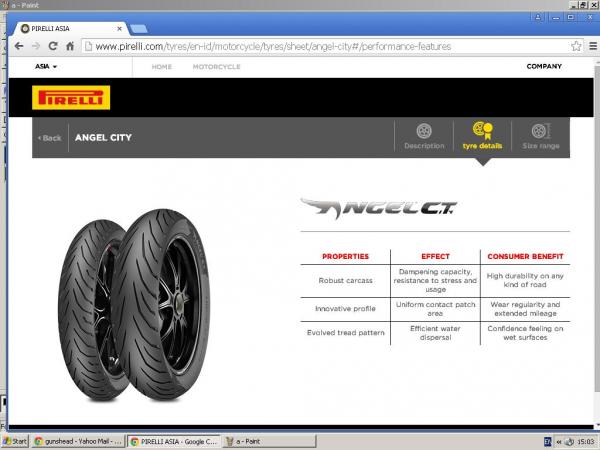

see pirelli technical and infos



http://www.bikehk.com/report/2015/r6582/?page=3&



I buy in Setia Indah spare part shop

less then RM85 each tires

contact 019-7864608 to buy from his shop



attached

[gunshead]

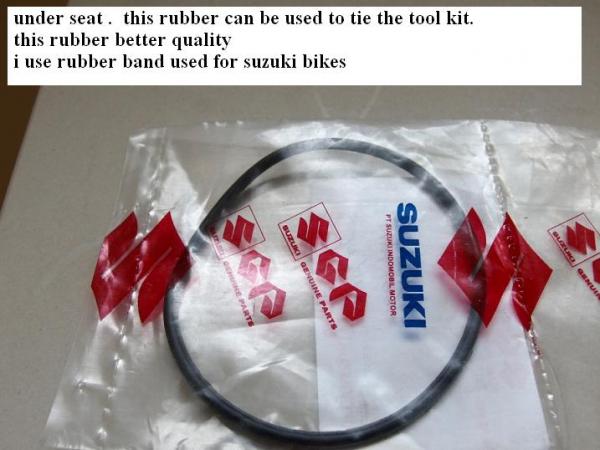

band for tool kit

[nerian]

-wrong section-

Edited November 8, 2015 by nerian

[gunshead]

12/11/15

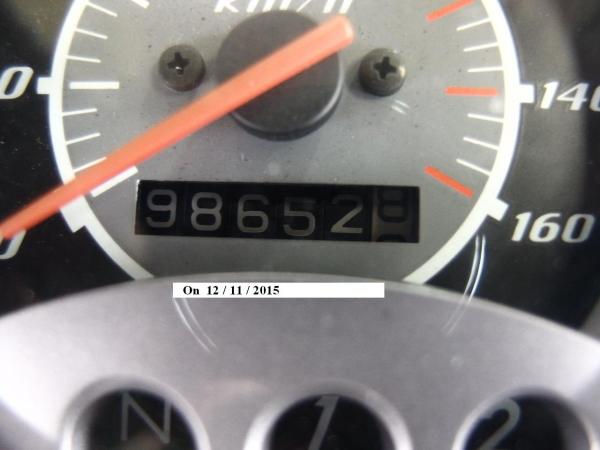

meter: 98652km means 198,652km

skudai, JB



tik tik tik noise tappet noise

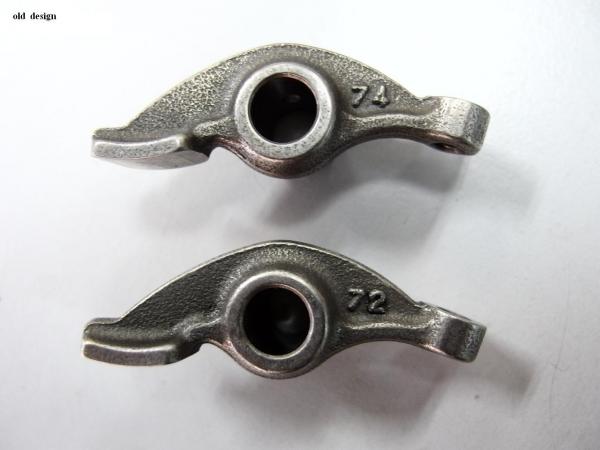

solved by changing ARM VALVE ROCKER and Crem Valve process.



Crem Valve process

changed these items:-

Gasket block genuine yamaha RM9.50

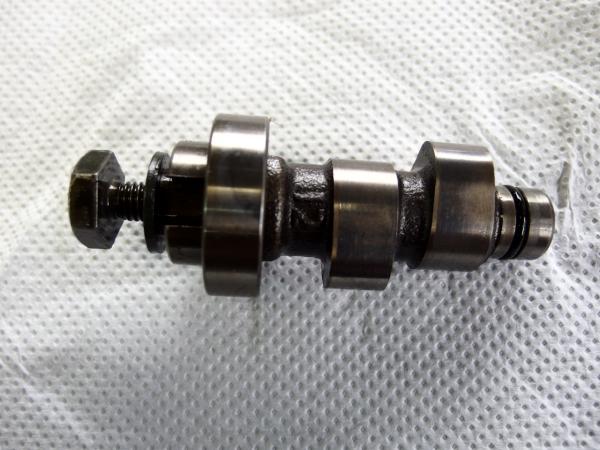

Bearing NTN camshaft RM12

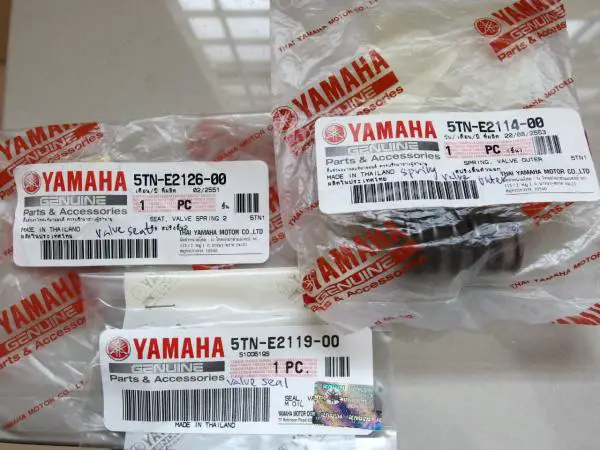

Spring valve outer SGD11

Cotter valve SGD2

Valve seal RM8

Valve seat SGD4

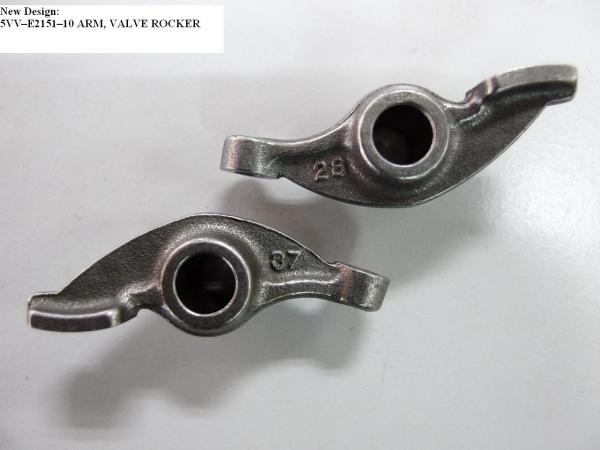

New Design:

5VV–E2151–10 ARM, VALVE ROCKER RM76





Kang Soon spare part shop, tampoi

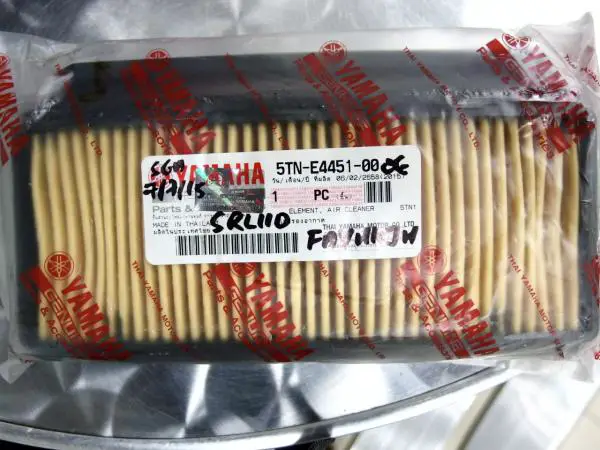

Air filter genuine yamaha RM18

rear brake shoe ysk yasaki super WITH BIG HOLE for long thick spring RM8



WAHIN spare part shop, tun aminah.

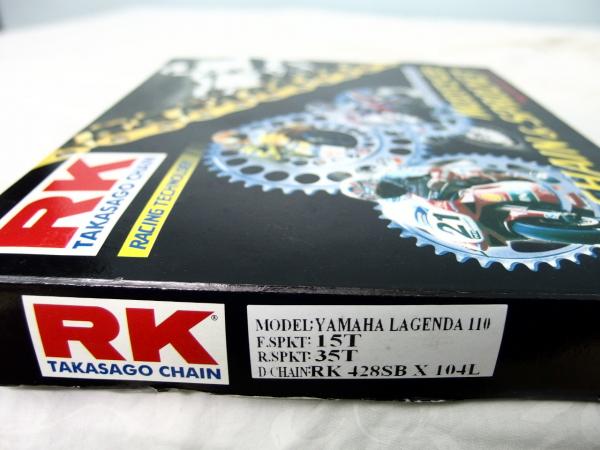

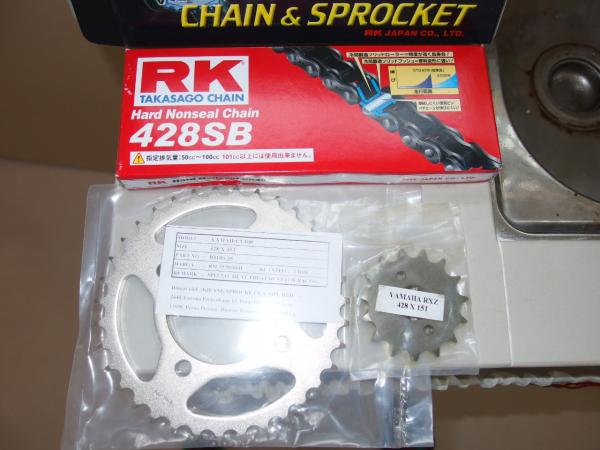

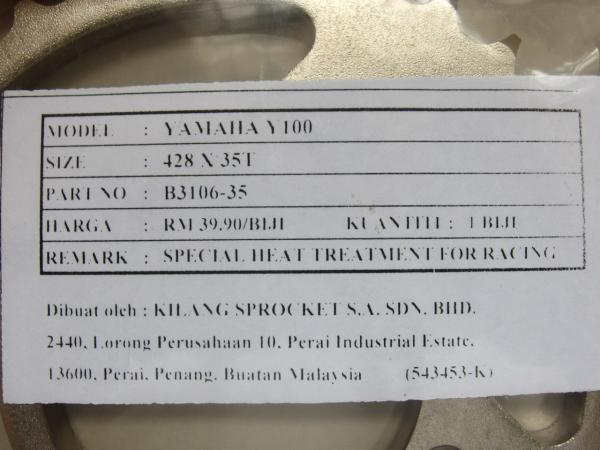

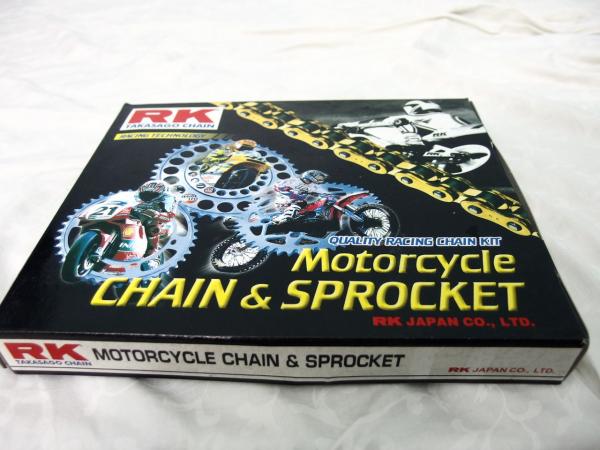

sprocket chain set 15t 35t RK japan RM58



Setia Indah spare part shop.

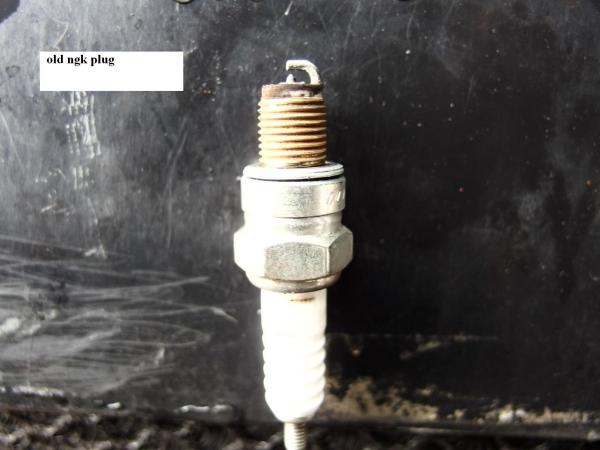

NGK G-Power spark plug RM12

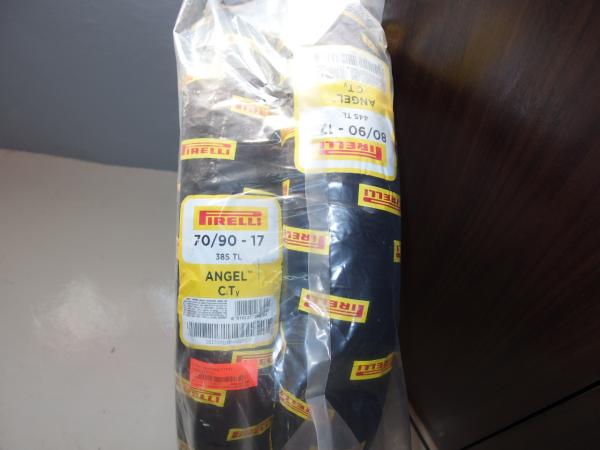

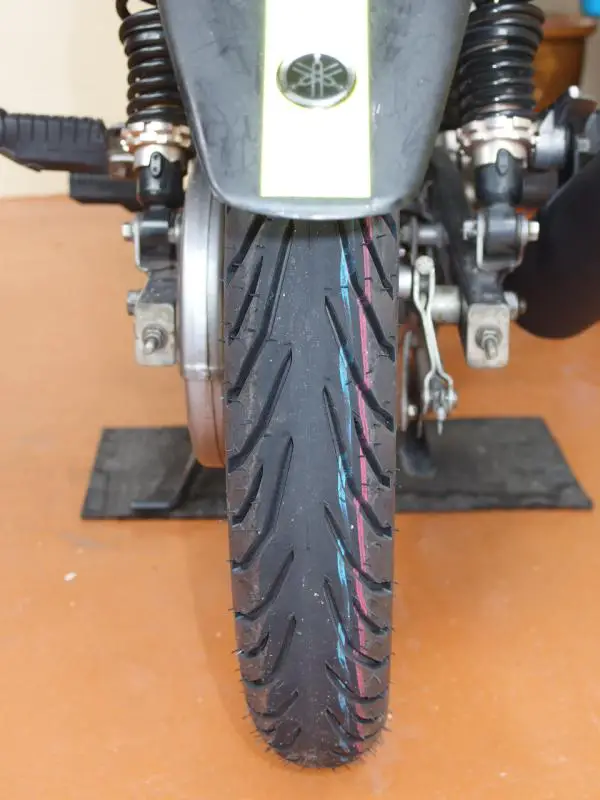

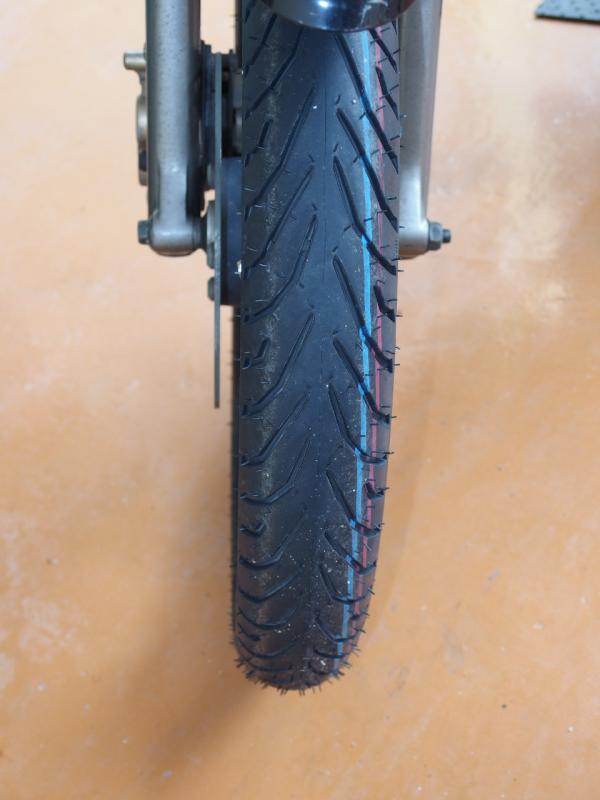

Pirelli angel CiTy 70/90-17 RM70

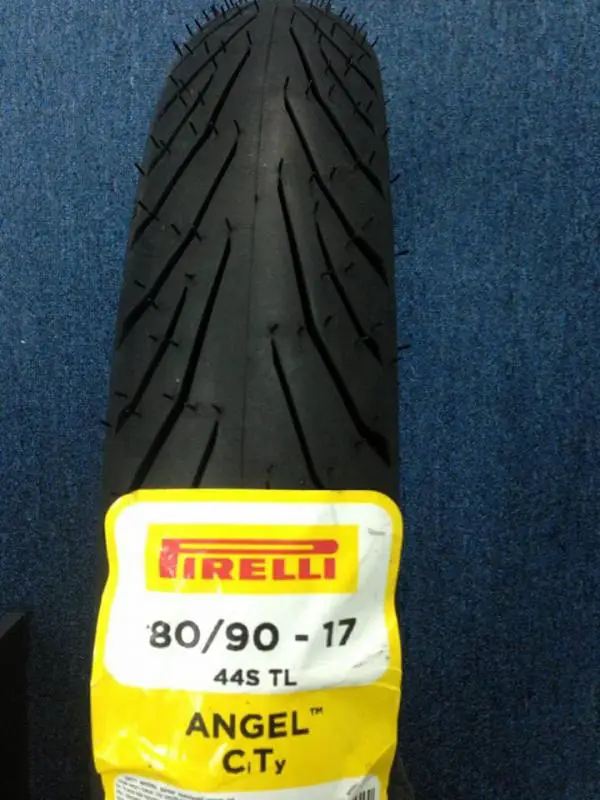

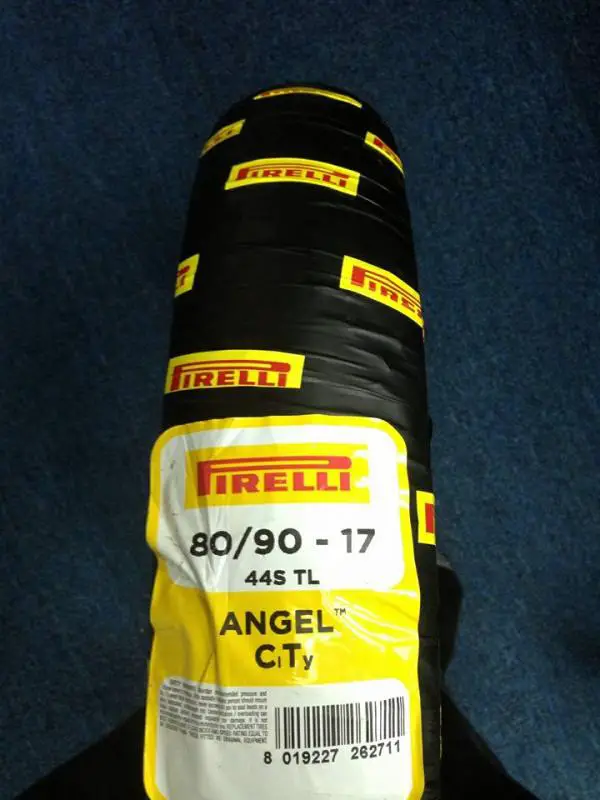

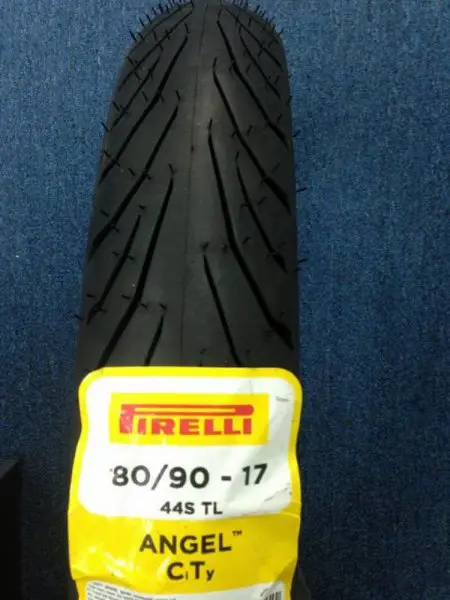

Pirelli angel CiTy 80/90-17 RM80



2 wheel nut air valve L type RM20



2 headlight bulb 12v 25w/25w RM9

1 rear bulb 12v 5w/21w RM3.50



two small meter panel bulbs



changed rear wheel rubber hub damper. genuine yamaha RM12



RED LINE 10w suspension fork oil RM60 57ml each fork leg

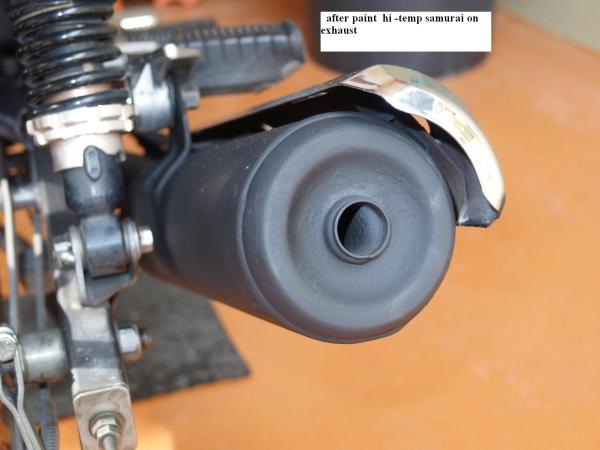

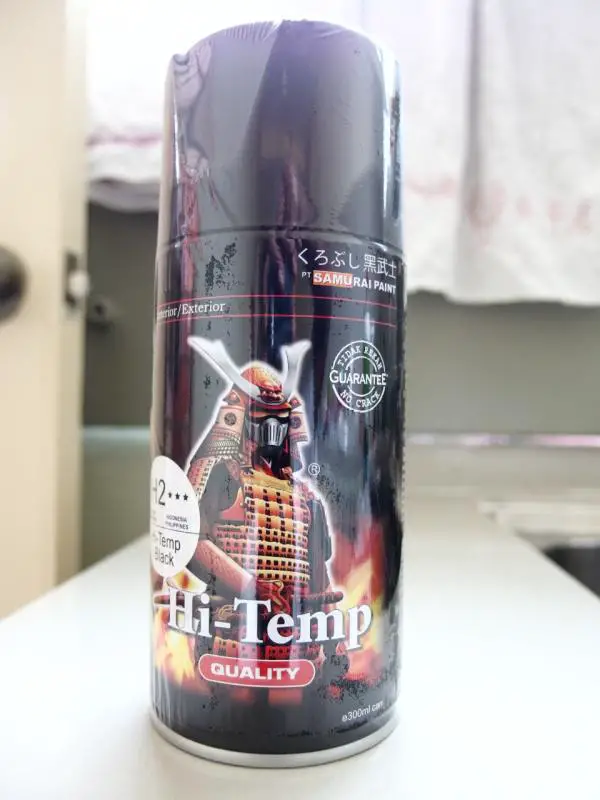

exhaust spray with SAMURAI high Temp paint



YUASA YB5L-BS battery made in Taiwan RM60

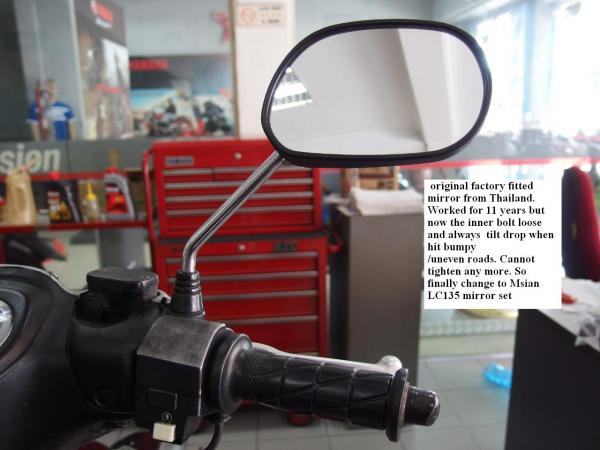

side mirror set. Use yamaha LC135 genuine. Mine used for 11 years and right side got loose inner bolt cannot tighten and always tilt on bumpy roads. RM35



checked fuel tank - protector fuel tank with hose. cleaned and paint black from rust.

Edited November 14, 2015 by gunshead

[gunshead]

more pictures

Edited December 31, 2015 by gunshead

[gunshead]

more photos

[gunshead]

more graphics

[gunshead]

more self explanation

[Hydher]

Gunshead



Thank you for your generous sharings!! I have read all your postings in this thread thrice (:

Learned alot of things!

Next week im planning a run to skudai to get the dope shirt and bags.

I agree that ngk g power platinum plugs are worth the money over the iridiums!



I would like to give some "suggestions"!

1. Are you able to run O or X ring chains? They would last alot longer.

2. I realise you have been doing alot of "internal works".. have you considered using better grade oils?

Try an ester based oil! They dont have to be expensive. Silkolene comp 4t 15w40 goes at $12 at chong aik(their website says its ester based but not the bottle). If you like 15w40 HDEO, you can try mobil delvac or chevron delo. Its about $5/L

3. Do you lubricate your throttle cable?

4.You seem to be blowing some headlight bulbs.. try replacing your rectifier.. Sometimes a faulty rectifier shows only during extreme stress. Im sure you dont "finger print" them

5. You seem to change fork oil often.. is it because of the seals? If its the seals you can diy a "Seal Mate" then use a neoprene fork cover to prevent contamination.

6. Chevron concentrated cleaner works very minimally if you see the videos uploaded in youtube.

7. Ive tried so many brands of brake fluid. My favourite is ATE brake fluid.

8. If you like detailing your bike, you can try autoglym super resin polish. Apply a wax on top after you have polished.

[gunshead]

to answer your questions



1. Are you able to run O or X ring chains? They would last alot longer.



Unnecessary. Yamaha spark Z imported from Thailand and it comes with chain cover box. By using original RK set it lasts till 28,000km to 32,000km life span . This is enough for RM65 spent



2. I realise you have been doing alot of "internal works".. have you considered using better grade oils?

Try an ester based oil! They dont have to be expensive. Silkolene comp 4t 15w40 goes at $12 at chong aik(their website says its ester based but not the bottle). If you like 15w40 HDEO, you can try mobil delvac or chevron delo. Its about $5/L



The gearbox not built with highest quality so consider using shell HDEO actually helped a lot and prolong the life span. While the upper block has bad designs I suppose. The rocker valve arm actually had been corrected for later models and I have fixed into mine recently.



3. Do you lubricate your throttle cable?



yes .



4.You seem to be blowing some headlight bulbs.. try replacing your rectifier.. Sometimes a faulty rectifier shows only during extreme stress. Im sure you dont "finger print" them

not cause of rectifier. I using STANLEY bulb and after 2 years u notice it become dull and getting dark . So after 2 years or more I just change the headlight bulbs. It gets worn out cause we running day and night auto open lights.





5. You seem to change fork oil often.. is it because of the seals? If its the seals you can diy a "Seal Mate" then use a neoprene fork cover to prevent contamination.



I change fork oil is part of maintenance routine. Every two years must change fork oil. it gets oxidaised. Also fork oil only last 3-4 years shelf life.

I love 10W suspension from RED LINE company.

my seals never got broken for more then 11 years





6. Chevron concentrated cleaner works very minimally if you see the videos uploaded in youtube.

it does not matter. I love Caltex techron and it has saved me a lot of mileage and money. Also Caltex make sure they change and renovate the underneath bunk every ten years. I am getting clean petrol .



7. Ive tried so many brands of brake fluid. My favourite is ATE brake fluid.



mine is Mobil bought from esso station in spore Thomson road. Mobil indicates the manufacturing date and says it expires after 3 years.



8. If you like detailing your bike, you can try autoglym super resin polish. Apply a wax on top after you have polished.



I am happy with msian product I am using





above answers are for my best knowledge and it helped me saving money , with low budget and last long too.

Edited November 23, 2015 by gunshead

[Hydher]

thanks.. learned some things

[gunshead]

hydher help



back to item no.4

4.You seem to be blowing some headlight bulbs.. try replacing your rectifier.. Sometimes a faulty rectifier shows only during extreme stress. Im sure you dont "finger print" them



not cause of rectifier. I using STANLEY bulb and after 2 years u notice it become dull and getting dark . So after 2 years or more I just change the headlight bulbs. It gets worn out cause we running day and night auto open lights.





let's discuss on this



maybe I am wrong...... I think rectifier need to check or change.....perhaps



bike is 11 years

rectifier Yamaha spark z is hidden deep inside fairings



pls guide how it helps by cleaning with alcohol or water or petrol

or change new ?



can it prolong lifespan of bulbs ?



how much is rectifier?



can it be brighten up the bulbs. hahahaha mine wven with new bulb and battey still dim



maybe hydher right. time to change rectifier

Edited November 27, 2015 by gunshead

[gunshead]

30/11/15 98902km means 198,902km



changed engine oil shell 850ml

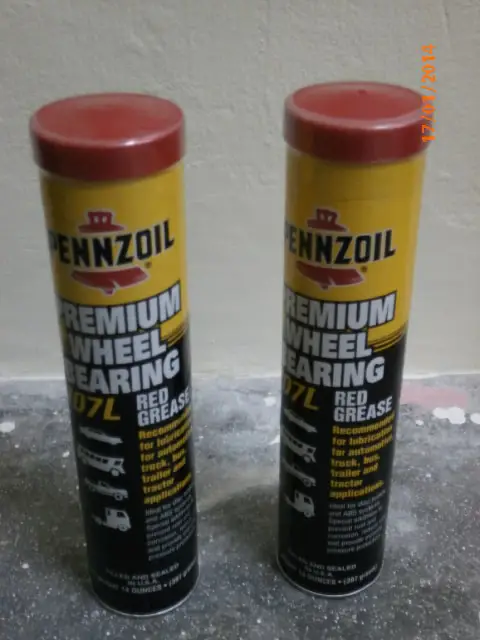

serviced disc brake caliper, greased pennzoil red grease wheel bearing.

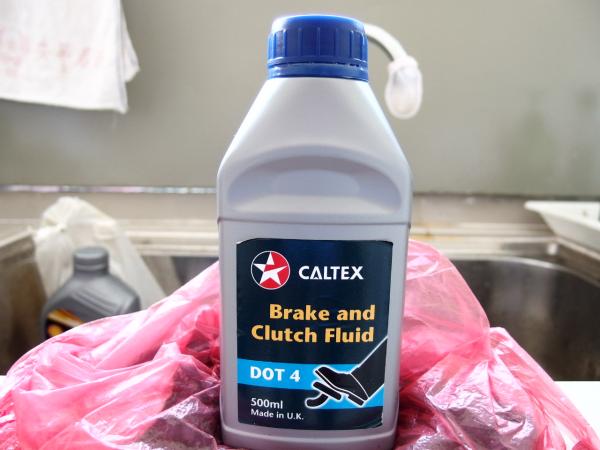

flushed brake fluid dot 4 CALTEX



found oil leaking at bottom engine.

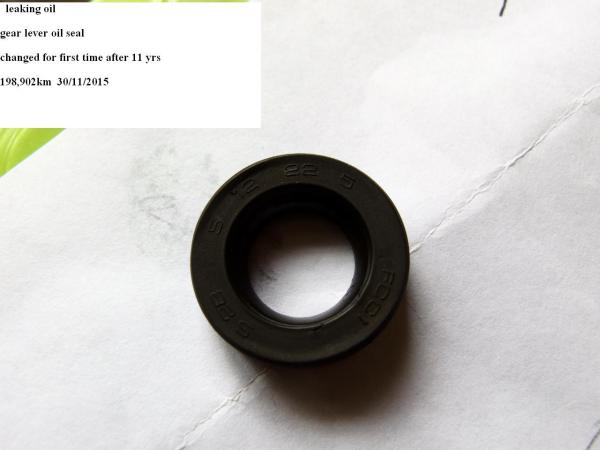

changed gear lever oil seal. now OK



adjust valve clearance tappet at cold valve intake / valve exhaust

IN 0.08mm EX 0.10mm



adjust chain tightening



rear wheel kikiki sound,

cleaned hub and drum, greased moving parts. adjust appropriate linear.



tested electric rectifier efficiency. Good.



bought yamaha racing xxl t-shirt round neck. Movistar edition RM40
