gatsby wet and hard gel... uncle mepkoh you are more extreme than me







thus, you have to find the highest point of your hose



refer to suggestion..the hole should be:

1. some distance away from the pump..lets say min 5 cm.

2. make it on the vertical part of the tube..



under equilibrium condition..the hole should be above this oil level..



so when u pump..the oil will flow ..on the way down the vertical part..it will go down rather than out of the tube...of course the hole is small..u cant even see it once the pick is withdrawn...try and eror will determine the size of this hole which directly correspond to the depth that the pick is push in..



cries... My ang Mo fail.. i still don't really get it/understand ;-( any diagram to help this Poor understanding dude?

[Silent Hunter]

cries... My ang Mo fail.. i still don't really get it/understand ;-( any diagram to help this Poor understanding dude?

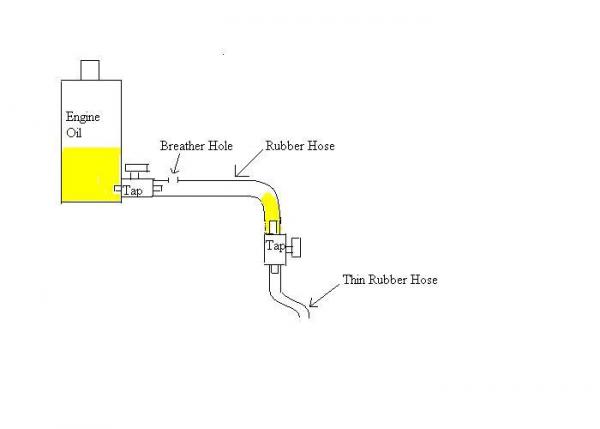

I already posted drawings to install air holes in a previous post some pages back, but the drawings were pretty small because they were not scaled for the thumbnails.



Here is the expanded version of one of the same drawings.

Edited September 15, 2009 by Silent Hunter

[VidaK]

review no.1: don't put the oiling tip too close to where the sprocket and chain meet... my sprocket ate my oiling tip!

[jtzx]

I already posted drawings to install air holes in a previous post some pages back, but the drawings were pretty small because they were thumbnails.



alright thanks thanks... iszt a good idea to use a sissiors to snip a tiny hole instead of using something sharp to poke it?



review no.1: don't put the oiling tip too close to where the sprocket and chain meet... my sprocket ate my oiling tip!



yup true true.. i give some allowance too ;-)

[mepkoh]

tip for oiler...

as the control of the drippimg oil is not accurate....

checks have to be made.

1. the equilibiurm level...

2. the dripping rate...

3. patience my man..





my oilimg point keeps on drifting....as the swing arm is round and just next to the chain,,

a certain amount of oil gets in to the cable ties/oiling tube area..and it does move..

i notice that the oiling tip is discoloured (black) most likely the chain is hitting it...while it drifts..phantoms shouldnt have this problem,,as your swing arm is rectangular in cross section and is high up above the chain.



those oiler which cannot control the dripp rate...my recommendation is to keep it simple..

forget it. Open the valve to max...and all the oil dozed should be dispense within 20 minutes of dosing...this method is not so good for those who ride short distances ...

after the ride..the oil will continue dripping...the solution is to control the dosing qty..u can reduce the dose qty by reducing the stroke of the pump .



Please be patience...it takes a bit of time to have the first drip ...the vibrations o the bike will make the flow easier once u started to ride..to ensure the oiling to take place

just compare the oil level in the tubes with the equilibium level..or the oiliness of the chain.

Edited September 15, 2009 by mepkoh

[mepkoh]

alright thanks thanks... iszt a good idea to use a sissiors to snip a tiny hole instead of using something sharp to poke it?







yup true true.. i give some allowance too ;-)



no scissors..get a pick or sharp point to do job....

the oiling tip ..u will notice the tube is longer than the steel wire in it...well if the sprockets eat the tube..okay..until it starts to eat the steel wire..then it is trouble so watch out for this to happen and correct immediately..

Edited September 16, 2009 by mepkoh

[mepkoh]

this sat. i am on stanby for warranty claims..hahaha

the agenda for the meet is:

1. solve any problems..i believe all your chain are super oily and wet.hahah so much that other areas also kanna the wetness..

2. dinner at my favourite Hor FUN zhi char...last time cost $5 per plate..throw in other goodies..may end up $10/head..anyone?

Edited September 16, 2009 by mepkoh

[mepkoh]

review no.1: don't put the oiling tip too close to where the sprocket and chain meet... my sprocket ate my oiling tip!



that is the reason extra cable ties and tube are in the kit..



so are u all satisfied with the oiler.?.. i am..

Edited September 15, 2009 by mepkoh

[mepkoh]

oiler tip...

why is oling tip steel wire is twisted to zee shape?



1...so that it can hang on the swing arm properly..

2, the oiling tube and tip is able to be secured properly ..

3. the oiling tip..where the tube is longer than the steel wire...(is placed closed to the sprocket/chain area...)..this protrusion is a safety measure in case the tip touches the moving sprocket/chain...the tube gets eaten away...it is expected a certain amount of sway/vibration in the oiling tip as a result of bike vibration and wind pressure ---when the bike is on the move. so after a while the tube will be at the optimun position.

in another words if the tube is not eaten away..it is still far and safe form the hungry sprocket/chain.

[VidaK]

that is the reason extra cable ties and tube are in the kit..



so are u all satisfied with the oiler.?.. i am..



of course I'm happy with the oiler... just a little more fine tuning and its ready to run in the background!

[Silent Hunter]

Today, My oiler tip got "Buay" (rubbed) until the wire exposed... And the other end came out and rubbed against the chain until the ends were frayed.



This weekend going to remove the entire assembly and reinstall.

[mepkoh]

Today, My oiler tip got "Buay" (rubbed) until the wire exposed... And the other end came out and rubbed against the chain until the ends were frayed.



This weekend going to remove the entire assembly and reinstall.

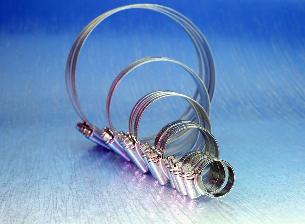

to make the oiling tip secure...i will be using hose clips to ensure that the tip is position rigidly...i hink this will minimise the drifting problem on my bike..

will post to show when it is done.



the rubbing occurs because of the vibration resulting in a somesort of harmonic motions at the oiling tip...this is make worse if the chains start to move up and down and strike the tube and dont forget the strong wind pressure so all these dynamic forces acting on the tip makes a complex motion which is diicult to predict..maybe a rigid wire should i say rod will be more appropraite to overcome it,

lets see..whether i can find one metallic tube and the oiling tube running inside..hah..i have one...okay will try this..in conjunction with the hose clips/clamps..

...most probably silent is encountering all the problem listed..

[J.C]

refer to suggestion..the hole should be:

1. some distance away from the pump..lets say min 5 cm.

2. make it on the vertical part of the tube..



under equilibrium condition..the hole should be above this oil level..



so when u pump..the oil will flow ..on the way down the vertical part..it will go down rather than out of the tube...of course the hole is small..u cant even see it once the pick is withdrawn...try and eror will determine the size of this hole which directly correspond to the depth that the pick is push in..



The breather hole on the tube is to enable for air to flow in or release out of the tube?

[jtzx]

no scissors..get a pick or sharp point to do job....

the oiling tip ..u will notice the tube is longer than the steel wire in it...well if the sprockets eat the tube..okay..until it starts to eat the steel wire..then it is trouble so watch out for this to happen and correct immediately..





alright.. will use a pen knif to make a hole later... good idea yea!!



been rather happy to have this oiler.. Sproket not eating the tubes at all.. lucky me.



The breather hole on the tube is to enable for air to flow in or release out of the tube?



from my understand , the hole is to enable air to flow in... you can try it on your shampoo bottle to understand..

[mepkoh]

The breather hole on the tube is to enable for air to flow in or release out of the tube?

both..this is air pressure equilibrium technique...



when you pump..the air is forced out....once the oil flow past the hole air gets sucked in.

[sendoec]

both..this is air pressure equilibrium technique...



when you pump..the air is forced out....once the oil flow past the hole air gets sucked in.



will u guys be doing this oil lubricating thing this sat?? is it ok to add me in??

[mepkoh]

will u guys be doing this oil lubricating thing this sat?? is it ok to add me in??

this sat is warranty time..the diy was completed last sat...

yeah come and see whther u like it and do a diy..

[J.C]

both..this is air pressure equilibrium technique...



when you pump..the air is forced out....once the oil flow past the hole air gets sucked in.



Thank you for ypur clarification

[Zhi Ming]

this sat. i am on stanby for warranty claims..hahaha

the agenda for the meet is:

1. solve any problems..i believe all your chain are super oily and wet.hahah so much that other areas also kanna the wetness..

2. dinner at my favourite Hor FUN zhi char...last time cost $5 per plate..throw in other goodies..may end up $10/head..anyone?



Please post more details for 19th Sat meet lol , definitely will come attend !

[sendoec]

this sat is warranty time..the diy was completed last sat...

yeah come and see whther u like it and do a diy..



what time is gd time to go dwn. look , see n learn fr u guys

[mepkoh]

3pm this sat. i will be standyby for warranty claims..ahhah

those who want to wash bike and discuss about bikes are welcome...

[Zhi Ming]

Project DIY Oiler session 2



When dude? - 19th September 2009 3pm

Who? - All are welcome

Where? - The Clinic ,The Bayshore Condo.tower 2b ,unit 04-01..



1) mepkoh

2) zm

[sendoec]

Project DIY Oiler session 2



When dude? - 19th September 2009 3pm

Who? - All are welcome

Where? - The Clinic ,The Bayshore Condo.tower 2b ,unit 04-01..



1) mepkoh

2) zm

3) sendoec

[Zhi Ming]

BUMP



10char

[mepkoh]

it look like most have their problem sorted out..

so those who still need assistance please come today..
