[Group] SBF Suzuki Raider

[hwahwa187]

raider no kick.. i so sianz.. somemore out of work... any bro can intro job..or i gg scrapped my raider.......sob..

[kickarse]

raider no kick.. i so sianz.. somemore out of work... any bro can intro job..or i gg scrapped my raider.......sob..



wahh bro if u want to sell ur bike can pm me!

[dragsterwish]

Eh bro, since u got experience, next time i buy the parts and u help me fix can? :angel::angel:



I've experience with Car engines but yet to play with bike engines. The raider's engine internal are pretty similar to a car's though. If i know i'll share... no prob...



Just discovered a new prob with my bike..... the speedometer is giving inaccurrate speed reading! I've been wondering why i seem to be cruising quite fast but the speedo reads only 50-60km/hr.



Today i finally had a chance to find out. I cruise along a Honda Civic (has digital speedo too & easily to read from my bike) at TPE and guess what...

My speedo says about 70km/hr.... The Civic's speedo says 107km/hr!!!



Now i finally know why my Raider's top speed (Tried once on a straight road) reads about 105km/hr no matter hard how i tried.



Anyone know if the speedo meter works by cable or some Solonoid? I'm gonna try to open up the speedo area and learn more.

[dragsterwish]

raider no kick.. i so sianz.. somemore out of work... any bro can intro job..or i gg scrapped my raider.......sob..



Bro, our baby Raider has its limit, just like any other bikes loh. Even those riding the Hayabusa also feel no kick after a while and then installed Turbo to give it the extra kick.



Just sayang it and appreciate that it is one of the most powerful and yet economical cub on the road... a Busa rider can only dream of the type of FC that our Raider returns. To me, its really a dream bike - Fast & economical!



What job r u looking for? Just grab any temp or causal job while u search for your dream job. At least there's income.... & don't have to scrap your raider.

[gunshead]

31 May 2010

Meter 42114

Upper East Coast Rd

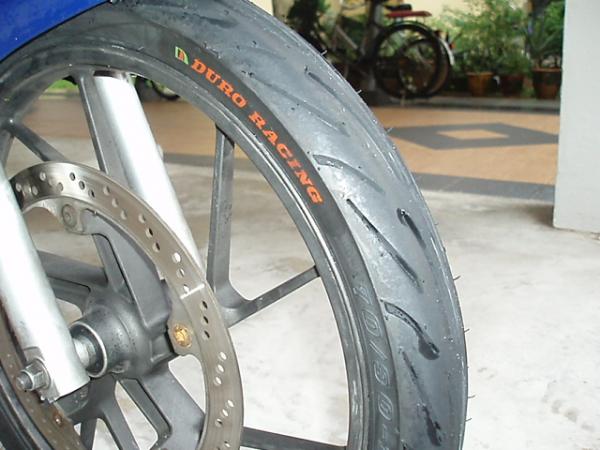

Duro RS Front $45

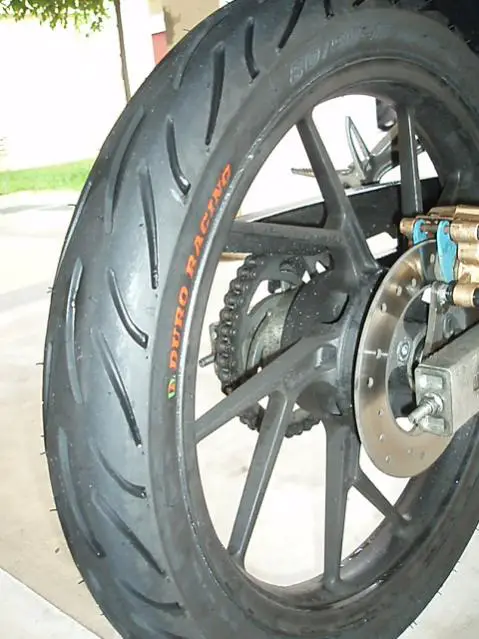

Duro RS rear $50

Tyre pressure

Front 30psi

Rear 45psi - my style

Tyres manufactured September 2009

[gunshead]

7 June 2010

Meter 42143

Upper East Coast Rd

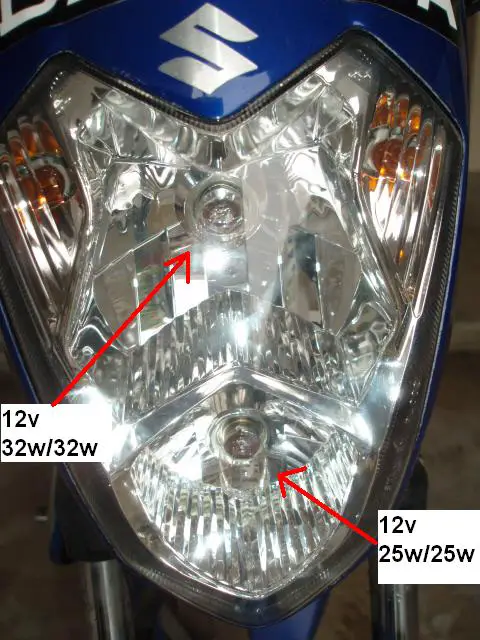

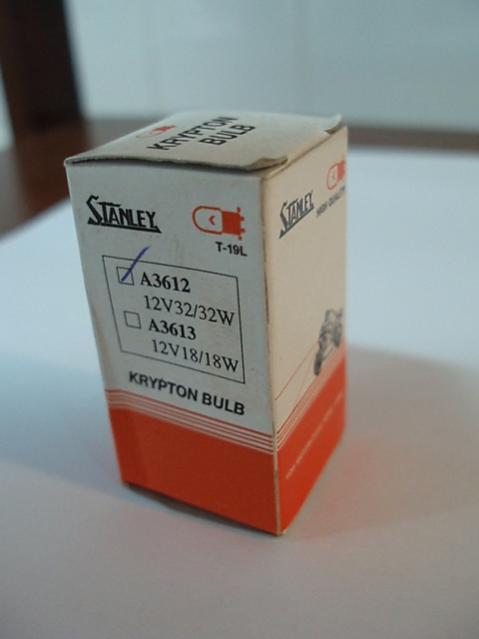

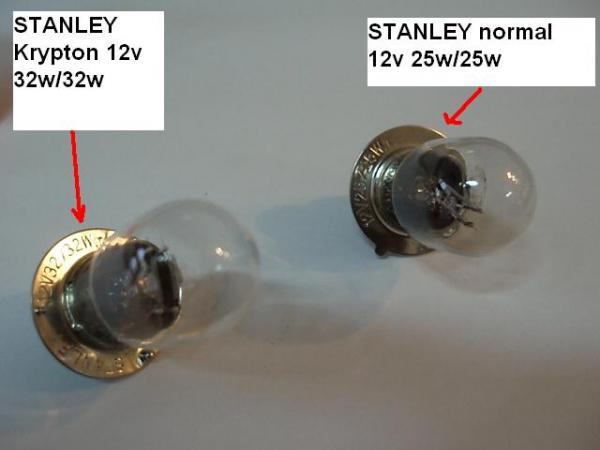

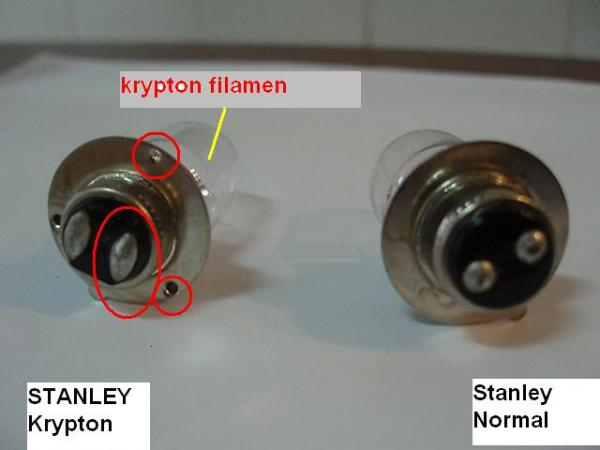

Stanley Krypton Bulb 12v 32w/32w $5 - 1st bulb

(for spare) same bulb $5



2nd bulb 12v 25w/25w normal Stanley from JB

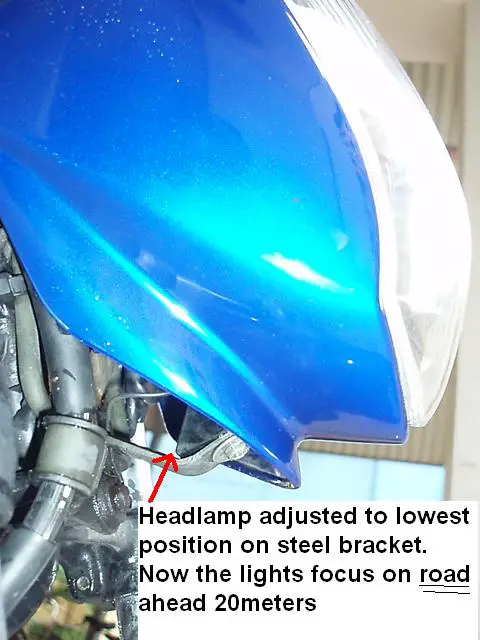

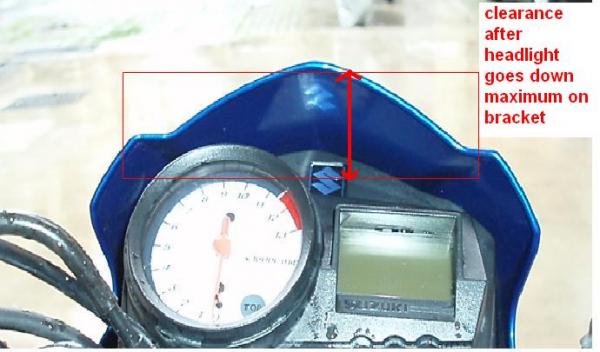

Headlamp adjusted to lowest position on steel bracket

[gunshead]

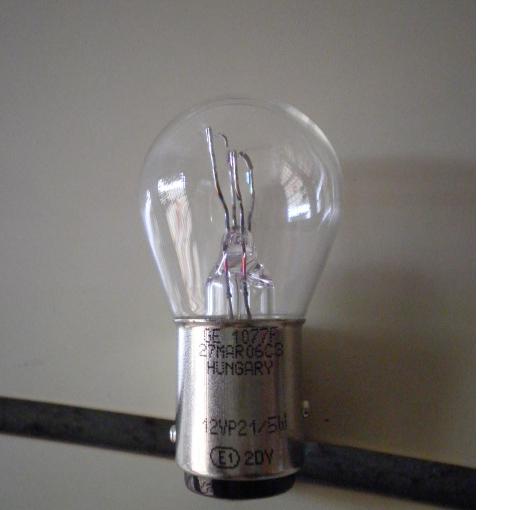

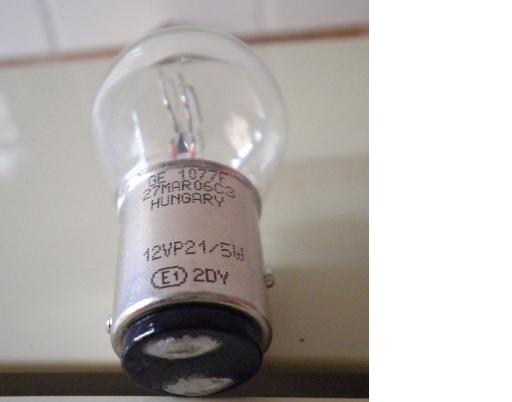

REAR bulb

u may use 12v /21 /5w instead of 12v/18/5w

see the bulb has bigger solder and made in hungary

[gunshead]

7 June 2010

Meter 42230

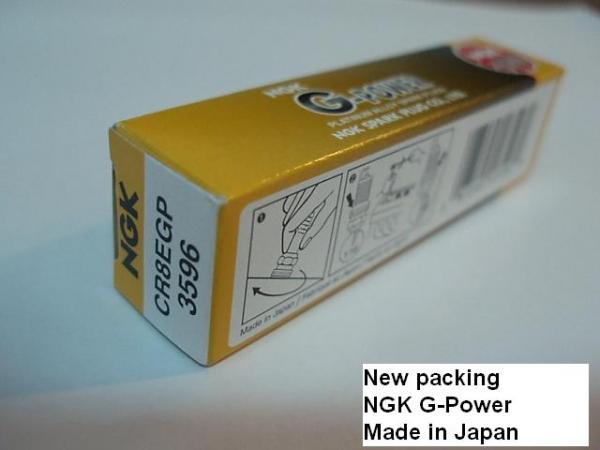

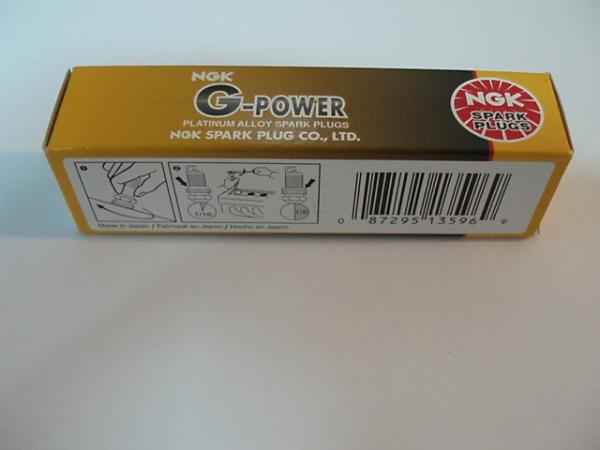

Bought in Tmn Molek, JB - NGK G-Power RM12



Seng Hoe Motor , Jay Bee



1. changed spark plug

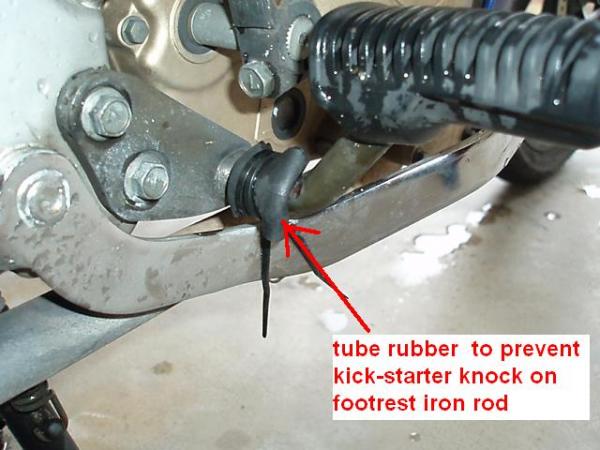

2. changed tube rubber and cable tight for kick starter from knocking foot rod.

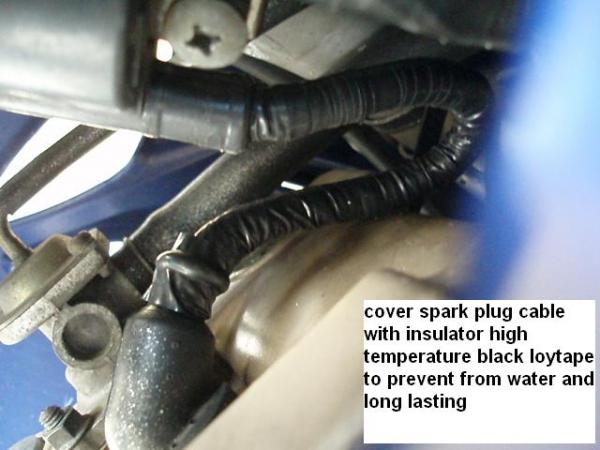

3. sealed with black loytape insulator for spark coil cable



Labour RM3

[gunshead]

7 June 2010

Sin Hardware, Jalan Besar

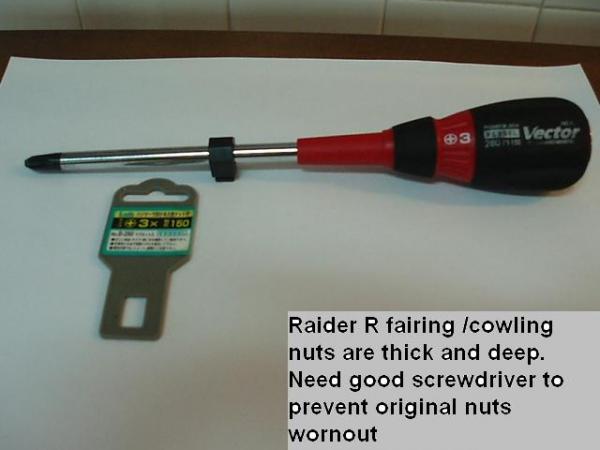

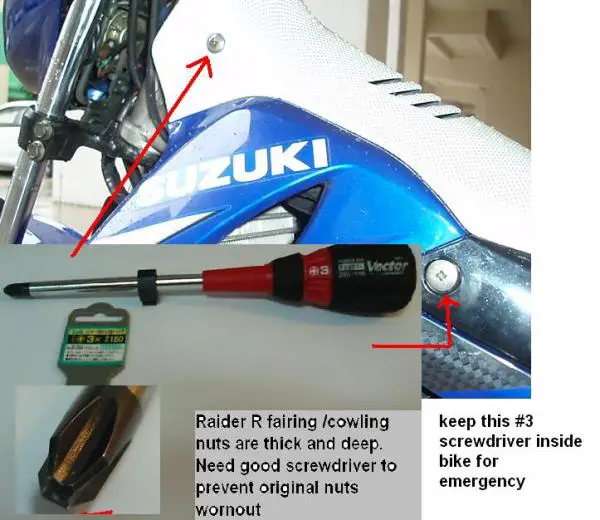

Vessel Vector #3 screwdriver $15

for thick fairing nuts

[gunshead]

Suzuki Belang R in malaysia is out with new fiery sticker.

Red fire sticker suitable on blue Raider R





Suzuki Raider R 150cc thailand , philippines , Singapore, Japan, Vietnam

Suzuki Belang R 150cc Malaysia

Suzuki Satria F 150cc Indonesia

[gunshead]

8 June 2010

Meter 42300

East Coast Rd

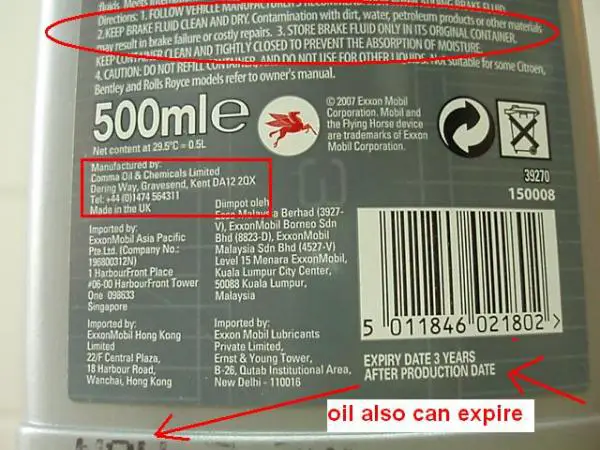

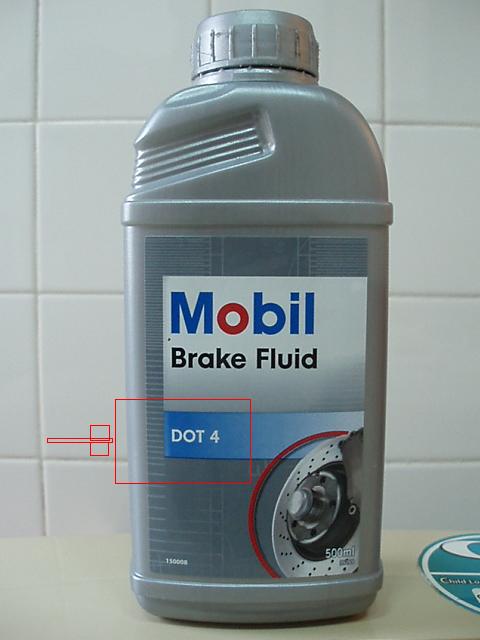

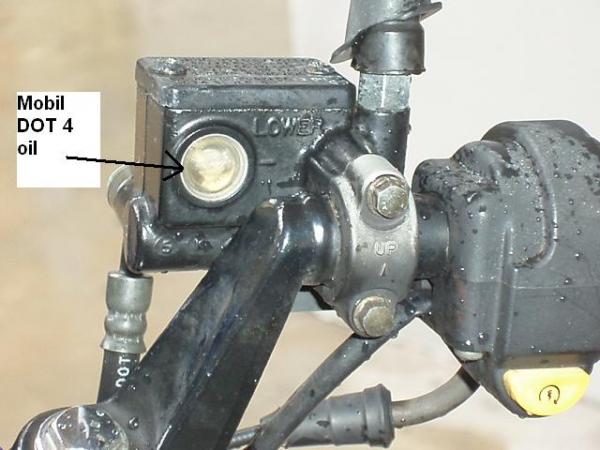

Mobil Brake fluid DOT 4 Nov 2009 bottled - $9.80



Changed both master disc brake pump oil - Labour $5

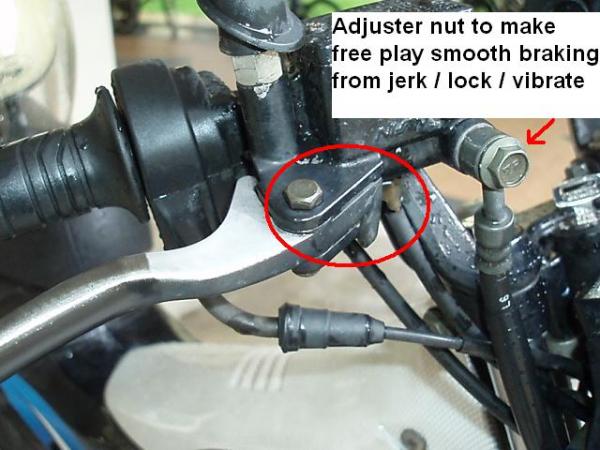

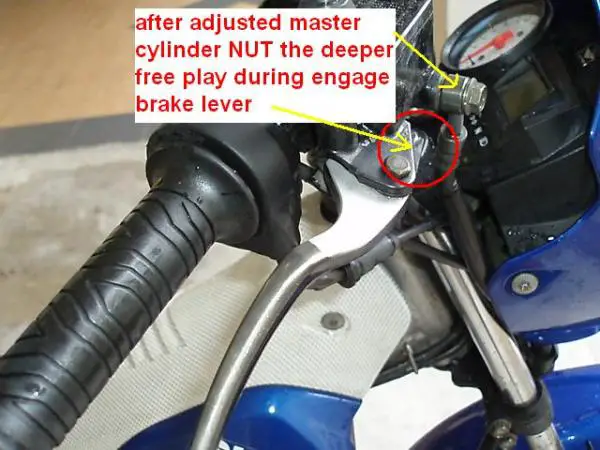

Re-adjusted front master cylinder pump nut to have more free play smooth braking so that the disc will not lock/jerk/vibrate.

[gunshead]

User Friendly

[gunshead]

dragster,



rear handle for grip - buy from direct Suzuki SC in JB . Belang R handle more sleek and slim , better then Raider.



suzuki uses ENKEI sport rim made in japan



suzuki using sensor NOT tyre cable for speedo. Look at your front sprocket. There is the black wire connector. If the wrong ratio sprocket size used then the reading will alter.

Edited June 21, 2010 by gunshead

[dragsterwish]

dragster,



rear handle for grip - buy from direct Suzuki SC in JB . Belang R handle more sleek and slim , better then Raider.



suzuki uses ENKEI sport rim made in japan



suzuki using sensor NOT tyre cable for speedo. Look at your front sprocket. There is the black wire connector. If the wrong ratio sprocket size used then the reading will alter.



Wow, bro, u r super pro DIY!



Tks for sharing the knowledge. So, our Raider uses such branded rim!



For the sprocket, what is the original size/ratio? I'm not sure if mine is original or changed. Does your speedo reading keeps fluctuating (e.g. 40 - 51 - 43 - 49) even when you are traveling at about constant speed? mine does & dunno if its due to the faulty sensor.

[hwahwa187]

thks raider kakis.. i trying hard to keep my raider...try to get back on track soon...it take a kind word to make one miserable life... more easy..

[gunshead]

hwahwah ,



why u put the photo of scooter, what u trying to tell? U sent me PM which is empty. Resend again. Put up ur real raider photo.



dragster,



front = 14

rear = 43



I buy original factory made for suzuki belang R from Penang. The factory send to Skudai, JB and I collect from there.

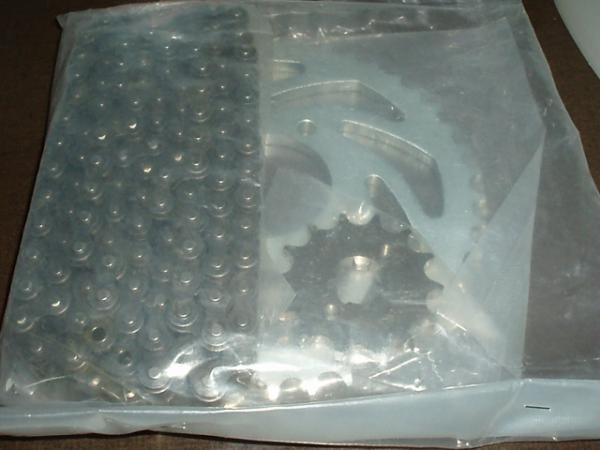

RM75 original hard steel 2x sprocket with RKM made in japan chain

You can do the same too.

contact Mr. Andy Lee from

http://www.kilangrantai.com

Edited June 23, 2010 by gunshead

[dragsterwish]

hwahwah ,

dragster,



front = 14

rear = 43



I buy original factory made for suzuki belang R from Penang. The factory send to Skudai, JB and I collect from there.

RM75 original hard steel 2x sprocket with RKM made in japan chain

You can do the same too.

contact Mr. Andy Lee from

http://www.kilangrantai.com



Thanks Gunshead. I'll check out the sprocket on my Raider. If its really not original ratio, i'll contact your lobang to order 1 set too & to order the Belang's rear handle. i love original parts.

[dragsterwish]

I saw a Raider at the block and was admiring the bike. Its a blue raider without much stickers but has nice Suzuki sticker on edge of rim. Think i stared too much and the lady pillion must be thinking i'm up to no good....



Nice bike... i can't help looking at any Raider i find on the road... That's why i love this bike!

[Blahhh]

haiz, went to teo spray in defu lane, found out it was close. There was a shop beside it that was still open, GHC I think. Asked if they carried any Raider.. the answer was disappointing.



If I could find a Raider, I will sell off both my s4 and wave off, then ride this bike FULL TIME.. this bike has the best power to FC ratio in 2b class lah.. go so fast yet save petrol..

[dragsterwish]

haiz, went to teo spray in defu lane, found out it was close. There was a shop beside it that was still open, GHC I think. Asked if they carried any Raider.. the answer was disappointing.



If I could find a Raider, I will sell off both my s4 and wave off, then ride this bike FULL TIME.. this bike has the best power to FC ratio in 2b class lah.. go so fast yet save petrol..



Bro, u can consider going for the new Raider if any of the shops are bringing in. Meanwhile, just enjoy your ride; each one is unique in its own ways.

[cicak]

haiz, went to teo spray in defu lane, found out it was close. There was a shop beside it that was still open, GHC I think. Asked if they carried any Raider.. the answer was disappointing.



If I could find a Raider, I will sell off both my s4 and wave off, then ride this bike FULL TIME.. this bike has the best power to FC ratio in 2b class lah.. go so fast yet save petrol..



Try teo spray when it opens again.. last i heard, still got 2 raiders for sale lei..

[gunshead]

dragster,



see the attachment

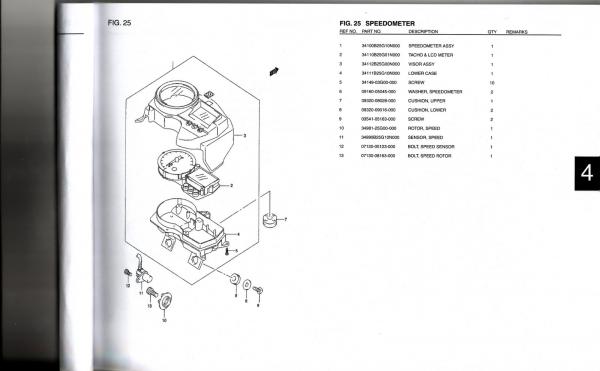

for speedometer , maybe remove the sensor and clean and regrease back

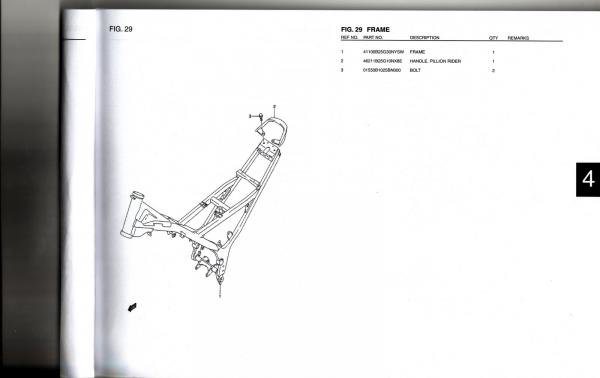

also the handle bar rear pillion

must be purchased from suzuki SC in JB

the design belang is more sleek and sharp.

http://www.suzuki.com.my

do it got engineer service manual with pictures of real bike

come and get from me the CD



NO MORE new bike for Raider. Search for 2nd hand.

Edited June 27, 2010 by gunshead

[dragsterwish]

dragster,



see the attachment



for speedometer , maybe remove the sensor and clean and regrease back



also the handle bar rear pillion

must be purchased from suzuki SC in JB

the design belang is more sleek and sharp.

http://www.suzuki.com.my

do it got engineer service manual with pictures of real bike

come and get from me the CD



NO MORE new bike for Raider. Search for 2nd hand.



Tks, i'll get the CD from you first before i open the highlight unit. Tks for the link. I noted that there are 2 workshops in JB designated as the official suzuki parts supplier. Will check it out there.



I took a look at my headlight unit & found a cable that has been cut & not link to anything. Not sure what is it for since all my other system are functioning ok, except the speedometer.



Also found that the choke cable got squeesed when you lock the steering as i park the bike. The rubber has torn a bit. I was thinking of putting a plaster over it to protect it from being squeesed again. Anyone of yours have this problem?

[Stitch85]

hey may i know the address of the suzuki agents in jb thanks. As i want to buy the belang head fairing

[Blahhh]

Checked out defu lane... yes there is a raider there going for 2.8k FBE plate (not really sure if thats the real number plate)



the price is not bad, but what really put me off is how the guy manning the shop treated me. Really bo layan me lah. He must had thought I was only window shopping. Nevermind, I rather get this bike somewhere else.
