My Raider Sprucing update:



1) Changed to original Suzuki Clutch Assembly unit & switch



2) Changed to original Suzuki blue headlamp cover.



3) Changed to original Suzuki side mirrors.



More to come.....

[dragsterwish]

Saw another Blue Raider for Sale at GHC today. FBA licence plate. Mileage about 21km only. Pretty low. Bike condition looks good.... second only to mine! haahaa....

[gunshead]

drag,



do let us know the pricing of the above three

also share the good mechanic place

so many can go there too



also i want to know how much the pair of side mirrors original in spore ?



how come u never take any photo ?

[dragsterwish]

drag,



do let us know the pricing of the above three

also share the good mechanic place

so many can go there too



also i want to know how much the pair of side mirrors original in spore ?



how come u never take any photo ?



Can. Let me go back & dig out the receipt. I remember the headlight cover cost about SG$35. The clutch cable about $10++. The mirror cost $15 per side( a pair cost $30+)



I have lots of photos. Just didn't know how to upload. Anyway, i've tried it last night and found out how to do it. Will upload soon.

[gunshead]

New packing and new viscocity oil arrived in Shell malaysia.

Me gonna use it end of this month

Now reading the

TDS for Advance 4T AX7 10W-40 (SL/MA2). This product is a new formulation to replace Advance VSX 4 15W-40.

Advance 4T AX7.pdf

[gunshead]

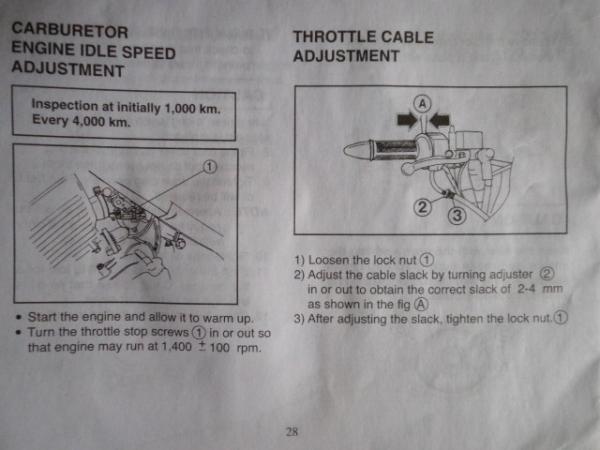

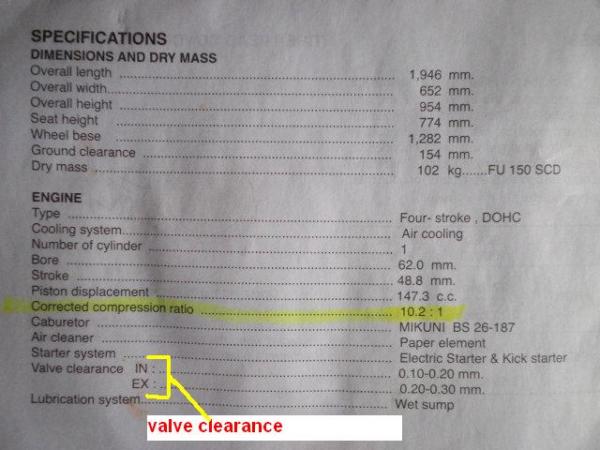

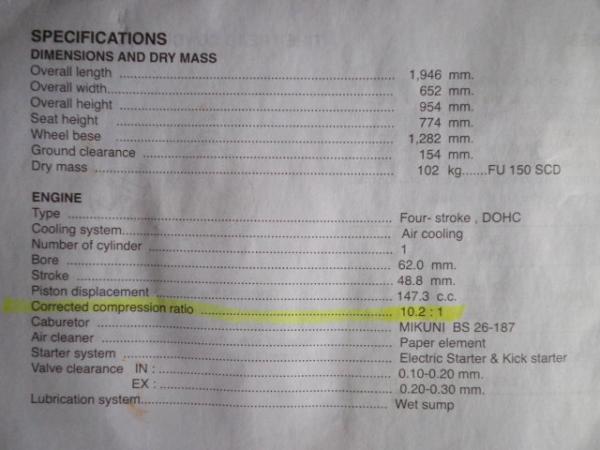

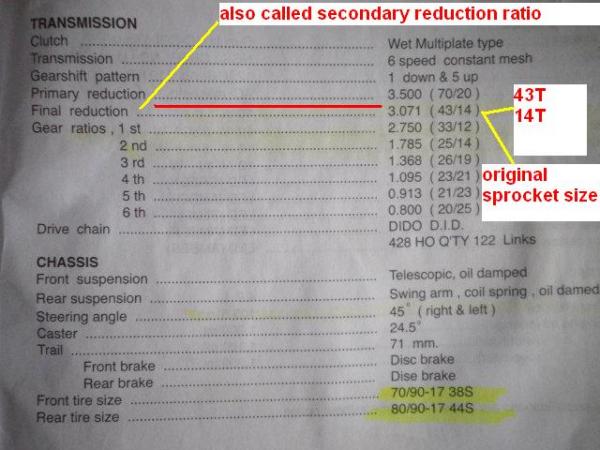

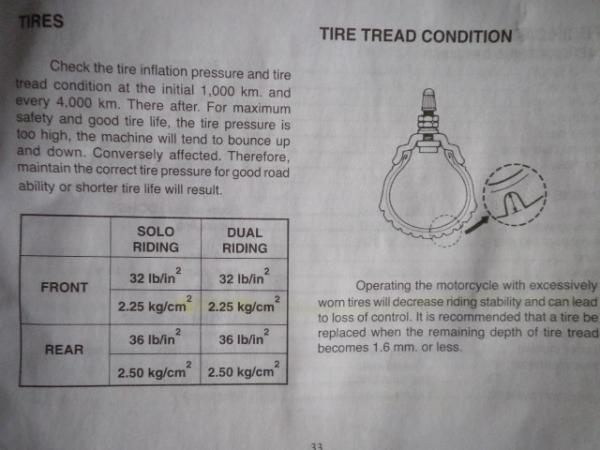

these are references for memory incase we forget and put in other then factory setting in manual

[gunshead]

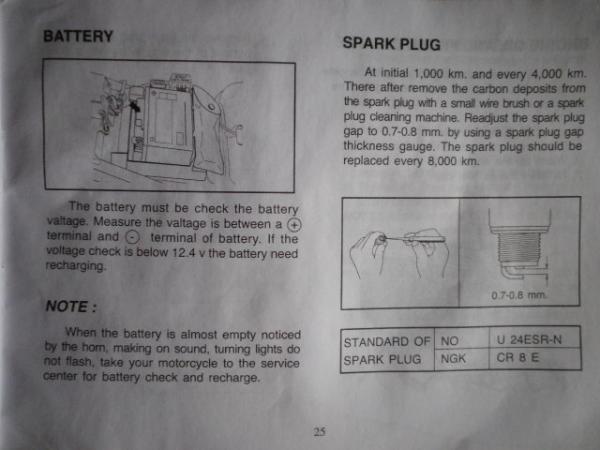

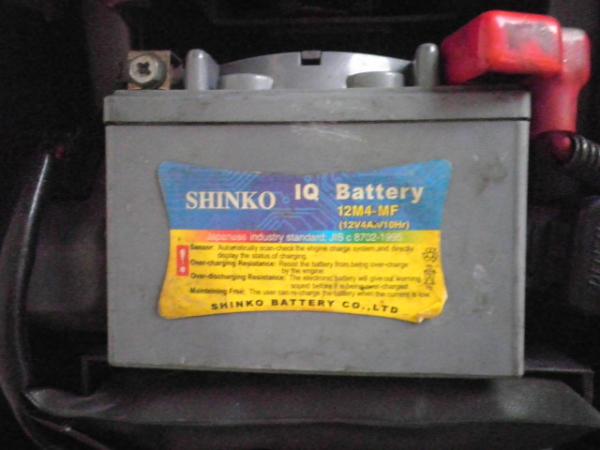

be aware of battery when u change for Raider.

it is 12v 6AH /10HR



My bike previous owner put in 4 AH



no wonder the front headlight not so powerful shooting far.



This time I will change to 6AH /10HR

[gunshead]

Raider R full tank capacity is 4.9 Litre

I got 5 litre in Shell RON 97 in JB

[gunshead]

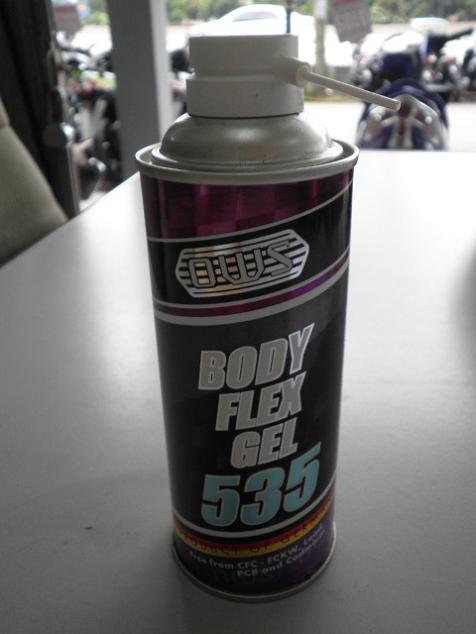

I love OWS body gel

http://www.ows-germany.com

it gives shiny smooth protection for Raider R suzuki dashboard

[gunshead]

I saw in this mechanic shop in skudai, JB - the owner put recycle bins. It was full with items to recycle. It seems bike shops has many things to recycle. So lovely shop in skudai.

Very good move to save earth. Wish to see these bins everywhere in world provided people are educated to use them.

[gunshead]

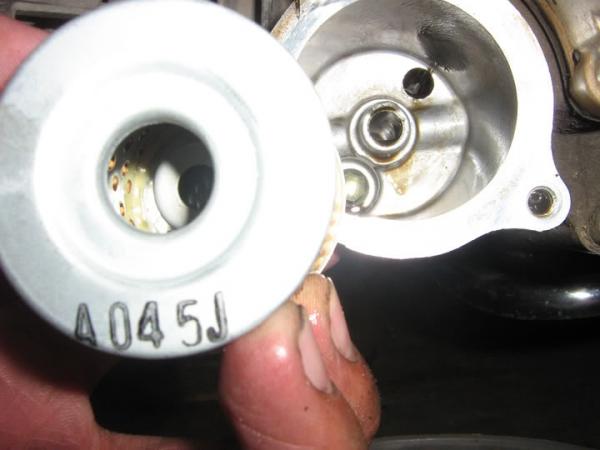

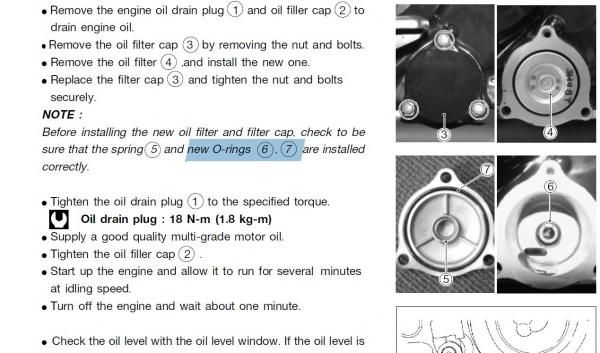

LEARN how to change oil-filter properly



Inside Thailand suzuki raider R manual it indicates must change the small o-ring and big o-ring everytime we change oil-filter.

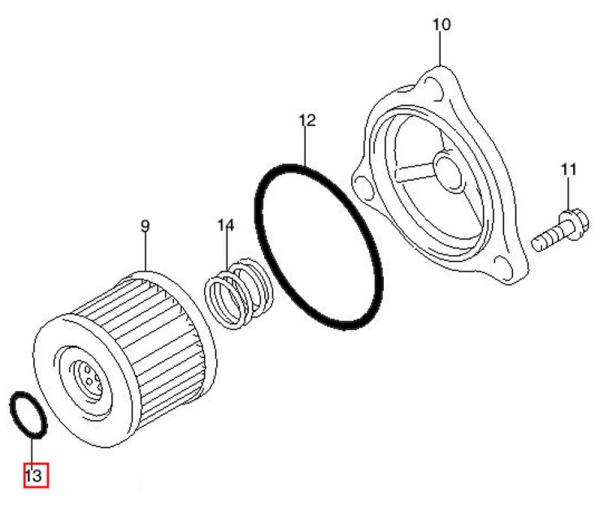

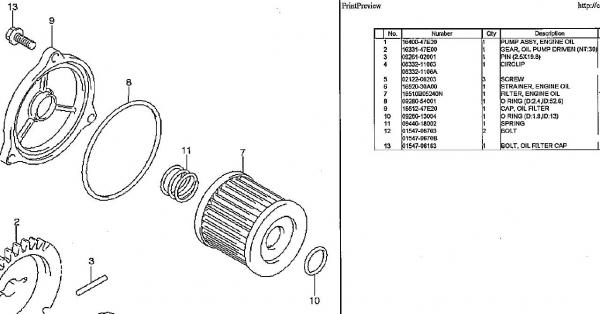

TAKE NOTE THE SMALLEST and big O-RING



see



source



http://www.belangr150.org/forum/index.php?topic=607.0

credit : inspektor_sahab

and

Source : http://motorcyclephilippines.com/forums/

Kredit pada :HARRYblurred's

Edited December 4, 2010 by gunshead

[dragsterwish]

Thanks Gunshead for sharing so many things about maintenance of the Raider. Its a wonder how you managed to squeeze in 5litre into the 4.9litre tank. When the fuel reaches the top, i have difficulty injecting more without spilling out.



Ok, my turn to share soon. On the prices of the parts i've paid so far. For reference.

[dragsterwish]

Here is the list of parts & prices i've paid for them at GHC.

All the parts are original Suzuki (Thailand):



1) Air Filter $15

2) Engine oil filter $18

3) Sensor for speedometer $58

4) Front & Rear sprocket chain set(43/14) $60

5) Chain plastic cover $18

6) Light bulb (headlight) $5

7) Headlight Assembly $80

8) Headlight scoket $28

9) Speedometer Rotor $20

10) Top Cover Ring $35

11) Clutch Holder Lever $25

12) Clutch Switch $16

13) Licence plate number(sticker) $10

14) Front brake master cylinder $90

15) Clutch cable $23

16) Rear mirrors(a pair) $30

17) OWS 4-T Fully Syn Engine oil(10W40) $25



Road Tax = $32 (6 months); $64 (12 months)

[dragsterwish]

Narrowest Cub - Suzuki Raider



I've compared the width of the popular cubs like Spark, Wave, Sonic, 125z etc. & found that the width of Suzuki Raider 150 is the SMALLEST at 652cm!! Next smallest is Honda Sonic at 670cm. The reason i was doing the comparison is whenever i squeeze through vehicles at traffic junctions, i realised that only the above cubs managed to squeeze through. There are a couple of times my Raider is the only one that managed to squeeze through tight space while others were stuck behind.



So, i checked out the width of the various cubs & bigger bikes and found that bigger bikes are typically 700cm & above (even some of the cubs!) . Cruisers can even reach 800cm!



Another point, if you want to squeeze through easier, the original Raider's rear mirror does get into the way. It lies in the same height as the side mirrors of cars. So, to avoid hitting, you could changed to a lower mirror that is very popular with Spark 135 owners. That would shorter the Raider's width further to about 650cm and also lower it away from the car's side mirror.



Take care, however, when you guys squeeze through traffic. Always look out for drivers who are about to change lane abruptly without notice. Be ready to brake. Last week, another fellow rider somersaulted & was thrown over the bike when a car suddenly turned out to change lane. He was stunned but ok since it wasn't a high speed accident. Take care fellow Raider riders. Our tiny bike is a strength as well as a weakness.



Ride Safely & enjoy the day.



Cheers!

Edited December 8, 2010 by dragsterwish

[h4hahak1m]

The SBF anniversary is here finally. Do join us the competition to show support. I've been assured that the prizes they give are more than what you will pay for. Very high chance that u'll get one also. very interesting prizes also. So come down and show support ah. Pump full tank also now near 10 bucks already!



We're the largest community in SBF but when it comes to SBF events, the numbers don't show. So like someone said to me "Don't be a forumer just behind the screen, take part and support this community"



So yah, there's 100 slots and the cubs community makes up like 70% of the whole forum. No need everyone go la but at least 50 from us would be enough. I'm going definately









Sorry for the thread invasion

[dragsterwish]

Haven't got a chance to ride my Raider for almost 2 weeks. Sian... When i'm free to ride, it rains. When it doesn't, i'm not free. Miss riding Raider. Btw, i've just bought a small rectangular rear mirror to replace the original rear mirror so that its easier to slip through traffic. Can't wait to try it.

[ThunderHammer]

Well...some said that new suzuki raider facelift/redesign will be launched in this month...or maybe early January...



Been searching the world wide web for info...but none appeared. Is it true? Gosh really hate this because just bought a new Belang/Raider early this month...



Does anyone know anything about this?

[dragsterwish]

Well...some said that new suzuki raider facelift/redesign will be launched in this month...or maybe early January...



Been searching the world wide web for info...but none appeared. Is it true? Gosh really hate this because just bought a new Belang/Raider early this month...



Does anyone know anything about this?



Nope, haven't heard of that. I thought the Belang is quite new? Usually facelift comes 2 years after the first launch.

[dragsterwish]

Anyone knows where to get the cushion backrest to be pasted onto the rear box so that the pillion rider can rest his/her back?

[ThunderHammer]

Nope, haven't heard of that. I thought the Belang is quite new? Usually facelift comes 2 years after the first launch.



Well...since Singapore always receive the better end in motorcycle news/models, and you sir didn't heard anything regarding the so-called new facelift Raider/Belang, i guess i can keep on loving my Belang la.

[SMWILL]

THank u sharing so much info Gunshead



Chong Aik now has many parts for Raider. I just bought the stock rear mono shock there.



Cheers





raider 150,



thank you for your reply.



suspension original stock cannot find anymore in singapore, i tried rangoon rd, lavender st, ah boy, rowell rd, desker rd.....all i gave up. Nobody has it but someone in desker rd said try http://www.yss.co.th but then the other problem is YSS also for raider don;t have in singapore. Any other shops u may think got raider suspension ?

[SMWILL]

Anyone interested in the original muffler PM me.



1 wk old Duro tires HF918, Front 70/90 R17, Rear 90/80 R17



sms 9747 7970

Edited December 23, 2010 by SMWILL

[gunshead]

original genuine suzuki raider R oil filter is RM ringgit 5.40 only

from direct live telecast suzuki assemblers in JB

[SK I]

My friend is selling his Suzuki Raider. Only rode for 2 months. Bought from Jemster. If you are interested, please contact/sms Chew at 986l6829 for viewing in Jurong



Quote from him:

Dec 05 Raider in original condition, bike hardly ridden with low 32k mileage. comes with SP Carb, racing CDI, goodridge brake hoses, gazzi fully adjustable shocks, givi box, BT39ss tyres. all original parts will be givin including racing footpegs.



http://www.singaporebikes.com/forums/showthread.php/309263-Class-2-2A-and-2B-bikes-for-sale.-CBR600F4i-Yamaha-Dragsta-400-Suzuki-Raider-150RR?p=6861282#post6861282



View to offer for interested buyers.

Edited December 29, 2010 by SK I

[ashiem]

suzuki raider/satria fu 150 parts & accessories : http://www.facebook.com/album.php?id=100000986848907&aid=35041
