too many queries u ask. compile them in one post. U can edit the same post again and again.



I only use the standard setting sprocket the manufacturer wrote in manual. This raw bike machine is tested well in factory and they come out front and rear sprocket size is the best. Also the digital meter speedo gets input from front sprocket gear spin NOT from front wheel spin.



wheel bearing u can change to KOYO or NTN but must be "covered" type and not those open can see ball bearing. Yes. bearing also helps reduce vibration.



my extra tensioner + cam guide one set is for future use. Cannot sell.





why u need all above. Since in setia tropika they have all parts and will do one short everything for u.



our model Raider R is first model so not all item is same as Belang R.

example the meter panel cluster. You can go to chong aik desker rd and ask them to order for you. refer to my early posting for the part number.

You need to change whole set.

I heard other Raider in Spore use car shop to reset to 00000 but was charged SGD 50



The carburetor air turning is super critical . You need to turn 360 degree marked full turn on screwdriver and not based on your hand twisting. I think I did teach and showed picture of the screw , refer past pages. Also I did mentioned how many turning

Edited August 13, 2014 by gunshead

[gunshead]

11 August 2014

97324km

Skudai, JB

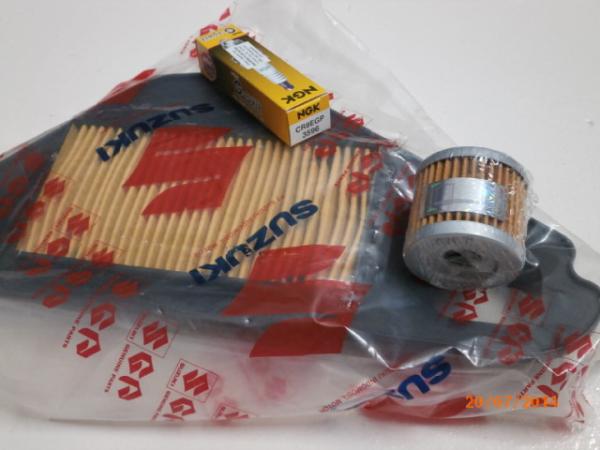

air filter

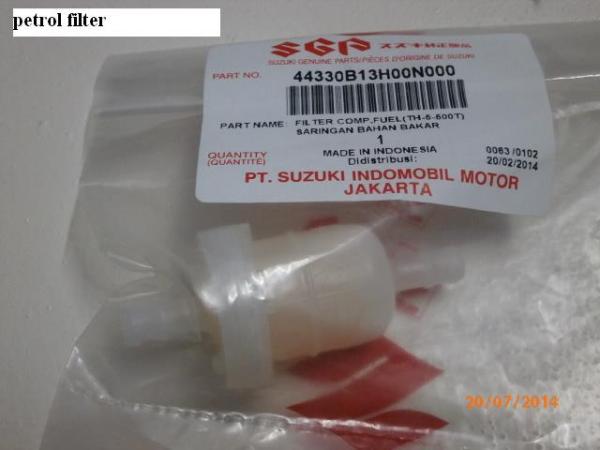

petrol filter -suzuki genuine . Good compression

ngk g-power

shell R4 engine oil 1100ml + oil filter (new design)

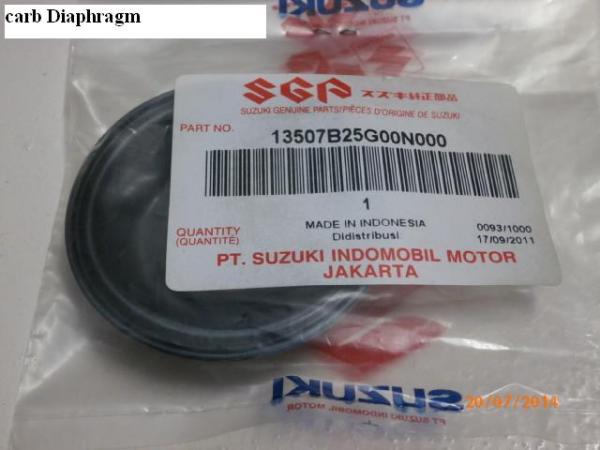

carb diaphgram

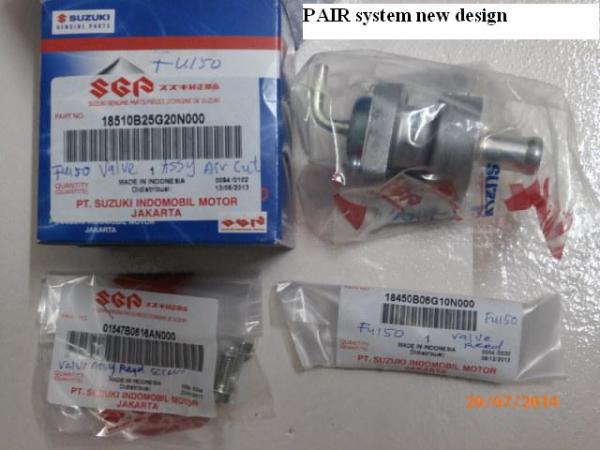

2nd valve PAIR ONE SET with nut (new design).

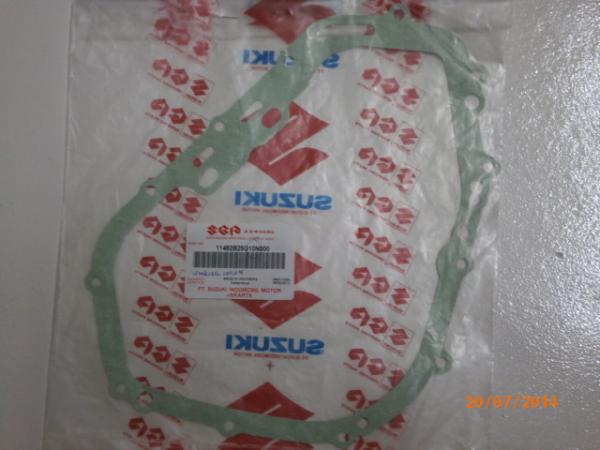

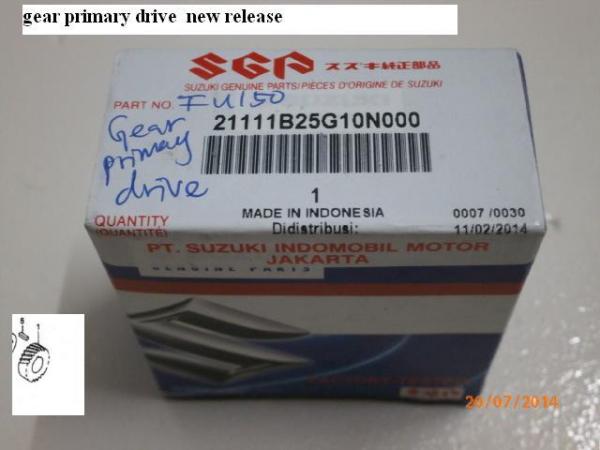

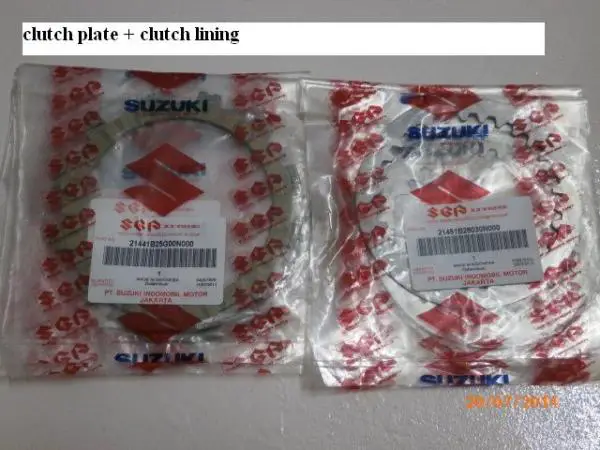

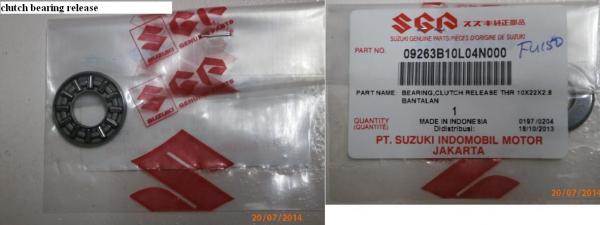

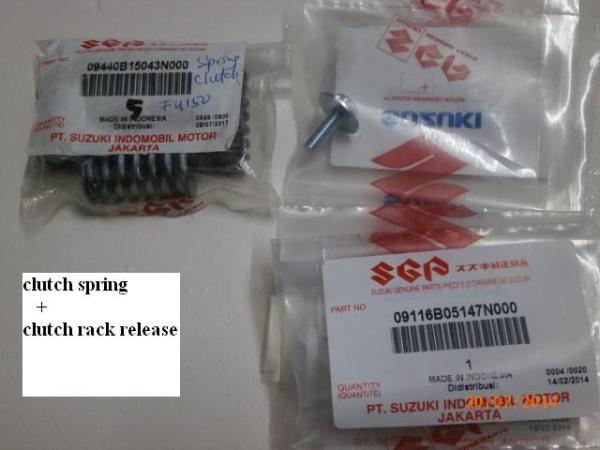

Clutch plate + clutch spring + bolt (new design) + gear driven (new design) + bearing (new design) + gasket clutch cover

4 new nuts body covershield





findings:-

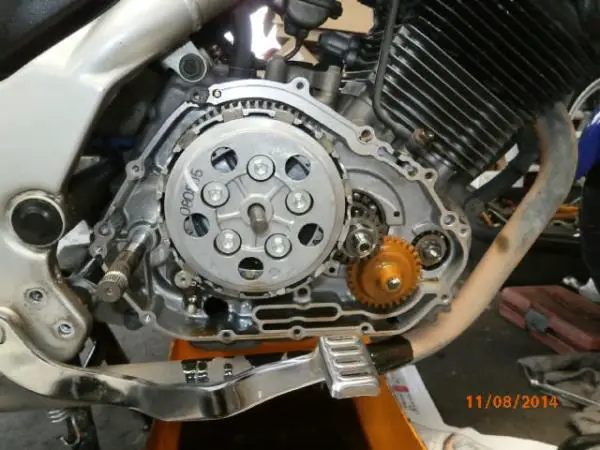

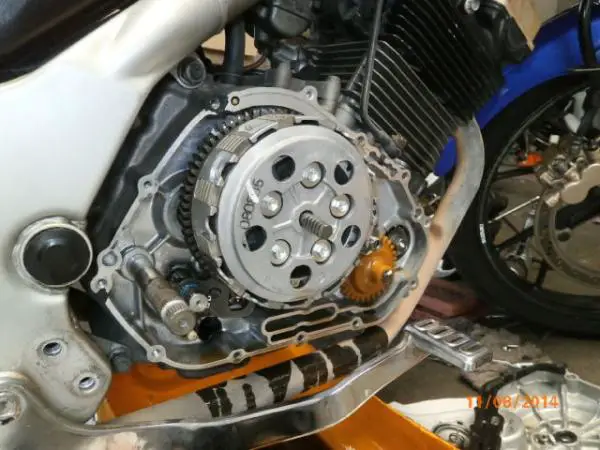

first time opening clutch cover since factory . 8 yrs old bike with 97324km

Clutch area very clean - thanks to shell R3 & R4

Default factory clutch plates and lining in superb condition . Only worn out 60%. Thanks to shell R3 & R4

NGK G-power after 9200km usage, shows very plug clean surface and engine Combustion chamber very clean. Thanks to Caltex techron.

After change PAIR (new design) and carburator diaphrgam , RPM dropped to 1300RPM and super stable.

[gunshead]

continue on above service

Edited August 13, 2014 by gunshead

[gunshead]

tmn pelangi



wash bike RM 7 super deep clean underneath

wax bike RM10

tip RM3

Edited August 13, 2014 by gunshead

[7seater]

Ha ha ha. The queries strike my mind so I ask. Thought the bike polishing already gone after the Hari Raya at taman pelangi? Tried tuning the carb today evening after work. Set the screw by 2 1/4 turns by 360 degrees as per turn. Firstly the rpm stay at 3K~4K rpm and not dd itrop as usual. Then tried to turn down the idling bolt. Voila! the idle return to normal. Blow the throttle and it drops as usual. Happy.



Remove both the handle balancers. Will try riding tomorrow to check whether the vibration will improve. Keeping fingers cross.



Want to slowly tune up the bike for keeping. Inspection coming this October 2014. Bought 2 cans of WD40 lithium grease for lubrication. 1 can of high temperature black paint for the exhaust.

[gunshead]

somehow I go there to wash bike

quietly

they washed maybe unhappily

hahahaha

[gunshead]

super bad idea to remove handle balancer



vibration caused by your sprocket chain set. just change them

[7seater]

Gun, what is the purpose of the handle bar balancer? Last time I ride those bikes do not have this balancers at all.



Anyway, this morning ride found handle vibration still around. So not the cause.



Notice my bikes swing arm at rear contact with the absorber has free gap. If put on double stand, the rear wheel can shake up and down. The shock is YSS. The shaft and hole has free play/gap. Will squeezing in rubber padding helps to solve this issue?



Now my ride the idling is good. It show the mechanic who set in JB during the change out it at 1 turn only. Now at 2 1/4 turn, feels good. More monitoring.

Edited August 14, 2014 by 7seater

[gunshead]

put back the balancer. balancer has its own purpose....lazy to type here



absorber thing I not sure



idling at 1400rpm is the best and correct

[7seater]

Notice raider even at 6 gear, the speed picks up very fast just by twisting the throttle without any need of dropping gears to drag. Loving this bike. Should be the right choice that I have taken. Always like to have a reasonable quick bike. The handling is stable, fast and sharp.



Just need to solve the vibration will perfect the raider. Must follow Gun's suggestion to change the sprocket chain set and both wheels bearings. Gun, have good workshop with address in JB to recommend? Like you said, near the custom area shops not so good and costly. But not this weekend cause tie up. Maybe next weekend.



By the way, how is your shinob sprocket set? Is it much better than those standard sprocket sets in the market?

[gunshead]

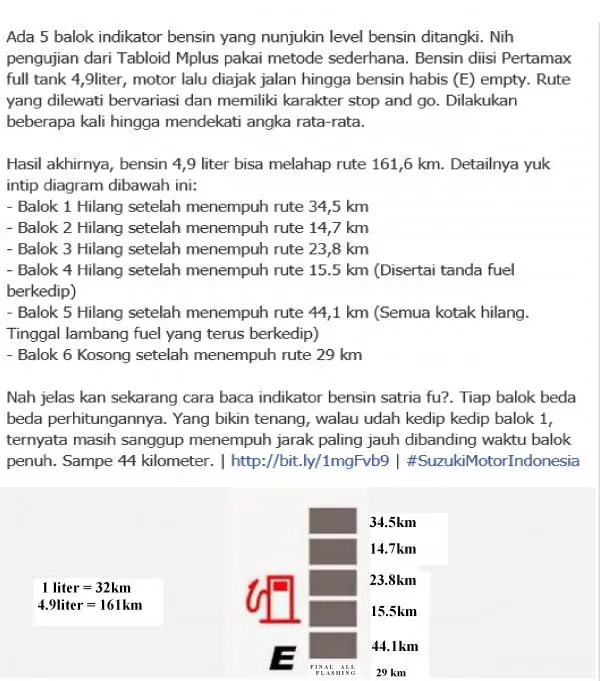

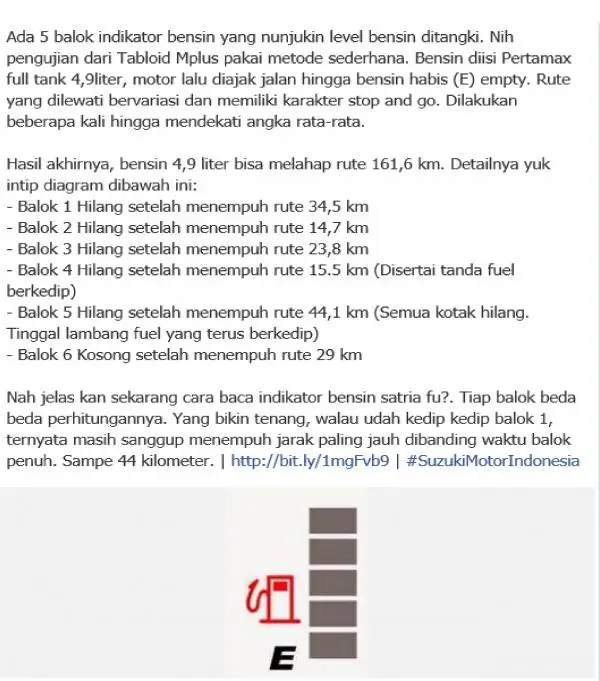

raider r fuel meter reading block by block



also see most below I have another picture with per block mileage side by side

Edited August 21, 2014 by gunshead

[gunshead]



By the way, how is your shinob sprocket set? Is it much better than those standard sprocket sets in the market?



7seater,



DO this

go to Tampoi

Kang Soon accesory spare part shop, tampoi, taman dato penggara barat

very easy to ding in map

it is along skudai highway only at main road can see uphill



ASk for



STT sprocket super hardened steel front and rear sprocket

O-ring CHOHO chain 428 120L RM75



buy these 3 items and bring to your shop and fix

BUT LET U KNOW

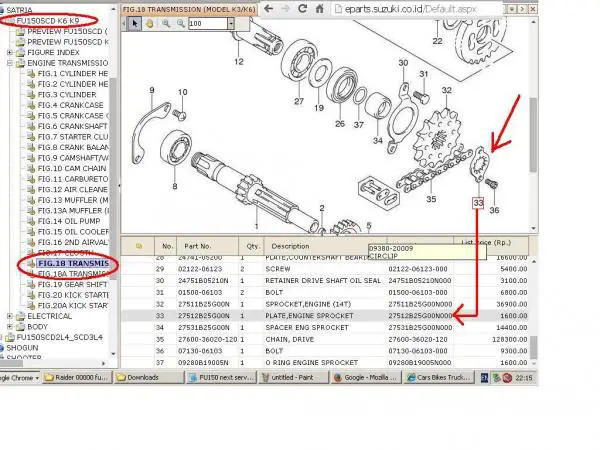

u must get back the original pin for front sprocket cause front sprocket holes and pin matches only for raider R. I believe previous users modified the front sprocket and pin to yamaha RXZ type. so watch out



otherwise when u buy at Kang Soon ask for front sprocket STT for yamaha rxz.



Also to know the parts visit http://eparts.suzuki.co.id/

Edited August 21, 2014 by gunshead

[gunshead]

to all raiders

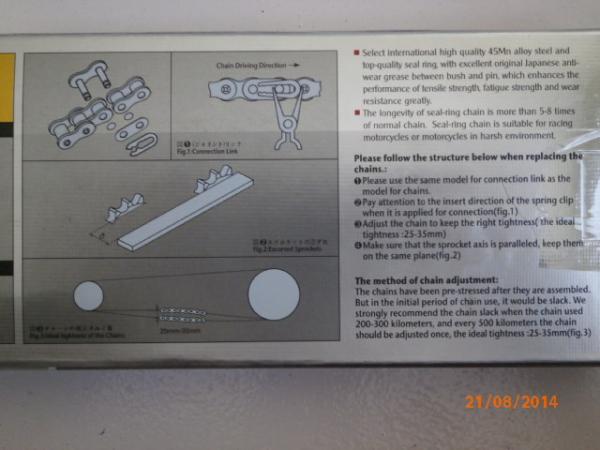

use o-ring as chain drive

do not use normal 428 or 428 heavy duty

this bike is 120link long and very fast slack loose. it is wasting time always to go thighten

this also casues power ratio drop cause chain loose

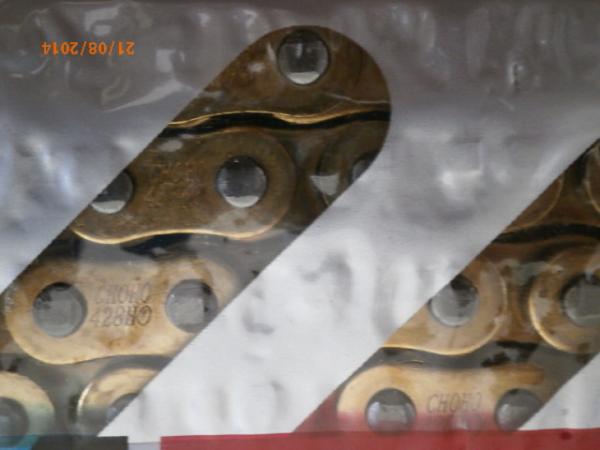

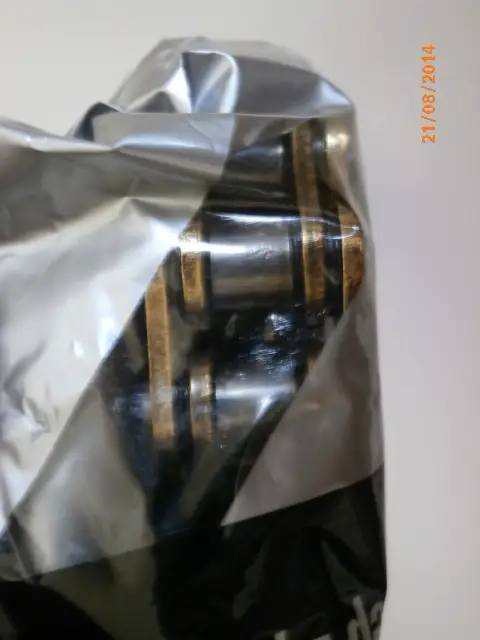

must use o-ring chain

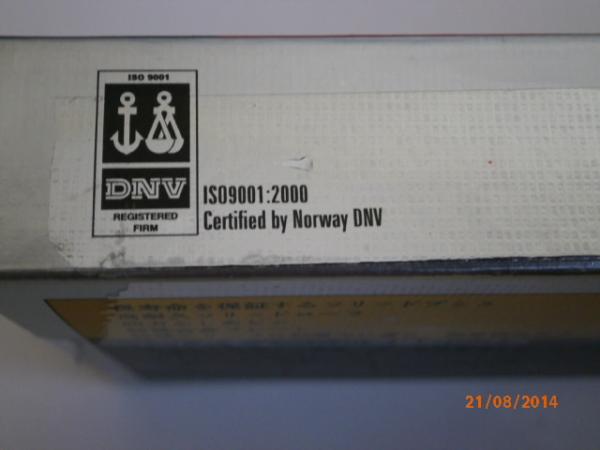

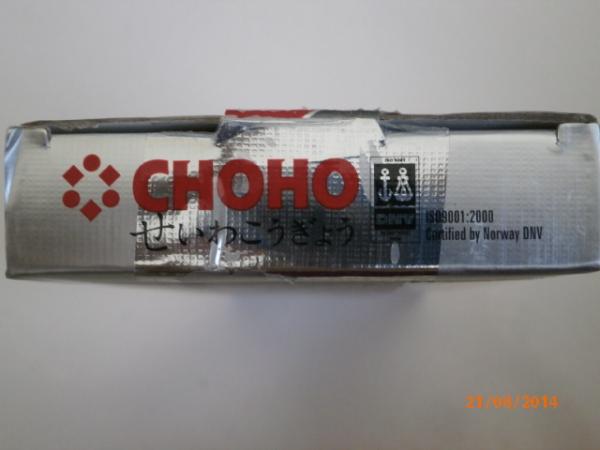

cheapest o-ring i use is CHOHO o-ring made in china but it has highest quality and japan spec and certified by norway standard

RM75

Edited August 21, 2014 by gunshead

[gunshead]

meter



97966km



changed engine oil

shell R4 1100ml pour until middle line through inspection window

changed oil filter

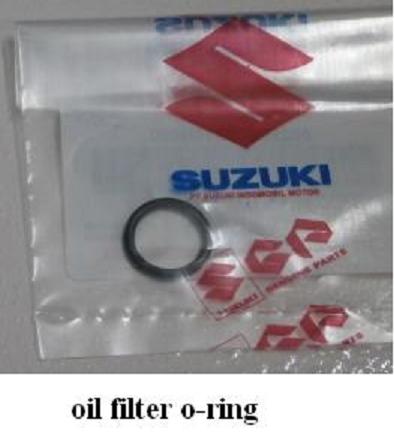

changed oil filter O-RING

Edited August 21, 2014 by gunshead

[gunshead]

fuel tank mileage meter reading

[7seater]

ever tried with last bar 1st blink. Ride on from Chinatown havelock CTE all the way to yishun st23 then back to jurong. Finally, in KJE, chua chu kang, start to blink double. Not sure how many km as my odometer already stop at max. Looks quite far for the last bar blinking usage.

[7seater]

7seater,



DO this

go to Tampoi

Kang Soon accesory spare part shop, tampoi, taman dato penggara barat

very easy to ding in map

it is along skudai highway only at main road can see uphill



ASk for



STT sprocket super hardened steel front and rear sprocket

O-ring CHOHO chain 428 120L RM75



buy these 3 items and bring to your shop and fix

BUT LET U KNOW



u must get back the original pin for front sprocket cause front sprocket holes and pin matches only for raider R. I believe previous users modified the front sprocket and pin to yamaha RXZ type. so watch out



otherwise when u buy at Kang Soon ask for front sprocket STT for yamaha rxz.



Also to know the parts visit http://eparts.suzuki.co.id/





Thanks Gun. Will check with the shop. The ring is important.

[7seater]

After a week of no start, the battery flat. Jump start it it seems ok. Once battery flat, even kick start won't work. Now notice that the battery is only 3AH. Where as it should be 6AH standard.



Wonder how big capacity battery can be installed on to raider? What is maximum magneto able to charge on battery?

[gunshead]

correct

this electrical schematic diagram very complicated due to digital meter panel

so even kick start will not start



6AH is correct



ALSO BATTERY MUST BE SPECIAL TYPE- SLEEPING TYPE

DO NOT INSTAL NORMAL BATTERY

U MUST BUY THE SPECIAL Z TYPE WHICH CAN BE SLEEPING POSITION

[7seater]

Just put silicon into the handle bars to reduce buzz. Next to change the grips and put on balancer.



Follow by sprocket set. Thinking of removing the lower part of the fairing or cover. Will it gives better cooling to engine and carb tuning, I guess.

[gunshead]

Suzuki Raider R 150cc

Suzuki Belang R 150cc

Suzuki Satria F 150cc

[gunshead]

Features



Suzuki Raider R 150cc

Suzuki Belang R 150cc

Suzuki Satria F 150cc

[7seater]

With silicon inside the handle bar, ride is slightly better than without. Now can go at 90kph and buzz is bearable. This is at 6500rpm. Touching 8000rpm still face strong vibration.

[7seater]

Found Kang Soon In Jalan Skudai. Too bad they are closed on 30th Aug. Maybe go in next time. Anyway install the handle balance and grip. Throttle side buzz low. Now notice at 110kph the seat has vibration. The idling still not smooth in cold start. Once hot, it stable. Change the rear tyre Dunlop TT900 on size 80/90 @ RM105.



During the weekend remove the bottom fairing. Bike inspection passed. Retighten the handle balancer. Test again sometime this week on the buzz. Wanted to paint the exhaust but not able to remove 1 piece of the exhaust bolt at the block. Is there any brush application high temperature paint? Maybe ask motorshop to remove the bolt.



Check the silencer by removing the 3 bolts but not able to do anything as the silencer is enclosed piece.Thinking of lowering the noise.

[gunshead]

something nice

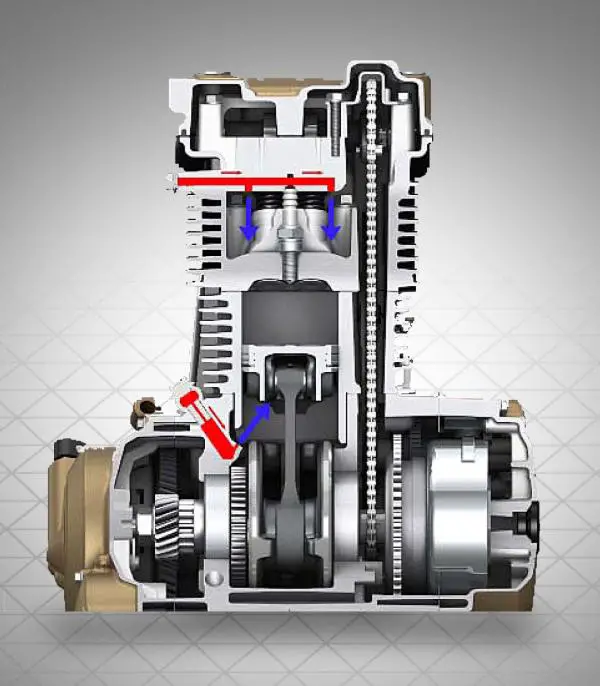

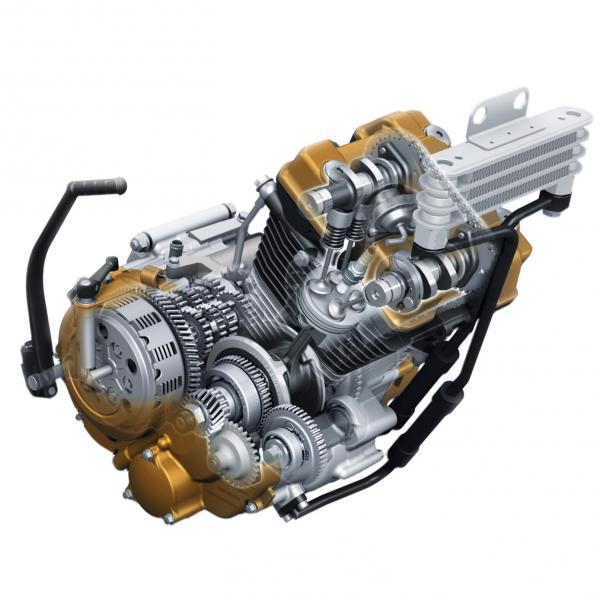

Raider R using SCEM cylinder block same like gixxer



I took photo of my Raider R
