[Group] SBF Suzuki Raider

[gunshead]

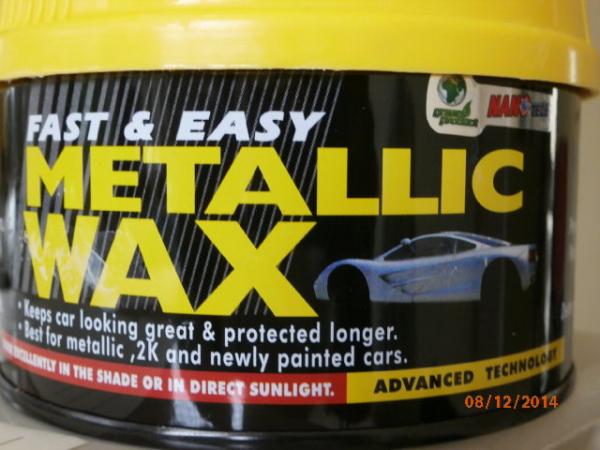

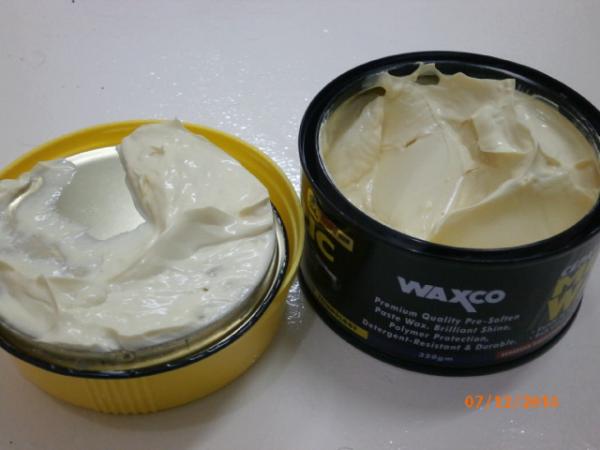

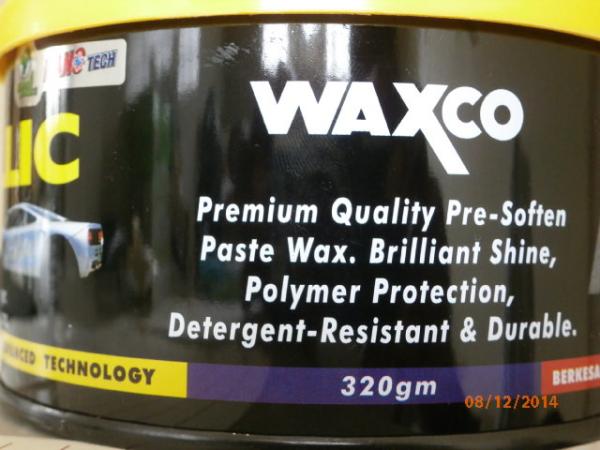

wash and wax using waxco mettalic



wash RM7

wax labour RM10

tip RM3





2912km 26/1/15 and 27/1/15



checked tensioner noise



SC said normal engine noise ...tensioner still OK only.

foreman said no noise at all ...tensioner + timing chain - OK



serviced bike

engine oil shell R4 only

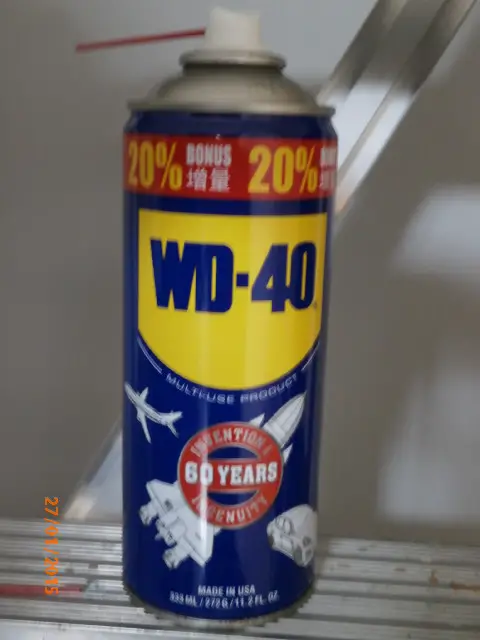

wd-40 all area

tighten chain

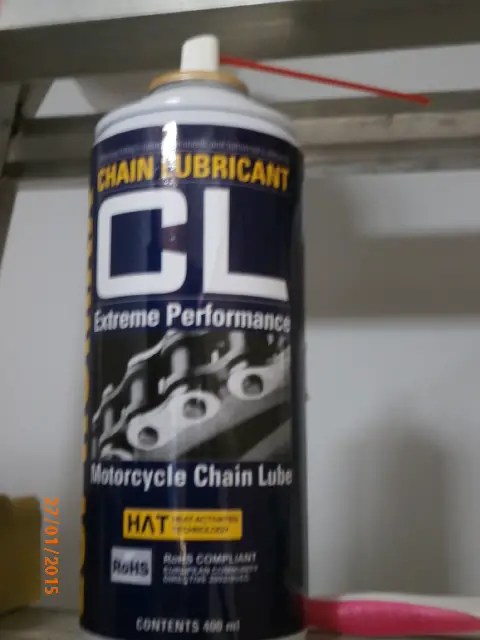

chain lube spray

tire pump air

headlight ( 2 bulbs ) check - OK

throttle free play - OK fit

throttle smoothness serviced put anti-rust and oil

cable lever clutch adjust freeplay 10mm or 1cm

checked for cowling fairing vibration - OK



full tank Ron 97 caltex techron

[7seater]

Hi Gun, so far you use the Waxco is is good? In terms of shine, lasting and ease of application? Good in removing stain on paint?

[gunshead]

use that particular waxco wax metallic . must be the same I used. it is superb

[7seater]

Happy Chinese New Year to all

[gunshead]

i use RON 97 in JB Caltex techron

RM 2.25 yesterday

[gunshead]

yesterday went to change engine oil

shell R4

[hwahwa187]

Can pm me your number gun head

My Suzuki need parts and maybe u can bring me in jb tgt when free,

[gunshead]

u have gps ?



why not u see

http://www.suzuki.com.my



JB branch in setia tropika

u can go there urself

8am till 5pm only



they have genuine all raider parts

[gunshead]

11 may 2015

meter = 05703km

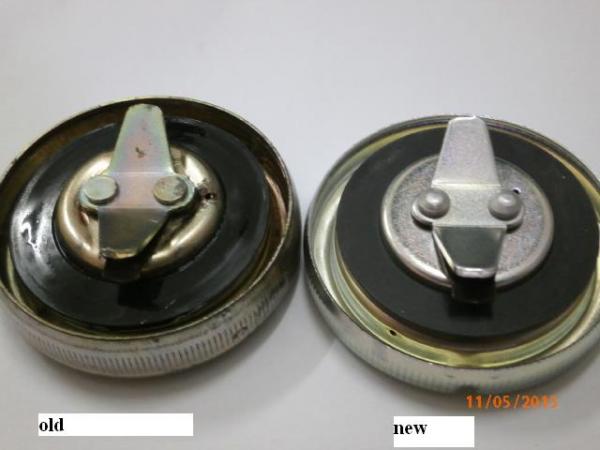

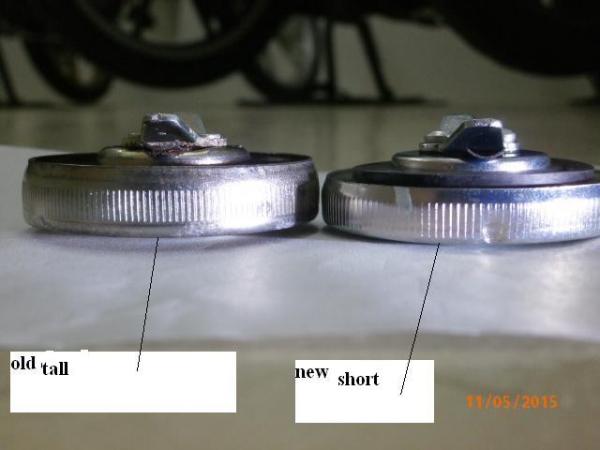

changed the fuel lid cap

cause suspect after full petrol tank the rubber is not strong and leakage around tank

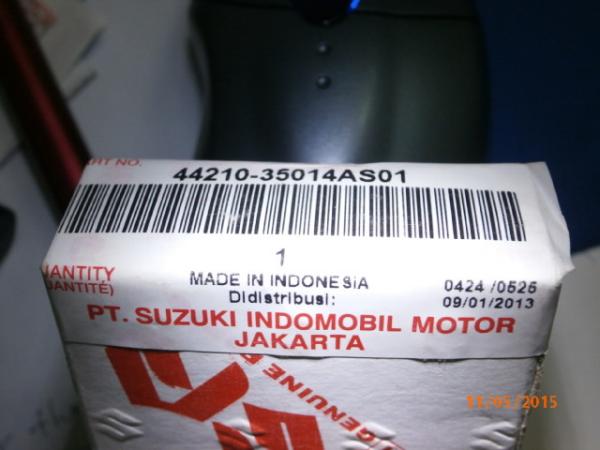

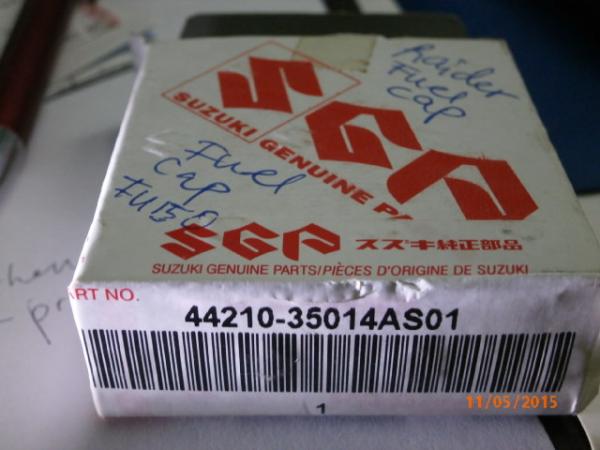

changed to new corrective action part number

[7seater]

Hi Gun, any possibility of having a bigger fuel tank for our bike? You have ever come across? Tanks is just too small and refilling frequency too short. Do you know some shops do such fuel tanks. Thanks.

[RickMan]

Hi guys, after riding for so long, decided to buy 1 raider back to keep. after 2 sonic, 1 raider.... i need 1 now. anyone has one to sell?

[gunshead]

7seat,



i seen in KL

belang riders who travel cross states



has one small tank which is nice looking in front of seat



it has one pipe



where they buy - i don know



maybe u go some shops and ask this typoe of tank



or u may ask belang community



or ask suzuki service centre

technician may know where to get



it is safe and reliable tank

[7seater]

Hi Gun, Thanks. Will check with the Belang community.

[gunshead]

bike now meter showing 0614km means 106,614km

coming soon will go for full service = plug, air filter, brake oil, fork oil, disc pads, tires, petrol filter, diapghram, etc

need to plan carefully

[gunshead]

meter 06179km 16/6/15



bought at setia indah kim seng spare part



michelin pilot street front and back tires for Raider R FU150



fixed at skudai



Michelin pilot street 70/90-17 80/90-17



fix both tires new L shape valve nut



greased Pennzoil red grease on bearing and important areas



cleaned brake caliper and disc pads



both disc pads are in excellent condition

[gunshead]

kang soon motor accessories and enterprise

20 jalan tanjong

taman dato penggawa barat

tampoi

81200 JB

[gunshead]

07377km 15/8/15 service major



one day at 4400km road flood at woodlands custom . water caused electrical off. Then start back. OK It happen twice. Why ?

Today mechanic said there is tiny hole inside block for water flow in/out in case of flood. So it may have blocked with dirt. So he used air spray gun to blow out residues.



changed

air filter yellow color

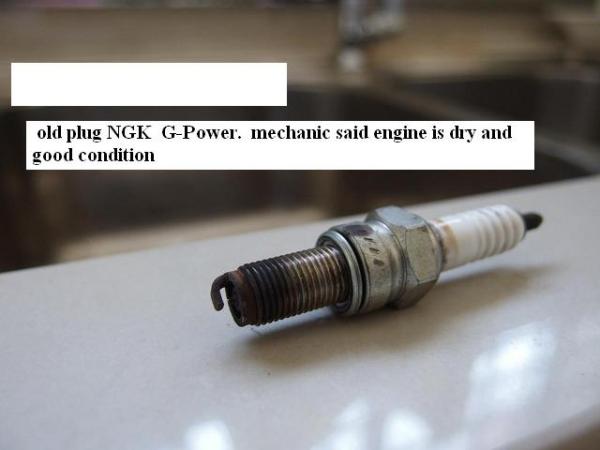

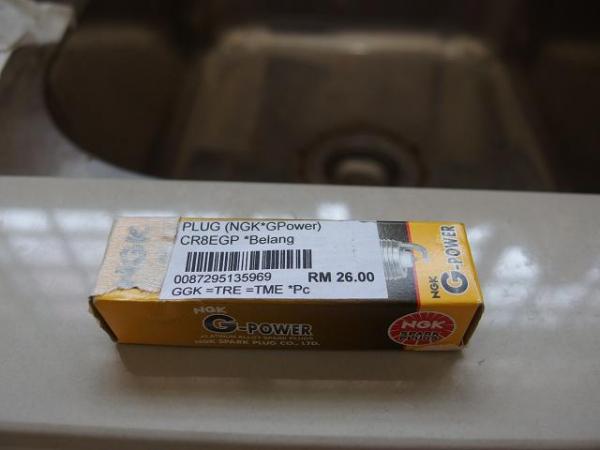

ngk G-Power

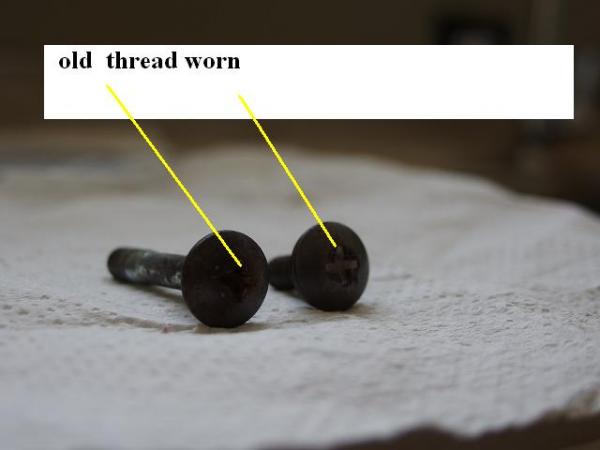

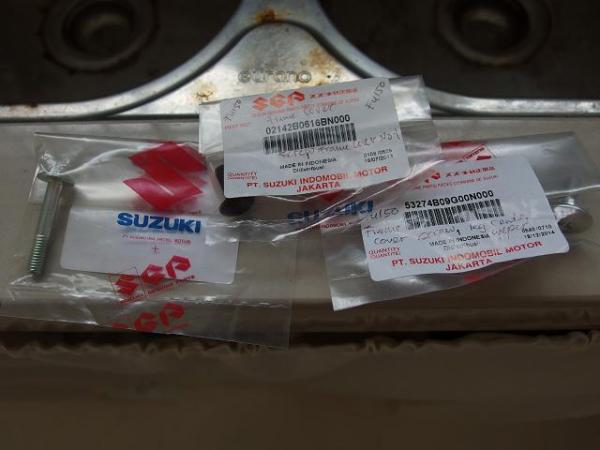

many screws of body cover frame changed to new one cause one one thread worn out. Used all genuine suzuki screws.

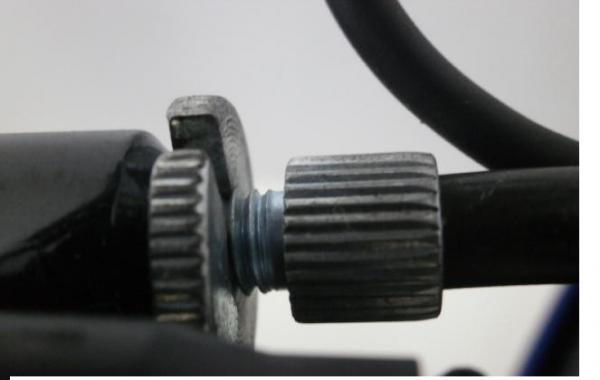

Tighten adjuster clutch cable lever

Red Grease and wd-40 CABLE ASSY,THROTTLE

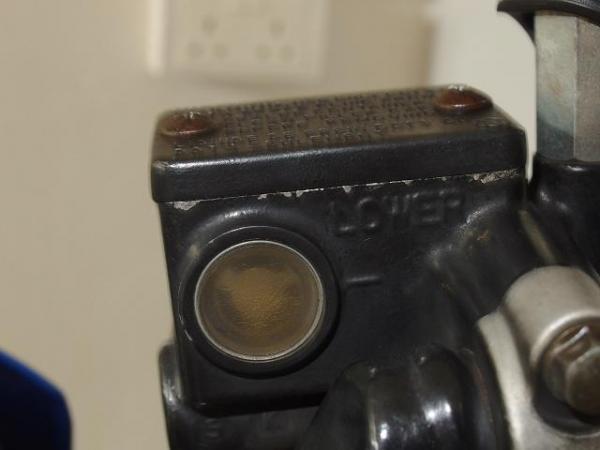

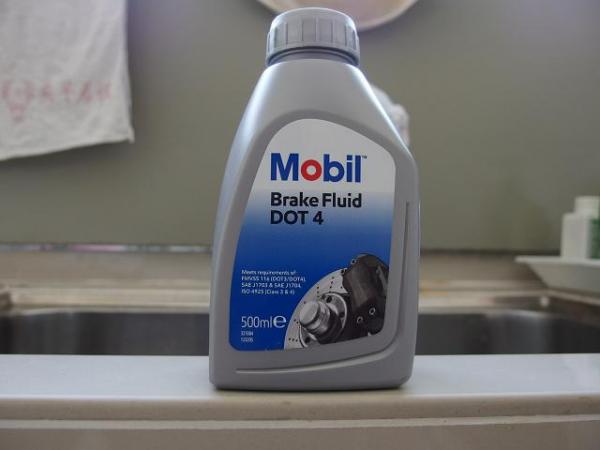

Brake fluid Mobil DOT 4

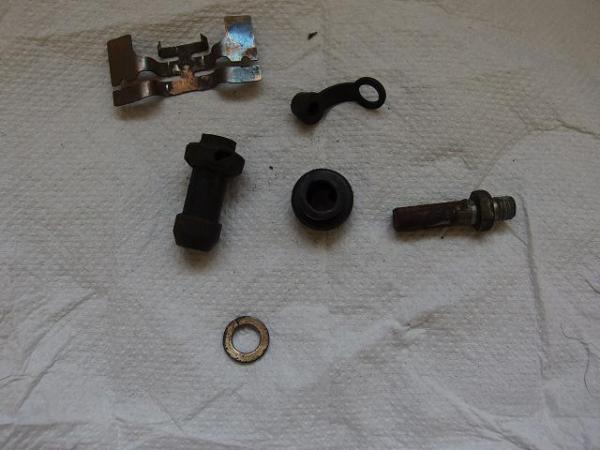

Overhaul front disc caliper . changed many corroded components. Apply red grease

shell R4 1000ml RM17.60.

wd-40 seat hinge / nuts



Labour charge RM20

Edited August 22, 2015 by gunshead

[gunshead]

continue more photos

[7seater]

Went to JB to do some repair.



1) Adjust the chain tensioner. Mine is not original. Thinking of changing next time. Now the engine is smooth. No more funny sounds.

2) My electric start not working. The workshop confirmed it is the starter relay problem. Jump direct, it can start easily. Noe looking for the relay.

3) Change the front sprocket from 14T to 15T. Trying out. So far happy with it. There will be 7% difference.

4) After servicing the carb, my bike has issue and not able to speed up. After much tried by the mechanic, it was the cause of the diaphram. After adjustment, now working fine.



Now my speedo seems very closed to a car. Quite the same speed.

[7seater]

Just repair a few more things and my bike should be good condition to ride. Raider is a good bike. No regrets buying it.

[gunshead]

just call Serivice centre, JB Suzuki and u take one day off

go there and do and change all parts



they have parts there and will give back factory standards

[gunshead]

today evening I saw one raider 15K number plate

[7seater]

just call Serivice centre, JB Suzuki and u take one day off

go there and do and change all parts



they have parts there and will give back factory standards





Yeah. Have to find a day to JB Suzuki Setia to get all the parts. Especially the starter relay and the chain tensioner.

[khai ramburg]

Any suzuki raider for sale?

[lost4love]

today evening I saw one raider 15K number plate





"FE" plate?
