:help: need some detail for Vtec 1

Pls give the actual sizing ( mm or inches) of the following.

i have a wrench so just need to purchase nut sockets for DIY..



1. Socket sizing for spark plug ( is it 16 socket)

2. Rear wheel axle nut sizing.





thanks in advance..



yup spark plug is size 16

rear wheel is 24, the smaller 1 i forget le.

[quizesilver]

need help.. thinking of installing a switch for my low bean.. so tat my passing light will still work when i off the low bean.. any guys can guide on which colour wire to strip? thx!

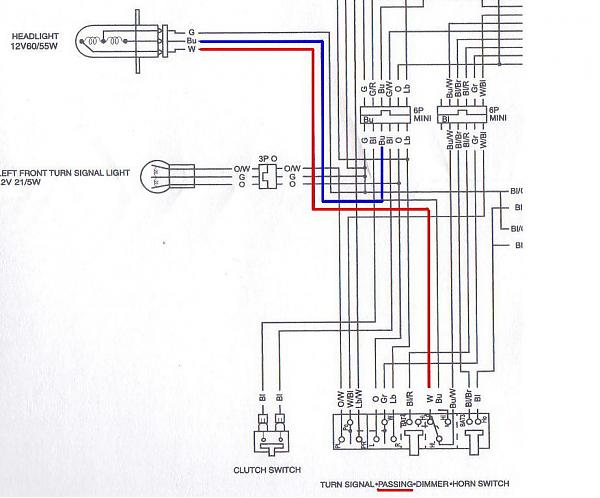

cut the wire on the right (blue), the one beside the gnd (black). the one on top (white colour) is the high beam.

u may use a voltmeter to double check



u may refer to the s4 manual circuit diagram also.



in case u wan to be sure.

the red colour is the one that link to passing switch which is equal to the high beam, thus u dun cut that. cut the blue colour. the black/gray is the gnd.

[jhawk2820]

yup spark plug is size 16

rear wheel is 24, the smaller 1 i forget le.



thanks for your advice..

[Crazy]

1st DIY Session (after Revamp of S4 Section)[/color][/u][/b][/size]

Date: TBC (most prob weekend)

Time: TBC (most prob late morning till evening)



Interested? please leave nick / bike / things that you wanna DIY

1. biting_point / Spec1 / nothing, can help out.

2. ZzGaNgStErzZ / Spec3 / voltmeter

3. Fijian Warrior/ spec1/ might wanna do led or else just help out

4.

5.

6.

7.





Pending

1. Xiao^Bai / Spec 1 / nth... juz looking around..

2. Crazy / Spec 1 / Maybe electric horn

3.











Please Click On "QUOTE" on this posting, COPY and PASTE the contents into your posting without the

and [/quote ]. Thank you.[/color]

[euz]

1st DIY Session (after Revamp of S4 Section)[/color][/u][/b][/size]

Date: TBC (most prob weekend)

Time: TBC (most prob late morning till evening)



Interested? please leave nick / bike / things that you wanna DIY

1. biting_point / Spec1 / nothing, can help out.

2. ZzGaNgStErzZ / Spec3 / voltmeter

3. Fijian Warrior/ spec1/ might wanna do led or else just help out

4.

5.

6.

7.





Pending

1. Xiao^Bai / Spec 1 / nth... juz looking around..

2. Crazy / Spec 1 / Maybe electric horn

3. Euz / Spec 3 / If manage to buy a Digital voltmeter then will DIY











Please Click On "QUOTE" on this posting, COPY and PASTE the contents into your posting without the

and [/quote ]. Thank you.[/color]

[Crazy]

1st DIY Session (after Revamp of S4 Section)[/color][/u][/b][/size]

Date: TBC (most prob weekend)

Time: TBC (most prob late morning till evening)



Interested? please leave nick / bike / things that you wanna DIY

1. biting_point / Spec1 / nothing, can help out.

2. ZzGaNgStErzZ / Spec3 / voltmeter

3. Fijian Warrior/ spec1/ might wanna do led or else just help out

4.

5.

6.

7.





Pending

1. Xiao^Bai / Spec 1 / nth... juz looking around..

2. Crazy/Spec 1/electric horn (I have no idea on how to install. So can anybody help me with it? Item required?

3. Euz / Spec 3 / If manage to buy a Digital voltmeter then will DIY











Please Click On "QUOTE" on this posting, COPY and PASTE the contents into your posting without the

and [/quote ]. Thank you.[/color]

[B.e.n.s.o.n]

hi... wanna ask something regarding rear hugger... is it true that i've to drill a hole in my bike frame to secure it? does my rear wheel needs to be taken out? impossible for me diy?

[Beehive]

Hi Does anyone know this?? can Super 4 REVO install alarm?? as i was told by one of the technician from BIKE LAB he said better not to install as the bike is EFI and will affect the sensor if alarm is install.



Guys is this true, is REVO safe to install an alarm? pls advice thank you

[biting_point]

hi... wanna ask something regarding rear hugger... is it true that i've to drill a hole in my bike frame to secure it? does my rear wheel needs to be taken out? impossible for me diy?



not need to drill hole.. you need to have a longer screws to screw the hugger in in replacement of the chain guard..



i had mine install without taking out rear wheel.. possible to DIY..



Hi Does anyone know this?? can Super 4 REVO install alarm?? as i was told by one of the technician from BIKE LAB he said better not to install as the bike is EFI and will affect the sensor if alarm is install.



Guys is this true, is REVO safe to install an alarm? pls advice thank you



as replied in the other thread..

[Guest simpleme]

hi john,

i have added a 2c worth to the revo thread.



hi beehive,

do relax abit and dun worry abt no one is able to ans you queries.

dont have to ask the qns in a few thread.



cheers

[B.e.n.s.o.n]

not need to drill hole.. you need to have a longer screws to screw the hugger in in replacement of the chain guard..



i had mine install without taking out rear wheel.. possible to DIY..



so that means the rear hugger is onli secure to the chain guard onli? will it be like dangling?

[Crazy]

Anyone tap the led undertray power from the rear brake light?



Or can anyone briefly explain the circuit of fixing the led to me? Using bike main fuse?

[Guest simpleme]

Anyone tap the led undertray power from the rear brake light?



Or can anyone briefly explain the circuit of fixing the led to me? Using bike main fuse?



hi crazy,

it can be done. but i thought the undertray led is for the signal?



for your fuse, tap from the ign fuse. then to a switch then to your led.

the fuse is at the left side cover.



enjoy ur diy. if you need help. juz post here again.



cheers

[Crazy]

hi crazy,

it can be done. but i thought the undertray led is for the signal?



for your fuse, tap from the ign fuse. then to a switch then to your led.

the fuse is at the left side cover.



enjoy ur diy. if you need help. juz post here again.



cheers



Thanks simpleme . I got it done. Great thanks to shinwa too.



Not signal just some fancy light:cheeky: . Btw where you guys mount the led cube? mine not very bright maybe i mount the wrong place?

[zax]

yo guys me and biting point doing DIY at his place... anybody wanna tag along??? i'm meeting him 11.15pm at his place ....

[quizesilver]

yo guys me and biting point doing DIY at his place... anybody wanna tag along??? i'm meeting him 11.15pm at his place ....





oh that is late...

btw when is the diy??

or i need to put time and date?

[TripleOneZero]

cut the wire on the right (blue), the one beside the gnd (black). the one on top (white colour) is the high beam.

u may use a voltmeter to double check



u may refer to the s4 manual circuit diagram also.



in case u wan to be sure.

the red colour is the one that link to passing switch which is equal to the high beam, thus u dun cut that. cut the blue colour. the black/gray is the gnd.



Thanks for the great info.. finaly gt my headlight switch done..

[biting_point]

oh that is late...

btw when is the diy??

or i need to put time and date?



just finished the DIY blink blink session abt 10hrs ago.. totally raped his bike apart..



but bike is



:cheers:

[Mussolini]

sorrie to interrupt... i just like to find out...



can we fit in ac generator(magnetic coil) from cbr400 or 600 on s4??

[FZ06]

need help here...anyone knows where to get or replace the security nut/bolt which ppl put to replace the original nut on the brake calliper.the nut got like star shape depression and got a small metal in the centre. mine is jialat oredi so scared next time want to service the calliper got problem to take out..

[JbAtRaCeR]

Hi guys just want to check. For tightening of steering cone,do i need to remove the top suspension clam to tighten the 2 locknuts beneath?

[biting_point]

need help here...anyone knows where to get or replace the security nut/bolt which ppl put to replace the original nut on the brake calliper.the nut got like star shape depression and got a small metal in the centre. mine is jialat oredi so scared next time want to service the calliper got problem to take out..



Try Yong Seng Screws..

[s4vtec]

Hi guys just want to check. For tightening of steering cone,do i need to remove the top suspension clam to tighten the 2 locknuts beneath?



cant really figure out wat u mean... i think best is to go bike shop to get it checked...

[quizesilver]

Thanks for the great info.. finaly gt my headlight switch done..



u welcome. glad it manage to help u.

[quizesilver]

just finished the DIY blink blink session abt 10hrs ago.. totally raped his bike apart..



but bike is



:cheers:



bo jio.

haha so when wan to do diy at cck.



stupid shiwa change thread title then nv take care.
