[Group] SBF Yamaha Spark Z & X

[gunshead]

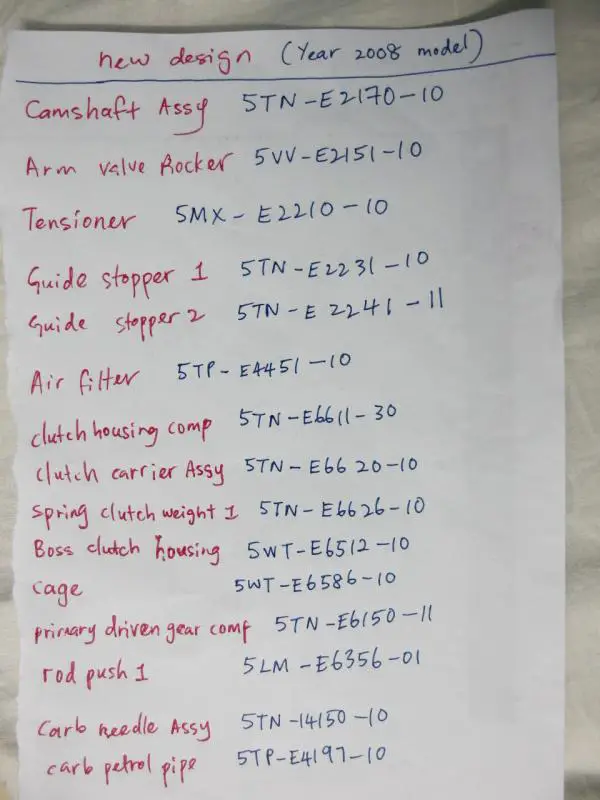

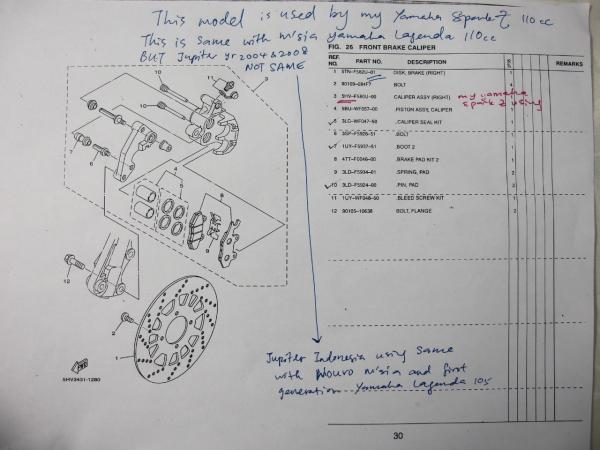

new part catalogue

corrective parts number



better quality



see

[gunshead]

information we needed



yamaha lagenda 110cc

yamaha jupiter z 110cc

yamaha spark z 110cc



see

Edited November 30, 2015 by gunshead

[gunshead]

yamaha genuine parts



go to Rowell Road, beside serangoon road



Auto machinery pte ltd spare part shop



super cheap genuine Yamaha parts



all parts under one roof

[gunshead]

hi



self explanation pictures



yesterday I did

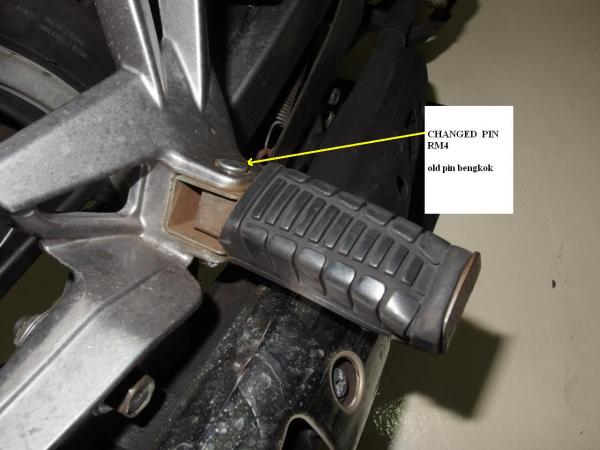

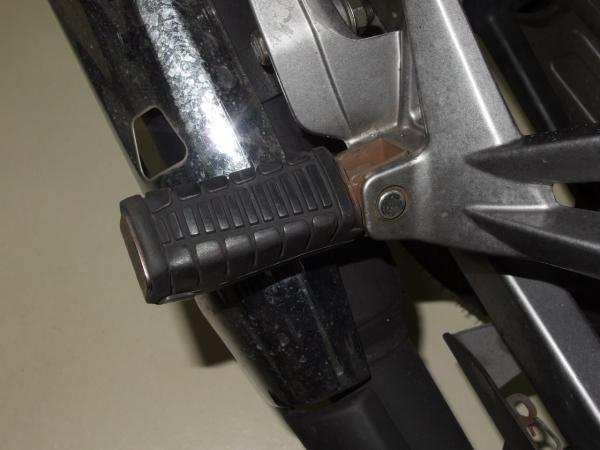

changed rear footrest pin RM 4

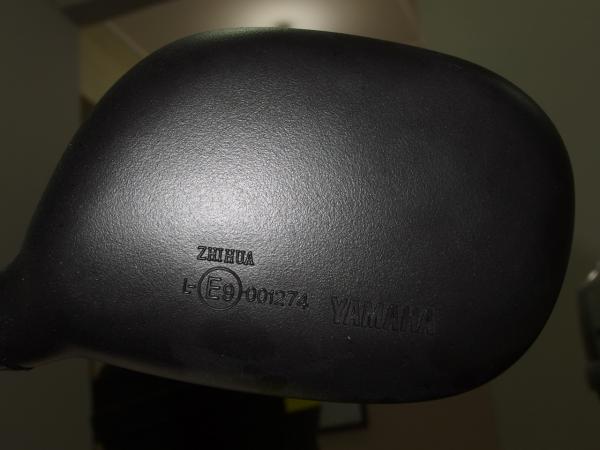

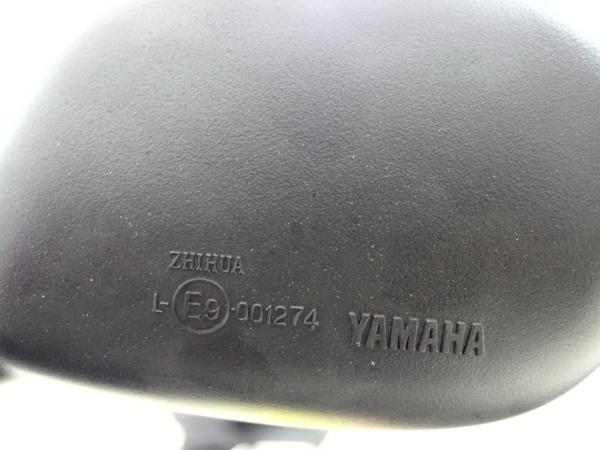

changed rear view mirror one pair Yamaha scooter genuine Rm35

[gunshead]

10/1/16



00000



means second round



now 200,000km



also celebrating 11 years anniversary

Edited January 15, 2016 by gunshead

[e-flavstar]

Gunshead- where do you do servicing in jb?





Sent from my iPhone using Tapatalk

[gunshead]

go to seng hoe motor ( STARSHOP)

jalan barau

skudai

Edited February 25, 2016 by gunshead

[gunshead]

25/2/16



noticed front tyre vibrate little bit

then mechanic did something like adjusting the air pressure and saw some uneven tire wall

he did some touching and then all OK

[gunshead]

14/4/16 03989KM means 203.989km



put new double side tape for all cowling / fairing from vibration

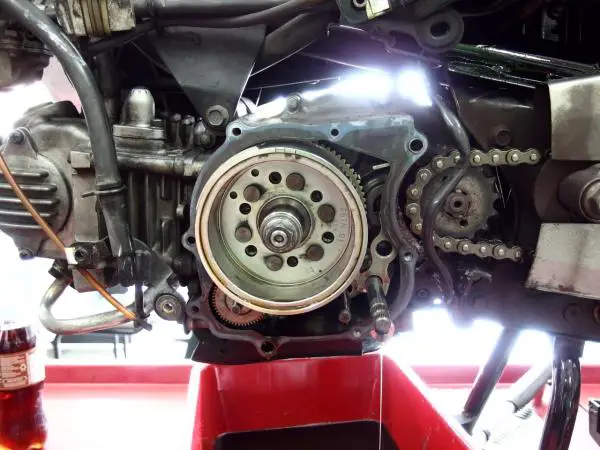

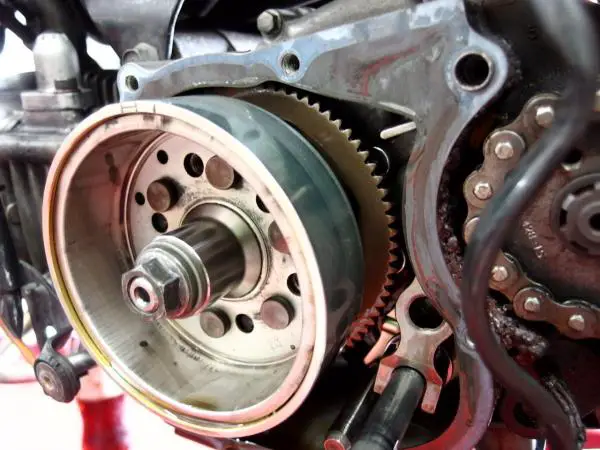

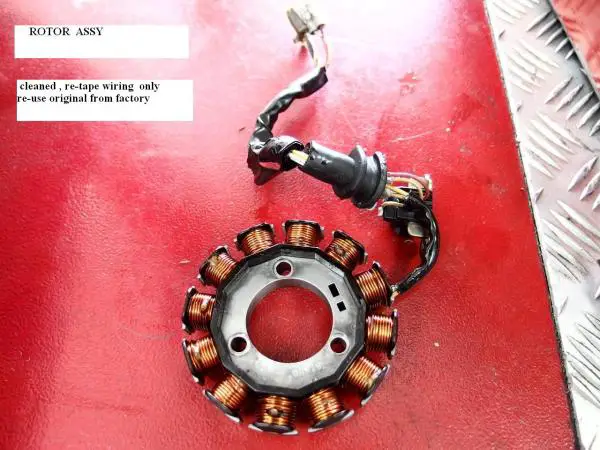

rotor assy generator cleaned (magnet electric coil)

rotor assy wiring re-tape

NGK G-power

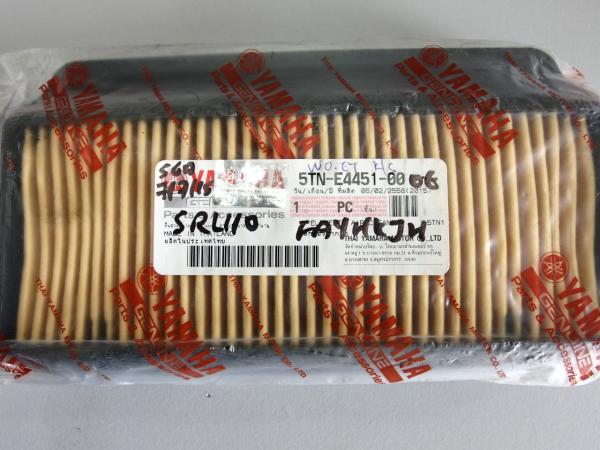

Air filter RM21

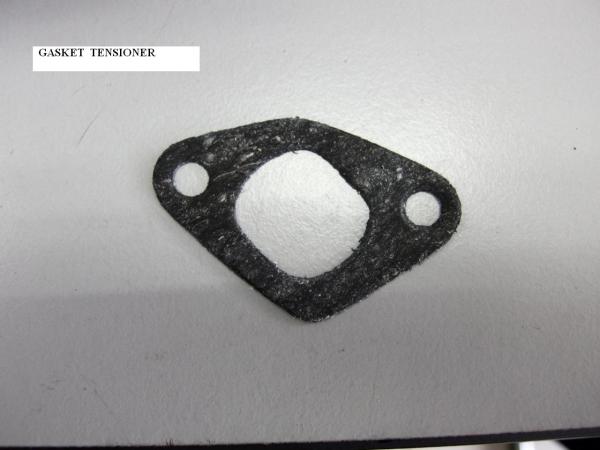

Gasket tensioner RM2

shell R4 engine oil 850ml

adjust throttle free play

adjust meter cable position

[gunshead]

hi

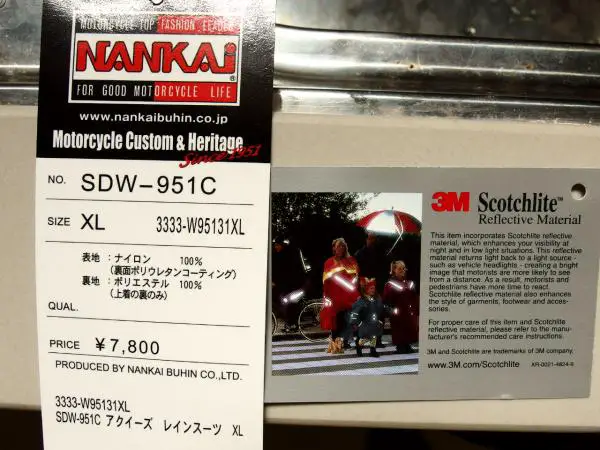

I got this rain coat from ah boy Kelantan lane

very light

fantastic



NANKAI JAPAN brand

[gunshead]

my favorite seat net

the best of the best



cap kuda

made in Vietnam

[virux]

  gunshead said:

yamaha genuine parts



go to Rowell Road, beside serangoon road



Auto machinery pte ltd spare part shop



super cheap genuine Yamaha parts



all parts under one roof



Gotta check, thanks for sharing !!!

[faizhaziq]

Hi guys,



Anyone can recommend me a good reliable shop to service my SparkZ in Sg?

Thanks in advance!

[gunshead]

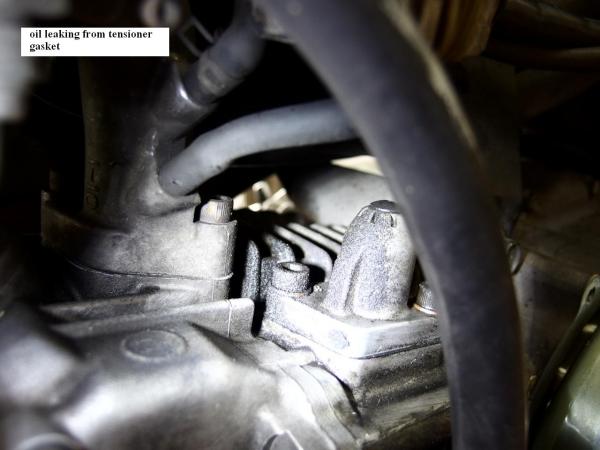

always check for oil leak at gasket areas



i found one leak oil at tensioner



changed gasket tensioner RM 2

[gunshead]

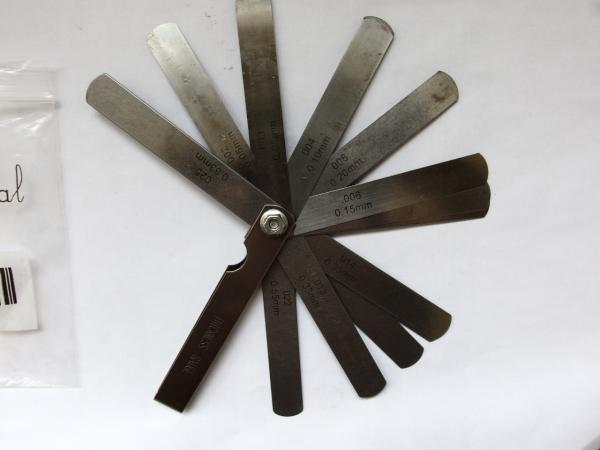

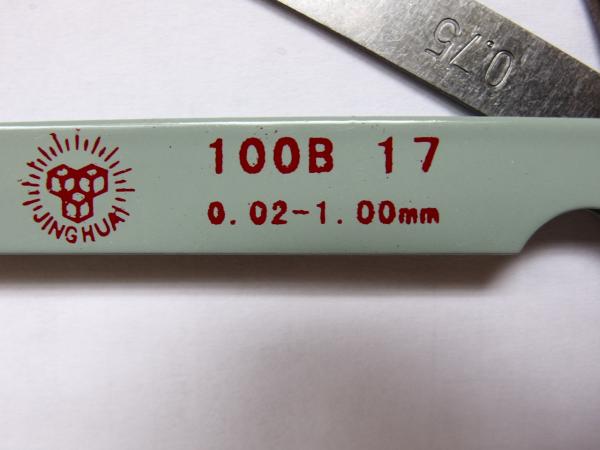

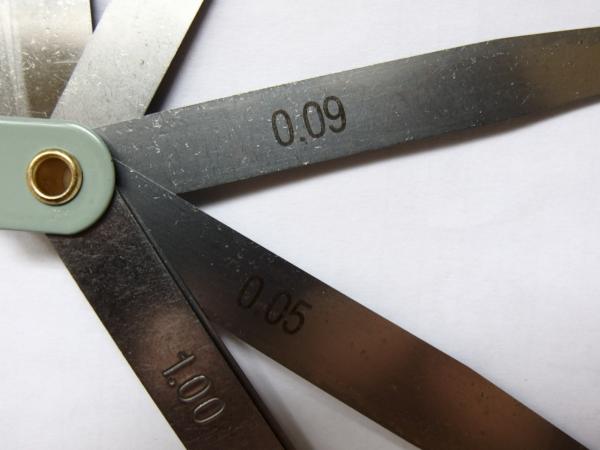

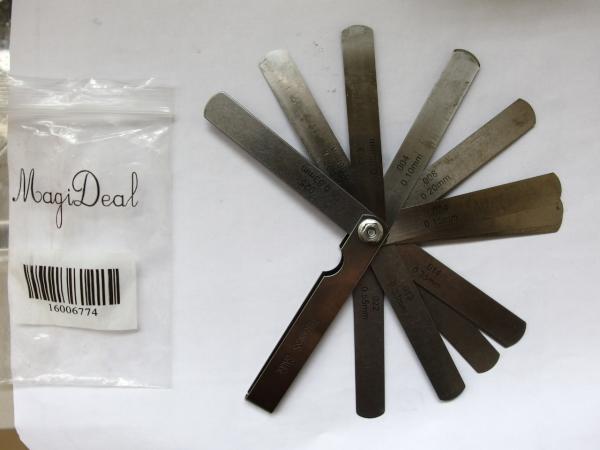

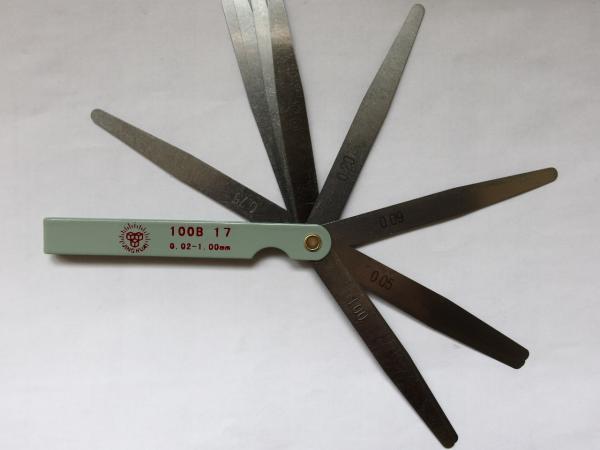

bought feeler thickness gauge online from lazada

RM19.80

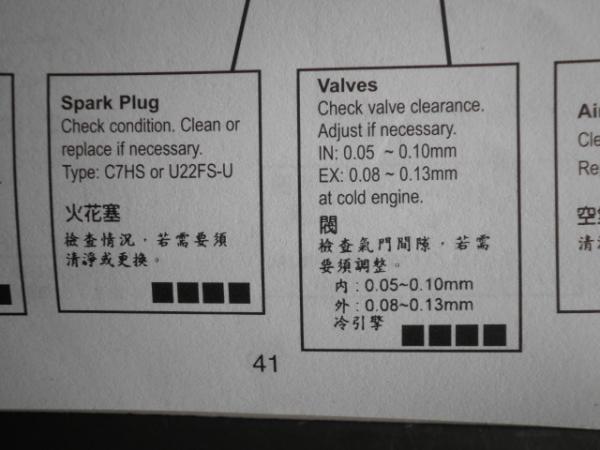

good for accurate valve clearance



two different designs



each Rm19.80

[gunshead]

after 12 years

mileage above 205,000km



30 june 2016

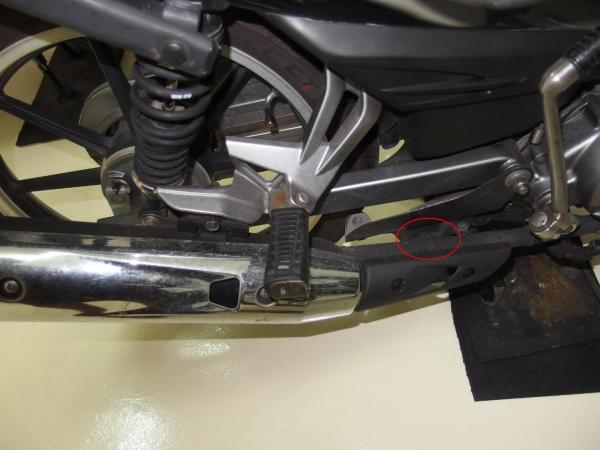

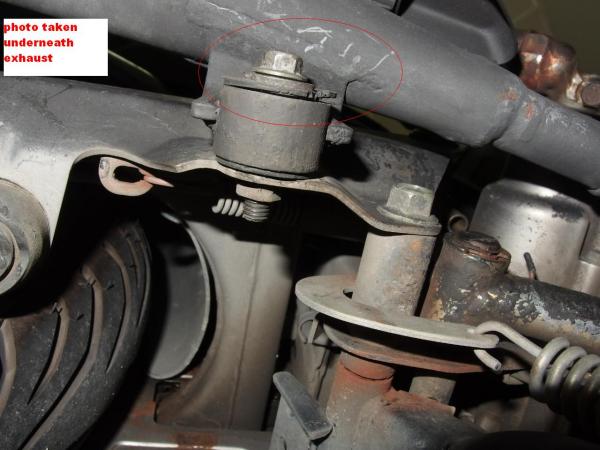

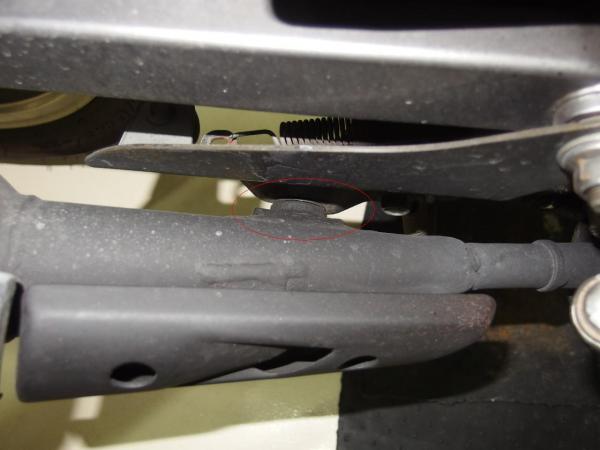

found that exhaust giving ding ding sound

it was the centre rubber nut worn

fixed another rubber and retighten nut

[gunshead]

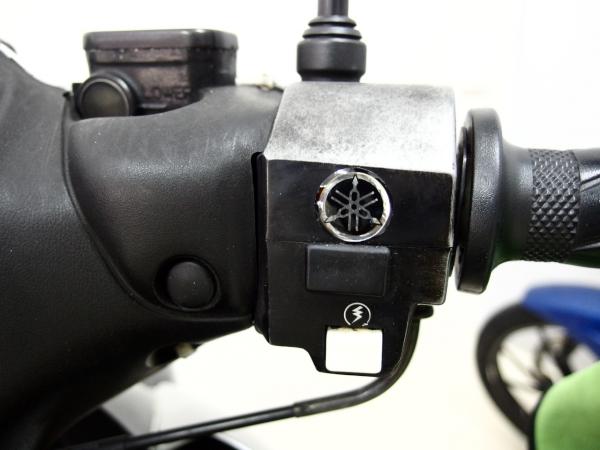

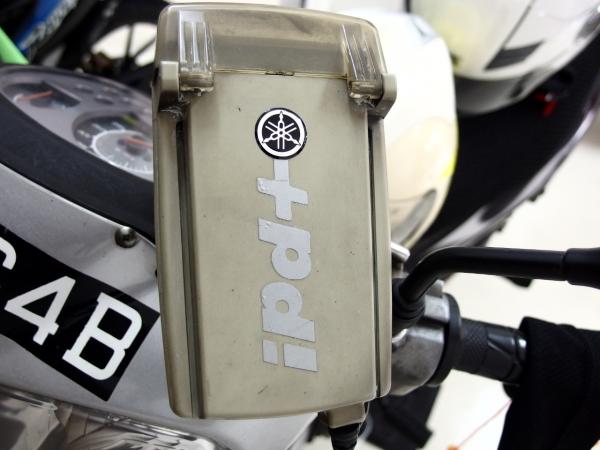

bought Yamaha logo

[gunshead]

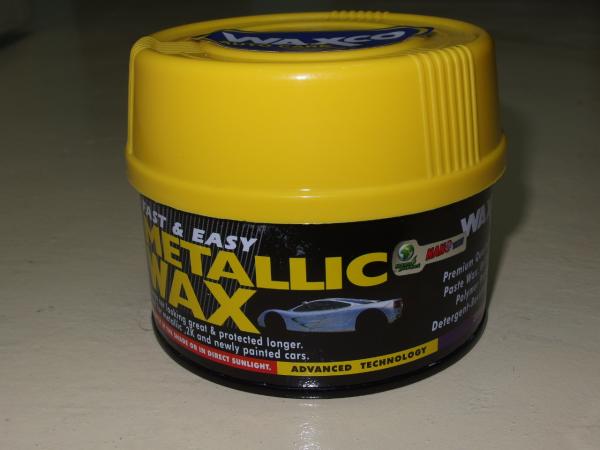

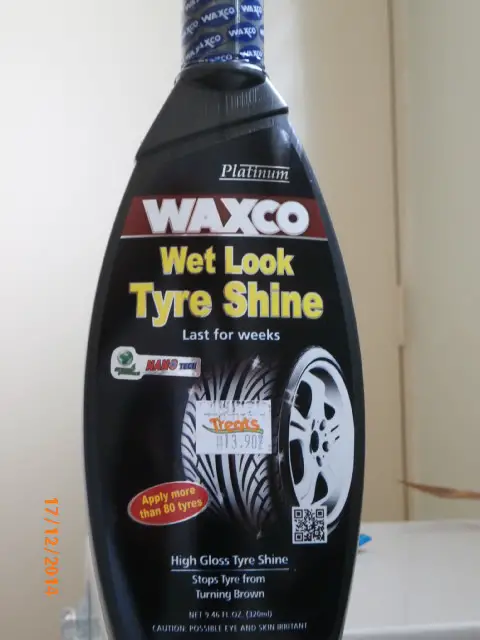

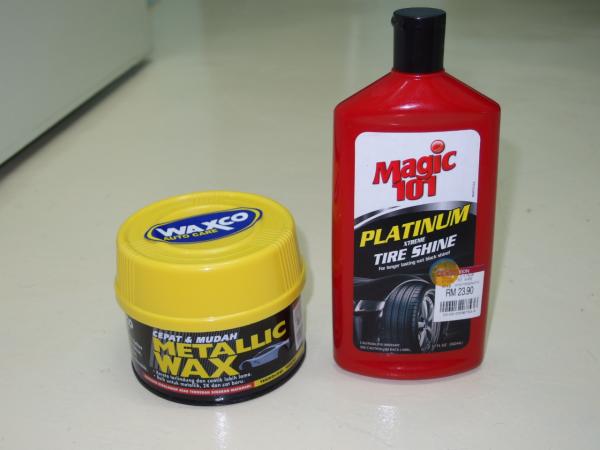

my favorite wax paste and vinyl polish

[gunshead]

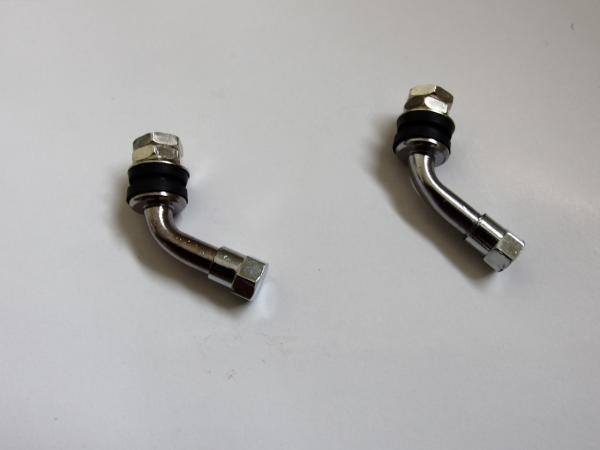

always suggest to use L shape valve nut for tubeless tire



will be friendly when pump air at petrol kiosk

[gunshead]

17 August 2016

08014km means 208,014km

skudai, JB



first time changed

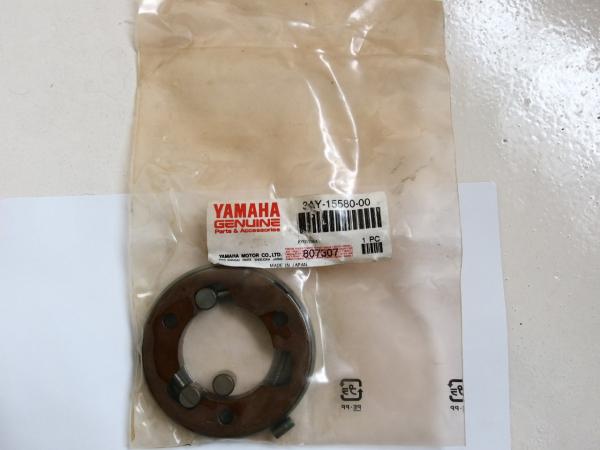

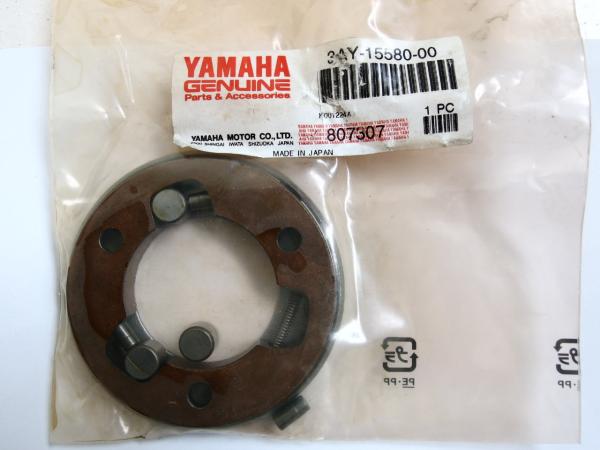

Starter clutch one way made in japan RM80

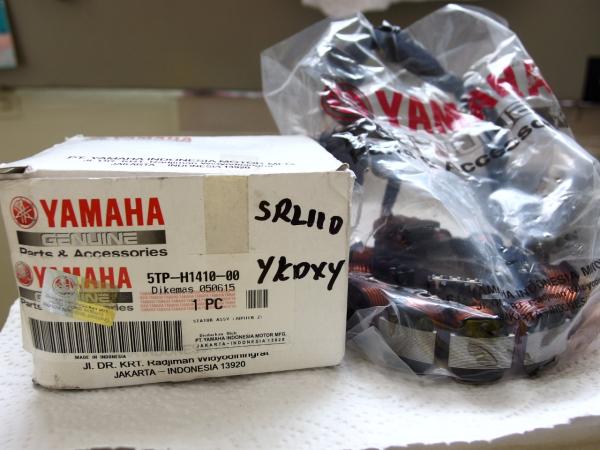

magneto coil made in indonesia RM156

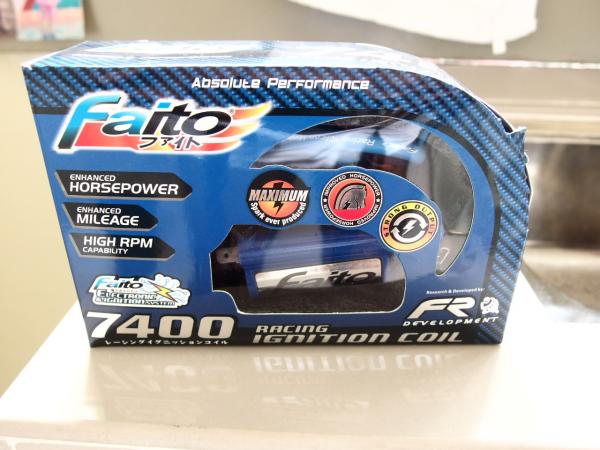

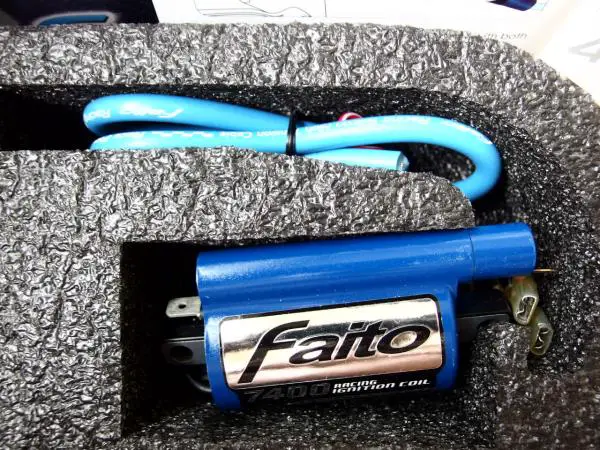

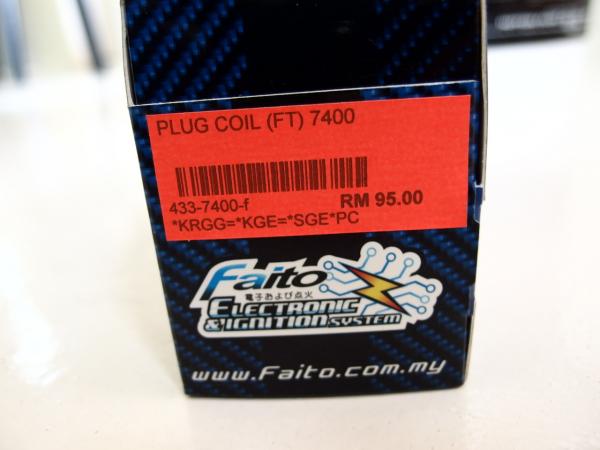

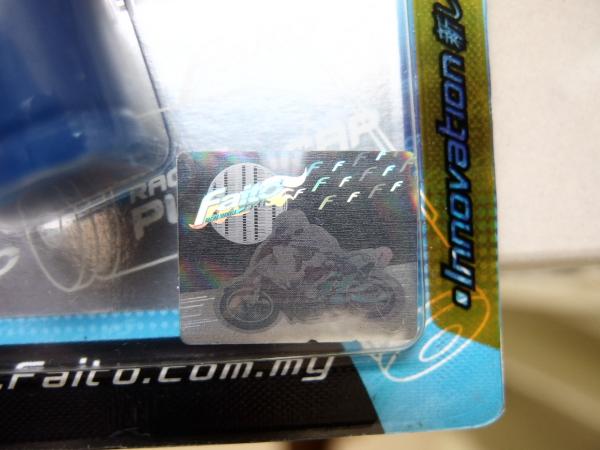

faito 7400 ignition coil RM68

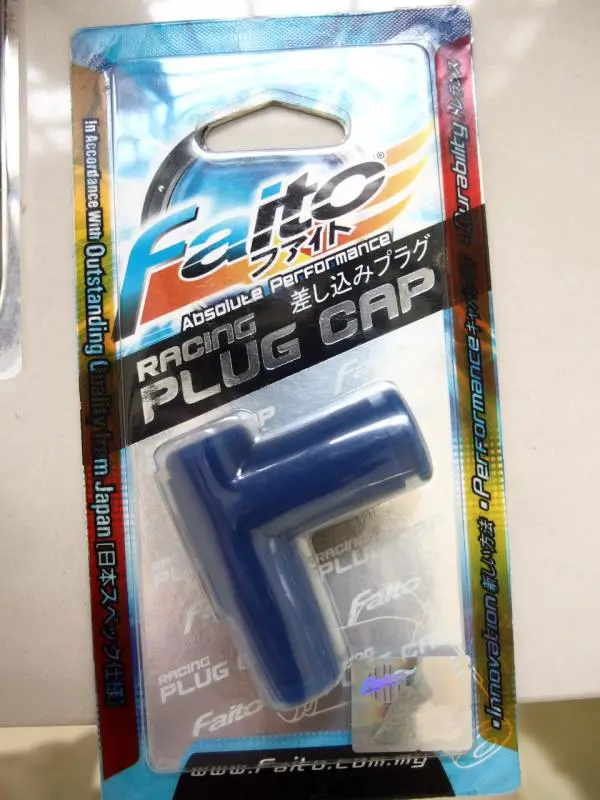

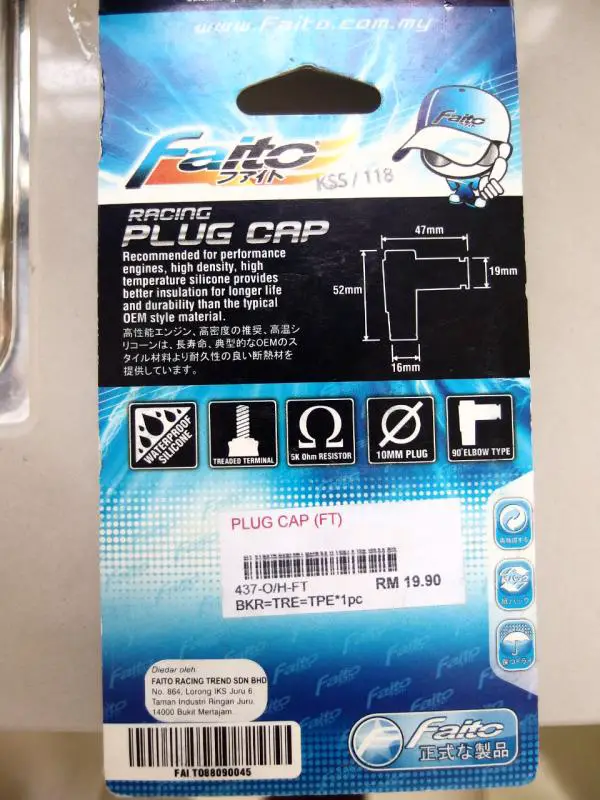

faito plug cap RM12



NGK G-power platinum RM12

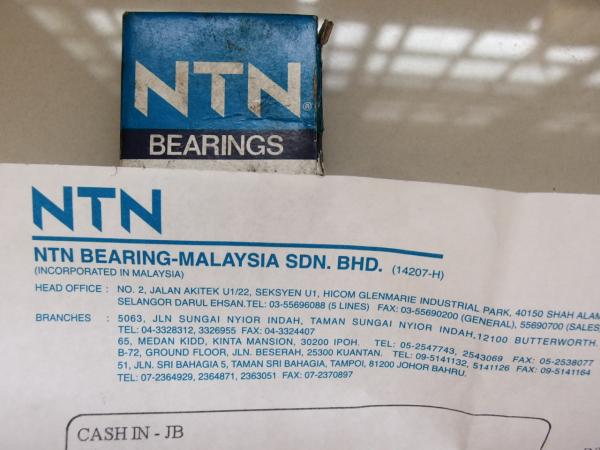

front wheel NTN Bearing 2 pcs RM24

gasket cover FCCI made in thailand RM3

engine oil shell R4

Service charge RM15

[gunshead]

continue more photos for above repair

[gunshead]

chong aik spare parts



102, desker road





http://www.chongaik.com.sg

62912532



buy yamaha parts



plenty and affordable price



makes me happy

[gunshead]

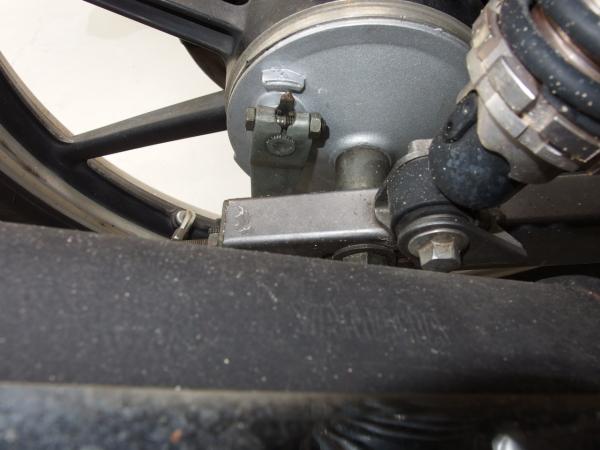

meter 08334km means 208,334km

27/8/16



shell R4 oil

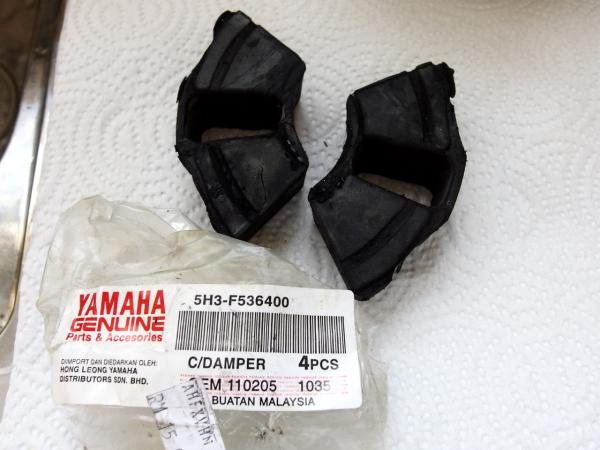

hub c/damper RM12 yamaha genuine RUBBER 4 PCS

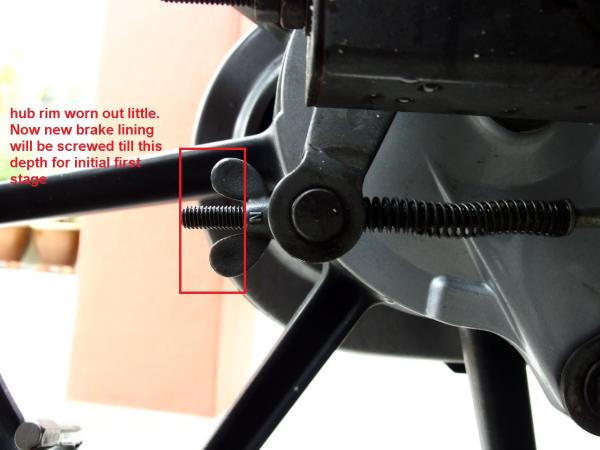

brake shoe lining RM16 use lining with long thick spring

rear hub panel RM20 3rd party brand



rear wheel spinning like heavy

after checking found out the rear hub panel worn out and holes loose

this makes the brake lining slanted



so after 12 years changed the rear hub panel but used 3rd party brand only

Edited September 2, 2016 by gunshead

[gunshead]

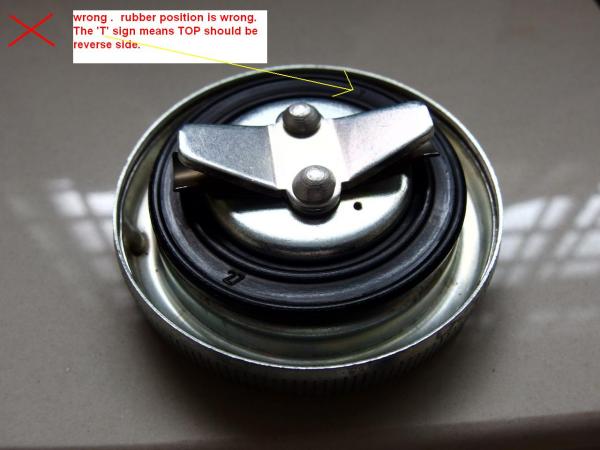

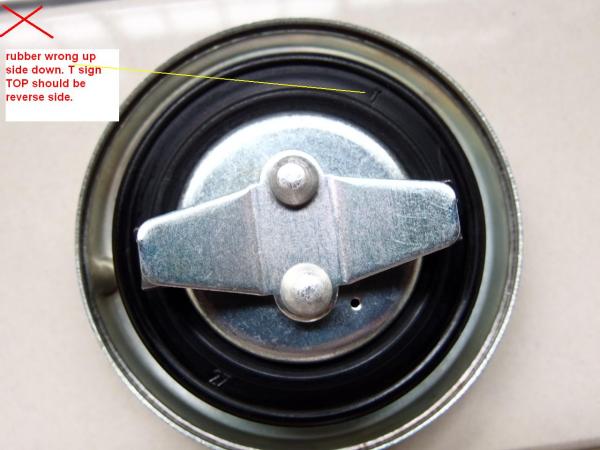

fuel tank



cap fuel filler



make sure the rubber is in correct position



example it is "T" label

means top position



do not fix reverse order



make sure change rubber if petrol leaking or bike coughing

[gunshead]

went to service

change engine oil

shell r4

adjust chain

adjust brake shoe
