Hazard Light? I remember someone told me that can fix for me and ask me to wait for 2 weeks, but I think till now it's been very much more than 2 months, can't remember who anyway, lycan u know how to do it? were u the one who told me that?

[jtzx]

i also want to do hazard light.. but have no idea how it works after looking at the diagram Uncle koh shown me..

[chuan.z]

It won't be exactly the same as the diagram. The stock flasher will be replaced with the ones that can support 4x signal lights. I know the Phantom stock flasher is spec'ed for 2x15w signal lights only.

After that, it's just a shunt on the circuit to bypass the signal light switch for hazard light function.

[lv3338]

i also want to do hazard light.. but have no idea how it works after looking at the diagram Uncle koh shown me..



i did mine with hazard light.... they will add in one more flasher when u wan to flash 4 together....a separate switch be added neatly ..the stockwill be keep and serve when u do the l/r signal flashing...

[nuttybing]

i did mine with hazard light.... they will add in one more flasher when u wan to flash 4 together....a separate switch be added neatly ..the stockwill be keep and serve when u do the l/r signal flashing...



hmm check with you where is your supply +12v going to be from?



cos yest I tried to tap directly from the battery + terminal(with DPST & relay) but cannot work...however if i tap from either the gray or black wire from the headlight assembly area(which later goes into the handlebar switches), it can work.

[ausa]

I think it's better to tap directly from the battery, it's didn't work maybe the relay connection not correct or the relay carput.

[jtzx]

hmm... uncle koh you leading us in this project hazard light??

[lv3338]

hmm check with you where is your supply +12v going to be from?



cos yest I tried to tap directly from the battery + terminal(with DPST & relay) but cannot work...however if i tap from either the gray or black wire from the headlight assembly area(which later goes into the handlebar switches), it can work.





it's from the headlight....

[mepkoh]

hmm... uncle koh you leading us in this project hazard light??

how about u JTZX.?

lets have a show of hands..how many of u will like a diy 0f hazard lights..?

put your name here..



1.mepkoh

2

3

4

5

max 10.....minimum 5



once the magical no. of 5 reached will source for the parts and their costs..thanks.

[mepkoh]

clinic meet today at 3 pm...lai ah lai ah..

[jtzx]

lets have a show of hands..how many of u will like a diy 0f hazard lights..?

put your name here..



1.mepkoh

2 jtzx

3

4

5

max 10.....minimum 5



once the magical no. of 5 reached will source for the parts and their costs..thanks.







ps. anytime man. got hazard light can le.. But can my bike not used for labtest?

[kmjoe]

OMG my hazard spoil liao lol... my left side not working anymore! erm do u guys kno hw to relocate signal light? i cant put my saddle bag with the stock signal light

[jtzx]

can go ah chong. ask him help you..

[kmjoe]

ah chong is planet? if so he told me today and monday dun come, do this can cry need 2 hrs lol

[ausa]

lets have a show of hands..how many of u will like a diy 0f hazard lights..?

put your name here..



1.mepkoh

2 jtzx

3 ausa

4

5

max 10.....minimum 5



once the magical no. of 5 reached will source for the parts and their costs..thanks.







ps. anytime man. got hazard light can le.. But can my bike not used for labtest?

[devil.L]

ah chong is planet? if so he told me today and monday dun come, do this can cry need 2 hrs lol



signal lights i can help. (:

simple, chop chop.

[kmjoe]

omg, went lab to do the signal... 2 bracket and help me fix it to the rear = $25 =/

[jtzx]

lets have a show of hands..how many of u will like a diy 0f hazard lights..?

put your name here..



1.mepkoh

2 jtzx

3 ausa

4

5

max 10.....minimum 5



once the magical no. of 5 reached will source for the parts and their costs..thanks.

[nuttybing]

Just to share some of my experience...the relay that LAB sells are rated 2x 10W +1.7W. It will still work even with 4 signal lights but I don't want to risk burning it out.



You can go to this shop opposite SLT, no. 57 Jinda something to get a higher rated relay. Abt $5.50...Costs even lesser than LAB!



I've updated my diy guide for hazard light...if you need help i'm more than willing to share...another tip is to get some female spade connectors and crimp the wires so that it does not come lose over time due to vibration.

[mepkoh]

Just to share some of my experience...the relay that LAB sells are rated 2x 10W +1.7W. It will still work even with 4 signal lights but I don't want to risk burning it out.



You can go to this shop opposite SLT, no. 57 Jinda something to get a higher rated relay. Abt $5.50...Costs even lesser than LAB!



I've updated my diy guide for hazard light...if you need help i'm more than willing to share...another tip is to get some female spade connectors and crimp the wires so that it does not come lose over time due to vibration.



thank you....we need help here..

[jtzx]

Just to share some of my experience...the relay that LAB sells are rated 2x 10W +1.7W. It will still work even with 4 signal lights but I don't want to risk burning it out.



You can go to this shop opposite SLT, no. 57 Jinda something to get a higher rated relay. Abt $5.50...Costs even lesser than LAB!



I've updated my diy guide for hazard light...if you need help i'm more than willing to share...another tip is to get some female spade connectors and crimp the wires so that it does not come lose over time due to vibration.



will be so good if you could show us and lead us for this DIY =)

[nuttybing]

thank you....we need help here..



will be so good if you could show us and lead us for this DIY =)



hey uncle mepkoh, maybe when you're organising the hazard lights diy i can drop by to help around

[chuan.z]

Just to share some of my experience...the relay that LAB sells are rated 2x 10W +1.7W. It will still work even with 4 signal lights but I don't want to risk burning it out.



You can go to this shop opposite SLT, no. 57 Jinda something to get a higher rated relay. Abt $5.50...Costs even lesser than LAB!



I've updated my diy guide for hazard light...if you need help i'm more than willing to share...another tip is to get some female spade connectors and crimp the wires so that it does not come lose over time due to vibration.



The relay I got from them is 4x 15w...

[mepkoh]

hey uncle mepkoh, maybe when you're organising the hazard lights diy i can drop by to help around [/quote

on behalf of future diyers thank you...sir.

for all those who help in one way or another too....including those who sign up to make it happen.

nuttybing please come...

[nuttybing]

The relay I got from them is 4x 15w...

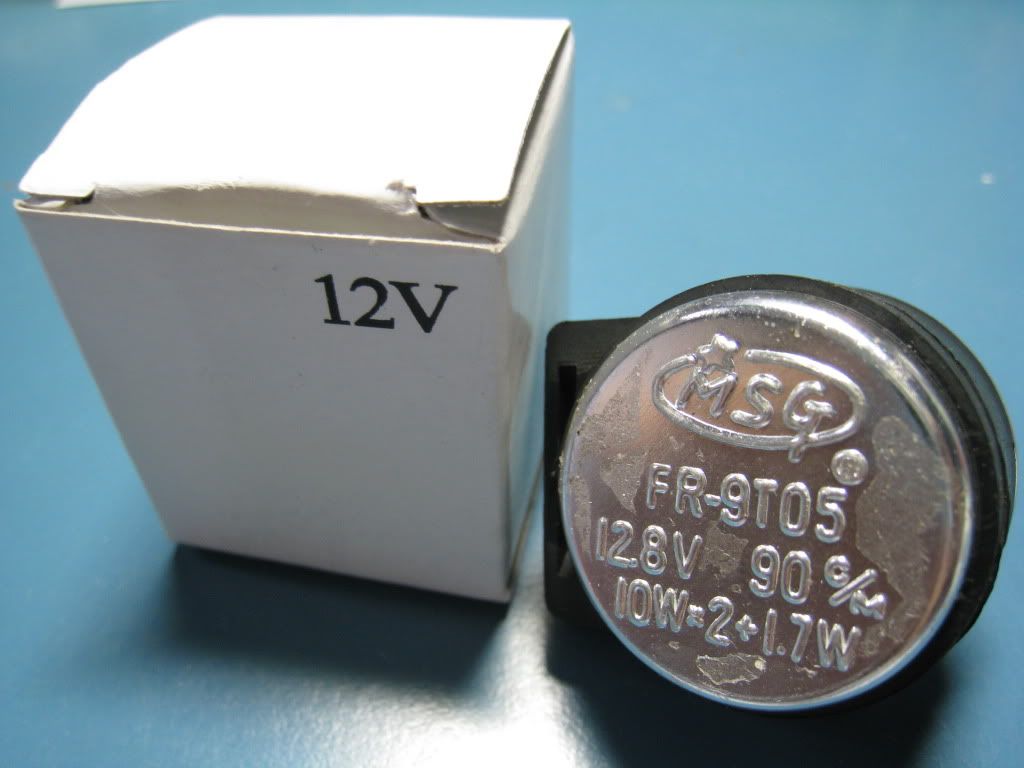

hmm that's interesting, i asked them recently but they only show me this

http://img.photobucket.com/albums/v189/nuttybing/Phantom%20TA200%20DIY/IMG_2011.jpg

maybe my shopping power not enough haha



hey uncle mepkoh, maybe when you're organising the hazard lights diy i can drop by to help around [/quote

on behalf of future diyers thank you...sir.

for all those who help in one way or another too....including those who sign up to make it happen.

nuttybing please come...



no worries, thanks for opening up your place as a meetup point too!
