We are all back safely from Koh Samui!



Had a lot of fun and food! Pictures will be up shortly...



Thank you Justin and Beebee for organising and leading us up!



Thank you Ah Gan, Bats and Wife, Brendan and Ming for looking out for me when something "special" happened!



Thank you Custom and McTan for your kind escort all the way to Pagoh!



Looking forward to another trip like this or better!



KHORP KHUN KRAP!

[mctan]

Welcome back to all the Samui riders and pillions.



What a waste that me and my wife could not join in for the big fun.



Maybe we shall have a local meet up to have some update/feedback/viewing of photos...

[Custom]

KHORP KHUN KRAP!



Wah come back all speak thai liao....

meet up to report ur trips details

[Swift]

Time: 2130hrs

Date: 8 Sep 07, Saturday

Meet at Kallang Mac

Purpose: Compile photos of Samui Trip, Debrief, Coffee session, TK session.



Anyone else is welcome to join us! Just insert your name below...



1. Swift

2. Justin & Beebee

3. Brendan & GF

4. Bats & wife

5. Ah Gan

6.

7.

8.



p.s Justin, are you bringing your laptop? Or Ah Gan's?

[jleo]

Time: 2130hrs

Date: 8 Sep 07, Saturday

Meet at Kallang Mac

Purpose: Compile photos of Samui Trip, Debrief, Coffee session, TK session.



Anyone else is welcome to join us! Just insert your name below...



1. Swift

2. Justin & Beebee

3. Brendan & GF

4. Bats & wife

5. Ah Gan

6.

7.

8.



p.s Justin, are you bringing your laptop? Or Ah Gan's?



I'd bring a laptop with a CD-RW drive..



REst with the cams pls bring ur pics along so i can complie and upload the pics to ur cams or thumbdrives...



If u want bring a CD-R so i will bring a copy in(resized of course), i'll bring watever spare CD-Rs i have..

[bats]

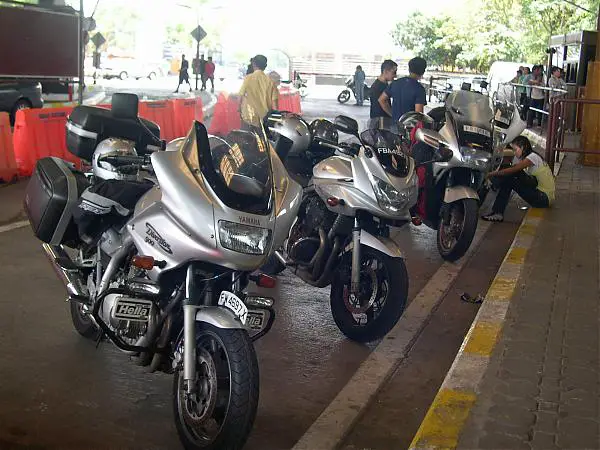

Hi, I bring along memory card and pocket reader. Here's some pics.....

[bats]

another 3 pics....

[bats]

2 more pics, left Koh Samui ....

[Custom]

Time: 2130hrs

Date: 8 Sep 07, Saturday

Meet at Kallang Mac

Purpose: Compile photos of Samui Trip, Debrief, Coffee session, TK session.



Anyone else is welcome to join us! Just insert your name below...



1. Swift

2. Justin & Beebee

3. Brendan & GF

4. Bats & wife

5. Ah Gan

6. custom

7.

8.



p.s Justin, are you bringing your laptop? Or Ah Gan's?

[hondasteed01]

Bat,



nice job! We have more picture to share on this sat! i will bring cdrw to download pictures from all of you!

Guys, the buddha riding on the small bike is cool man!

[Custom]

Bat,



nice job! We have more picture to share on this sat! i will bring cdrw to download pictures from all of you!

Guys, the buddha riding on the small bike is cool man!



cdrw too small.... 16G thumdrive more like it.

[bats]

Time: 2130hrs

Date: 8 Sep 07, Saturday

Meet at Kallang Mac

Purpose: Compile photos of Samui Trip, Debrief, Coffee session, TK session.



Anyone else is welcome to join us! Just insert your name below...



1. Swift

2. Justin & Beebee

3. Brendan & GF

4. Bats & wife

5. Ah Gan

6. custom

7. leong

8.

9.



p.s Justin, are you bringing your laptop? Or Ah Gan's?

[Heyrul77]

Haha... Saw Kelvin bike at USR just now at about 1900hrs. His is FS plate rite?

[tranceaddict]

Hello Diversion owners... I've been following both Diversion and TDM forums for quite sometime.

It seems that both are similar except one is chain-driven(TDM) and the other is shaft-driven(Diversion). I doin a small research on what class 2 bikes i should get and preferably with touring ability.

After much consideration, Im left with two choices which is Diversion or TDM. Since im a beginner in class2 bikes, i got a few questions and hope Diversion owners could help me come to a decision.

1) Is TDM the newer version for Diversion? eg. African Twin's newer version is Varadero

2) How much does Diversion cost OTR and is there any 1st hand bikes? (Rough guess if age 25-30)

3) Is it the same engine as TDM?

[Custom]

Hello Diversion owners... I've been following both Diversion and TDM forums for quite sometime.

It seems that both are similar except one is chain-driven(TDM) and the other is shaft-driven(Diversion). I doin a small research on what class 2 bikes i should get and preferably with touring ability.

After much consideration, Im left with two choices which is Diversion or TDM. Since im a beginner in class2 bikes, i got a few questions and hope Diversion owners could help me come to a decision.

1) Is TDM the newer version for Diversion? eg. African Twin's newer version is Varadero

2) How much does Diversion cost OTR and is there any 1st hand bikes? (Rough guess if age 25-30)

3) Is it the same engine as TDM?



qns 1 to 3 all answers are No.

Dn't think u've follow both Diveriosn & TDM forums due to the qns u asked.

[tranceaddict]

Hey man, there's more than 200++ pages combined to read up. I ain't got the time. Thanks for your help especially your comments ... U do have zero hospitality that I believe!! Im not getting a Divvy thats for sure... Thanks for the constructive reply and encouragement Custom.

[Custom]

Hey man, there's more than 200++ pages combined to read up. I ain't got the time. Thanks for your help especially your comments ... U do have zero hospitality that I believe!! Im not getting a Divvy thats for sure... Thanks for the constructive reply and encouragement Custom.



Sure U are welcome!!

Juz dun go around tell ppl tat you had follow through for sometime after tat follow by complain tat u dun have the time to read more than 200+ pages



Good tat you finally make up your decision.

tat was fast!

[William Tan]

Both the Diversion and TDM or totally different bikes.

One's a 4 the other's a 2. Air cooled, liquid cooled. Efi, Carbs.



One need not read all 200+ pages to know these. Just have to "follow both Diversion and TDM threads for quite sometime".



And personally, i do think that Custom answered all questions correctly and politely.

[bats]

Hey man, there's more than 200++ pages combined to read up. I ain't got the time. Thanks for your help especially your comments ... U do have zero hospitality that I believe!! Im not getting a Divvy thats for sure... Thanks for the constructive reply and encouragement Custom.



Hey bro, just because of the answers n a minor comment that u get makes you angry n miss out a very very good bike. That shouldn't be a class 2 attitude. Be more open to comments n u will learn more.

[bats]

Both the Diversion and TDM or totally different bikes.

One's a 4 the other's a 2. Air cooled, liquid cooled. Efi, Carbs.



One need not read all 200+ pages to know these. Just have to "follow both Diversion and TDM threads for quite sometime".



And personally, i do think that Custom answered all questions correctly and politely.



Short and sharp answer, bro.

[Custom]

Both the Diversion and TDM or totally different bikes.

One's a 4 the other's a 2. Air cooled, liquid cooled. Efi, Carbs.



One need not read all 200+ pages to know these. Just have to "follow both Diversion and TDM threads for quite sometime".



And personally, i do think that Custom answered all questions correctly and politely.



Thanks William

Lucky in SBF where ppl r more friendly. There r some forums tat replying these type of qns are massive flames haha

Ultimately the most important factors r u like the bike and u'll be be keeping it for long. Else most likely u'll loss interest within a short period of time like some of our x-buggers



PS: like ur signature makes me

This tat the famous Philippine's dish?

[mctan]

Hi Tranceaddict,

Used less than a min to complie this technical info on these two yammy bike.

So you don't need to follow the hundreds of pages, which is mainly junk.

You gotto ask yourself, what type of riding activities are you looking at.



1. Local ride, touring (only on highways and trunk roads), very very few maintenance, no worry when travel super long distance (1000km or above) then don't need to look back, get Diversion.



2. Local ride, touring (highways, trunk roads), offroad lover, don't mind to have more maintenance to look after, got to bring a bottle of chain lubrication along when go for super long distance. Then TDM is your choice.



General information on XJ900 Diversion

Model: Yamaha XJ 900 S Diversion

Year: 2002

Category: Sport touring



Engine/transmission

Displacement: 892.00 ccm (54.43 cubic inches)

Engine type: In-line 4

Stroke: 4

HP (kW): 89.50 (65.3) @ 8250

Torque - Nm (kgf-m / ft.lbs): 83.30 (8.5 / 61.4) @ 7000

Compression: 10.0:1

Bore x stroke: 68.5 x 60.5 mm (2.7 x 2.4 inches)

Fuel control: DOHC

Cooling system: Air

Starter system / ignition: Electronic



Physical measures

Weight (dry): 239.0 kg (526.9 pounds)

Seat height (if adjustable, lowest setting): 795 mm (31.3 inches)

Wheelbase: 1,505 mm (59.3 inches)

Overall length: 2,230 mm (87.8 inches)

Overall width: 750 mm (29.5 inches)

Overall height: 1,300 mm (51.2 inches)

Ground clearance: 130 mm (5.1 inches)



Chassis/dimensions

Front suspension travel: 140 mm (5.5 inches)

Rear suspension travel: 110 mm (4.3 inches)

Front tyre dimensions: 120/70-17 58V

Rear tyre dimensions: 130/70-18 63H

Front brake(s): Dual disc

Front brake(s) diameter: 320 mm (12.6 inches)

Rear brake(s): Single disc

Rear brake(s) diameter: 245 mm (9.6 inches)





General info on TDM 900.

Type Liquid cooled, 4-stroke, forward inclined

parallel twin cylinder, DOHC 5 valves

Displacement 897 cc

Bore and Stroke 92.0 x 67.5 mm

Compression ratio 10.4:1

Max. Power 63.4 kW (86.2 HP) @ 7,500 rpm

Max. Torque 88.8 Nm (9.1 kg-m) @ 6,000 rpm

Lubrication Dry sump

Fuel supply Electronic Fuel Injection

Clutch type Wet, multiple disc

Ignition TCI (digital)

Starting system Electric

Transmission Constant mesh, 6 speed

Final transmission Chain

Gear ratio 1 2.750

2 1.947

3 1.545

4 1.240

5 1.040

6 0.923

Primary reduction ratio 1.718

Secundary reduction ratio 2.625



CHASSIS

Frame Alumium diamond

Front suspension Telescopic fork

Rear suspension Swingarm (linked type suspension)

Front wheel travel 150 mm

Rear wheel travel 133mm

Caster angle 25.5�

Trail 114 mm

Front brake Double discs, � 298 mm

Rear brake Single disc, � 245 mm

Front tyre 120/70 ZR18M/C (59W)

Rear tyre 160/60 ZR17M/C (69W)

Rim size front 18M/C�MT3.50

Rim size rear 17M/C�MT5.00



DIMENSION

Overall length 2,180 mm

Overall width 800 mm

Overall height 1,290 mm

Seat height 825 mm

Seat length 655mm

Wheelbase 1, 485 mm

Min. ground clearance 160mm

Dry weight 190 kg

Fuel tank capacity 20 litres (reserve 3.5 litres)

Oil (tank) capacity 4.7 litres

[Scudz]

anymor endurance trip on mid december....saw Samui Team enjoying the sun there..

[jleo]

anymor endurance trip on mid december....saw Samui Team enjoying the sun there..





Well here are more pics to see...





http://www.ofoto.com



login: [email protected]

pw: 123456



*Ready by 120908 @ 0200hrs*

[tranceaddict]

Hi Tranceaddict,

Used less than a min to complie this technical info on these two yammy bike.

So you don't need to follow the hundreds of pages, which is mainly junk.

You gotto ask yourself, what type of riding activities are you looking at.



1. Local ride, touring (only on highways and trunk roads), very very few maintenance, no worry when travel super long distance (1000km or above) then don't need to look back, get Diversion.



2. Local ride, touring (highways, trunk roads), offroad lover, don't mind to have more maintenance to look after, got to bring a bottle of chain lubrication along when go for super long distance. Then TDM is your choice.



General information on XJ900 Diversion

Model: Yamaha XJ 900 S Diversion

Year: 2002

Category: Sport touring



Engine/transmission

Displacement: 892.00 ccm (54.43 cubic inches)

Engine type: In-line 4

Stroke: 4

HP (kW): 89.50 (65.3) @ 8250

Torque - Nm (kgf-m / ft.lbs): 83.30 (8.5 / 61.4) @ 7000

Compression: 10.0:1

Bore x stroke: 68.5 x 60.5 mm (2.7 x 2.4 inches)

Fuel control: DOHC

Cooling system: Air

Starter system / ignition: Electronic



Physical measures

Weight (dry): 239.0 kg (526.9 pounds)

Seat height (if adjustable, lowest setting): 795 mm (31.3 inches)

Wheelbase: 1,505 mm (59.3 inches)

Overall length: 2,230 mm (87.8 inches)

Overall width: 750 mm (29.5 inches)

Overall height: 1,300 mm (51.2 inches)

Ground clearance: 130 mm (5.1 inches)



Chassis/dimensions

Front suspension travel: 140 mm (5.5 inches)

Rear suspension travel: 110 mm (4.3 inches)

Front tyre dimensions: 120/70-17 58V

Rear tyre dimensions: 130/70-18 63H

Front brake(s): Dual disc

Front brake(s) diameter: 320 mm (12.6 inches)

Rear brake(s): Single disc

Rear brake(s) diameter: 245 mm (9.6 inches)





General info on TDM 900.

Type Liquid cooled, 4-stroke, forward inclined

parallel twin cylinder, DOHC 5 valves

Displacement 897 cc

Bore and Stroke 92.0 x 67.5 mm

Compression ratio 10.4:1

Max. Power 63.4 kW (86.2 HP) @ 7,500 rpm

Max. Torque 88.8 Nm (9.1 kg-m) @ 6,000 rpm

Lubrication Dry sump

Fuel supply Electronic Fuel Injection

Clutch type Wet, multiple disc

Ignition TCI (digital)

Starting system Electric

Transmission Constant mesh, 6 speed

Final transmission Chain

Gear ratio 1 2.750

2 1.947

3 1.545

4 1.240

5 1.040

6 0.923

Primary reduction ratio 1.718

Secundary reduction ratio 2.625



CHASSIS

Frame Alumium diamond

Front suspension Telescopic fork

Rear suspension Swingarm (linked type suspension)

Front wheel travel 150 mm

Rear wheel travel 133mm

Caster angle 25.5�

Trail 114 mm

Front brake Double discs, � 298 mm

Rear brake Single disc, � 245 mm

Front tyre 120/70 ZR18M/C (59W)

Rear tyre 160/60 ZR17M/C (69W)

Rim size front 18M/C�MT3.50

Rim size rear 17M/C�MT5.00



DIMENSION

Overall length 2,180 mm

Overall width 800 mm

Overall height 1,290 mm

Seat height 825 mm

Seat length 655mm

Wheelbase 1, 485 mm

Min. ground clearance 160mm

Dry weight 190 kg

Fuel tank capacity 20 litres (reserve 3.5 litres)

Oil (tank) capacity 4.7 litres



Thank you mctan... I appreciate your reply. If i have more questions regarding Diversion, will PM u definitely. Thank you again, you've been an helpful source... CHEERS!!!
