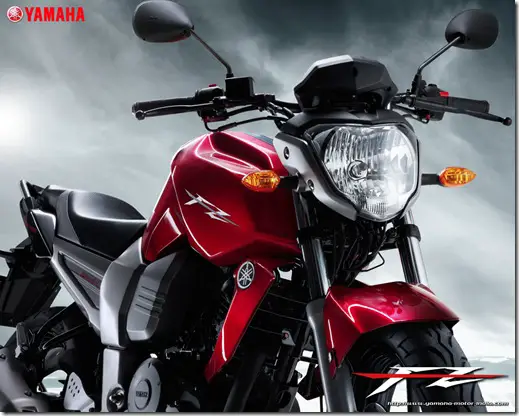

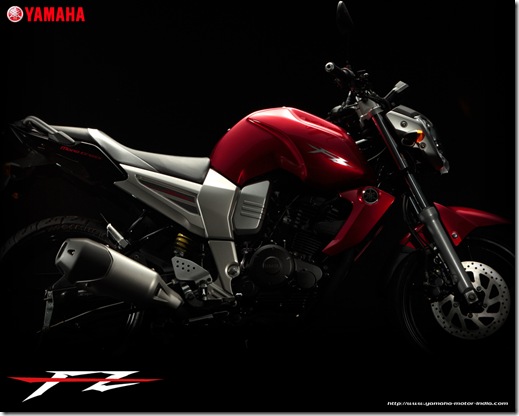

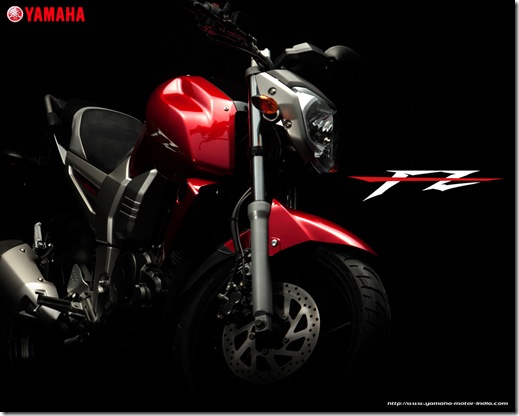

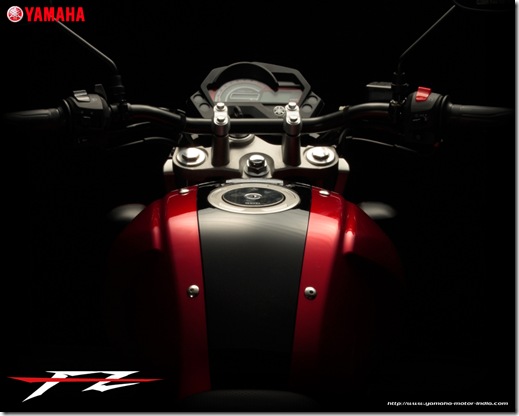

New Class2b bike from Yamaha - the FZ 16 (Lord of the Streets)



Pros

Macho and muscular look

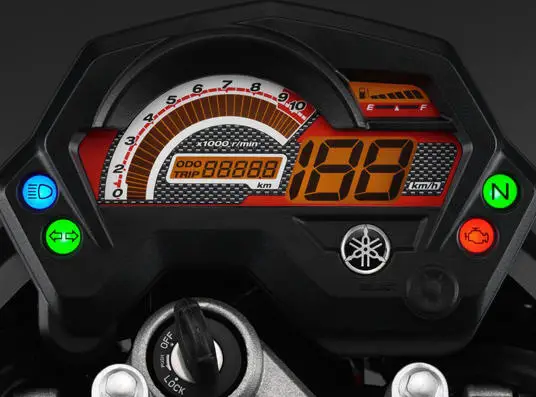

LCD meter with engine starting meter

Distinct shaped 2 layer exhaust

Front 100/80-17, Rear 140/60-R17 Tyre profile

Multi-reflector headlamp



Cons

Rear Drum Brake

No rear box bracket yet



Engine

Engine type Air-cooled, 4-stroke, SOHC, 2-valve

Displacement 153.0cc

Bore & Stroke 58.0 × 57.9mm

Compression ratio 9.5:1

Maximum output 14PS / 7500 rpm

Maximum torque 14 N.m / 6000 rpm

Starting method Electric start/Kick start (optional)

Lubrication type Electric start/Kick start (optional)

Fuel Supply BS26

Clutch type Multiplate wet type

Ignition type C.D.I. with 3 dimension digital

Primary/secondary reduction ratio 3.409 / 2.857

Transmission type Return type 5-speed

Gear ratio 1st=2.714 2nd=1.789 3rd=1.318 4th=1.045 5th=0.875

Cylinder layout Single Cylinder



Chassis

Frame type Diamond

Suspension (front/rear) Telescopic / Monocross

Wheelbase 1,335mm

Brake type(front/rear) Hydraulic single disc / drum

Tire size (front/rear) 100/80-17 / 140/60-R17

Headlight 12V35W/35W+35W



Dimensions

Overall Length × Width × Height 1,970mm × 770mm × 1,045mm

Seat height 790mm

Wheelbase 1,335mm

Minimum ground clearance 160mm

Kerb weight 135 kg

Fuel tank volume 12 liters (2.0 liters reserve)

Engine oil volume 1.2 liters







Monster Energy......CBF150........

"'Chances Favored The Prepared Mind"

"Your Ambition outweighs Your Talent!"

Link to post
Share on other sites
  • Replies 5.5k
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

wow..looks like a fz1n reali..shud name it fz16n instead...bt imho..the lcd display doesnt look dat nice..bt overall it looks good..i wonder hw much it cost otr..would it be ard fz150 price?

http://images.theage.com.au/2011/05/16/2366334/art_stoner-200x0.jpg
Link to post
Share on other sites
wow..looks like a fz1n reali..shud name it fz16n instead...bt imho..the lcd display doesnt look dat nice..bt overall it looks good..i wonder hw much it cost otr..would it be ard fz150 price?



Price range from 6250 to 6400 based on the last COE price of 1503 exclusive of insurance and IU



currently brackets for rear box is pending production.

Monster Energy......CBF150........

"'Chances Favored The Prepared Mind"

"Your Ambition outweighs Your Talent!"

Link to post
Share on other sites

Please update the price that you got for the FZ16, including freebies.



and if you mounted any rear box (if brackets are available)



anyone ask about changing the tyres to bridgestone?

Monster Energy......CBF150........

"'Chances Favored The Prepared Mind"

"Your Ambition outweighs Your Talent!"

Link to post
Share on other sites

not forgettin which shop too..hw's e mileage? any vibrations on high speed? or still runnin in cnnt test yet..hehehe



Please update the price that you got for the FZ16, including freebies.



and if you mounted any rear box (if brackets are available)



anyone ask about changing the tyres to bridgestone?

http://images.theage.com.au/2011/05/16/2366334/art_stoner-200x0.jpg
Link to post
Share on other sites

Goodday fellow riders!!.. Saw this bike and tot of buying it.. I need some feedback from fellow riders regarding the bike.. Hope any rider of fz 16 could share more of e performance.. Fuel.. Etc.. Thank you in advance! :)

2006 - 2008, Yamaha RX-Z (RIP)

2008 - 2011, Honda Super 4 Spec 2 (Divorce)

2011 - Current, Yamaha FZ16 :thumb:

Link to post
Share on other sites

Pikapika: Initial riding experience was good. Bike was smooth. But I'm still running in. Bike is at 65+km/h below 5000rpm/min. Havent got the chance to try below 7500rpm/min yet although the manual says can run engine below 7500rpm/min after the first 500km.



Alfazizou: gotten 430km before the fuel indicator starts blinking. But that was riding max below 70km/h.

Link to post
Share on other sites
Pikapika: Initial riding experience was good. Bike was smooth. But I'm still running in. Bike is at 65+km/h below 5000rpm/min. Havent got the chance to try below 7500rpm/min yet although the manual says can run engine below 7500rpm/min after the first 500km.



Alfazizou: gotten 430km before the fuel indicator starts blinking. But that was riding max below 70km/h.



bro, how many ltr of petrol u top up after 430km? may we know your weight? seems like the actual FC of the bike might be less than 40km/ltr

Monster Energy......CBF150........

"'Chances Favored The Prepared Mind"

"Your Ambition outweighs Your Talent!"

Link to post
Share on other sites

some pictures i got from another forum



fz16 with top box

Looks good with box 5/5 stars! hah!



http://img534.imageshack.us/img534/6985/maryx.jpg



accessorised fz16

http://img217.imageshack.us/img217/2285/50088438.jpg



http://i1038.photobucket.com/albums/a461/SMZEYD/Foto-0079gjm.jpg



http://desmond.yfrog.com/Himg814/scaled.php?tn=0&server=814&filename=dsc00138w.jpg&xsize=640&ysize=640



fz16 with side bag



http://sphotos.ak.fbcdn.net/hphotos-ak-ash2/hs303.ash2/58350_499795685883_811980883_7122718_1576892_n.jpg



http://img541.imageshack.us/img541/5391/temi.jpg

Edited by mrjun
Link to post
Share on other sites

RXZ(FE4**2A) - 25th Sept 2010 till 16th July 2011

125Z(FZ***3D) - 20th Aug 2011 till 16 Oct 2012

PULSAR 200NS(FBG 8**2J) - 29th Dec 2012 till present

Link to post
Share on other sites

hope the bracket in singapore will be integrated to the tail as well but i think to put side box, the rack needs to be custom made.

i was hoping the box can be mounted right above the tail light and not on top of the tail making it looks much higher.



any bro know if yamaha is bringing in the mini windshield for the fz16 instrument console

Monster Energy......CBF150........

"'Chances Favored The Prepared Mind"

"Your Ambition outweighs Your Talent!"

Link to post
Share on other sites

how much you got your bike for bro? any freebie they gave you?

Pikapika: Initial riding experience was good. Bike was smooth. But I'm still running in. Bike is at 65+km/h below 5000rpm/min. Havent got the chance to try below 7500rpm/min yet although the manual says can run engine below 7500rpm/min after the first 500km.



Alfazizou: gotten 430km before the fuel indicator starts blinking. But that was riding max below 70km/h.

speed and be home 5 mins early or 7 days late.

Link to post
Share on other sites

how much you got your bike for bro? any freebie they gave you?

Pikapika: Initial riding experience was good. Bike was smooth. But I'm still running in. Bike is at 65+km/h below 5000rpm/min. Havent got the chance to try below 7500rpm/min yet although the manual says can run engine below 7500rpm/min after the first 500km.



Alfazizou: gotten 430km before the fuel indicator starts blinking. But that was riding max below 70km/h.

speed and be home 5 mins early or 7 days late.

Link to post
Share on other sites

Hi kind to share the pick up of the bike?



Insurance for fire and theft cost $$$?



and also where the bike is build?



Thanks

2002-2003 Honda NSR sp150

2003-2004 Suzuki Bandit 400

2004-2005 Yamaha RXK 135(Classic)

2005-2007 Toyota starlet

2006-2012 Yamaha Sparks 135

2007-2009 Yamaha YZF R1 (2000 model)

2007-2010 Kia Picanto

2010-???? Nissan Sunny

2012-???? Yamaha FZ16

Link to post
Share on other sites

india made...

Hi kind to share the pick up of the bike?



Insurance for fire and theft cost $$$?



and also where the bike is build?



Thanks

speed and be home 5 mins early or 7 days late.

Link to post
Share on other sites

Tionghan: I bought mine at 6.4k without insurance. Freebies from ASP is raincoat and helmet. Hong Leong is free 3 servicing and yamaha jacket.



Brandon: insurance for fire and theft, my age (currently 19, havent 20 -.-") is 1.8k+. NTUC.

Link to post
Share on other sites

thanks dude

2002-2003 Honda NSR sp150

2003-2004 Suzuki Bandit 400

2004-2005 Yamaha RXK 135(Classic)

2005-2007 Toyota starlet

2006-2012 Yamaha Sparks 135

2007-2009 Yamaha YZF R1 (2000 model)

2007-2010 Kia Picanto

2010-???? Nissan Sunny

2012-???? Yamaha FZ16

Link to post
Share on other sites
