[Group] SBF Suzuki Raider

[7seater]

What is the purpose of the 2nd valve reed?

[7seater]

Thanks. I will try to locate. After turning into tun aminah, roughly how long more reaching the shop? Is the shop on left side ot right side of the main road in tun aminah? This will narrow my search. This car cushion shop is chinese operated?

[gunshead]

yes



from skudai highway, u turn left to aminah



then on the main road u see first traffic light

go straight

see second traffic light

go straight



look on the left

the shop Chinese man car seat is 2nd shop ; neighbor to car accessory shop





car shop

[gunshead]

PAIR is Pulsed-secondary AIR-injection System

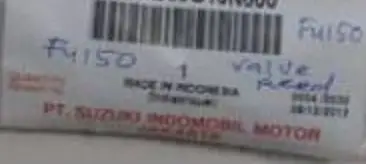

2nd valve reed is called VALVE ASSY 2ND KIT REED





This one is to trap all dirt air with bad emission into our environment

You can change this small piece by itself separately

You will see the worn out is black color means Mo2, Co2 all bad gas trapped here

This will also block fresh air enter combustion chamber therefore you will have pop pop sound when you release throttle

Just remember to change every 30,000km

Think Blue, see Green , love Earth





It is a common practice for bikers or mechanics to disable the PAIR system popping noise. yes, PAIR can be disabled easily.

Disabling the PAIR system will NOT increase performance since all of its effects are on post-combustion gasses. Disabling it will however increase the amount of hydrocarbons that YOU allow to enter the atmosphere.



PAIR system was designed to reduce the amount of raw unburnt gasoline discharged into the atmosphere.

These unburnt gasses, from motor vehicles and aircraft are one of the hydrocarbons that contribute to the greenhouse effect.

[7seater]

Thanks for the direction





yes



from skudai highway, u turn left to aminah



then on the main road u see first traffic light

go straight

see second traffic light

go straight



look on the left

the shop Chinese man car seat is 2nd shop ; neighbor to car accessory shop





car shop

[gunshead]

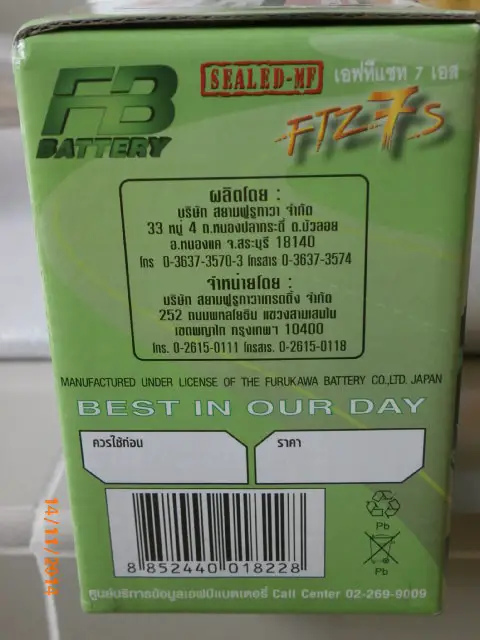

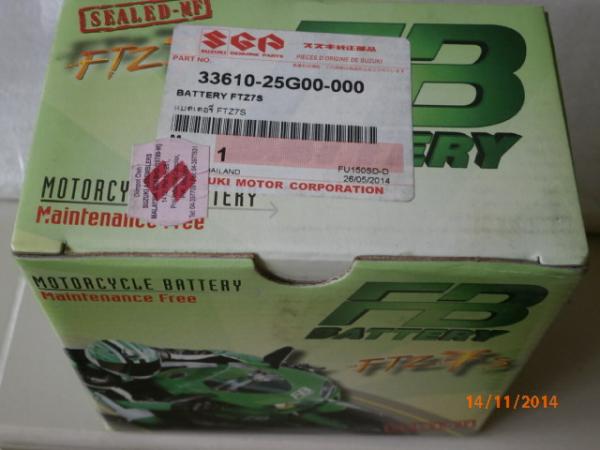

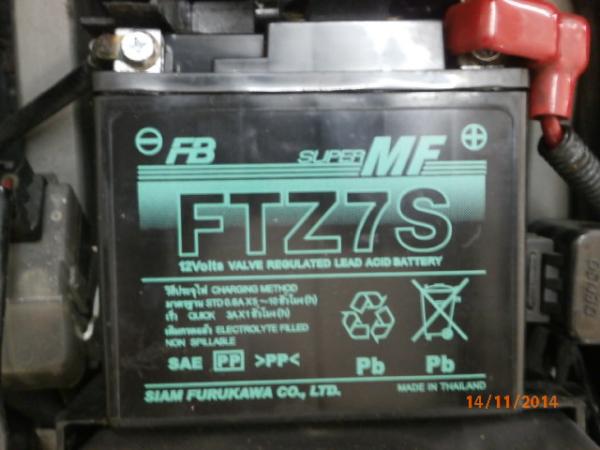

FB battery made in Thailand Suzuki SC JB original belang R

14/11/2014 meter 16km

FTZ7S

RM110



make sure fix correct battery cause it must be sleeping position approved.

[7seater]

Now my battery capacity is super small at 3.5AH. It cost me $58. No choice but to use till it weakens then change to correct type for my bike.

Edited November 16, 2014 by 7seater

[gunshead]

vicom test now front number plate cannot sticker

must use the steel type

[7seater]

Mine also sticker plate. May be affected on next inspection.

[gunshead]

http://www.suzuki.com.my/belang-r150/photogallery-belang-r150.html

[gunshead]

http://www.suzuki.com.my/news-events/promotion.html

[7seater]

Actually is there any usefulness of the bottom cowling? Will it make my bike more stable without it at high speed?

[7seater]

On Sat & Sun tried my bike with and without the bottom cowling. Without the cowling is definitely more stable ride at 130kph. So decided to keep the cowling away. Look doesn't matter much as compare to safety.



Try setting the carburetor fuel mixture to 2 & 1/4 turns. During decelerating of throttle has loud exhaust poping. Now setting at 1 & 3/4 turns. Under monitoring.

[7seater]

During free rev, will the tacho goes beyond 13K rpm for a stock bike?



Rather disappointed that my bike max speed is only 130kph. Always saw on youtube can easily reach 150kph.

[rope]

Anybody selling their raider? Or know of anybody selling a ok condition one? Wanting to get one!! Thanks...

[anodise57]

http://vishava.com/wp-content/uploads/2014/11/4-christmas-cards.gif

[gunshead]

today meter was 1339km 26/12/14

means 101,339km

changed shell R4 engine oil

[7seater]

Don't know what happened after fill up petrol in JB and my bike idle is is gone. The bike die off. Have to twist higher throttle to keep bike going. Finally, service the carb and it works fine. Sigh......



Change back to 7AH battery as the 3.5AH battery cannot make it. Cost me RM110. Cut the wrap the seat RM40. Carb servicing RM17.



Later to fix up a led spot light which is very bright.

[gunshead]

Using Ron 97 Caltex Techron

[gunshead]

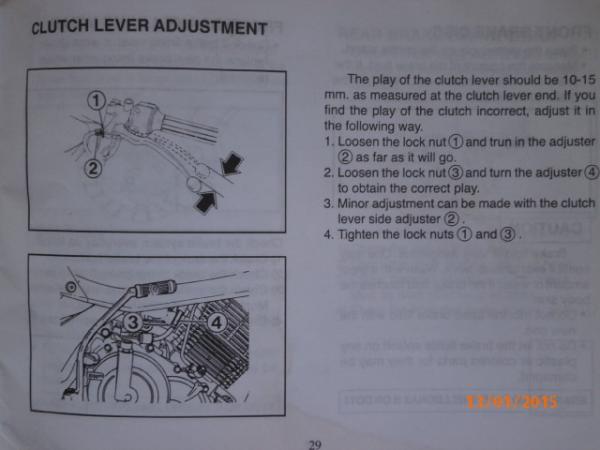

clutch lever free play

make sure less then 15mm or at 1cm only

[gunshead]

Do always check tensioner noise

if tick tick tick

better adjust or change auto tensioner asy

[7seater]

my bike tensioner seems not original as told by the suzuki mechanic. maybe need to change

[gunshead]

using ron 97 Caltex techron

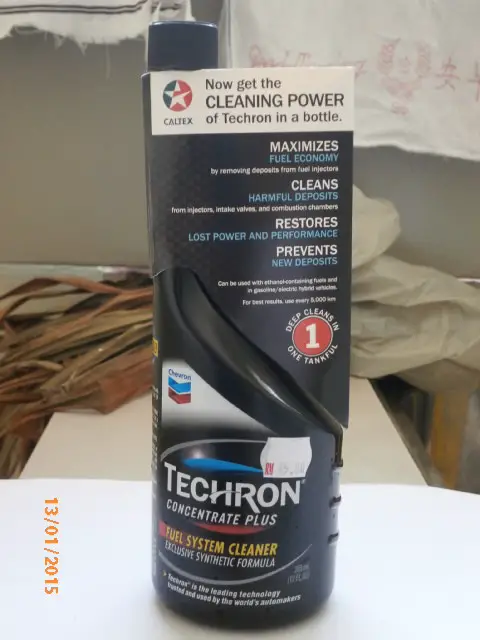

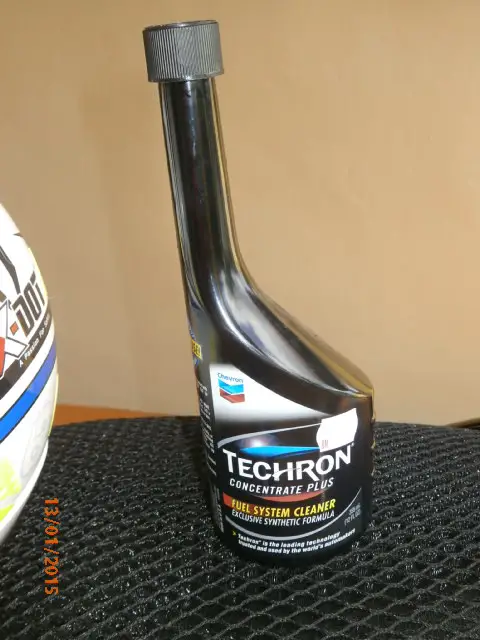

today poured in techron concentrate plus

to clean the 9 yrs old carburetor and combustion chamber DOHC

[gunshead]

7seater,



change with SC , setia tropika



I think original set comes with cam guide 1

then they open and do all in one go

rm120 is sufficient I suppose only

Edited January 23, 2015 by gunshead

[7seater]

Ok. Will arrange 1 day to visit to Suzuki at Setia Tropika
