[Group] SBF Suzuki Raider

[7seater]

Change my starter relay and now it is back to good use. Nothing mch to repair. Will fix back the cowling soon.

[gunshead]

how much , where u do, which shop name, location??

what is starter relay ? got picture?

[7seater]

Actually starter relay can be bought from Suzuki Setia. Just no more stock that day I went there. Since already in JB no choice but to ask the regular motor shop to get non original. Cost me RM68 for the relay.

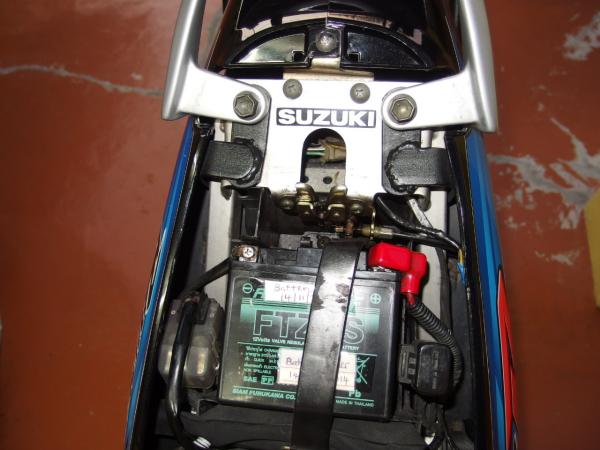

Relay is just beside the battery under the seat. It has cover wit 2 fuses. The motor shop I usually went is the next row of shops at Kang Soon spare parts shop. I can just buy parts and let them charge labour.

[7seater]

After using the 15T front gear, power at gear 1~4 is ok. But at 5~6 rather weak. Need to drop gear to push up. Now the speedo very close to cars on the road. Normal is 14T-43 sprocket is equivalent to 15T-46. Now thinking of changing the rear sprocket to 45T. I think this will give the best combination for my Raider.

[gunshead]

starter relay so costly RM 68 ?

hmm

how much is genuine Suzuki relay in setia tropika ?



I have never changed mine but wonder when it will get spoilt

how to know it is spoilt ?

[7seater]

I think Suzuki Tropika will be cheaper. The starter don't work. So you can check by using 2 wires to jump the connections direct. If the starter motor can start then it is the relay problem.

[gunshead]

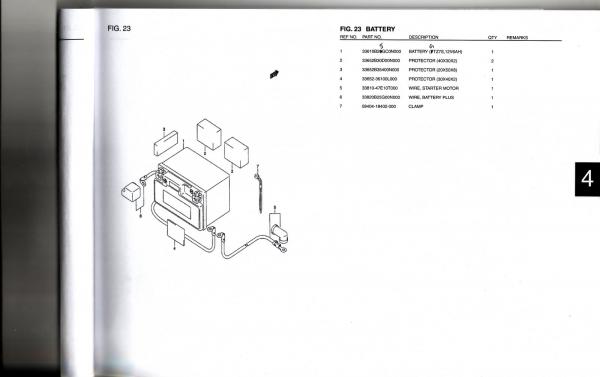

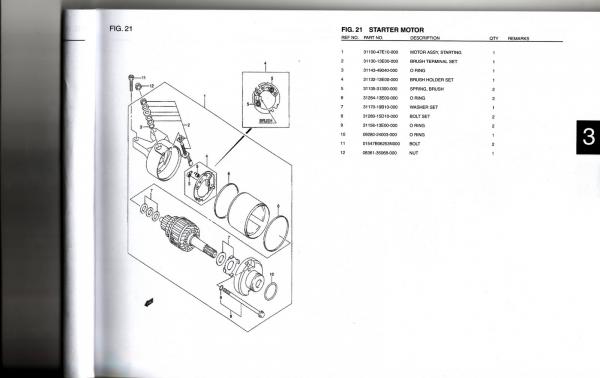

which one is starter relay can u identify

see attached

[7seater]

which one is starter relay can u identify

see attached

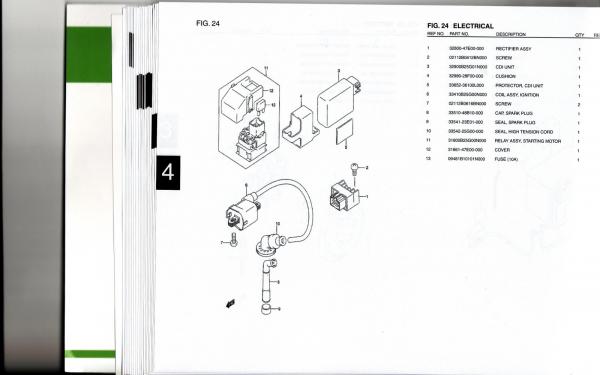

3rd picture. Item 11.

[pufferfis]

16 oct 14 change new speedometer



99999.9km hang

never spin



Suzuki did correction and new part number is

34100B25G01N000

01 means minor change

SGD65

Hi gun... U bought at sgd $65 at chong aik or at setia?

I checked at gh n chong aik both no stock but eversucess quoted me $220 for the whole speedometer with the new 01.i must be carrot face ah...haha

[gunshead]

it's true



spore price is $220 if u buy here



setia don't have our model type. Setia sell more advanced model speedo. we cannot fix it cause of ecu not same



I bought 65 dolar in batam Suzuki SIS



I ordered via batam Suzuki center and then went to collect



they will order from Jakarta Suzuki headquarters and will take 3 weeks to arrive batam

[pufferfis]

Great advice gunshead....now il have to arrange a trip to batam den 3weeks later after the item arrived to go collect it...

[gunshead]

last Tuesday saw raider FBH xxxx very shiny bike at speeding at SLE

owner wearing jumpsuit orange color



nice bike ....shiny with chromes

[gunshead]

just now

did booking with my mechanic

Monday 11am service raider R

[gunshead]

look for Miss Wendy or Mr. Richard



Roda Mas Makmur Motor



Address : Jl. Yos Sudarso 65 Sei Baloi, Batam

Phone : (0778) 421206

[gunshead]

just now did servicing

raider R



engine oil shell R4

pump tire air

[gunshead]

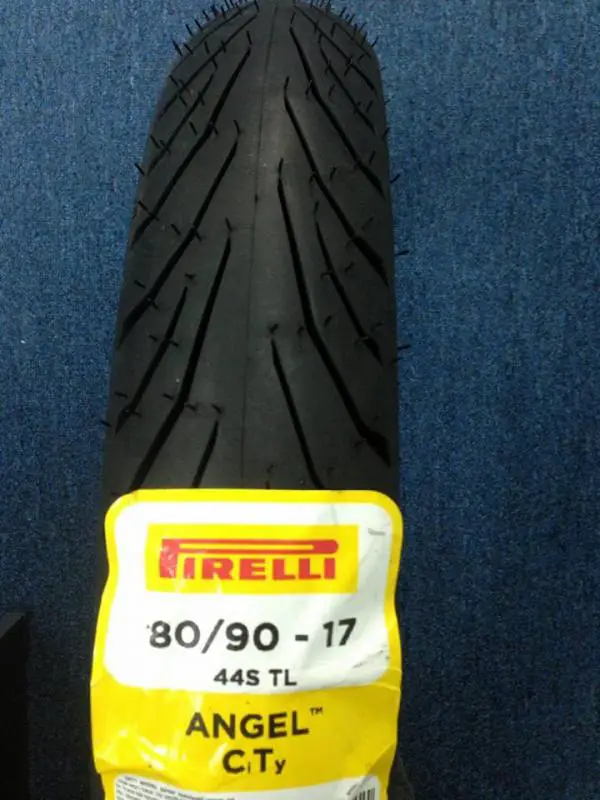

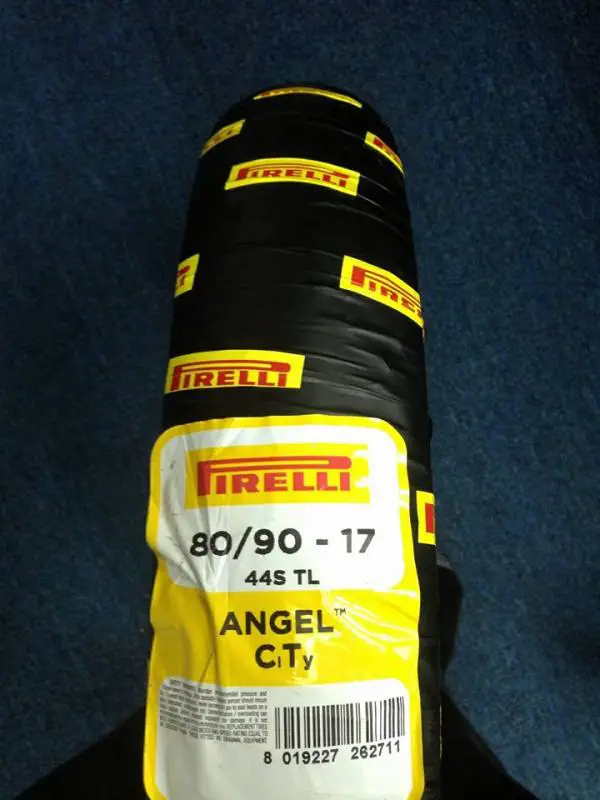

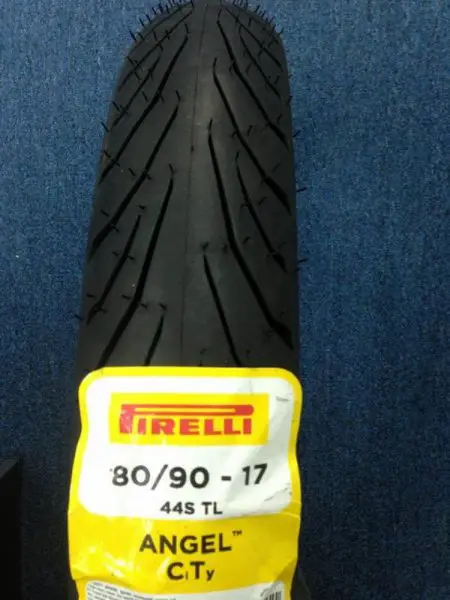

i have ordered Pirelli tires front/ rear for cub kia / cub chai



i will get on Monday 9 November

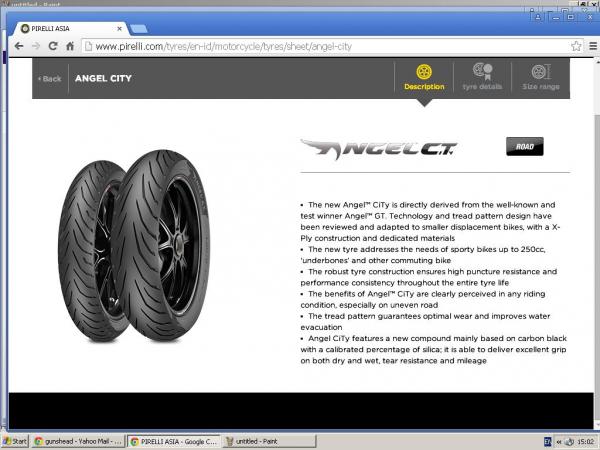

moving from michelin pilot street to pirelli angel ct

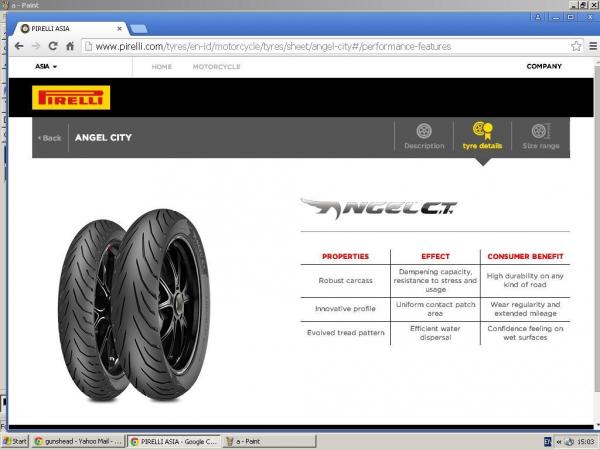

see pirelli technical and infos



http://www.bikehk.com/report/2015/r6582/?page=3&



I buy in Setia Indah spare part shop

less then RM85 each tires

contact 019-7864608 to buy from his shop



attached

[gunshead]

pirelli for us

[gunshead]

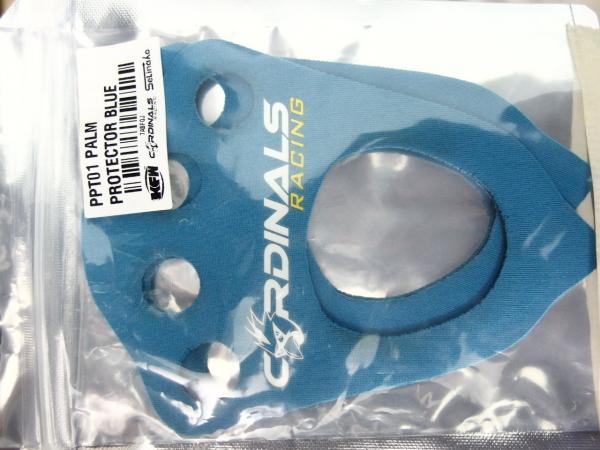

palm rest



i suggest long trip riders buy this



i ordered from KL

bank-in maybank account



RM40 + poslaju RM6



They send courier from KL



I choose light blue color

Edited December 11, 2015 by gunshead

[gunshead]

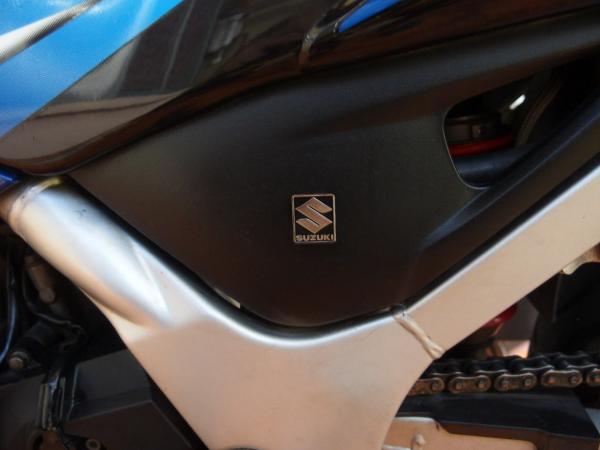

nice 4 colors on suzuki Belang R

Edited November 14, 2015 by gunshead

[gunshead]

10,520km

3/12/15



service



change engine oil shell R4

tighten chain sprocket



that's all

[pufferfis]

Thank you to gunshead for giving lots of links....interestingly suzuki raider 150 is using CR8E when reading from the manual.......which is also used in gsf400 and gsf650......which is very economical as I do not have to look or buy for other spark plug sizes or types....maybe I will try the iridium CR8EIX in the raider since I have some extras lying around if got any effect.....,....cheers...

[gunshead]

111,876km 7/1/16 Suzuki SC



1. adjust/tighten handle bar to avoid tuck tuck noise hit bonggol. After tightening it feels so good.



2. checked swingarm - ok



3. checked all cables in right position - ok

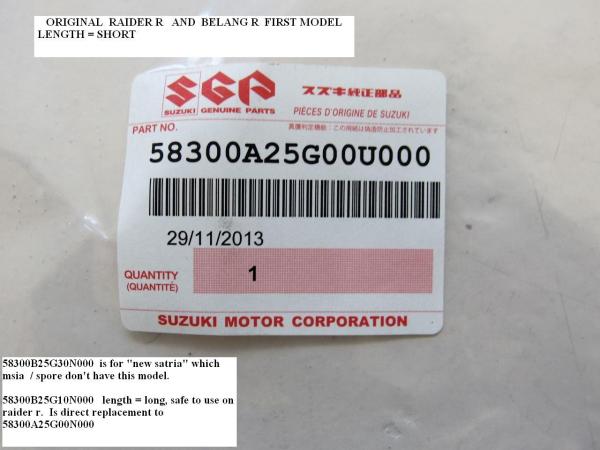

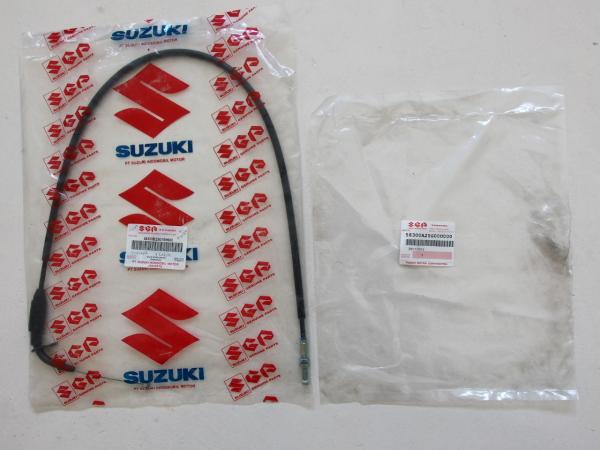

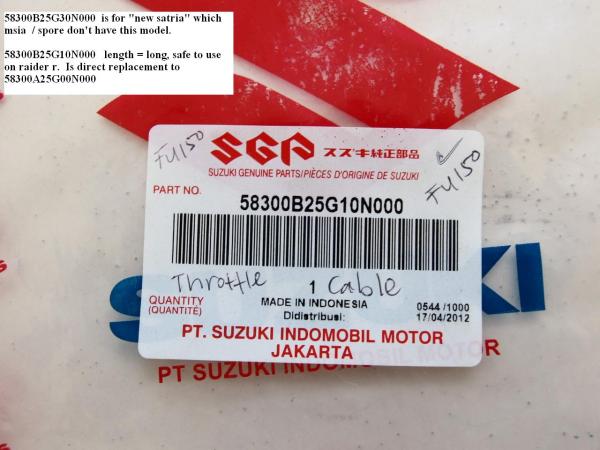

4. change cable throttle. First time doing since year Feb 2006 bought bike. Used original Raider R length = short.

RM11.70



Labour charge Rm15



In feb 2016 celebrate 10 yrs

[gunshead]

changed engine oil

shell R4 + oil filter 1180ml



wash and wax bike

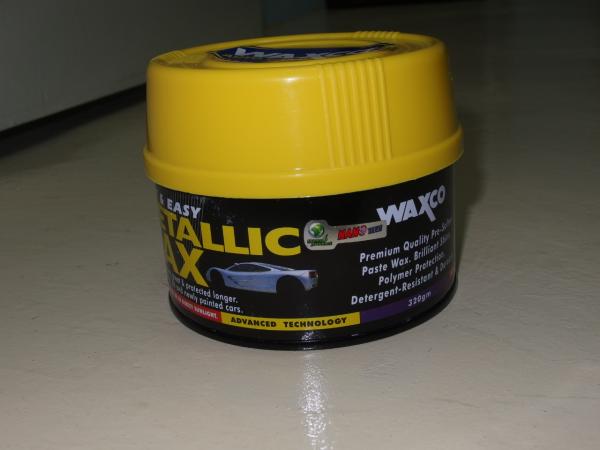

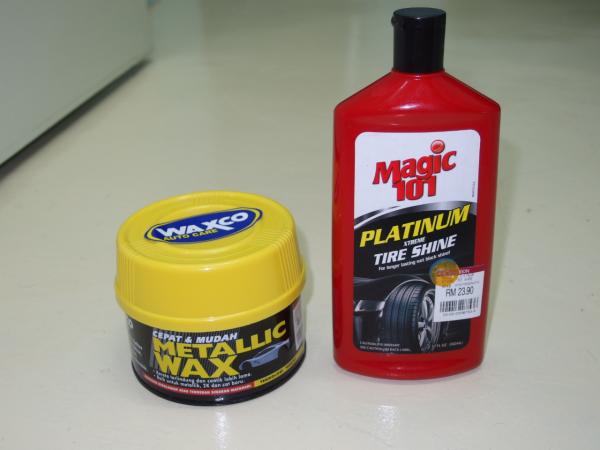

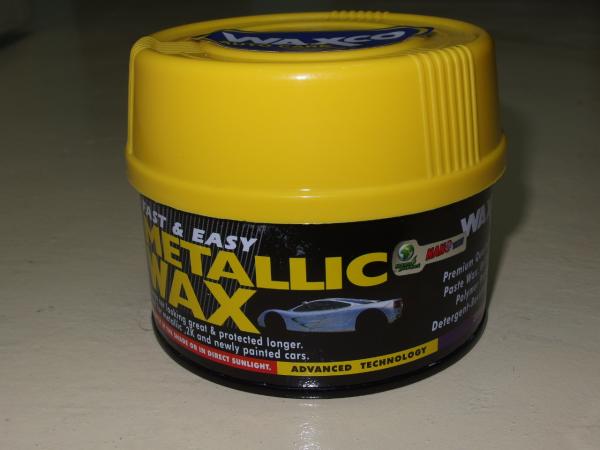

my favorite wax

[gunshead]

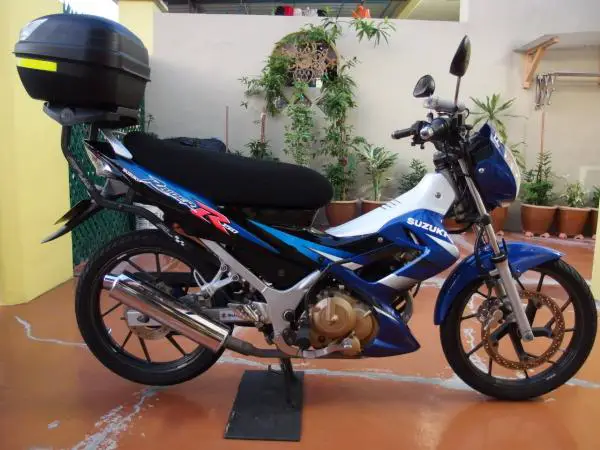

taken photos for year 2016

celebrating 10 years

[gunshead]

19 feb 2016

6pm

met accident on causeway jb towards woodlands



very sad day



raining



repaired

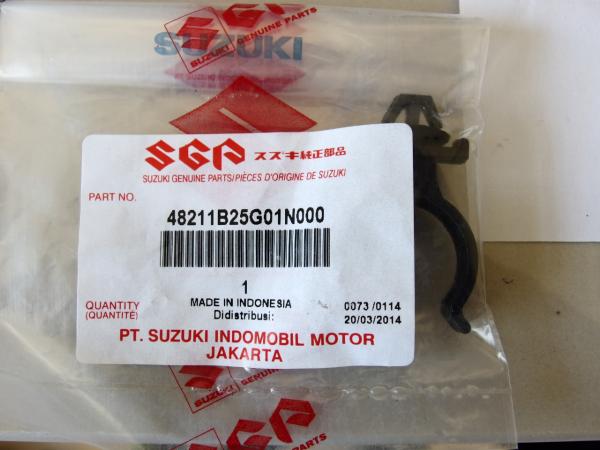

broken clip shield cowling leg 48211B25G01N - RM3.50

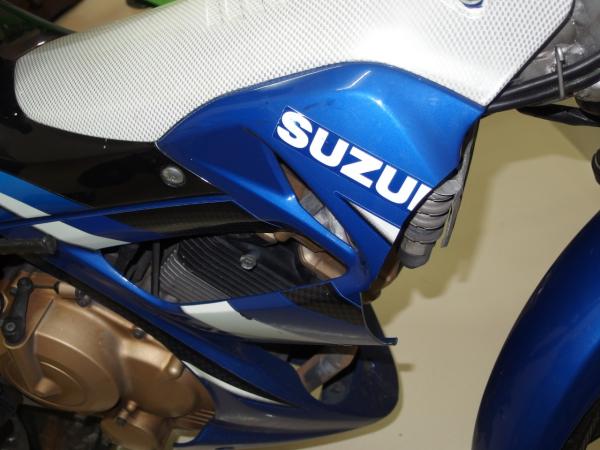

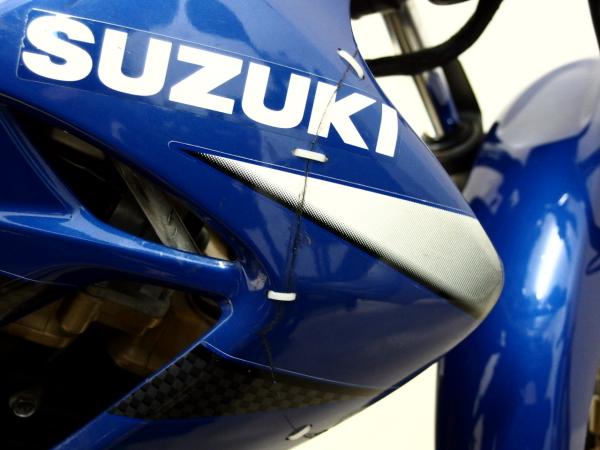

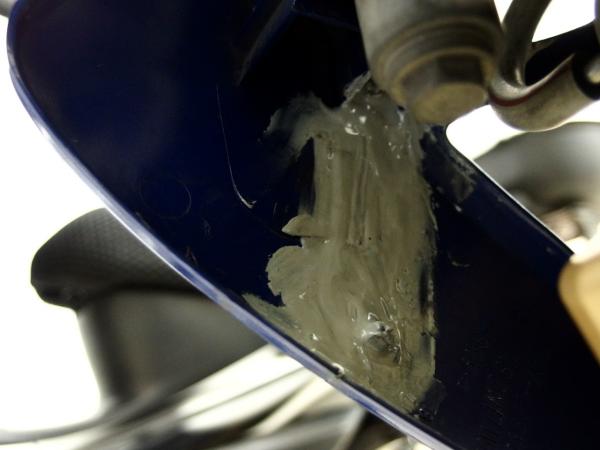

broken rhs fairing - liquid glue then fibre A+B mix glue then cable tight

loose handle - tighten

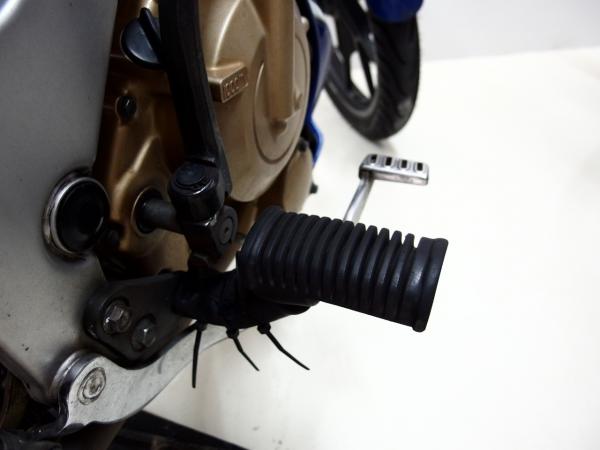

rhs footrest slanted - adjusted

Edited February 23, 2016 by gunshead
