ups for it man!!! time to look for a good spot to mount the switch.. i so far never open my headlight before.. haha..

[nuttybing]

ups for it man!!! time to look for a good spot to mount the switch.. i so far never open my headlight before.. haha..



hey jtzx, i mounted mine with the left mirror using cable ties

http://img.photobucket.com/albums/v189/nuttybing/Phantom%20TA200%20DIY/IMG_2039.jpg



haha when you open up your headlights you'll be treated to a mess of wires!

[lycan]

hmmm.. can the switch be smaller? :x

[jtzx]

hey jtzx, i mounted mine with the left mirror using cable ties

http://img.photobucket.com/albums/v189/nuttybing/Phantom%20TA200%20DIY/IMG_2039.jpg



haha when you open up your headlights you'll be treated to a mess of wires!



wow sweet.. but i intend to look for something smaller.. one big box over there not so nice lehz.. thinking of making a bracket just for the switch..



nutty u coming for the clinic right...

[devil.L]

wow, sucha big switch.. my switch is th size of th 'red thing' of your whole box.. lol.

[chuan.z]

hmm that's interesting, i asked them recently but they only show me this

http://img.photobucket.com/albums/v189/nuttybing/Phantom%20TA200%20DIY/IMG_2011.jpg

maybe my shopping power not enough haha



Ok, after some dilly-dally ding dong bell, I finally opened up the chrome cover to check on the "Super Winker Flasher" unit from LAB (sorry for the bad quality, using HP cam). It's spec'ed as "12v 8-23W x2 Max 4 PCS".



Guess you were right about the x2. Now come to think of it, what the heck is "Max 4 PCS" anyway? I thought (that time) it meant it can support max 4 pcs lights on at the same time (x4)!

[jtzx]

Ok, after some dilly-dally ding dong bell, I finally opened up the chrome cover to check on the "Super Winker Flasher" unit from LAB (sorry for the bad quality, using HP cam). It's spec'ed as "12v 8-23W x2 Max 4 PCS".



Guess you were right about the x2. Now come to think of it, what the heck is "Max 4 PCS" anyway? I thought (that time) it meant it can support max 4 pcs lights on at the same time (x4)!



you joining us??

[chuan.z]

you joining us??



Depends on timing lor...

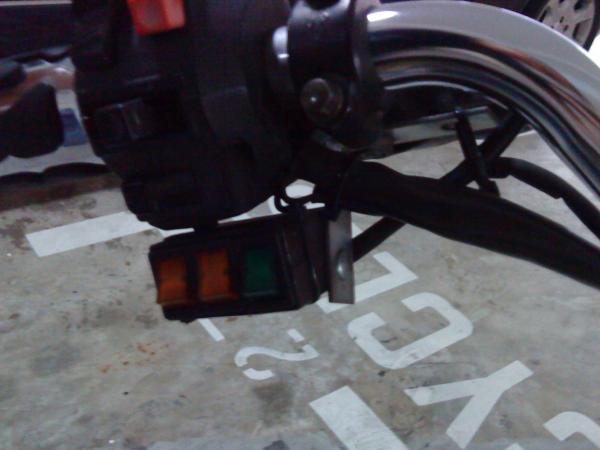

Btw, this is my DIY switch assembly. The box and switches are all bought from SLS. DIY cut and fit in the switches. Mounted using stainless steel L-bracket, tucked away nicely under the horn switch. Depending on your handlebar angle, some adjustment might be needed to make sure that the box (and L-bracket!) doesn't hit the tank when the handlebar is fully locked to the left.



On hindsight, box was too small (it's a ____ to cut!), and can't properly wire up everything (space constrain). A deeper box would have made things much easier. So far, only one switch is in use, which is the hazard light. Originally planned one for pilot light (lazy to fix!) and fog lights (idea trashed).

[jtzx]

Depends on timing lor...



Btw, this is my DIY switch assembly. The box and switches are all bought from SLS. DIY cut and fit in the switches. Mounted using stainless steel L-bracket, tucked away nicely under the horn switch. Depending on your handlebar angle, some adjustment might be needed to make sure that the box (and L-bracket!) doesn't hit the tank when the handlebar is fully locked to the left.



On hindsight, box was too small (it's a ____ to cut!), and can't properly wire up everything (space constrain). A deeper box would have made things much easier. So far, only one switch is in use, which is the hazard light. Originally planned one for pilot light (lazy to fix!) and fog lights (idea trashed).



sweet... i rougly know here to mount already... just need to look for a metal strap and drill hole machine can le.. ;-) sawed alot of example of how they mounted on le

[kmjoe]

this is my hazard light switch, but need to stretch my thumb to reach it

http://i8.photobucket.com/albums/a20/kmjoe/29122009224.jpg

[jtzx]

how u make your brackets?

[wesone3]

cable tie?

how u make your brackets?

this is my hazard light switch, but need to stretch my thumb to reach it

[nuttybing]

wow sweet.. but i intend to look for something smaller.. one big box over there not so nice lehz.. thinking of making a bracket just for the switch..



nutty u coming for the clinic right...



yup i'll be going for the clinic



Ok, after some dilly-dally ding dong bell, I finally opened up the chrome cover to check on the "Super Winker Flasher" unit from LAB (sorry for the bad quality, using HP cam). It's spec'ed as "12v 8-23W x2 Max 4 PCS".



Guess you were right about the x2. Now come to think of it, what the heck is "Max 4 PCS" anyway? I thought (that time) it meant it can support max 4 pcs lights on at the same time (x4)!



I'm not too sure about the max 4pcs thing but it seems probable to use, but don't hold me if anything wrong ah hahah



Depends on timing lor...



Btw, this is my DIY switch assembly. The box and switches are all bought from SLS. DIY cut and fit in the switches. Mounted using stainless steel L-bracket, tucked away nicely under the horn switch. Depending on your handlebar angle, some adjustment might be needed to make sure that the box (and L-bracket!) doesn't hit the tank when the handlebar is fully locked to the left.



On hindsight, box was too small (it's a ____ to cut!), and can't properly wire up everything (space constrain). A deeper box would have made things much easier. So far, only one switch is in use, which is the hazard light. Originally planned one for pilot light (lazy to fix!) and fog lights (idea trashed).



Nice placement of the switch! how did you secure your L bracket?

[jtzx]

up for hazard light!







DIY Session



Hazard Light



e.g. Nick - Bike Model



1.mepkoh - steed

2 jtzx - TA200

3 ausa

4 lycan -TA200

5 Silent Hunter - TA200

6

7

8

9

10

[kmjoe]

how u make your brackets?



cable tie + black tape



but im sure abt the details, im not the one who did this, but if its possible i can come join u guys in ur diy session n let u all explore

[chuan.z]

Nice placement of the switch! how did you secure your L bracket?



Thx... On the handlebar side, there's a bolt on the underside of the clutch lever base. Since the L-bracket is not too thick, I used that bolt to secure the bracket It's not very clear in the picture, but the inner hole of the L-bracket is where the bolt is. The loose cable tie on the outer hole is just to route the wires along with the rest of the stock cabling.

[jtzx]

so when is the date uncle koh? we getting relay from ah boy or simlim? Hope not next sat. cause i be out..

[mepkoh]

so when is the date uncle koh? we getting relay from ah boy or simlim? Hope not next sat. cause i be out..



okay .DIY on..16 jan ..saturday...

most probably will get the flashers from ah boy...

boxes, switches from sls?? and hardware bolts and nuts from hardware shop..

i was thinking...using a L bracket..secure to bike handle via hose clamps...or just simply use km joe method..just switch and cable ties..

what u think guys??

so u guys bring your own recycle wires..i have manage to salvage a 2m length from a scrap fan.



i will be buying some components to try out the brake modulation too...hahhah wonder the circuits are reliable from the net:cheeky:

[jtzx]

okay .DIY on..16 jan ..saturday...

most probably will get the flashers from ah boy...

boxes, switches from sls?? and hardware bolts and nuts from hardware shop..

i was thinking...using a L bracket..secure to bike handle via hose clamps...or just simply use km joe method..just switch and cable ties..

what u think guys??

so u guys bring your own recycle wires..i have manage to salvage a 2m length from a scrap fan.



i will be buying some components to try out the brake modulation too...hahhah wonder the circuits are reliable from the net:cheeky:





should be ok.. i intend to do another method.. saw my neighbour using that method for her fog lights... will take picture and show some days.





i will try cope some wires and soldering lead from school..



will bring along multimeter and iron also.. hopefully thats enough.. ;-)

[mepkoh]

DIY Session16 jan 2010 3 pm..



Hazard Light



e.g. Nick - Bike Model



1.mepkoh - steed

2 jtzx - TA200

3 ausa

4 lycan -TA200

5 Silent Hunter - TA200

6

7

8

9

10



max 10.....minimum 5[/

[mepkoh]

cable tie + black tape



but im sure abt the details, im not the one who did this, but if its possible i can come join u guys in ur diy session n let u all explore



is it water proof.. ?

[Silent Hunter]

I think can get the metal switch from Sim Lim Tower (Not Sim Lim Square) and cover it with a rubber cover to waterproof it.



Saw the metal switch (abit like joystick) and rubber cover there couple of months back.



Wires I got! Red & Black type.

Soldering iron I got too!

Soldering wire I have a bit also!



Anyone thinking of putting fuses in?

I want to attach mine below the chrome covers or at the gap between the keyhole and fuel tank.

[lycan]

DIY Session



16 jan 2010 3 pm



Hazard Light



e.g. Nick - Bike Model



1.mepkoh - steed

2 jtzx - TA200

3 ausa

4 lycan -TA200

5 Silent Hunter - TA200

6

7

8

9

10

[jtzx]

I think can get the metal switch from Sim Lim Tower (Not Sim Lim Square) and cover it with a rubber cover to waterproof it.



Saw the metal switch (abit like joystick) and rubber cover there couple of months back.



Wires I got! Red & Black type.

Soldering iron I got too!

Soldering wire I have a bit also!



Anyone thinking of putting fuses in?

I want to attach mine below the chrome covers or at the gap between the keyhole and fuel tank.



yes. thats the kinde switch i'm talking about. cheap and good.. We can think of where to attached it on the day itself.. Most imptly must know where to mount the switch first.
