Suzuki Hayabusa

[quizesilver]

Ok, I thought of doing this write up for those who might be interested to fabricate the GPS mount yourselves. But do take note, this is just a bar mount. You still have to purchase a cheap China made GPS mount in EBAY to complete it.



There are a total 4 items,



1) Bar beam using Dia 19mm alu rod

2) Support stem using Dia 19mm alu rod

3) Rubber expander. I got this from my original DRZ axle sider. The dimension is dia.13mm x 14mm. It has an 5mm hole in the center also.

4) A cap screw of M5x65mm and a M5 nut



I have snap a photo of the actual part with it respective drawing with dimension. I will label some dimension with numbering to explain the process needed.





First of all the Bar beam,



http://i171.photobucket.com/albums/u311/mark13x/C360_2011-10-1715-22-59.jpg

http://i171.photobucket.com/albums/u311/mark13x/C360_2011-10-1714-20-58.jpg

http://i171.photobucket.com/albums/u311/mark13x/C360_2011-10-1714-21-18.jpg





No. 1 - Use a M8.5 drill bit to drill a depth of 6mm

No. 2 - Use a M5 drill bit to drill through

No. 3 - Use a M12 drill bit or mill bit to drill this hole

No. 4 - For this step, you have to mill it



Secondly for the Support stem,



http://i171.photobucket.com/albums/u311/mark13x/C360_2011-10-1715-29-56.jpg



No. 1,2,3 - Can be done by using lathe machine



Lastly, you can start assembling all the parts and will look like this,



http://i171.photobucket.com/albums/u311/mark13x/C360_2011-10-1708-30-33.jpg

http://i171.photobucket.com/albums/u311/mark13x/C360_2011-10-1708-29-41.jpg



I hope this not confusing as I am not really good with words. I hope this will help.



nicely done, well done.

i believe you work with some machining company? got access to all these raw material ?

[kinwei]

nicely done, well done.

i believe you work with some machining company? got access to all these raw material ?



Thanks for the compliment but my workmanship still sucks. You can see if you look closeup. These machines actually belongs to my dad. He need it for his work. And usually he will have some left over material for me to recycle.

[pinetreetmh]

Just my 2 cents worth comment , I mounted my GPS using the 2 screws for the tank. I find it more secure with 2 screws mouting it.

[rocksteady]

Gd morning guys... Ride safe n have a nice day

[shahrul_azmil3]

Just my 2 cents worth comment , I mounted my GPS using the 2 screws for the tank. I find it more secure with 2 screws mouting it.



I mount there too



Sent from my GT-P1000 using Tapatalk

[nohdanial]

Hi Guys,

I'm kinda super new to this forum. Anyway, you guys got any lubang for Hayabusa end-cans?

I damaged mine in an accident a few months ago. My busa is the pearly white. 2010 model. Many thanks!

[shahrul_azmil3]

Wah so many ppl looking for end can.



Sent from my GT-P1000 using Tapatalk

[nohdanial]

Wah so many ppl looking for end can.



Sent from my GT-P1000 using Tapatalk



ya la bro..i checked stock end-can one side only 1600bucks. mati liao.

[shahrul_azmil3]

Wtf! u pipe total damage ar? Sengkwang can still repair it u know. Cheaper then buying new.



Sent from my GT-P1000 using Tapatalk

[nohdanial]

Wtf! u pipe total damage ar? Sengkwang can still repair it u know. Cheaper then buying new.



Sent from my GT-P1000 using Tapatalk

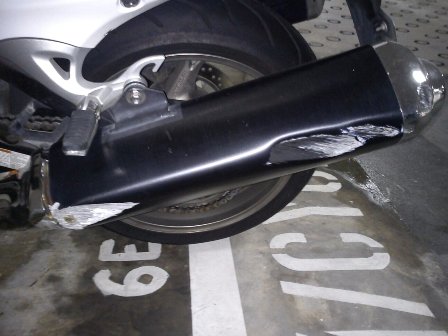

not totally damaged. but got nice scars. lol





Sengkwang can do repair? how to go there or contact the person?

[Shadowles]

Wtf! u pipe total damage ar? Sengkwang can still repair it u know. Cheaper then buying new.



Sent from my GT-P1000 using Tapatalk



Better get aftermaket ones. More worth it then repairing the stock ones... Just my 2 cents.

[shahrul_azmil3]

Better get aftermaket ones. More worth it then repairing the stock ones... Just my 2 cents.



I thought his damage cans are aftermarket ones. He can do repairs but better buy aftermarket cans lar. Anyways, ebay still cheaper to buy used if u on tight budjet.



Sent from my GT-P1000 using Tapatalk

[idun69]

I thought his damage cans are aftermarket ones. He can do repairs but better buy aftermarket cans lar. Anyways, ebay still cheaper to buy used if u on tight budjet.



Sent from my GT-P1000 using Tapatalk



Yes ebay!! I luv ebay.. Haha.. Found this for u bro nohdanial..

http://www.ebay.com/itm/08-09-SUZUKI-GSX1300-HAYABUSA-LEFT-EXHAUST-MUFFLER-OEM-STOCK-/390350112516?pt=Motorcycles_Parts_Accessories&vxp=mtr&hash=item5ae2ae0704

[shahrul_azmil3]

I too love ebay! but better dun buy any complicated parts from there. My oem replica mirrors fail me twice. Now using gsx1000 replica mirrors. Loving it.



Sent from my GT-P1000 using Tapatalk

[shahrul_azmil3]

Anyways, do u guys prefer to use a stand alone gps device or iphone/android gps device?



Sent from my GT-P1000 using Tapatalk

[MERCENARY]

Totally agree...



Not for me though,not worth the risk especially in Spore.

You wont know when your unlucky

[MERCENARY]

Just my 2 cents worth comment , I mounted my GPS using the 2 screws for the tank. I find it more secure with 2 screws mouting it.



Yeah seen it before.Upz

[MERCENARY]

Thanks for the compliment but my workmanship still sucks. You can see if you look closeup. These machines actually belongs to my dad. He need it for his work. And usually he will have some left over material for me to recycle.



Lucky you at least you dont need to source for those parts needed.Saves time and costs.

Thanks for the detail posts

[MERCENARY]

Anyways, do u guys prefer to use a stand alone gps device or iphone/android gps device?



Sent from my GT-P1000 using Tapatalk



For me with phone,lesser baggage for touring

[MERCENARY]

Just my 2 cents worth comment , I mounted my GPS using the 2 screws for the tank. I find it more secure with 2 screws mouting it.



When can we meet up to let me see your new ride?

[shahrul_azmil3]

What app do u use then? The apps i install no turn by turn feature.



Sent from my GT-P1000 using Tapatalk

[Kyon]

Where is this sengkwang? My yoshi got small dent...

[kinwei]

Anyways, do u guys prefer to use a stand alone gps device or iphone/android gps device?



Sent from my GT-P1000 using Tapatalk



Prefer phone too as usually I'll just used it to confirm my position. No point buy another stand alone GPS.

[kinwei]

Lucky you at least you dont need to source for those parts needed.Saves time and costs.

Thanks for the detail posts



True. Save me the effort.

[DRAGONSPARK135]

Hi .. Anyone looking for BMC race air filter ? Is brand new .. Outside selling $165 ..
