[Group] SBF Yamaha Spark Z & X

[bobktm2]

bobktm2,



how much in spore u did overrall bill ?



anyway, I have this sympotms and did overhaul.



Yamaha spark is famous for weak crankshaft bearing.



I did overhaul in 67,000km



If u fere to previous pages, i have included photos and full details.



For those wanna know more refer to my posting in last pages since March 2008.



i did it for $450 at 74,000km. Change a lot of internal parts



piston set

gear changer

timing chain

conrod

crankshaft bearing

tensioner

valves

clutch bush

gear starter



plus towing and plug, engine oil. now i am currently doing running in. ride 60km/h till 500km.



bike start easily but idling timing is high and irregular. should i change idle jet and main jet?

[gunshead]

Hi all



I am the same person who posted on this thread in April on my solo ride to melaka 2 days 1 night trip



september

I did again to melaka solo riding



Same bike yamaha spark z 110cc - 5 yrs old bike



My bike has spinned the meter / odometer



Now it is more then 100,000km workhorse



ok.



I went to melaka not for holiday but for eat eat eat eat eat eat eat eat eat



I did not took photos and never overnight



I went in morning and return at night.



I also bought home a lot of durian dodol and coconut dodol



below my travel agenda



speed 100km/h constant



8:55am saturday 5/9/09 depart from east spore

meter 01119



9:55am via woodlands to BHP kiosk, Pelangi, JB

meter 01151

2.39litre fill till full tank



shell 95 Pagoh

01301 3.34 litre top up



01365 reach melaka jonkers street 1:15pm



eat eat eat eat eat eat so many restaurants, pubs, outlets



later went to shop change 4t shell Rm15 engine oil



4:45pm return

1.998 litre BHP ron 95

01379 meter



01514 3.88 litre machap petronas ron 95 top up



01602 2.21 litre larkin BHP ron 95 top up before enter spore via woodlands



9:35pm 01638 reached east spore



total distance covered = 519km



end

[gunshead]

bobktm2,



wait



don't touch the carburator first



change

new plug

new air filter



and reduce the timing



because most of mechanics are real stubborn

they like to increase the petrol intake jet to increase the idling



they simply do this to show and satisfy customer that the engine is OK



demand to redo timing "air+fuel" mixture

and demand resuce timing at least like 1200rpm



don't open carburator first.





ARE ALL THE ITEMS REPLACED CARRY ORIGINAL MADE IN THAILAND SPARE PARTS FROM YAMAHA GENUINE ???





let me see ur bike first .....

[bobktm2]

bobktm2,



wait



don't touch the carburator first



change

new plug

new air filter



and reduce the timing



because most of mechanics are real stubborn

they like to increase the petrol intake jet to increase the idling



they simply do this to show and satisfy customer that the engine is OK



demand to redo timing "air+fuel" mixture

and demand resuce timing at least like 1200rpm



don't open carburator first.





ARE ALL THE ITEMS REPLACED CARRY ORIGINAL MADE IN THAILAND SPARE PARTS FROM YAMAHA GENUINE ???





let me see ur bike first .....





bro thanks for your help. my hp no is 94242621. looking forward to your assistance. i have change my air filter and plug but still having the same problem

[gunshead]

bobktm2,



cannot go above 80km/h



yamaha spark z carburator well known for this problem



mine also hit this problem at 90,000km



just change the main jet number code 105



mine is made in japan directly imported from Kuala Lumpur factory. Took 1 week to arrive to JB and then collected at the yamaha stokis

RM25 per piece in yamaha genuine with holograph packaging.



then after change main jet problem resolved.



bike fuel remains good

at 90km/h to 100km/h constant speed for 4.5 litre tank can get 1 litre 46km.

[gunshead]

My report for this year



2009 Motorcycle MAJOR repair future 100,000km service



21/1/2009 started collecting all parts for yamaha spark z



21/1/09

Xe Xing motor

Bought sparepart for clutch set:-

a). 93606-10800 PIN, DOWEL

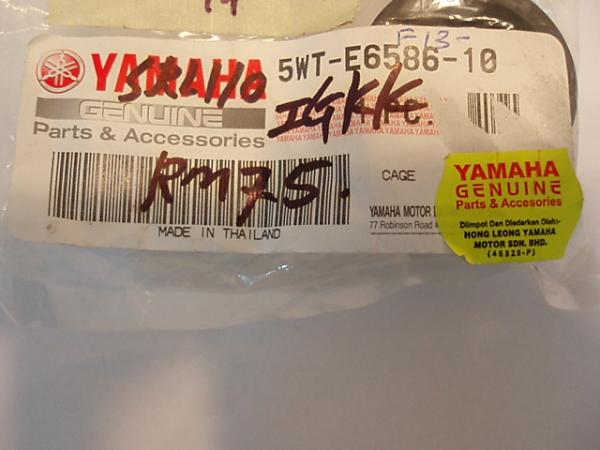

b). 5WT-56586-00 CAGE

c). 5WT-E56512-00 BOSS, CLUTCH HOUSING

total RM58



22/1/09

Singapore

5TNE6321-00 Plate, friction 5pcs SGD5.50 each = SGD 27.50



January 09

Lean Wooi

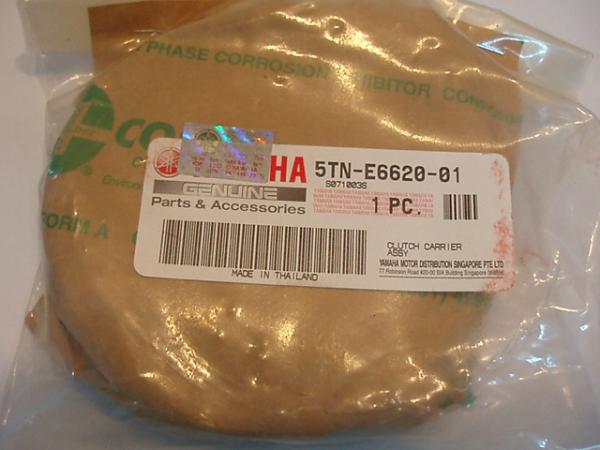

1. genuine Auto Clutch 5TN-E6620-01 = RM130

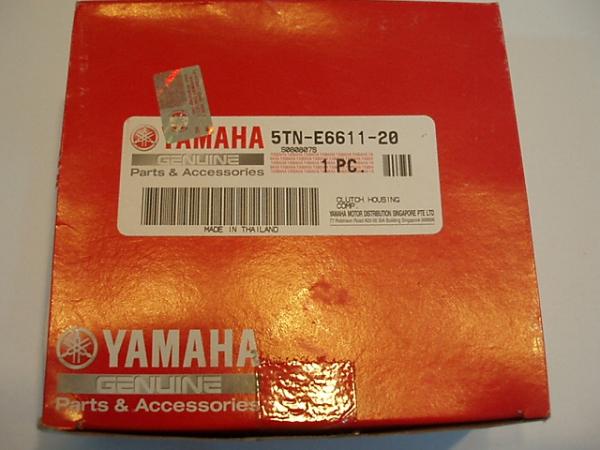

2. genuine Clutch housing 5TN-6611-20 = RM100

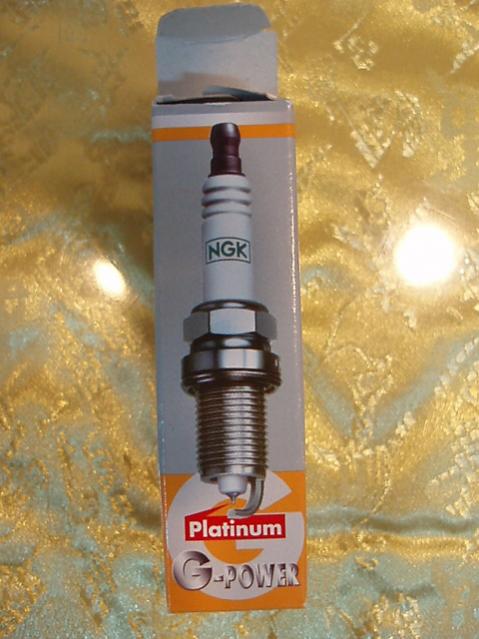

3. G-power NGK RM12.50 *2 = RM25



23/4/09

Lavender, Spore

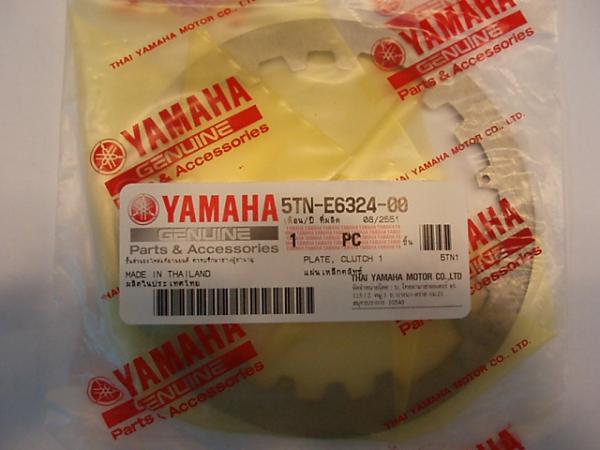

E6324-5TN-00 plate, clutch steel 3pcs SGD4 each = SGD12



13/6/09

Lean Wooi

Original Yamaha cam chain sprocket 5TN-E2176-00 =RM19.50

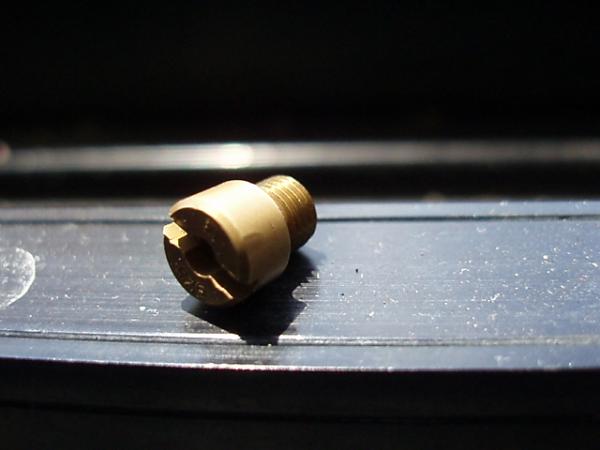

(2x) original Mikuni Carb main jet #105 made in Japan 18A-14143-21 = each RM25



June 2009

Lavender, Spore

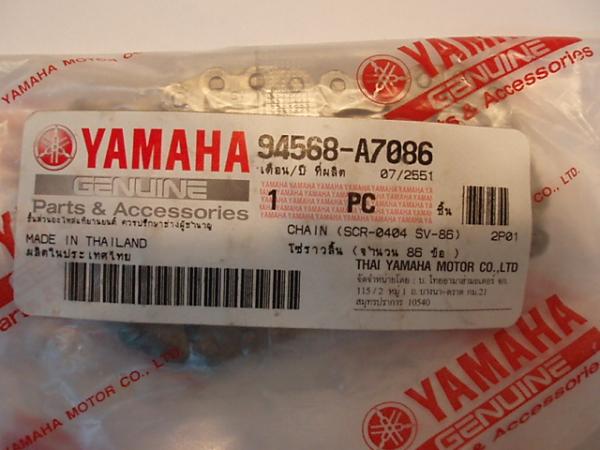

Yamaha made in Thailand Cam timing chain = SGDxx



9/7/09

Skudai

Bought sparepart for chain drive:-

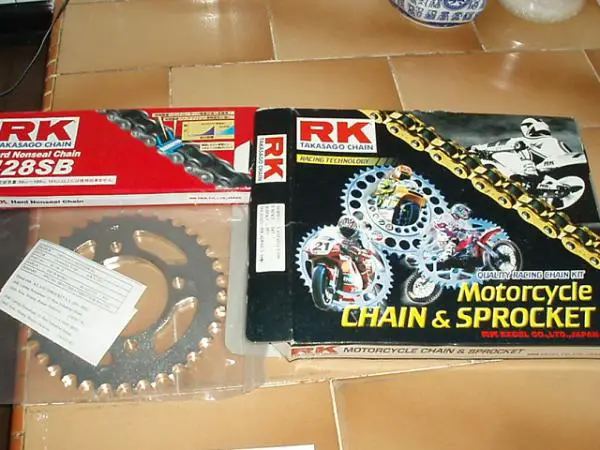

RK set chain + 35T =14T sprockets = RM48

Lube chain = RM8





15/7/09

Lean Wooi

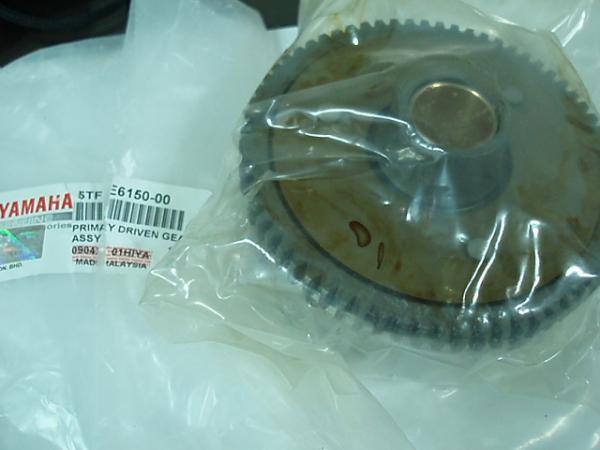

Genuine Yamaha Primary driven Gear = RM130





21/1/2009 Meter:87330

Seng Fong



1. engine oil Shell 20w-40 Rm15

2. Washed with petrol lower block engine and monitor leaking

3. Changed rubber o-ring for lower block big Nut

4. Changed front foot rest - Yamaha S100 model RM8

End



21/1/09

Xe Xing motor



Changed latest Yamaha lagenda ZR 110c original seat set 5TP-F4730-00 = RM78

End



11/3/09; Meter 90415

Perling



Changed rear brake shoe = RM15

Ordered GIVI rain shoes = RM35

Changed front fork new suspension oil

Overhaul front piston disc brake

Overhaul speedo meter gear

Changed new front disc brake = SGD8, Serangoon Rd

Labour charge = RM30

End



9/4/09; meter: 92284

bought from Lean Wooi

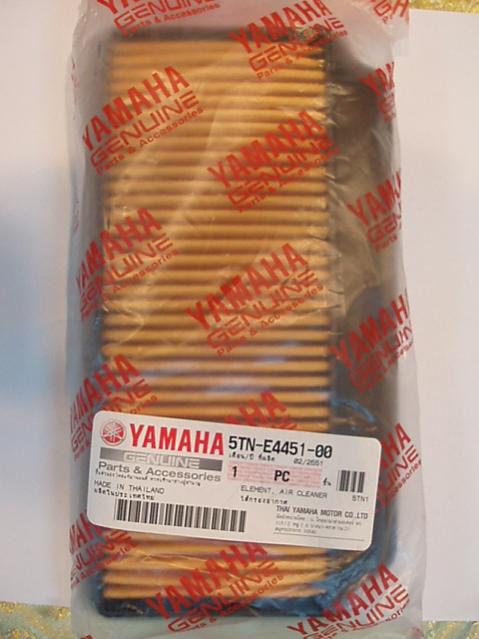

changed air filter original genuine Yamaha 5TN-E4451-00 = RM16

changed spark plug NGK G-Power original = RM12



changed shell oil RM13.50



labour charge RM2

End



18/6/09; Meter: 96030

Seng Fong



1. changed osram RHS halogen bulb – free – warranty claim

2. changed engine oil shell = RM15

3. changed dot 4 brake fluid =RM 2 labour charge

4. changed fius battery 30A = RM1

5. redo wiring for 3rd brake light GIVI box – free

End



4/7/09; Meter: 96550

Macpherson



Duro sporty tire 80/90-17 44P Made in Taiwan = SGD 55



Changed from Michelin cause O swollen one area but thread still OK. While riding and cornering it will bounce and unstable.

End



11/7/09; Meter: 97086

Perling

Foreman ‘Andy Lau’



1. Service FULL carburetor 100% changed pilot jet, m ain jet and throttle needle set – all genuine Yamaha made in Japan.

2. Cleaned 100% air filter box

3. Changed handle rubber boosh – 4pcs because handle shaking.

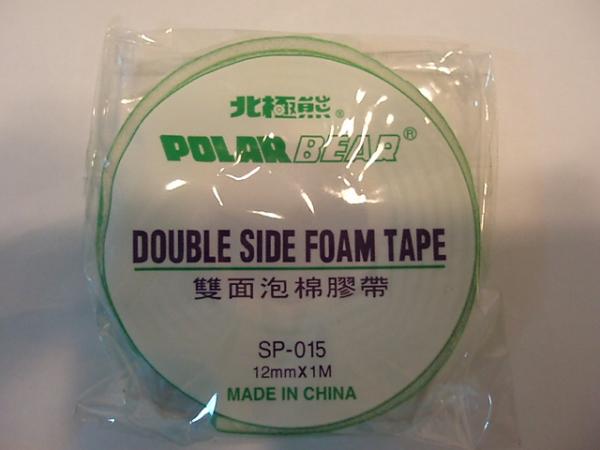

4. Redo 100% double side foam tape for cowling vibration.

Labour charge = RM15

Rubber boosh from skudai spare part shop RM5 for 6 pcs

End



12/7/09; Meter:97xxx

Xe Xing motor

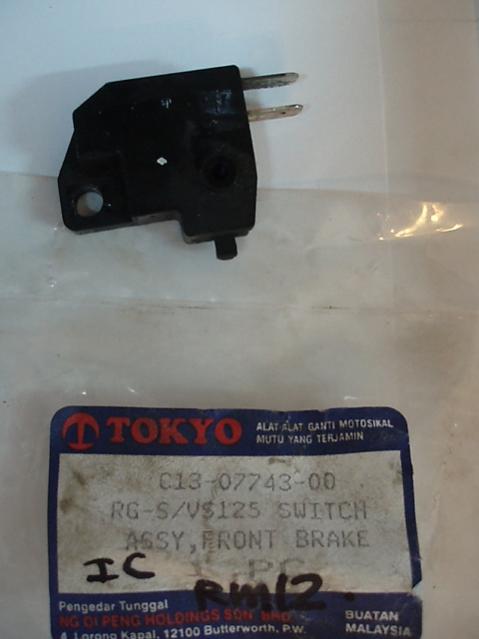

Changed front brake switch cause when press brake lever no rear brake light = RM8

End



14/7/09

After 21.000km usage of RK chain sprocket set, removed the bottom cover cause – chain tension and noisy. Kedak kedak sound.

Then on 15/7/09 rectified the noise root cause. Actually, after Mcpherson changed the Duro tire, foreman did not insert carefully the spring + brake show. The spring dropped and stuck inside brake drum. The spring bent. Brake lining gave loud squeaking and caused chain drive rear noisy. So foreman in Seng Fong, changed the spring and cleaned drum = RM2

No more chain tension. CHAIN DRIVE EXCELLENT.

End



17/7/09; Meter: 97645 - ALL CLUTCH SET.

Xe Xing motor



Exhaust gasket original Yamaha made in Japan = RM30

Clutch bowl gasket = RM5

Welding exhaust at exhaust muffler area cause got many holes

and air/smoke leaking= RM15

Painted exhaust with high temp. paint

Changed to original Stanley bulbs (2x) front headlight = RM10

Changed RHS socket bulb = RM5

Changed from Osram halogen bulb to normal Stanley bulb because of high temperature heat the bulb socket copper gets melted and got hole.



Labour charge for entire all clutch set = RM55

End



20/7/09; Meter 97880

Seng Fong

Changed timing cam chain + sprocket + gasket

Changed shell 4T oil 20w-40 = RM15

Labour charge RM25



3/8/09; meter : 99144

Seng Hoe



12:30pm till 2:30 pm



Body Screw – RM5

Yamalube API SJ, 20w-50 RM15

Labour for entire body, fairing , exhaust work = RM10



Went there after HL and Mr.Mazmin suggested.



To find out why engine roars and tremendous vibration.



mechanic tested riding and said - comes from engine “body screw “



Total 3 engine body screws removed , washed with petrol and lubricated with chasis grease.

And also removed main chasis body screw and washed and lubricated with chasis grease.



One engine body screw broke while tightening. Replaced genuine yamaha RM5



Put tyre tube inside both cowling for vibration protection.



Readjust the exhaust centre point of gasket muffler.



Retighten all nut screws, nuts and bolts.



Put rubber boosh for nut which is meant to hold both cowlings.



Cleaned air filter



Changed engine oil



Tested in TPE 120km/h - OK la



Good clean job by mechanic. Very patient and answers all questions.

Correct instruments /tools used.

He skipped his lunch to complete my bike works.



Total = RM30

End.



12/8/09; Meter 99760

Seng Hoe



Adjust tappet using gauge :-

Valve exhaust 0.24mm

Valve intake 0.28mm



Change 4T oil shell 20w-40 = RM15

Redo one more time anti vibration for cowling.

Front light adjust earth wire cause imbalance light from dual headlight.



No labour charge. All Free.

End.



25/8/09; Meter: 00187

Battery 100% spoilt. Cannot use electric start and all lighting/horn weak.



Changed SHINKYO battery dry cell at Bkt. Merah. = SGD 35



Means:

First battery from factory, Siam – liquid base last from Dec 04 till Oct 07 = 2 yrs 10 mths

Second battery dry cell, Mah Motor last from Nov 07 till Aug 09 = 1 yr 10 mths

End.



9/9/09; Meter: 01907

Seng Hoe



Checking why engine produce heavy loud noise ?



Adjusted tappet with gauge + timing chain + tensioner.

Cleaned grease from timing chain cover

Open one nut from head cam to see oil pump functioning at 2000rpm. Oil is flowing.



Finally, conclude the piston/cylinder produces noise.

But no need to change cause:-

1. no burn oil

2. no white smoke after cold start.



All free. No labour charge but I gave RM4

End



see some photos attached

[gunshead]

some more photos for my above report

[gunshead]

2/10/09

meter 03362



seng hoe



changed RK chain and sproket set

front 14T and rear 35T

clean full chain cover set.



changed air filter



changed NGK G-Power plug



changed dot 4 brake fluid



tighten front fork nut from vibration



increased height of rear twin suspension to harden



then from last week i noticed one new sound coming very loud.

foreman rectified that it is the silencer exhaust pipe has leakage and inner area broke. Cannot do welding and only can change entire exhaust pipe.



Now got two noise from bike - piston and exhaust



yamehe really sucks and pain killer to wallet.



total RM20 labour charge

[gunshead]

13/10/09

meter 039xx



seng hoe, JB



1. tighten allen screw of givi box which loosen. But this time put glue into hole to make sure it's more tight.



2. took out "main air jet" and cleaned with air and sprayed wd-40. then put into carburator. Now performance of bike is good. The air was insufficient which caused bike lags pickup.



3. put oil into throttle cable to smoothen.





yamehe really sucks and unstable ....maybe to me only



total RM3 labour charge

[tec]

Hi all



I am the same person who posted on this thread in April on my solo ride to melaka 2 days 1 night trip



september

I did again to melaka solo riding



Same bike yamaha spark z 110cc - 5 yrs old bike



My bike has spinned the meter / odometer



Now it is more then 100,000km workhorse



ok.



I went to melaka not for holiday but for eat eat eat eat eat eat eat eat eat



I did not took photos and never overnight



I went in morning and return at night.



I also bought home a lot of durian dodol and coconut dodol



below my travel agenda



speed 100km/h constant



8:55am saturday 5/9/09 depart from east spore

meter 01119



9:55am via woodlands to BHP kiosk, Pelangi, JB

meter 01151

2.39litre fill till full tank



shell 95 Pagoh

01301 3.34 litre top up



01365 reach melaka jonkers street 1:15pm



eat eat eat eat eat eat so many restaurants, pubs, outlets



later went to shop change 4t shell Rm15 engine oil



4:45pm return

1.998 litre BHP ron 95

01379 meter



01514 3.88 litre machap petronas ron 95 top up



01602 2.21 litre larkin BHP ron 95 top up before enter spore via woodlands



9:35pm 01638 reached east spore



total distance covered = 519km



end



Hi i just got a spark 110 for transport .. I was suprised u can maintain at 100km /hr coz i usually maintain at 80km .. Anything more then that my bike is Dying liao ... From ur post , U seem very knowledgable for this bike model ..

When i took over the bike , the bike sprocket is 15 / 38 .. In order to not to let the bike too stress while travelling at 80km i actually play with the sprocket ratio slowly .. Currently is using 16T front / 36T Rear . The bike dun roar so much n much better but the moving off is slightly abit weak when pillion. So was wondering if they have big bore kit n longer gear ratio like the 135cc or 125cc .. So that i can travel at a high speed n yet dun make the low end so weak coz of the gearing .. Thanks a million

[gunshead]

hello TEC,



I saw your number and message in PM (private message)



anyhow,



let me tell you about yamaha spark Z 110cc

you made wrong choice by getting this bike.



Honda wave is better

suzuki shogun or suzuki smash is the BEST



cause yamaha is weak in crankshaft.



anyway, yamaha spark z can go above 120km/h EASILY.

with my weight more then >85kg



i use sprocket ratio 14T 35T



pickup and acceleration is fantastic



i need to know your mileage and from there can give tips



otherwise bring to main road skudai, Jb

to my mechanic



he is certified specialist for all moped underbone yamaha from hong leong KL.



give him 1 hour and he can tell you the exact reasons.



otherwise meet me in east spore and let me see what you need to do first.



drop me a separate personal email - check PM

then i will send you necessary info on parts, prices, dealers, addresses, contacts, for your next perusal.

[gunshead]

29/10/09

meter:04974



seng hoe, JB



rear wheel bearing NTN made in Japan RM12 - 2 pieces = RM24



reoil into throttle cable

recheck valve tappet using gauge for 2 valves

wash rear light cover

tighten all nuts

changed engine oil shell 4T RM15



service charge RM5

[gunshead]

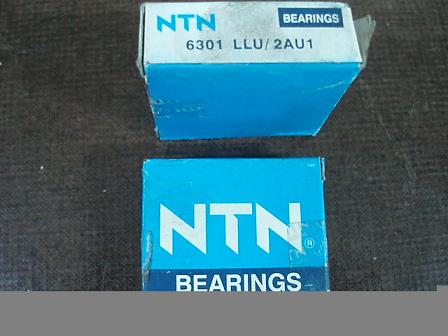

i use NTN brand

made in japan

for bearings in rear and front wheel



see photo

[Secret]

Gunshead the expert!





Hi i just got a spark 110 for transport .. I was suprised u can maintain at 100km /hr coz i usually maintain at 80km .. Anything more then that my bike is Dying liao ... From ur post , U seem very knowledgable for this bike model ..

When i took over the bike , the bike sprocket is 15 / 38 .. In order to not to let the bike too stress while travelling at 80km i actually play with the sprocket ratio slowly .. Currently is using 16T front / 36T Rear . The bike dun roar so much n much better but the moving off is slightly abit weak when pillion. So was wondering if they have big bore kit n longer gear ratio like the 135cc or 125cc .. So that i can travel at a high speed n yet dun make the low end so weak coz of the gearing .. Thanks a million

[Secret]

Bro gunshead, when u heading jb again? This time i follow u...go makan!

[Skull_Angel]

Dear Members,



Cubs BBQ 2009 -



http://i650.photobucket.com/albums/uu227/bunnyhui/Cub%20BBQ/MainPoster.jpg



http://i650.photobucket.com/albums/uu227/bunnyhui/Cub%20BBQ/Poster.jpg



Date: 12 Dec 2009 (Sat)

Venue: East Coast Park Area B Pit 1

Time: 6.00 pm Onwards

Charges: $14 Per Person

Contact: 94851530(Any Enquiry Just Ring Ring Me)



As for Parking u may park at carl jr is FREE Parking !!!

http://i650.photobucket.com/albums/uu227/bunnyhui/Cub%20BBQ/singapore.gif

The Closing date will be on 07 Dec 09.



So please transfer the money to the following account:

POSB Saving = 244-14187-0

After transfer drop me an SMS @ 94851530.



Cubs BBQ 2009





Members Going List

1.Faiz Gonzalez

2.Squarebox

3.

4.

5.

6.



Members Pending List

1. JackOHJack

2. ZoRoM

3. idn

4. SparKhai

5. Skull Angel

6. chipNdaLe

7.

8.

9.

10.

[gunshead]

secret,



email me



gunshead yahoo dot com



we will discuss over email

[gunshead]

now my bike today 23/11/09



meter 06344km

means done 106,344 km



now confirmed exhaust got one hole inside muffler and produce wierd noise

and piston shaking and makes engine roar

luckily the piston ring strong so the the oil never leak and cause white smoke and burn oil.



waaa





yamehe really ding dong

[popster]

Why does my bike got back fire.But my engine is superb smooth.no problem riding till 120.but just that the back fire always make me shock.how to solve this prob?

fyi milledge 32000km only.

[popster]

can i have the manual soft copy?

[gunshead]

popster,



manual softcopy - I have



email me gunshead at yaho com



i reply with attahcment



but for now the problem with backfire



only one solution



change plug to GENUINE PLUG means mostly all plugs have counterfeit / imitation.



so please get the genuine plug of any brand.



example u may try denso iridium

go rowell road and buy , it cost SGD 16



u will never get backfire



be happy man with denso

[popster]

orite thx bro,but my back fire is louder than those gilera with their after market pipe.sometime sound like cannon.haha

[Wildboar]

gunshead, i need to do crankshaft change, can we meet to do at malaysia

[gunshead]

u have to do your home work



first :- decide u want to buy spare part from malaysia or singapore



u do the comparison prices in ringgit and sgd



second



u want to do in skudai or larkin



difference :-

larkin - fast within 6 hours and he has all the tools and welding



skudai - he is yamaha specialist but then some things he has to deliver to outside factory for welding or mounting. may complete in a day.



start calling the spart shops shops for crankshaft availability



see attachment for spare part catalogue



Malaysia



Xing Motor Service

3, Jalan Kangkar Kecil,

Kangkar tebrau, Johor Bahru

07-3583448



HONG LEONG CORPORATION

[email protected]



Authorize Yamaha Parts Stockists



Lean Wooi Company Sdn Bhd

7 & 9 , Jalan Molek 2/3 , Taman Molek

81100 , Johor Bahru , Johor

Tel : 07-3537423





Singapore





Spare Parts Dept

HONG LEONG CORPORATION HOLDINGS PTE LTD

178 PAYA LEBAR ROAD #01-10 SINGAPORE 409030

Tel : (65) 67460415 (ext. 116)



autocycle centre

1070 serangoon road

62912515



auto machinery supply

41, rowell road

62929452



B PLUS Motorsport

227, Lavender Street

62923890



GNG Motor Trading

Ong Eng Zhuan

blk 6 defu lane 10,

#01-564

62836560, 62805065



Chong Aik International Pte Ltd

Desker rd

[email protected]



Indonesia



Susanto

Contact Center Yamaha Motor Indonesia

Jl. KRT. Radjiman Widyodiningrat (Jl. Raya Bekasi KM.23)

Pulogadung Jakarta Timur

Telp.021-2457-5555 / 461-8000 (Hunting)

Fax. 021-4616995

E-mail:[email protected]

_LAGENDA_110_JUPITERZ-2004_5TP4-5TP5_.pdf

Edited December 17, 2009 by gunshead

[gunshead]

18/12/09

skudai, JB

07345 meter



1. changed 4t oil shell

2. reverse absorber. Put absorber to reverse original position and some drilling, grinding and modification on give rack as well

3. flushed to new brake fluid caltex dot 4



total : RM 10 service charge

Edited December 19, 2009 by gunshead
