[Technical] Queries for TA200

[kmjoe]

Hahaha... sorry lah! I'm more of a practical person so theory I blur blur lah! Maybe got to open up and have a look, hahaha... like wad Bikee always say "got screws means can open!", hahaha....



yup, thats the way! make sure u got plenty of time and patient to fix back after that thou

[icearmour]

just saw some leak directly under the side stand for my phantom today morning....it's a minor leak, since had left in car park since yday.....what do u think it's guys???

[pureice68]

just saw some leak directly under the side stand for my phantom today morning....it's a minor leak, since had left in car park since yday.....what do u think it's guys???



Monitor it for a couple more days(park in diff spots) and if it's still leaking, go get it fixed.

[pureice68]

yup, thats the way! make sure u got plenty of time and patient to fix back after that thou



Yalah, anyway, if we gonna do that, we'll have Dr Chong standing by! Hahaha....

[pureice68]

could it be chain lub??



Oh, he fix up the ezzyoiler too? Cool!

[kmjoe]

just saw some leak directly under the side stand for my phantom today morning....it's a minor leak, since had left in car park since yday.....what do u think it's guys???



if u have the oiler it might be frm it... if not beware of ur eo or petrol leaking

[icearmour]

no not chain lube...don't have oiler installed...probably will go see bike shop today afternoon....its small quantity only, pretty sure it's from my bike..

[icearmour]

issue was engine oil leak due to gasket problem. replaced it from unique for 45$..changed engine oil as well...this time amsoil, will post review after few days..

[kadir.v]

a reed valve is a spring operated rubber valve...something like a one way valve..

during the intake stage the valve opens and when the intake valve ( at th engine ) closes..

the reed valve closes..this opening and closing of reed valve is actuated by pressure diffrences..

so in the case of bike engines..this prevent what is known as blow back or flash back of gases from the combustion chamber. the result of the reed valve failure is a oily air filter..

now u know why sometimes the air filter is so oily



thanks ezzy... this may be a different valve. it is after the carubrettor and located below the fuel tank. the thing is, after changing this, there is no back-fire.

what is the reason for the backfire?



also, related question on carb tuning.

- a screw on the left hand side on the carb. slightly difficult to get to [ i know the screw for idling adjustment in on the RHS].

-if i turn this screw clock-wise and will that result in a leaner mix or a rich mix?

- also, for optimum mix, should i set it halfway? [i turn fully from one direction; count the no. of turns, then turn it back to half the number of total turns]

[jeffrey83]

Fellows here,



I need help! Wondering if i wan to change engine oil myself, which tool should I use to Open up the nut to drain the oil??? Pls advise is it one of those tool in our ta200 tools kit? For example, the spanner number I should use. Pls help urgently.



Thank you!



Regards

[Silent Hunter]

Yes, actually there is only 1 spanner that can fit the hole. The spanner the shape abit funny looking one, so very hard to get the wrong one.

[jeffrey83]

Yes, actually there is only 1 spanner that can fit the hole. The spanner the shape abit funny looking one, so very hard to get the wrong one.



Hi silent hunter, thanks for quick response.



The spanner is it one of those in our ta200 tools kit?

And if I put my motor on side stand to change , is it fine？？

[pureice68]

Hi silent hunter, thanks for quick response.



The spanner is it one of those in our ta200 tools kit?

And if I put my motor on side stand to change , is it fine？？



The spanner is in the tool kit and yes, you have to side stand it to change the EO. Maybe you can read up more from Phantom TA200: How to DIY Guide(with Pics) Updated! 13/12/09 http://www.singaporebikes.com/forums/showthread.php?t=244355, for more info. Cheers!

[Shunpo]

holy blahblah! something new happened to me again~~



This time round my speedometer stopped functioning =.="

I had not been riding for the past few days, last known activities is removing some covers from my bike to diy spray.



I realised my speedometer isn't working when I wanted to ride to SSDC to register for Class 3 .



Hmm, if I never did wrongly, I figured out that the speedometer cables and such is actually located at the left side, under the oval chrome cover, am I right?



Is there any solutions or DIY methods to check out what's wrong with it? Like cable loose, wire short or speedo spoilt?





Thanks once again all the lao jiao(s)~ I am pretty problematic with my bike xD

[Silent Hunter]

holy blahblah! something new happened to me again~~



This time round my speedometer stopped functioning =.="

I had not been riding for the past few days, last known activities is removing some covers from my bike to diy spray.



I realised my speedometer isn't working when I wanted to ride to SSDC to register for Class 3 .



Hmm, if I never did wrongly, I figured out that the speedometer cables and such is actually located at the left side, under the oval chrome cover, am I right?



Is there any solutions or DIY methods to check out what's wrong with it? Like cable loose, wire short or speedo spoilt?





Thanks once again all the lao jiao(s)~ I am pretty problematic with my bike xD



Check if loosen first, then if loosen just DIY tighten ok already.



I once went all the way to Planet to replace my speedo cable only to find out that the cable was loosen and about to come off that's why cannot register the speed. Luckily Ah Chong let me refund because the cable haven't fixed on.



If you see it's really snapped then got to buy a new one.

[Shunpo]

Okie.



How to see if its loose somewhere ? Like any places to check ?

I tried pulling here and there and nothing seemed not connected. Still very nub to these technical stuffs =x

[hamsterwhale]

see ur front wheel...there is a cable routed all the way to the front fork, diameter ard 5mm...now u see it already? dismantle the 2 screws holding it...once u manage to take out the screw u can pull off the cable...



so cable pulled out already right? u'll see that the end u pull out has exposed the flat head, now give the flat head a pull away from the protective cover, if u can pull it out, it means the cable has broken.. so that is ur cause of non working speedo.



if u cant pull, that means the other end of the speedo cable has dropped out from the speedo casing...

[Shunpo]

went down to take a look just now.

found the cable on the wheel. then I pull, the other end totally not connected lols..



Anyway, I didnt bring along my bike keys to try out, so not sure if it's still working ,

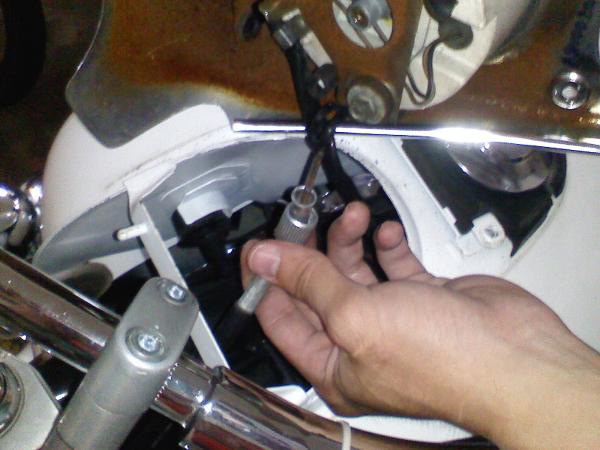

but I took a picture of it.



is the end of the cable like this? some metal wire with a square shape cross section??

does mine looked normal ? or is this considered snapped?



and sorry for the influx of rust underneath the casing =X

Edited August 3, 2010 by Shunpo

[kmjoe]

jus, jus insert it into the hole at the back of ur speedo den tighten the round cap like thingy, pliers wld b recommended than jus finger power... it might jus come off loose agin

[Shunpo]

hmm, fitted the cable end into the speedo. but still speedo isnt working .

cable doesnt seemed to be broken within either =X



later pull everything out and see again. if really spoilt means tml ah chong visit

[Silent Hunter]

What about the other end of the cable, the end connected near the wheel?

Maybe BOTH ends loose?



And if you want to test very easy, hold the wire in your hand like in your pic, then push the bike a few meters, if you can see the wire flat head rotate, that means the cable inside is ok.



If not then either the cable other end is loose as well or the inside snapped, so cannot connect to rotate.

[marthurfarker]

hi everyone,



my ta200 when pillion people have no power. even when it reached 90km/h it feel like 50-60km/h. This happen after i went the shop to change the engine oil. does this have to do with the eo?

[pureice68]

Any idea which EO you changed to?

[Shunpo]

What about the other end of the cable, the end connected near the wheel?

Maybe BOTH ends loose?



And if you want to test very easy, hold the wire in your hand like in your pic, then push the bike a few meters, if you can see the wire flat head rotate, that means the cable inside is ok.



If not then either the cable other end is loose as well or the inside snapped, so cannot connect to rotate.





Went to take a look again. I checked the end at the wheel , nothing wrong with it, works fine. I did the test that you suggested, and the wire head does rotate.



Mine wire head is a little rusty, any possibility that it affects the rotating mechanism within the speedo socket?



If not , and if the wire is considered working condition through these tests, what are the other possible problems of the speedo not working?



speedo itself spoilt?



Anyway, slightly at the bottom right hand side of the speedo, there is this L shaped rubber tubing. Is it supposed to be connected to anything?

[kzone]

even when it reached 90km/h it feel like 50-60km/h.



errr... isnt dat good? actual speed 90 but travelling smoothly with little vibration? mine when it reaches 90km/h feels like going at 150km/h
