[Technical] Queries for TA200

[sawfly]

thanks bro, ill get it fix asap.

btw kinda curious how does a cluth plate looks like? haha. where does it reside in the engine?

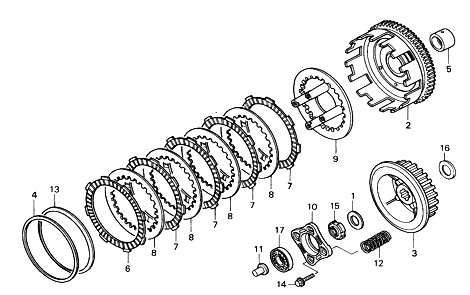

see the attached image.. they are a series of alternating plates of friction material plates (parts 6 and 7) and metal plates (parts 8)but the ones u will be replacing will be the friction plates that would be worn..



u can look at the below video for your own interest..



[sawfly]

double post

[projectyc]

thank you sawfly! this sure is an interesting video. called koon, so hopefully he's free today to help me change! thank you once again!

see the attached image.. [ATTACH=CONFIG]268649[/ATTACH] they are a series of alternating plates of friction material plates (parts 6 and 7) and metal plates (parts 8)but the ones u will be replacing will be the friction plates that would be worn..



u can look at the below video for your own interest..



[sawfly]

thank you sawfly! this sure is an interesting video. called koon, so hopefully he's free today to help me change! thank you once again!



no prob! hopefully its only a clutch issue for you! =D

[projectyc]

ya man, today the sound get noiser even at 80km/h! couldntt take it anymore and rode to ah koon place to leave bike for him to inspect.

*faint*

no prob! hopefully its only a clutch issue for you! =D

[sawfly]

ya man, today the sound get noiser even at 80km/h! couldntt take it anymore and rode to ah koon place to leave bike for him to inspect.

*faint*

at least you've decided to turn it in... LOL do update on the outcome!

[Silent Hunter]

Hi guys,



i've 3 questions on my mind not sure if anyone can answer:



1. Recently i've removed my spark plug to check to see what was the problem behind losing power, and i found that the one corner of the spark plug insulator was burnt off and some of the white stuff even got on the bent part of the electrode.



[ATTACH=CONFIG]268510[/ATTACH]



can someone comment on whether is due to an over lean condition or improper gapping of my spark plug before installation?



2. which is the air fuel mixture screw i should adjust below, A or B?

i've been trying to adjust screw A to adjust my carb.

[ATTACH=CONFIG]268511[/ATTACH]



3. i've been adjusting screw A (as referenced above in question 2) and it decreases in idling when i turn it clockwise and increases in idling when i turn it anticlockwise, either way from the original setting.



does this original setting means that it was too lean or too rich? if it was too rich, does the damage on spark plug make sense?



thanks in advance for giving your opinions on this!!



Turn the screw in = Richer, engine goes slower

Turn out the screw = Leaner, engine goes faster



Stock setting = 1/2 way. Just turn the screw out all the way, until it drops out, then screw it back in all the way, counting the number of turns for Phantom should be around 12-13 turns. After that, turn out 1/2 way which is 6 rounds.

[sawfly]

Turn the screw in = Richer, engine goes slower

Turn out the screw = Leaner, engine goes faster



Stock setting = 1/2 way. Just turn the screw out all the way, until it drops out, then screw it back in all the way, counting the number of turns for Phantom should be around 12-13 turns. After that, turn out 1/2 way which is 6 rounds.



so i assume i got the correct screw (screw A)? that means i was running rich all along? if so how come my insulator so white and it even burnt off? isnt it supposed to be lean condition?

[projectyc]

at least you've decided to turn it in... LOL do update on the outcome!



got back my phantom from koon today,

changed clutch plate, clutch pressure plate and the metal plate inside.

Koon say the previous mechanic didnt installed the original plate inside and the clutch plate were quite worn.

The ride back home was smooth, bike feels more power and can easily hit 80/90km with gear 5.

but still got some small vibration ringss at high speed maybe but not coming from the engine area.

[naim]

got back my phantom from koon today,

changed clutch plate, clutch pressure plate and the metal plate inside.

Koon say the previous mechanic didnt installed the original plate inside and the clutch plate were quite worn.

The ride back home was smooth, bike feels more power and can easily hit 80/90km with gear 5.

but still got some small vibration ringss at high speed maybe but not coming from the engine area.



dats good to hear. aiya old bike like this cfm got lots of rattling la. some screw or cover loose pretty normal. unless its a really loud knock or rattle sound la. otherwise, just enjoy the ride!

[projectyc]

dats good to hear. aiya old bike like this cfm got lots of rattling la. some screw or cover loose pretty normal. unless its a really loud knock or rattle sound la. otherwise, just enjoy the ride!

yup, haha! loving the phantom!

[sawfly]

yup, haha! loving the phantom!

good to hear! hopefully yr fc up level! =D

[osxunix]

eh. mxtrading.com not working leh.. ill oil change myself once i find the correct size spanner for my drain plug.. its bigger than 22'!



and if the oil flow so slow at room temp, isnt it going to take a longer time for the engine to warm up with a slower flow rate through the oil pump?



the front rating would be a trade off i guess.. and i think im turning this thread into eo discussion sia..







looks good.. where u got it from?



Sorry for the late reply got it from the shop at geyland lor 41.

[tthiang]

got back my phantom from koon today,

changed clutch plate, clutch pressure plate and the metal plate inside.

Koon say the previous mechanic didnt installed the original plate inside and the clutch plate were quite worn.

The ride back home was smooth, bike feels more power and can easily hit 80/90km with gear 5.

but still got some small vibration ringss at high speed maybe but not coming from the engine area.



Happy for you.

[tthiang]

Dear All,



Last Sat, I tried to open the cover for the front sproket but I noticed the top screw is "faulty", I only able to unscrew the bottom one. Anyone know if I can get the top screw removed and replaced? Pls kindly advice. Thank you.

[naim]

Dear All,



Last Sat, I tried to open the cover for the front sproket but I noticed the top screw is "faulty", I only able to unscrew the bottom one. Anyone know if I can get the top screw removed and replaced? Pls kindly advice. Thank you.



Define faulty? The head stripped?

[tthiang]

Define faulty? The head stripped?



The tools I used could not properly locked in the nut properly... When I unscrewed, the tools could not "grip" the nut properly

[naim]

The tools I used could not properly locked in the nut properly... When I unscrewed, the tools could not "grip" the nut properly



means rounded alr. go to bike shop as them to remove and replace the bolt.

[tthiang]

means rounded alr. go to bike shop as them to remove and replace the bolt.



Thanks bro, me going to uncle chong there soon.

[Silent Hunter]

so i assume i got the correct screw (screw A)? that means i was running rich all along? if so how come my insulator so white and it even burnt off? isnt it supposed to be lean condition?



You test test lor, screw it in more and ride for a few days, then see if the spark plug changes to light brown.

[sawfly]

You test test lor, screw it in more and ride for a few days, then see if the spark plug changes to light brown.



thanks for your answer on this!! my broken insulator where the electrode is exposed turns black and the intact one turned lightly brown after screwing it in screw A! guess it was running rich all along!



given the hot weather nowadays though, would you adjust it when its hot during the day or at night? i felt the difference as usually ride in early morning or late night 11+pm.. den suddenly engine runs fierce and "dry" when i decide to venture out in the afternn time!

[projectyc]

im gettin about 28.8L/km for Msia shell 97,

26L/km for shell 95

26.5l/km for Esso 5000

I ride quite hard, usually go ride about 100-129 at expressway.

any idea whats the problem? couldnt seems to hit 30-33L/km =(

good to hear! hopefully yr fc up level! =D

[naim]

im gettin about 28.8L/km for Msia shell 97,

26L/km for shell 95

26.5l/km for Esso 5000

I ride quite hard, usually go ride about 100-129 at expressway.

any idea whats the problem? couldnt seems to hit 30-33L/km =(



Dats still bad. I was close to 100kg wif 3 boxes and ride the same way u do. Yet i can still get 33km/l. Something is nt right. I suspect cud be ur carb either dirty or nt tuned properly.

[sawfly]

Dats still bad. I was close to 100kg wif 3 boxes and ride the same way u do. Yet i can still get 33km/l. Something is nt right. I suspect cud be ur carb either dirty or nt tuned properly.



I agree with naim.. just for comparison sake I get consistently 34km/l with either shell 95 or v power. . but of cos I ride at 90-100kmh usually when i weigh 65kg.. on days with heavy city traffic conditions I hit 33km/l..



or maybe the way we measure different? I divide distance travel from last fuel top up, with amount of fuel to top up to full tank at the next fill up.. usually before reserve at 300-320km mark.



Sent from my GT-I9300 using Tapatalk 2

[projectyc]

carb not tune properly is refering to the screw driver thingy?

ya i divided with the distance travelled with the amount topped up.



Dats still bad. I was close to 100kg wif 3 boxes and ride the same way u do. Yet i can still get 33km/l. Something is nt right. I suspect cud be ur carb either dirty or nt tuned properly.
