Kawasaki Fury or Athlete 125

[geekster]

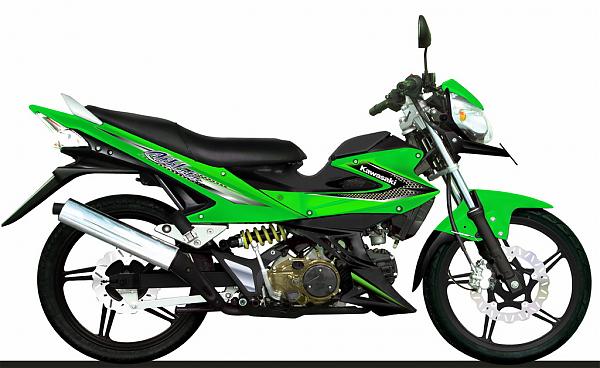

New cub from Kawasaki. Check out the sporty monoshock. Not sure if the Kawa agent will bring it here though.

[stroker]

Looks inspired by the very popular (in Thailand) Honda Sonic.

[Kwijibo]

i sense that the fuel tank is not under its seat ... hmmm .. it can only translate in a bigger capacity tank more conventionally placed ...

[helL-rider]

where to check itz specs n details ?looks cool:lovestruck:

[kawasakininja]

where to check itz specs n details ?looks cool:lovestruck:



thinkin of changing away ur cub

[dinie]

looks more to me like an artist's rendition.. no offence.

[SparkerS1]

haha, if kawasaki come out this bike, its gotta be a fast cub

[allenkey]

the design looks kind of weird, theres a 'hump' infront of the seat... wonder wat is tat?

[Metal Gear]

i sense that the fuel tank is not under its seat ... hmmm .. it can only translate in a bigger capacity tank more conventionally placed ...

Yea looks like it could be a tank. Wonder what the specs will be. It looks like Kawa's alternative to the Raider and the Sonic to me.

[geekster]

looks more to me like an artist's rendition.. no offence.



Think it has been released in Indonesia. Kawa Philippines has released it too but under a different name. Maybe can ask our Indon or filipino friends if any. My guess is Malaysia will release it under the Modenas flag as its a kawa subsudiary there. Not sure about singapore though. Parallel import might be a solution.

[Guest Valarie]

Kawasaki bikes of all CC are meant to be fast. Its a fact of Kawasaki. This cute cub will be a fast bike. Sonic cannot be compared with this superb Kawasaki Cub. Its a fact that Kawasaki only produce modest but super fast bikes.From the screaming KRR that dominate 2B class to their muscular class 2bikes, u wont know that a NINJA had just dash passed u.

[759]

i like the rear monoshock man... like scrambler sia. haha

[chua6389]

Found the informations........



Its call the Kawasaki Fury or Athlete 125



http://www.kawasaki-motor.co.id/product/athlete%20main.jpg

http://www.kawasaki-motor.co.id/product/feature%20athlete%20engine.jpghttp://www.kawasaki-motor.co.id/product/feature%20athlete%20front%20fuel.jpghttp://www.kawasaki-motor.co.id/product/feature%20athlete%20monoshock.jpghttp://www.kawasaki-motor.co.id/product/feature%20athlete%20discbrake.jpghttp://www.kawasaki-motor.co.id/product/feature%20athlete%20speedometer.jpg



TECHNICAL SPECIFICATION



Machine type: 4-step valve SOHC 2

Cilinder number of cc : 124.6cc

Diameter x Step: 56 x 50.6mm

Comparison of Compression: 9.8: 1

Maximum power: 9.9 PS/8000 rpm

Maximum Torque: 8.6 Nm/6000 rpm

Carburettor: Keihin PB18

Starter Starter system: Kick Starter & Electric Starter

Transmission types: Type Rotari

Number of transmission: 4-speed

Pattern transfer Tooth: N-1-2-3-4-N (Rotary)

Gear Type Final Reduction System: Gear

Gear ratio Ke1 3,000 (36/12)

Ke2 1,938 (31/16)

Ke3 1,350 (27/20)

Ke4 1,087 (25/23)

Final Drive System: Chain Drive

Overall drive ratio: 9634 @ TopGear

Ignition system: DC-CDI

Lubricant system: Forced Lubrication

Filter oil system: DFLS (Double Filter Lubrication System)

Lubricant capacity: 1.1 liter

Type of machine oil: API SE, SG, or SF / SAE

Spark plug : NGK C6HSA

Type: Full Frame

Front: Teleskopik - Fork

Back Suspension: Swing Arm Monoshock

Length x width x height: 1,920 x 695 x 970 mm

Distance axis Wheel: 1.240mm

Seat height: 150mm

Julur Depan : 280mm Home back: 280mm

Julur Belakang : 400mm Back back: 400mm

Maximum weight: 104 kg

Front brake: hydraulic, single disc, 2 piston caliper

Back brake: hydraulic, single disc, 2 piston caliper

Tank Capacity: 5.2 liter

Baggage capacity: 4.5 liter

Handle Bar length: 6.95mm

Turn the Corner Bar Handle: 42.5 ⁰

Dimension Front Tire: 70/90-17

Dimensions: Rear Tire 80/90-17

Front 2.50-17 4PR

Rear 2.75-17 4PR

Wheel rim: Cast Aluminum Alloy Wheel

Saat Pembukaan Katup : When Opening Valves:

Inlet:

Open: 20 ⁰ before TMA

Closed: 60 ⁰ after TMB

Duration: 260 ⁰

Exhaust : Exhaust:

Open: 55 ⁰ before TMA

Closed: 25 ⁰ after TMB

Duration: 260 ⁰

Electricity:

Battery: 12V5 AH

Lights

Type: Semi Sealed beam

Head lamp: 12V (18/18W) X2

Brake light / brake: 12V (5/18W)

Alternator:

Type: Outer rotor

Average output: 1.6A/16V @ 6000rpm

When ignition: From 10 ⁰ before the TMA @ 1,200 rpm up to 31.5 ⁰ before the TMA @ 4500 rpm

Color: Black metallic, Lime Green, Blue metallic



Design wise for the bike is abit different......



Found alot of videos on the bike on youtube, check it out:thumb:

[chua6389]

More pictures......



http://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00044.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00047.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00049.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00057.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00050.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00052.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00053.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00059.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00061.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00054.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00067.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00069.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00066.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00055.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00056.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00063.jpghttp://i302.photobucket.com/albums/nn98/phat_17_bucket/DSC00060.jpg

[chua6389]

The fuel tank, Ubox and speedometer......





http://i125.photobucket.com/albums/p44/artmat/08-05-08_0915.jpghttp://i125.photobucket.com/albums/p44/artmat/08-05-08_0916.jpghttp://i250.photobucket.com/albums/gg243/snake_eye08/img387.jpghttp://i125.photobucket.com/albums/p44/artmat/08-05-08_0911.jpg

[hitman]

is it available in SG?

[hitman]

Kawasaki bikes of all CC are meant to be fast. Its a fact of Kawasaki. This cute cub will be a fast bike. Sonic cannot be compared with this superb Kawasaki Cub. Its a fact that Kawasaki only produce modest but super fast bikes.From the screaming KRR that dominate 2B class to their muscular class 2bikes, u wont know that a NINJA had just dash passed u.



Kawasaki spokesman.

[danielsin2]

From the screaming KRR that dominate 2B class



hmmmmmm... o_O o_O o_O o_O

[gloves2ali]

nice bike... front like naked bike, back like cubs.. haha.. seems like its really fast...

[darren_soh86]

hmmmmmm... o_O o_O o_O o_O



wahahaha.. pengz~ super confident KRRs dominate the 2Bs..

[aStRoBo]

some pics show the rear with disc brakes, but some pics drum. confusing..

[krazyfist]

yeah..really look like sonic

the rear tailight look like x1...

[mcke]

so, is this available locally?

[Blahhh]

Looks like a cub with good handling and speed.. something like the raider. I loike!
